What am I missing here? (Rear brake cabling)
05-03-21, 04:49 PM
#1
bill nyecycles
Thread Starter
Join Date: Mar 2013
Location: Houston TX
Posts: 3,328
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 789 Post(s)
Liked 350 Times
in
190 Posts
What am I missing here? (Rear brake cabling)
Re-cabling this old Specialized HardRock and I’m having a conundrum with this rear brake cable as it goes from the cable stop behind the head tube to the cable guide on the seat post collar (cantilever brakes).
The cable stop behind the head tube is clearly designed to not include a cable continuing along the top tube toward the back because it’s rounded off with no insertion point.
I put the little rubber bumpers on the bare cable to avoid it scratching the top tube, but when the cable gets to the cable guide at the seat post it brings the cable out all far from the frame it looks odd and the bumpers don’t even touch it.
I’m not sure if I remember pulling off some sort of housing from there during tear down but maybe I did? Even if there was how would it also not float out there given the angle of the cable guide entry point on the seat collar?

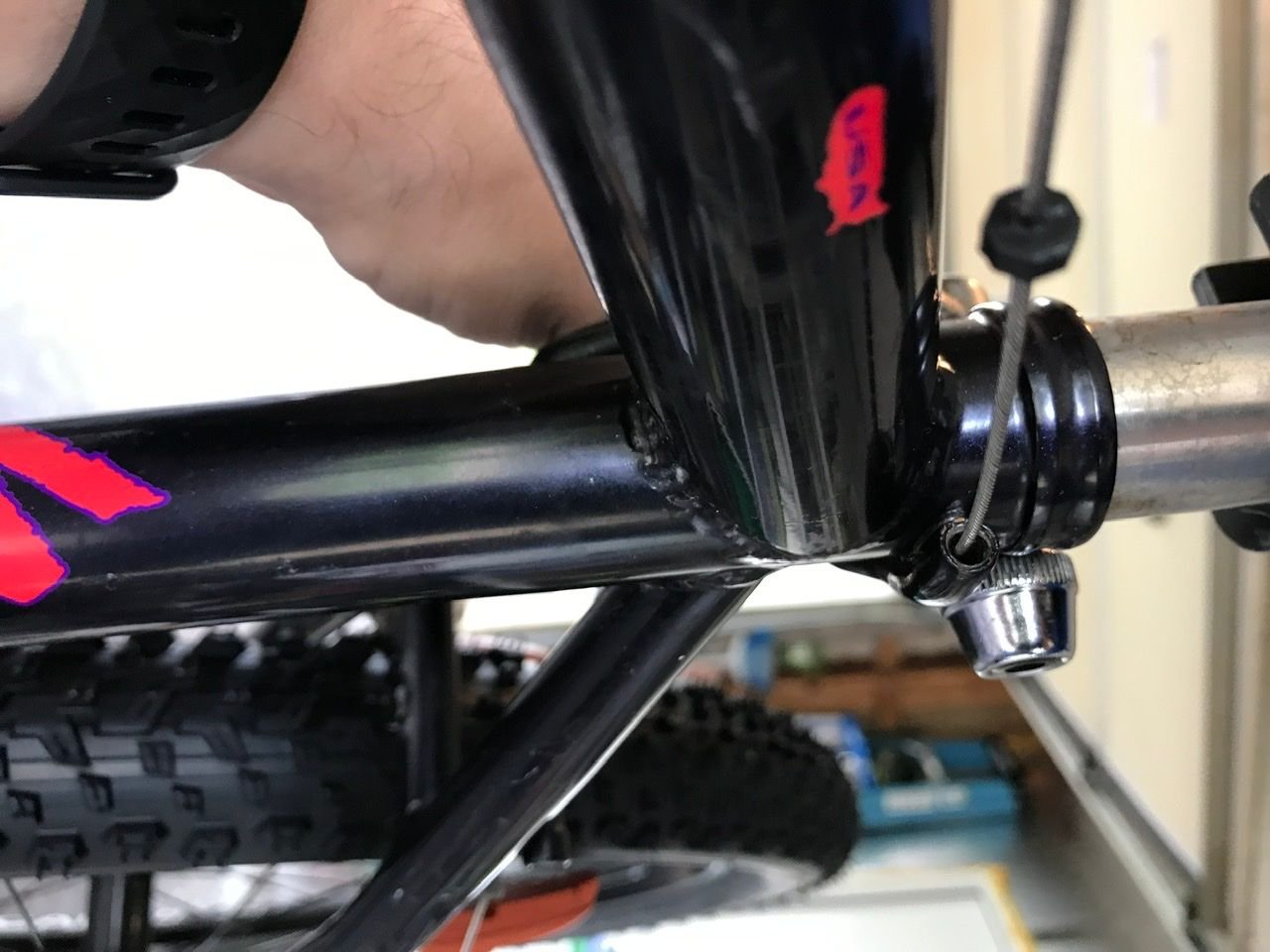

Heres some pics:
Maybe someday the forum software will learn how to accept portrait oriented phone pics- sorry they are sideways...
The cable stop behind the head tube is clearly designed to not include a cable continuing along the top tube toward the back because it’s rounded off with no insertion point.
I put the little rubber bumpers on the bare cable to avoid it scratching the top tube, but when the cable gets to the cable guide at the seat post it brings the cable out all far from the frame it looks odd and the bumpers don’t even touch it.
I’m not sure if I remember pulling off some sort of housing from there during tear down but maybe I did? Even if there was how would it also not float out there given the angle of the cable guide entry point on the seat collar?
Heres some pics:
Maybe someday the forum software will learn how to accept portrait oriented phone pics- sorry they are sideways...
05-03-21, 05:27 PM
#2
Senior Member
Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,767
Bikes: lots
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1958 Post(s)
Liked 2,932 Times
in
1,489 Posts
That's the way it works.
Likes For the sci guy:
05-03-21, 06:06 PM
#4
Mad bike riding scientist
Join Date: Nov 2004
Location: Denver, CO
Posts: 27,341
Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones
Mentioned: 152 Post(s)
Tagged: 1 Thread(s)
Quoted: 6200 Post(s)
Liked 4,201 Times
in
2,357 Posts
As others have said, the cable just goes through the tube that is welded to the frame and straight to the hanger. There’s no other stop. It’s not a bad feature but it will be a pain if you ever want to put on linear brakes.
