Best tool for Shimano external bottom brackets

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Best tool for Shimano external bottom brackets

Old 06-22-21, 03:30 PM
  #1
nathand
Senior Member
Thread Starter

Join Date: Jun 2020
Location: San Francisco, CA
Posts: 84

Bikes: 2018 Jamis Renegade Exploit, 1996 Trek 930, mid-90's Dean El Diente, 2010 Scott Addict SL, 1998 Trek 730

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 40 Times in 28 Posts
Best tool for Shimano external bottom brackets

What's the best tool for servicing Shimano external bottom brackets (Hollowtech II) and installing centerlock disc rotors that use the same spline pattern? Looking at either Shimano's tools (TL-FC32 and TL-FC16) or the Park tool that combines those (BBT-9). Similar cost either way. The Park tool goes all the way around which might be more secure but also means you can't tighten a BB without removing the crank. Any opinions or suggestions on similar tools I should consider instead?
nathand is offline
Old 06-22-21, 03:47 PM
  #2
Rolla
Gyro Captain

Rolla's Avatar

Join Date: Sep 2020
Posts: 969
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Liked 1,018 Times in 448 Posts
I use a BBT-9. The only ones I wouldn't recommend are those that attach to an adjustable wrench or socket, as they tend to "walk" off the splines.
Rolla is online now
Likes For Rolla:
Old 06-22-21, 04:33 PM
  #3
tyrion
Senior Member

tyrion's Avatar

Join Date: Oct 2015
Location: San Diego, California
Posts: 3,473

Bikes: Breezer Radar

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1873 Post(s)
Liked 1,257 Times in 597 Posts
side note: there are multiple sizes (3 I think) of Shimano HTII BBs, each requiring their own tool.
tyrion is offline
Old 06-22-21, 06:24 PM
  #4
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 7,703

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) '82 nishiski,

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 1430 Post(s)
Liked 764 Times in 514 Posts
Originally Posted by tyrion View Post
side note: there are multiple sizes (3 I think) of Shimano HTII BBs, each requiring their own tool.
IIRC some BB that are different come with an plastic insert that fits into the park tool. this was the case for ones (english and italian) I used with 105 5800 crankset on 2 different bikes
__________________
Life is too short not to ride the best bike you have, as much as you can
squirtdad is offline
Old 06-22-21, 06:38 PM
  #5
tyrion
Senior Member

tyrion's Avatar

Join Date: Oct 2015
Location: San Diego, California
Posts: 3,473

Bikes: Breezer Radar

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1873 Post(s)
Liked 1,257 Times in 597 Posts
Originally Posted by squirtdad View Post
IIRC some BB that are different come with an plastic insert that fits into the park tool. this was the case for ones (english and italian) I used with 105 5800 crankset on 2 different bikes
I once got an XT BB and it was smaller than the installed Deore BB. It didn't come with the tool adapter insert, so another thing to buy.
tyrion is offline
Old 06-22-21, 09:22 PM
  #6
Russ Roth
Senior Member

Join Date: Dec 2019
Location: South Shore of Long Island
Posts: 1,765

Bikes: 2010 Carrera Volans, 2015 C-Dale Trail 2sl, 2017 Raleigh Rush Hour, 2017 Blue Proseccio, 1992 Giant Perigee, 80s Gitane Rallye Tandem

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 641 Post(s)
Liked 498 Times in 378 Posts
Originally Posted by Rolla View Post
I use a BBT-9. The only ones I wouldn't recommend are those that attach to an adjustable wrench or socket, as they tend to "walk" off the splines.
I prefer the socket style, haven't found walking off to be an issue like it is for cartridge BBs. I like that I can use a ratchet to facilitate getting it screwed in quick and easy, and the leverage I get with the ratchet without having a narrow piece of metal cutting into my hand trying to get a tight BB loose.
Russ Roth is offline
Likes For Russ Roth:
Old 06-22-21, 09:34 PM
  #7
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 12,177

Bikes: Stormchaser, Paramount, Timberjack, Expert TG, Samba tandem

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 2442 Post(s)
Liked 1,210 Times in 784 Posts
Haven’t bought one but intended to get a socket style because I read here somewhere the sheet metal style interferes with the drive side yoke on hard tails like mine
__________________
Genesis 49:16-17
Darth Lefty is online now
Old 06-22-21, 10:19 PM
  #8
wesmamyke
Senior Member

Join Date: Nov 2009
Posts: 1,020
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 196 Post(s)
Liked 43 Times in 37 Posts
You can reposition the flat wrench style when it hits the frame, not really a huge problem. The flat steel style wrench does however tend to dig into the cups pretty bad. Just cosmetic damage, but get a socket style tool if that would bother you.

I like to use an aluminum socket tool on external cups to keep the damage to a minimum. Bonus points for a 1/2" drive so I can use the big breaker bar when they get stuck.
wesmamyke is offline
Likes For wesmamyke:
Old 06-23-21, 08:46 AM
  #9
Iride01
Hits [ENTER] b4 thinking

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 8,189

Bikes: '20 Tarmac Disc Comp '91, '78 Raleigh Competition GS

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 3218 Post(s)
Liked 1,826 Times in 1,295 Posts
If you are looking to have the well stocked tool box, why not go with the tools listed in the Shimano DM's for your models of BB. If you don't like the Shimano tool itself, then just find the generic knock off of the same tool.

But if you aren't going to be changing BB's often, I'd just let the LBS or a friend own the tool and use theirs.
Iride01 is offline
Old 06-23-21, 09:28 AM
  #10
Bingod
Senior Member

Bingod's Avatar

Join Date: Jun 2018
Location: L.A.
Posts: 125

Bikes: Giant Anyroad

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Likes: 0
Liked 28 Times in 20 Posts
i just bought a flat 44mm BB tool made by BW which includes a crank arm cap preload tool. It is solid and worked fine and at $15 cost less than the inexpensive BB, which made some kind of sense to me. It only slightly dug into the cup splines. More torque = more damage I assume
Bingod is offline
Old 06-23-21, 11:11 AM
  #11
nathand
Senior Member
Thread Starter

Join Date: Jun 2020
Location: San Francisco, CA
Posts: 84

Bikes: 2018 Jamis Renegade Exploit, 1996 Trek 930, mid-90's Dean El Diente, 2010 Scott Addict SL, 1998 Trek 730

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 40 Times in 28 Posts
Originally Posted by tyrion View Post
side note: there are multiple sizes (3 I think) of Shimano HTII BBs, each requiring their own tool.
Thanks for this. I have two bikes with BBR60s, and didn't realize that the splines are a slightly different size than the the centerlock rotor lockring on a Fulcrum wheelset. I was hoping I could get one tool for both cases.

Originally Posted by Iride01 View Post
But if you aren't going to be changing BB's often, I'd just let the LBS or a friend own the tool and use theirs.
Given the above, and that in years of working on bikes I've never removed a bottom bracket (never had one fail), you're probably right. Only time I've needed that tool was to install a bottom bracket on a bike I built up myself. Getting my LBS to remove and reinstall a bottom bracket would cost about as much as the tool to do it, but I'm sure a friend has the right tool, or I can visit the local bike co-op and use the tools there. My office used to have a nice set of tools (bought by our bicycle commuter club) but we moved into a new building the day before our local stay-at-home order went into effect last March, and unfortunately the tools disappeared somewhere in the chaos of rushed relocation.
nathand is offline
Old 06-23-21, 02:18 PM
  #12
Numerozero
Senior Member

Numerozero's Avatar

Join Date: Jan 2018
Location: Vancouver, eh
Posts: 84

Bikes: Downtube 8FH w/ TSD-Z2 motor; Xootr Swift w/DualDrive ; Downtube MiniB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 7 Times in 5 Posts
The best: Cyclus Snap-in system

Rated “best” by Barnett Bicycle Institute. Two handles evenly distributes torque

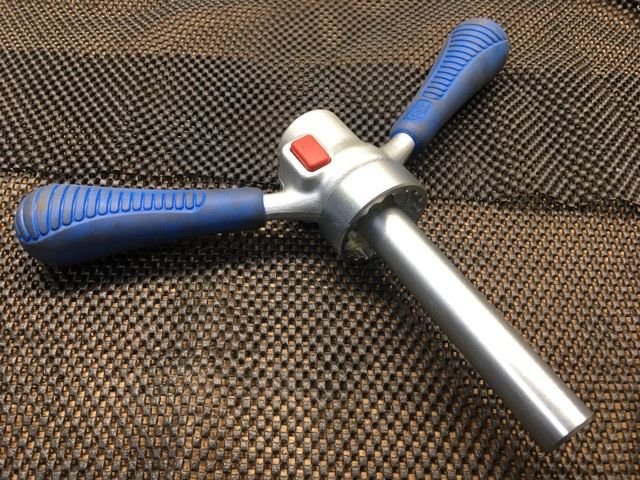

Cyclus Snap-in handle, Hollowtech insert, and centering rod.

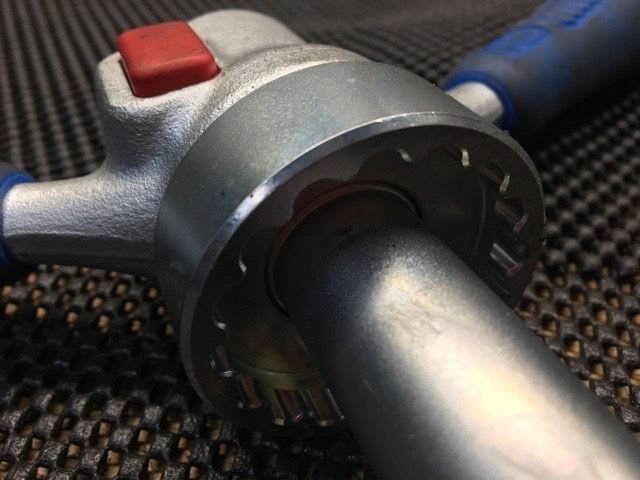

Detail of Hollowtech insert.

Removable insert for 3/8” square drive.
. Centering rod prevents cam out. 3/8” square insert for using a torque wrench.
Numerozero is offline
Old 06-23-21, 02:31 PM
  #13
Numerozero
Senior Member

Numerozero's Avatar

Join Date: Jan 2018
Location: Vancouver, eh
Posts: 84

Bikes: Downtube 8FH w/ TSD-Z2 motor; Xootr Swift w/DualDrive ; Downtube MiniB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 7 Times in 5 Posts

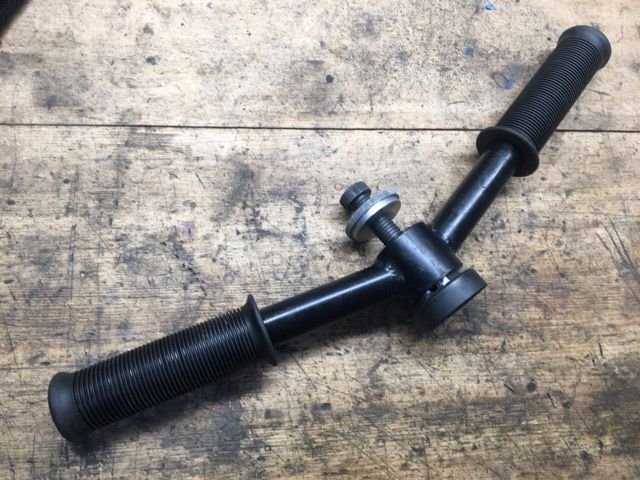

Second best: Stein Tool Cartridge Bottom Bracket Handle

Stein CBBH. But no centering rod. BBI used to rate it best until Cyclus invented their system.

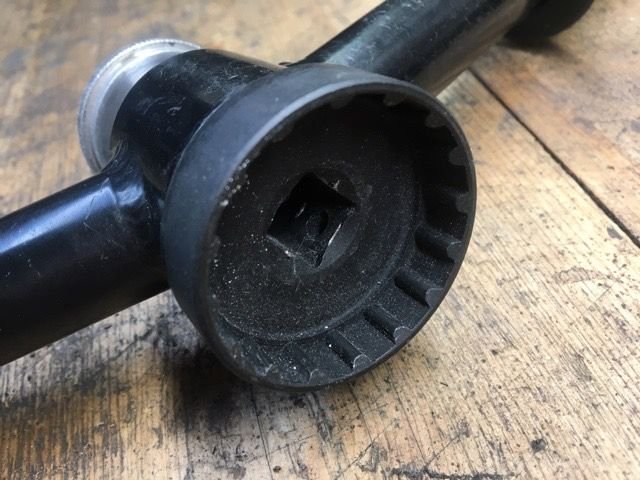

JA Stein Cartridge Bottom Bracket handle with a SuperB TB-1005 cartridge (which has a 1/2” square drive).

Closeup of SuperB TB-1005
Numerozero is offline
Old 06-23-21, 08:45 PM
  #14
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 8,813

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame, Ti 26 MTB

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 2457 Post(s)
Liked 1,485 Times in 991 Posts
Originally Posted by Numerozero View Post
Rated “best” by Barnett Bicycle Institute. Two handles evenly distributes torque

Cyclus Snap-in handle, Hollowtech insert, and centering rod.

Detail of Hollowtech insert.

Removable insert for 3/8” square drive.
. Centering rod prevents cam out. 3/8” square insert for using a torque wrench.
I was going to say Abbey tools and a Snap-On Digital Torque Wrench but that Cyclus thing looks pretty neat. I might have to take a closer look at that unfortunately their website is terrible or at least for me it was couldn't click on any links.
veganbikes is offline
Old 06-23-21, 09:55 PM
  #15
Russ Roth
Senior Member

Join Date: Dec 2019
Location: South Shore of Long Island
Posts: 1,765

Bikes: 2010 Carrera Volans, 2015 C-Dale Trail 2sl, 2017 Raleigh Rush Hour, 2017 Blue Proseccio, 1992 Giant Perigee, 80s Gitane Rallye Tandem

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 641 Post(s)
Liked 498 Times in 378 Posts
Can just get a slide handle breaker bar for the socket, never needed it but it can duplicate the cyclus tool.
