Microshift mountain (?) shifters

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Microshift mountain (?) shifters

Old 08-04-21, 11:16 PM
  #1
sunburst
Senior Member
Thread Starter

sunburst's Avatar

Join Date: Jan 2008
Location: SF Bay Area
Posts: 1,712

Bikes: Giant, Trek, Peugeots, Motobecane, Kona, Specialized, Bike Friday, Ironhorse

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked 55 Times in 36 Posts
Microshift mountain (?) shifters

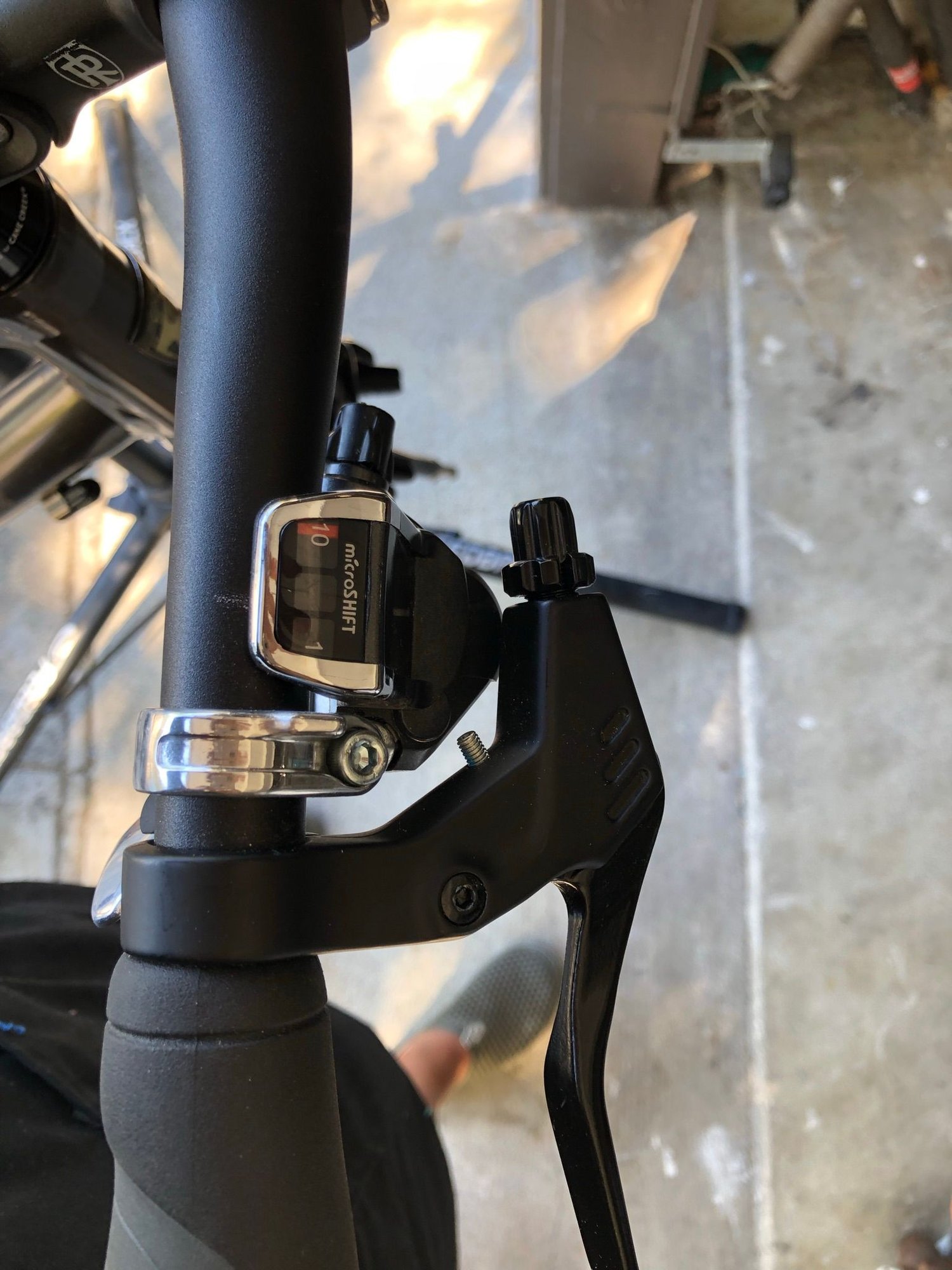

How do I wire these up? Do I need to remove all these bottom screws in the third pic? I also see what looks like a small access hole in last photo. The front shifter has a rubber plug for this hole. Is that cable routing access?

I havenít found instructions online. Not sure what to even call these. Whenever I google l get different models. I bought them on eBay and the plan is to do an upright conversion on a road bike equipped with a standard Shimano 10-speed cassette and 10-speed Ultegra RD. In the front is a FSA compact crank and I assume an Ultegra FD.





sunburst is offline
Old 08-04-21, 11:31 PM
  #2
yadder
Senior Member

yadder's Avatar

Join Date: Feb 2013
Location: Ukraine Kharkov
Posts: 161

Bikes: CUBE Acid 29er, Salsa El Mariachi SSGT Avalanche X 2009, MMVZ Minsk 1980, Trek 4300 custom, HVZ Ukraina 111-411, Cannondale Trail 5

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
use the top foot to release both shifters. and opens in the hole for inserting the cable. sorry for my english
yadder is offline
Old 08-04-21, 11:33 PM
  #3
yadder
Senior Member

yadder's Avatar

Join Date: Feb 2013
Location: Ukraine Kharkov
Posts: 161

Bikes: CUBE Acid 29er, Salsa El Mariachi SSGT Avalanche X 2009, MMVZ Minsk 1980, Trek 4300 custom, HVZ Ukraina 111-411, Cannondale Trail 5

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
yadder is offline
Old 08-05-21, 10:24 AM
  #4
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,237

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1411 Post(s)
Liked 986 Times in 672 Posts
I cannot tell which shifter model you have but one of these instructions should get you close:
https://microshift.com/wp-content/up...erSH003002.pdf page 10
https://microshift.com/wp-content/up...stallation.pdf

Basically, you want the shifter to be in its mostly paid-out cable position to be able to install/remove the cable head from its cavity.
dsbrantjr is offline
Old 08-05-21, 12:00 PM
  #5
hokiefyd
Senior Member

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,835

Bikes: '18 Redline Zander, '14 Surly Pugsley, '97 GT Vantara, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1320 Post(s)
Liked 585 Times in 444 Posts
Originally Posted by sunburst View Post
The front shifter has a rubber plug for this hole. Is that cable routing access?
Yes -- put the shifter into its most "relaxed" position (Low for the left shifter and 10 for the right shifter) and pass the cable through that small hole. It should pass straight through the shifter mechanism and out through the barrel adjuster. You may have to play with it some to get it through, but that's the intent.

Originally Posted by sunburst View Post
I bought them on eBay and the plan is to do an upright conversion on a road bike equipped with a standard Shimano 10-speed cassette and 10-speed Ultegra RD. In the front is a FSA compact crank and I assume an Ultegra FD.
Were they sold as road shifters or mountain shifters? It's hard to tell from Microshift's website what they may be. They don't look like Centos or R10, but they may be from an older 10-speed road group. I think you'll need road shifters, as 10-speed road and 10-speed mountain use different actuation ratios.
hokiefyd is offline
Old 08-10-21, 04:32 PM
  #6
sunburst
Senior Member
Thread Starter

sunburst's Avatar

Join Date: Jan 2008
Location: SF Bay Area
Posts: 1,712

Bikes: Giant, Trek, Peugeots, Motobecane, Kona, Specialized, Bike Friday, Ironhorse

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked 55 Times in 36 Posts
Originally Posted by yadder View Post
use the top foot to release both shifters. and opens in the hole for inserting the cable. sorry for my english
Thanks for all the tips guys. Easy. In fact, the entire conversion went smooth except for dialing in the indexing, but I've got it 90-95% there.

It makes for a fast runabout, and beats all my vintage machines in terms of feel and responsiveness. The frame is more compact than I'm used to but I'm sure that (plus the tires and the weight) contributes to the zippiness it has.




sunburst is offline
