Remove suicide levers

Hello,

Ive been trying to find a way to remove the suicide levers from my Peugeot vintage bike. I couldn’t. I can’t attach pictures or links. I’m new here.

first off I really think they’re useless. Also, they prevent the regular levers from braking all way in because the suicude levers hit the bar. And finally, it prevents me from having a comfortable grip.
I really wanna remove them.

thanks,
idir93dz is offline
Old 08-06-21, 03:01 AM
  #2
Senior Member

Geepig's Avatar

Join Date: Sep 2020
Location: Eastern Poland
Posts: 743

Bikes: Romet Jubilat x 4, Wigry x 1, Turing x 1

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 194 Post(s)
Liked 204 Times in 151 Posts
Hi, what make of brakes and levers do you have? If it is vintage then by now it could have anything on there.

My suggestion is that if you are having a problem with the suicide levers, given that it is an old bike, it might be a sign that you need to overhaul the whole brake system. When well set up they work, but if they are blocking the brakes you might need new cables, new pads, re-adjustment of whatever brakes you have and, potentially replacement of the whole levers and/or brakes if they have worn.
Geepig is offline
Old 08-06-21, 03:04 AM
  #3
Newbie
Thread Starter

Join Date: Aug 2021
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
They’re Weinmann. They still perform well. I just need to find a way to remove the extra levers.
idir93dz is offline
Old 08-06-21, 04:42 AM
  #4
Senior Member

Geepig's Avatar

Join Date: Sep 2020
Location: Eastern Poland
Posts: 743

Bikes: Romet Jubilat x 4, Wigry x 1, Turing x 1

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 194 Post(s)
Liked 204 Times in 151 Posts
Some have a big screw holding them on, but others have a rivet if I remember right. I assume one would have to drill the rivet, but for a vintage bike I would then start looking for replacement levers.

Either way I assume that you have loosened/disconnected the cable from the callipers so you can unhook the cable from the main lever?
Geepig is offline
Old 08-06-21, 05:45 AM
  #5
Newbie

Pacelineg's Avatar

Join Date: Dec 2014
Posts: 67
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked 53 Times in 28 Posts
Originally Posted by idir93dz
Hello,

Ive been trying to find a way to remove the suicide levers from my Peugeot vintage bike. I couldn’t. I can’t attach pictures or links. I’m new here.

first off I really think they’re useless. Also, they prevent the regular levers from braking all way in because the suicude levers hit the bar. And finally, it prevents me from having a comfortable grip.
I really wanna remove them.

thanks,

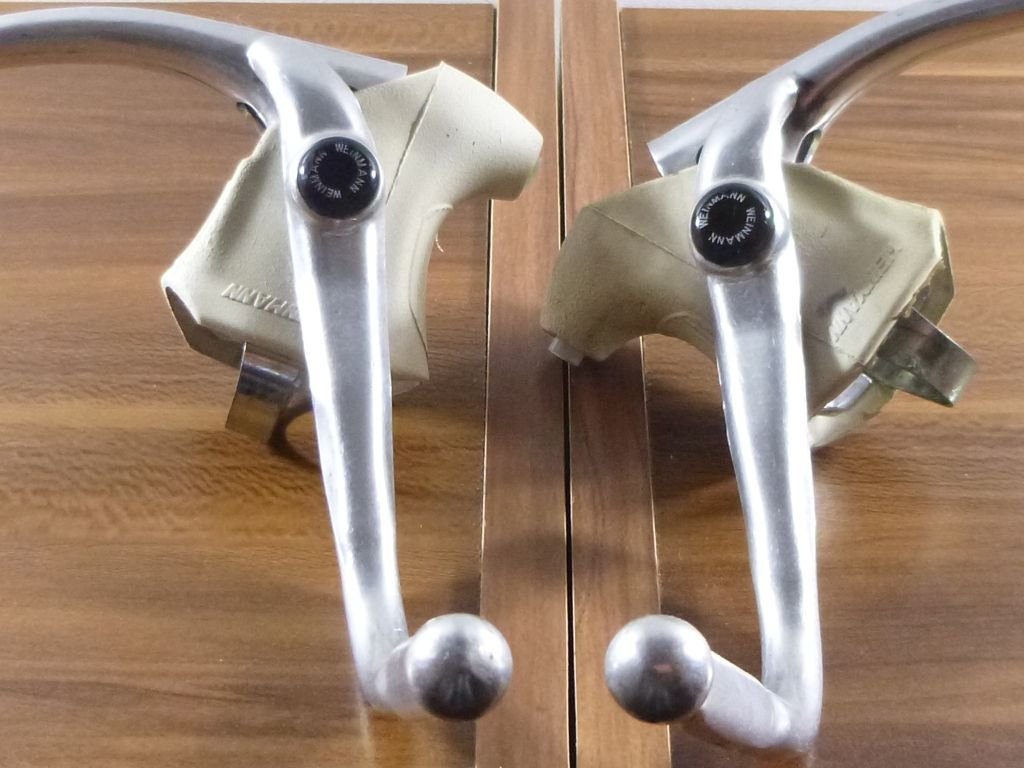

Do they look like this? The black cap is threaded (or it's just press fit, can't remember) exposing a phillips head screw.

Pacelineg is offline
Old 08-06-21, 06:04 AM
  #6
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,319

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1438 Post(s)
Liked 1,091 Times in 722 Posts
Originally Posted by Geepig
Some have a big screw holding them on, but others have a rivet if I remember right. I assume one would have to drill the rivet, but for a vintage bike I would then start looking for replacement levers.

Either way I assume that you have loosened/disconnected the cable from the callipers so you can unhook the cable from the main lever?
I would assume that some effort with a hacksaw and file would remove the levers without needing to drill out and somehow replace a rivet, or find a compatible, shorter screw.
dsbrantjr is offline
Likes For dsbrantjr:
Old 08-06-21, 08:05 AM
  #7
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,656

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 2025 Post(s)
Likes: 0
Liked 1,095 Times in 741 Posts
If you are just trying to make the bike rideable and not preserve it's "historical integrity", I'd replace the levers with more modern ones. Tektro and Cane Creek sell modern hidden cable brake levers at very reasonable prices and they will work far better and be more comfortable than those old Weinmann. Keep the Weinmanns intact and perhaps sell them to someone doing a historically correct restoration.

Here is one source for the Tektro levers: https://www.jensonusa.com/Tektro-RL3...o-Brake-Levers
HillRider is offline
Old 08-06-21, 08:20 AM
  #8
Full Member

Join Date: Aug 2016
Posts: 316
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Likes: 0
Liked 64 Times in 48 Posts
On WM, the inside end is usually a threaded cap. Remove it and the levers come right off. Then you’ll need a shorter pivot bolt to replace the long one. If you decide to replace instead, the Tektro levers are nice.
veloz is offline
Old 08-06-21, 11:18 AM
  #9
Banned

Join Date: Dec 2018
Location: Pac NW
Posts: 8,761

Bikes: '70s - '80s Campagnolo

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 3844 Post(s)
Liked 6,434 Times in 3,181 Posts
Replace the entire lever. You can probably find something much classier for $10 at your bike co-op.
SurferRosa is offline
Old 08-06-21, 11:40 AM
  #10
Senior Member

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 12,790

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 4731 Post(s)
Liked 3,832 Times in 2,492 Posts
We used to simply unscrew the bolt into the lever pivot and hacksaw off the excess of the pivot. (We were a Fuji shop so these levers were mostly DiaComp.) The end result didn't look pretty but it worked and if the lever is rivited on, this approach would still work. You might be sawing through a little steel as well as aluminum so pick your blade appropriately.)
79pmooney is offline
