How to take apart this 90s threaded headset?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

How to take apart this 90s threaded headset?

Old 04-06-22, 12:38 PM
  #1
Totte86
Junior Member
Thread Starter

Join Date: Jan 2022
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 3 Times in 3 Posts
How to take apart this 90s threaded headset?

Hello!

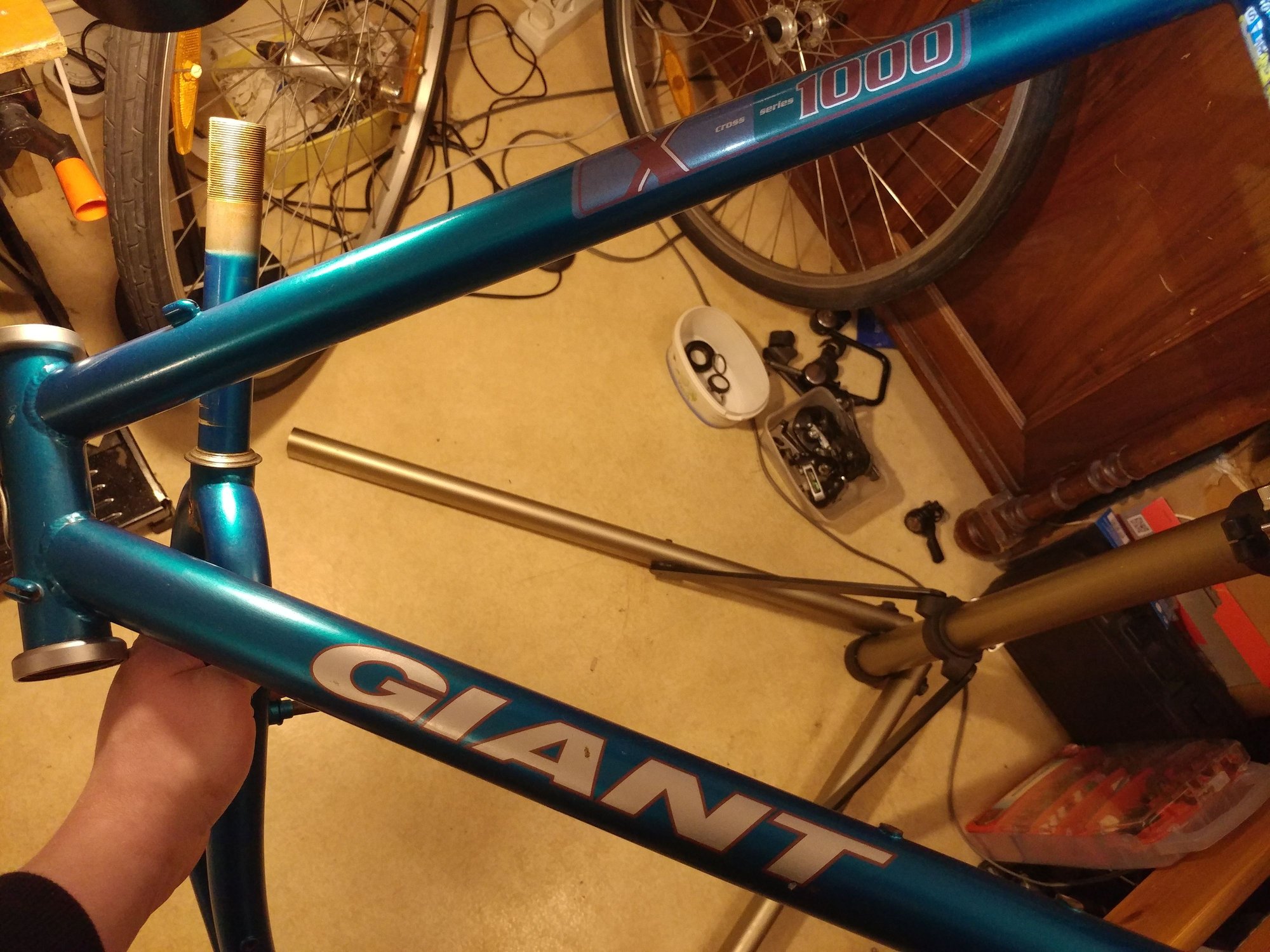

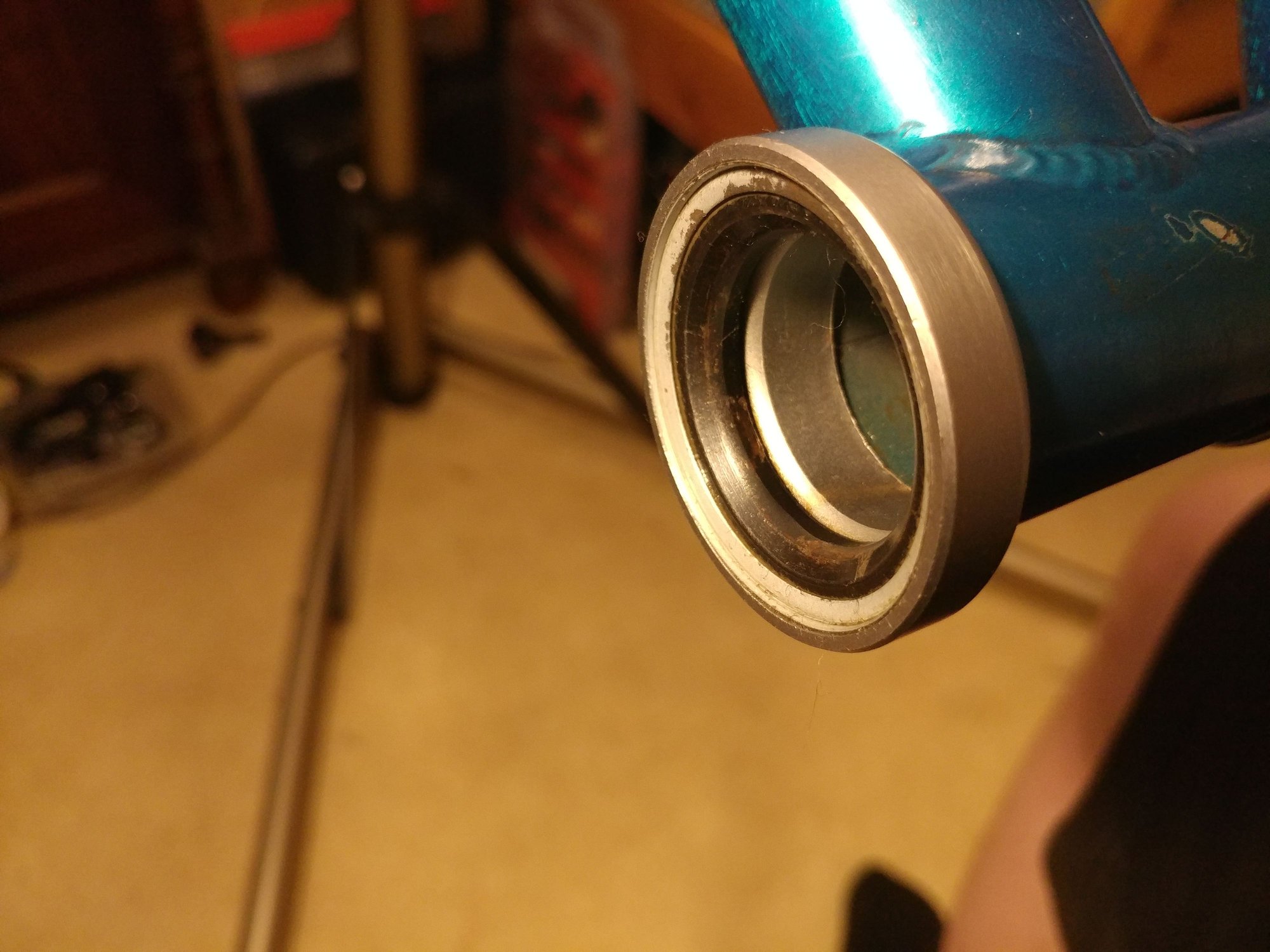

Im working on a 90s giant x1000 hybrid bike. I need to get the bearings for the headset out to service them as well as I can as this is a budget build. But I dont know how to get them out. There seem to be some plastic retainer that is holding the cartridge? inside and I dont know how to take it out without breaking it. The plastic retainer is held in by what feels like a lip at the edge of the headset cup.







Ive only worked on loose/caged ball bearing threaded headsets before so I dont know if this is normal or some weird 90s giant proprietary headset.

Thank you for any help!
Totte86 is offline
Old 04-06-22, 01:07 PM
  #2
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,839

Bikes: Old school lightweights

Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 2434 Post(s)
Liked 3,260 Times in 1,757 Posts
Originally Posted by Totte86 View Post
I assume this dark colored race revolves. Is that correct? Is it gritty? Personally, if this is a budget build, I would leave it in place under the assumption that I could push some grease under there and make it spin smoothly.
SurferRosa is offline
Likes For SurferRosa:
Old 04-06-22, 01:16 PM
  #3
Totte86
Junior Member
Thread Starter

Join Date: Jan 2022
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by SurferRosa View Post
I assume this dark colored race revolves. Is that correct? Is it gritty? Personally, if this is a budget build, I would leave it in place under the assumption that I could push some grease under there and make it spin smoothly.
Yes the dark race revolves. The upper bearing is decent, the lower one is super gritty so needs a good clean before any new grease.
Totte86 is offline
Old 04-06-22, 01:47 PM
  #4
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,839

Bikes: Old school lightweights

Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 2434 Post(s)
Liked 3,260 Times in 1,757 Posts
Originally Posted by Totte86 View Post
the lower one is super gritty, so needs a good clean before any new grease.
If you can't remove it, I wouldn't spray any oil in there, like WD-40. It would then become very difficult for grease to stay in place.
SurferRosa is offline
Old 04-06-22, 02:53 PM
  #5
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,036
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 641 Post(s)
Liked 610 Times in 464 Posts
That white plastic ring is probably just a seal that can be carefully pried off with a thin blade. Once you remove it, you'll see the bearing balls which can be flushed out with WD-40 or some solvent. Dry off the solvent and pack some grease in there, replace the seal and test for smoothness.
Crankycrank is offline
Old 04-07-22, 04:29 AM
  #6
Totte86
Junior Member
Thread Starter

Join Date: Jan 2022
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by SurferRosa View Post
If you can't remove it, I wouldn't spray any oil in there, like WD-40. It would then become very difficult for grease to stay in place.
Originally Posted by Crankycrank View Post
That white plastic ring is probably just a seal that can be carefully pried off with a thin blade. Once you remove it, you'll see the bearing balls which can be flushed out with WD-40 or some solvent. Dry off the solvent and pack some grease in there, replace the seal and test for smoothness.
I realized, with further inspection ^^, after knocking the cups out that the retaining rings are actually metal. Trying to force them out would just result in them getting destroyed and using the headset without them would just be more inviting for further water and dirt ingress. I ended up cleaning them out with an old toothbrush in consecutive baths of mineral spirits, and then when the mineral spirits were no longer changing color, blew them out with compressed air. Stupid design by whom I can assume is Giant. Cups with integrated bearings designed to be disposable, use until thrashed and then throw away and if not replaced then throw away the whole bike. Very non-user-friendly and fiddly to "service".
Attached Images
File Type: jpg
File Type: jpg
Totte86 is offline
Likes For Totte86:
Old 04-07-22, 05:07 AM
  #7
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,839

Bikes: Old school lightweights

Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 2434 Post(s)
Liked 3,260 Times in 1,757 Posts
Excellent pics, Totte86!
SurferRosa is offline
Old 04-07-22, 06:57 AM
  #8
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 16,135

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1542 Post(s)
Liked 448 Times in 344 Posts
Originally Posted by SurferRosa View Post
Excellent pics, Totte86!
Yes, for sure! Made it easy to see what is going on!

If you plan to keep the bike, and I'm not sure why not, decent conventional headsets are not a bad investment. You don't have to go all the way to Chris King, but Tange probably has something in its catalog which is durable and servicable. I'd hate to have that one and have to go through this over and over.
Road Fan is offline
Old 04-07-22, 08:04 AM
  #9
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,354
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 745 Post(s)
Liked 833 Times in 508 Posts
Those are replaceable bearings, I would have no qualms popping those seals out for service or replacement. I have serviced that type with solvent and mushing grease into.

You are probably better off with a new bearing set for the lower cup.
Mr. 66 is offline
Old 04-07-22, 09:07 AM
  #10
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,351

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1870 Post(s)
Likes: 0
Liked 824 Times in 589 Posts
As long as you have the cups out of the frame you might as start with a completely new headset. If the bike has a 1" steerer, Velo Orange sells a 1" threaded headset with excellent cartridge bearings and a split crown race that installs with no tools.

If it's a 1-1/8" steerer, threaded headsets are less common but available.
HillRider is offline
Old 04-07-22, 10:44 AM
  #11
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,060

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2149 Post(s)
Liked 2,181 Times in 1,346 Posts
I probably would have pried out the steel retainers, or at least see how they react when prying. They don't really serve a function during operation of the headset beyond holding things in during assembly. Wouldn't need to be perfect for re installation.
dedhed is offline
Likes For dedhed:
Old 04-07-22, 11:43 AM
  #12
John Valuk
Full Member

Join Date: Oct 2020
Posts: 201
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 119 Times in 77 Posts
Originally Posted by Road Fan View Post
Tange probably has something in its catalog which is durable and servicable
I really like some of Tange Seiki's stuff. My '95 Trek Multitrack 730 needs a fairly low-stack-height headset, and their Levin CDS does the job.

Your tip to use their catalog is a good one. I always found their web site to be tedious to navigate when trying to compare products, and recently, it doesn't even seem to be working correctly (like, diagrams showing dimensions seem to be missing).

I downloaded a PDF version of their 2017 catalog, and that really helps.
John Valuk is offline
Old 04-07-22, 07:23 PM
  #13
grizzly59
Senior Member

Join Date: Aug 2016
Posts: 711
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 282 Post(s)
Liked 262 Times in 164 Posts
Maybe send pics to a Giant dealer and see what they say. Might be surprised.
grizzly59 is offline
Old 04-07-22, 09:23 PM
  #14
Ironfish653
Dirty Heathen

Join Date: Oct 2015
Location: MC-778, 6250 fsw
Posts: 1,801

Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 SoftRide, 1989 Klein

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 692 Post(s)
Liked 541 Times in 335 Posts
Originally Posted by Totte86 View Post
I rStupid design by whom I can assume is Giant. Cups with integrated bearings designed to be disposable, use until thrashed and then throw away and if not replaced then throw away the whole bike. Very non-user-friendly and fiddly to "service".
First off, nice job on your documentation. Normally we get an out of focus, poorly lit shot that only peripherally show the components in question.

I get the want to be able to rebuild and reuse a thing indefinitely, but what you’ve got is a 30-year old, recreational-grade hybrid bike; it has far outlived its expected design parameters.

Like posted above, you can probably get that retainer out, or flush and smoosh some new grease in there, but failing that, a new headset is a small price to pay for being that far out on the durability bell curve.
Ironfish653 is offline
Old 04-17-22, 07:23 AM
  #15
Keefusb
Keefusb

Join Date: Jan 2021
Location: Ashland, VA
Posts: 59

Bikes: 62cm 1992 Paramount, 60cm 1995 Cannondale R900 (son's bike), 1994 Cannondale H300 (mine), 1994 Cannondale H300 Killer V (wife's bike), 61cm 1985 Raleigh Competition (recently sold), 60 cm 1989 Eddy Merckx Corsa Extra SLX

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 17 Times in 10 Posts
A lightly used Shimano 600/Ultegra sealed bearing headset can be had for $50 or so on eBay if you have a 1" threaded steerer. I have this headset on all 5 of my 1" threaded steerer bikes, two of them were installed new in the 90's and just cleaned and lubed every few years. I have a Chris King on my one threadless steerer bike. Both types of headsets are bulletproof and can/should last the life of the bike with only occasional cleaning/re-greasing servicing.
Keefusb is offline
