Threadless headset tightening issue

Got my Cane Creek 40 external cup headset installed, got the fork through and trying to test out some stem lengths/rises before I buy the final one. So currently working with a taller steerer and a chimney of spacers. Iíve got the stem where I want to try it but I canít seem to get the headset to tighten properly.

when leaving a some spacer above the top of the steerer tube so it doesnít bottom out, I canít get it to tighten just right. When I snug the top cap bolt to a reasonable tension, it snugs everything noticeably too tight. The fork wonít spin freely and loosely. The only way to get it to a spin freely leaves the top cap way too loose (like I can spin it with my fingers.)





what am I doing wrong?
__________________
Twitter@theSurlyBiker
Instagram@theSurlyBiker
the sci guy is offline
Old 05-22-22, 05:56 PM
  #2
delbiker1
Mother Nature's Son

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 2,432

Bikes: Early 90's Ochsner road, 2006 Schwinn SS DBX, 2014 Orbea Avant MD30, 2004 Airborne Zeppelin TI, 2003 Lemond Poprad, 1989? Fuji Ace, 2001 Lemond Tourmalet, 2014? Soma Smoothie

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 639 Post(s)
Liked 888 Times in 514 Posts
Are you sure you have the headset/bearings installed correctly, with the bearings the right side up? I am not trying to me a wise ass, but are you doing the top cap bolt before the tightening the stem bolts?
delbiker1 is offline
Likes For delbiker1:
Old 05-22-22, 06:09 PM
  #3
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,594

Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4286 Post(s)
Liked 2,829 Times in 1,971 Posts
Can't see what's under your stem between the headset and the stem. Are you certain your type headset doesnt' require something between them?
Iride01 is offline
Old 05-22-22, 06:22 PM
  #4
Rolla
Victimless Criminal

Rolla's Avatar

Join Date: Sep 2020
Posts: 2,323
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1022 Post(s)
Liked 2,435 Times in 1,088 Posts
Not sure it has anything to do with your issue, but I've got that headset on a few of my bikes, and I always run a very thin spacer ( 1 or 2mm) between the top of it and the stem. I also really dislike that kind of top cap; maybe try one that's flatter on the bottom?
Rolla is offline
Old 05-22-22, 07:18 PM
  #5
SpedFast
Just Pedaling

SpedFast's Avatar

Join Date: Oct 2021
Location: West Coast
Posts: 320
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Liked 156 Times in 103 Posts
Delbiker1 already asked the question, but I'll repeat it differently: Are you tightening the stem bolts first or the cap?
SpedFast is offline
Old 05-22-22, 08:15 PM
  #6
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,031

Bikes: lots

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1499 Post(s)
Liked 2,141 Times in 1,116 Posts
I've seen bearings installed upside down, the compression ring installed in all sorts of (incorrect) places, the already mentioned not loosening the stem bolts before trying to adjust. It's unbelievable to me how many seemingly intelligent people can absolutely **** up something so simple.
cxwrench is offline
Likes For cxwrench:
Old 05-23-22, 04:12 AM
  #7
the sci guy
bill nyecycles
Thread Starter

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 3,283
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 757 Post(s)
Liked 300 Times in 166 Posts
Iím 90% sure the bearings are the right orientation but I will double check.

I was not tightening the stem bolts before tightening the top cap. I thought you left it loose so that the top cap could compress the entire column down snugly, then you tightened the pinch bolts. Am I wrong?

And yes I put a 2.5mm spacer between the top of the headset and the bottom of the stem. I started out with a 5mm spacer, swapped it for the smaller one - but has the same issue.
__________________
Twitter@theSurlyBiker
Instagram@theSurlyBiker
the sci guy is offline
Old 05-23-22, 04:45 AM
  #8
delbiker1
Mother Nature's Son

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 2,432

Bikes: Early 90's Ochsner road, 2006 Schwinn SS DBX, 2014 Orbea Avant MD30, 2004 Airborne Zeppelin TI, 2003 Lemond Poprad, 1989? Fuji Ace, 2001 Lemond Tourmalet, 2014? Soma Smoothie

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 639 Post(s)
Liked 888 Times in 514 Posts
You are right about the tightening sequence, top cap just until it is snug, then stem bolts. If the bearings and compression ring are installed correctly, I do not know what your issue is. I still suspect it is one of those. To ensure correct assembly, have you dis-assembled the headset and looked at the instructions on the assembly? It sounds to me like it is the compression ring. I have had this happen. It is quite easy to error on the placement and positioning.
delbiker1 is offline
Likes For delbiker1:
Old 05-23-22, 10:29 AM
  #9
SoSmellyAir
Method to My Madness

Join Date: Nov 2020
Location: Orange County, California
Posts: 1,674

Bikes: Cannondale Synapse, Trek FX 2

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 805 Post(s)
Liked 503 Times in 384 Posts
These are the instructions for the Cane Creek 40 EC headset: 40 EC & ZS Instructions (canecreek.com).

I have no idea what step #2 shows. As for step #3, I echo the above advice to make sure each piece shown is in the correct (i.e., not upside down) orientation.

SoSmellyAir is offline
Old 05-23-22, 04:16 PM
  #10
the sci guy
bill nyecycles
Thread Starter

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 3,283
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 757 Post(s)
Liked 300 Times in 166 Posts

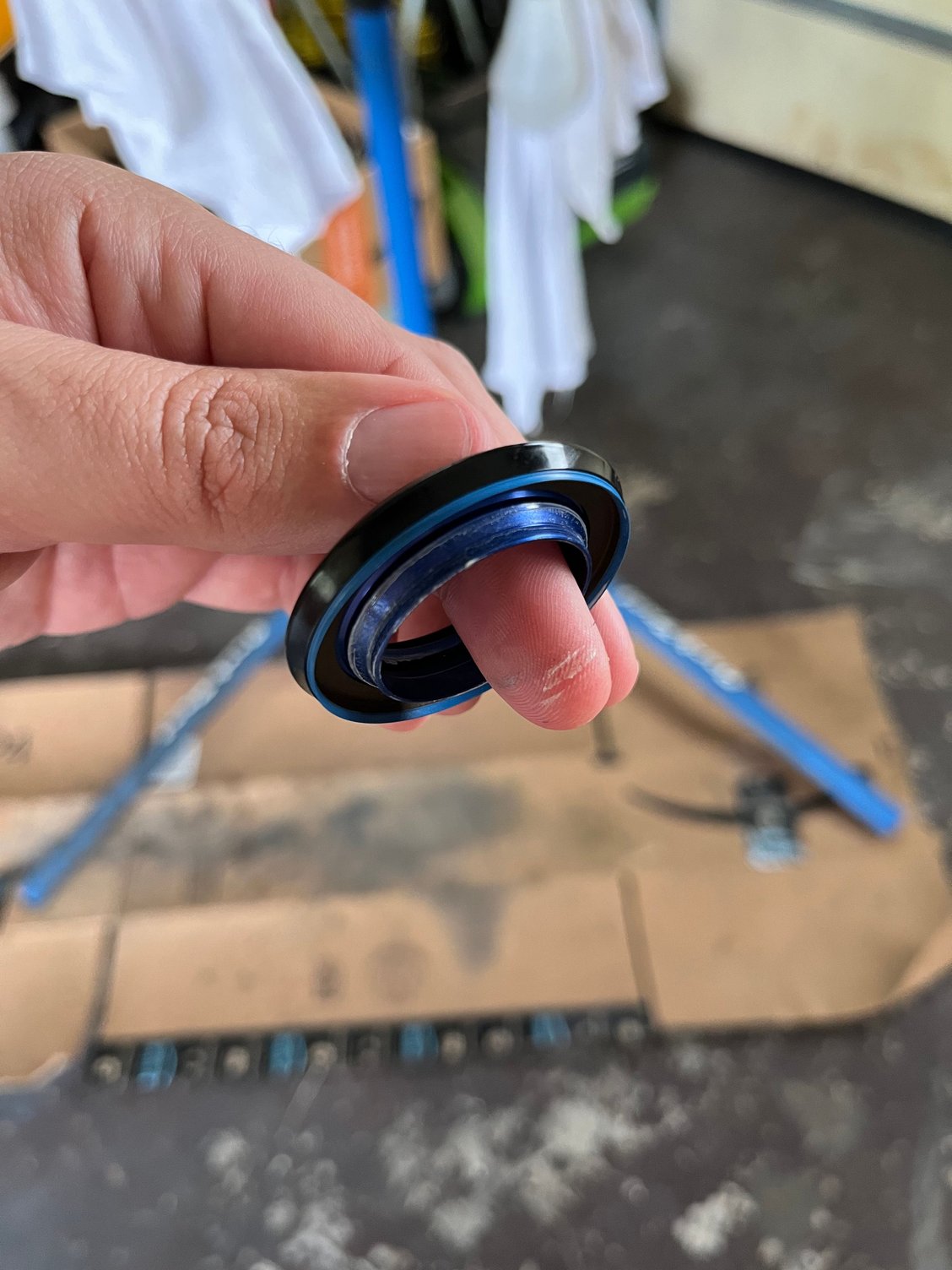

So I double checked and everything is in the right way as far as I can tell. The beveled edges of the bearing rings both face into their respective cups. The top assembly is all one piece - I assume this includes the compression ring which that video mentions. Because there arenít any more parts, and the exploded diagram in the manual doesnít mention anything else.
