Tiny gap between spacer & -17 stem because geometry?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Tiny gap between spacer & -17 stem because geometry?

Old 05-30-22, 08:28 AM
  #1
the sci guy
bill nyecycles
Thread Starter

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 3,288
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 759 Post(s)
Liked 304 Times in 169 Posts
Tiny gap between spacer & -17 stem because geometry?

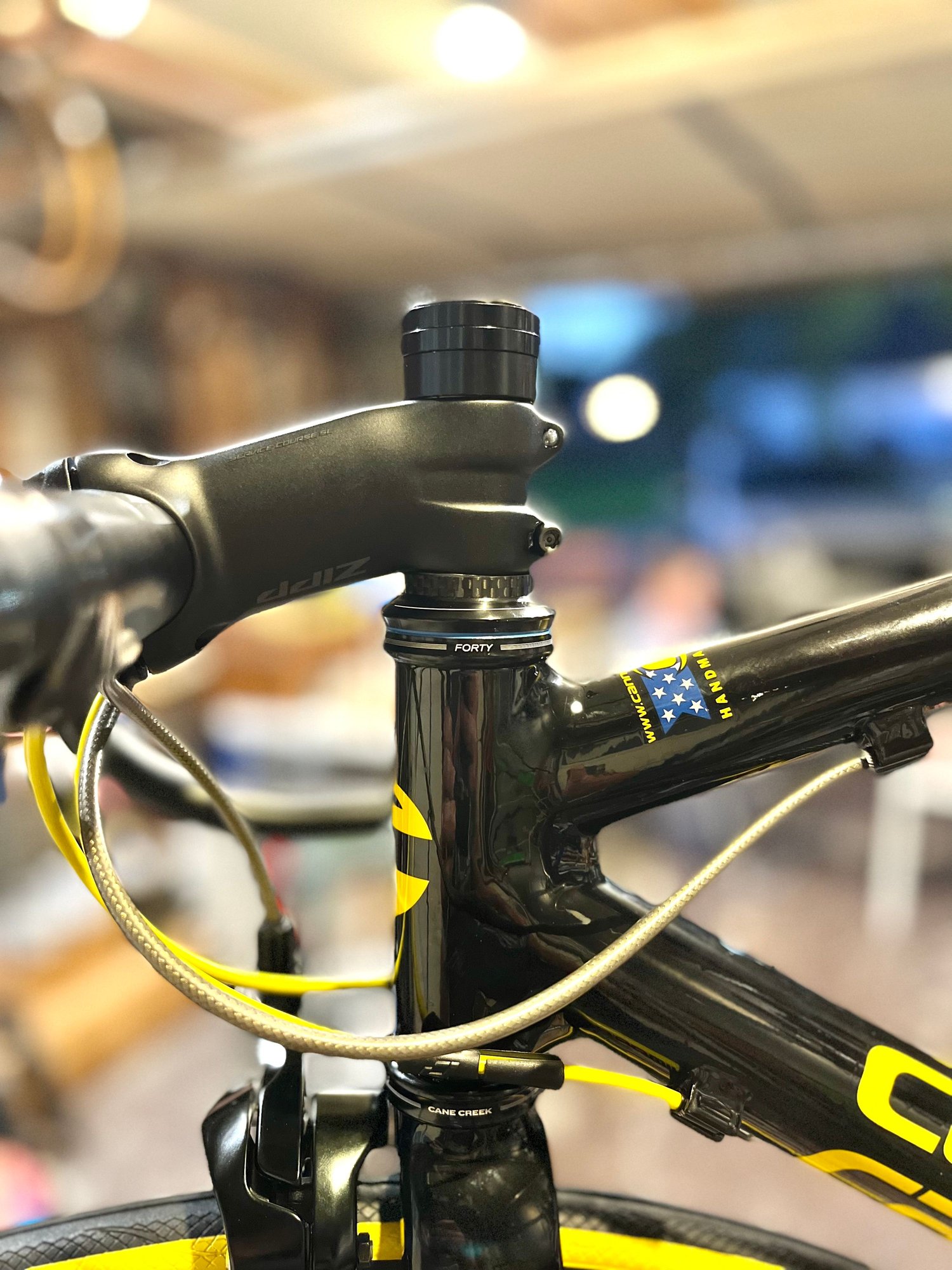

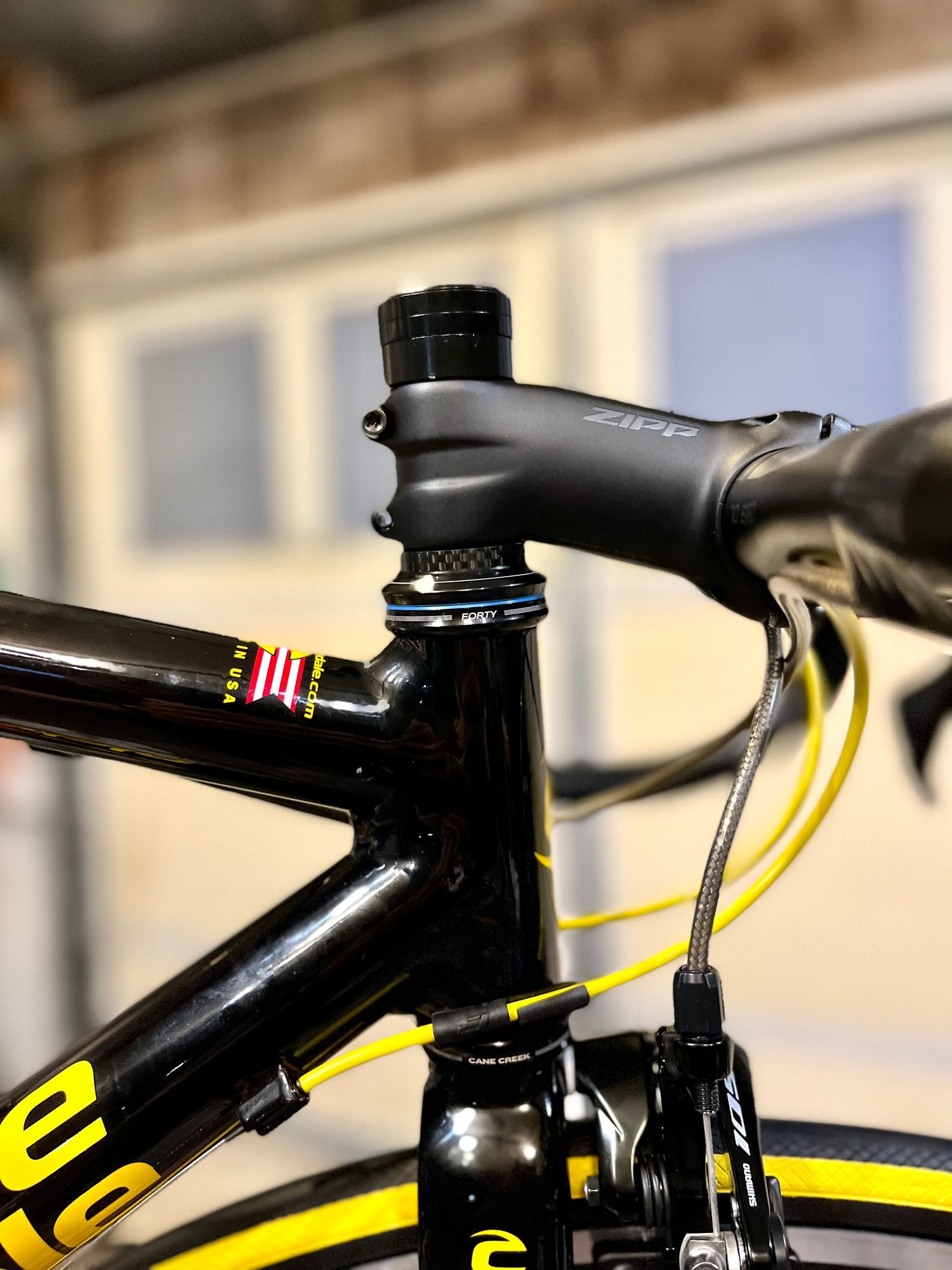

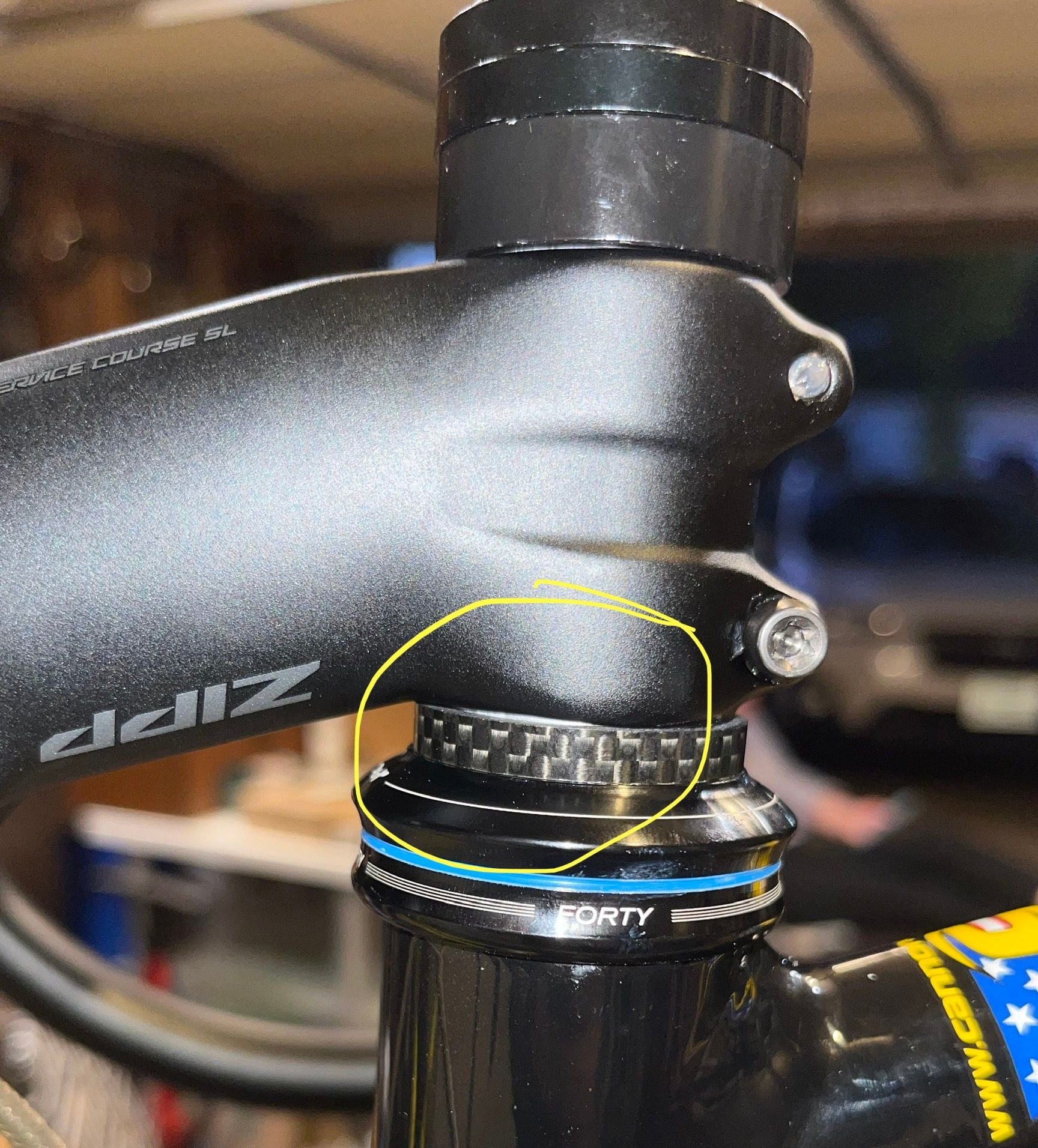

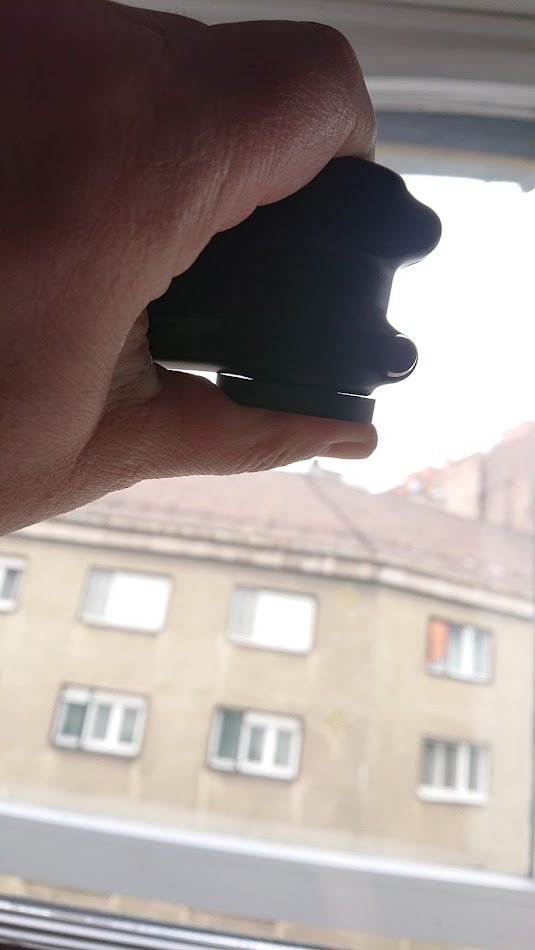

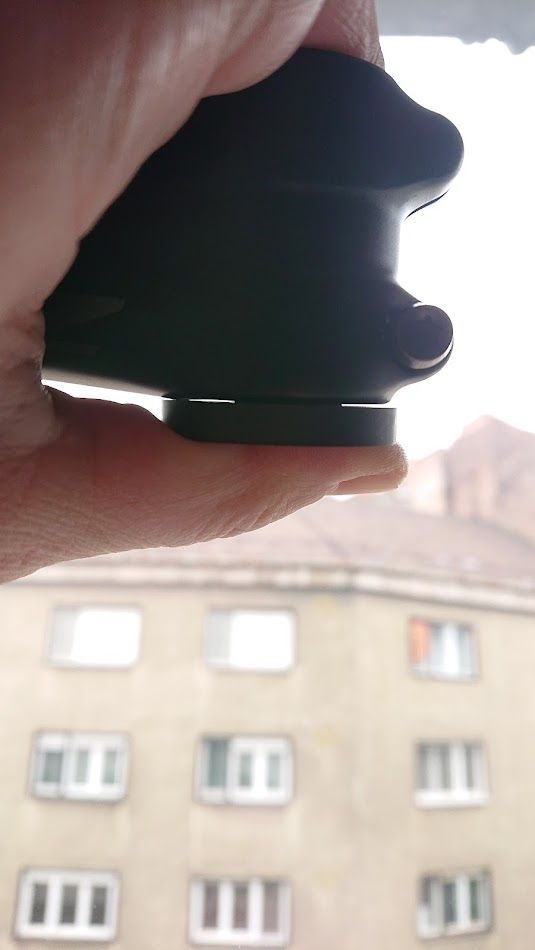

Is this normal/ok? Slid my -17° stem onto the steerer and because of the angle it doesn’t fully clear the spacer width so it kind sits slightly off kilter and there’s a small gap where you can see the steerer.
