Replacing wheels

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Replacing wheels

Old 05-31-22, 06:08 AM
  #1
Alleytom
Junior Member
Thread Starter

Join Date: May 2014
Location: Arizona
Posts: 157

Bikes: 92 GT Arette, 78 Paramount, 2012 Pugsley, Late 70s Gilmour, 83 Le Tour, 70 somthing Benotto 800 (On the block) 2012 Sun Spider AT(On the block too)

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 109 Times in 32 Posts
Replacing wheels

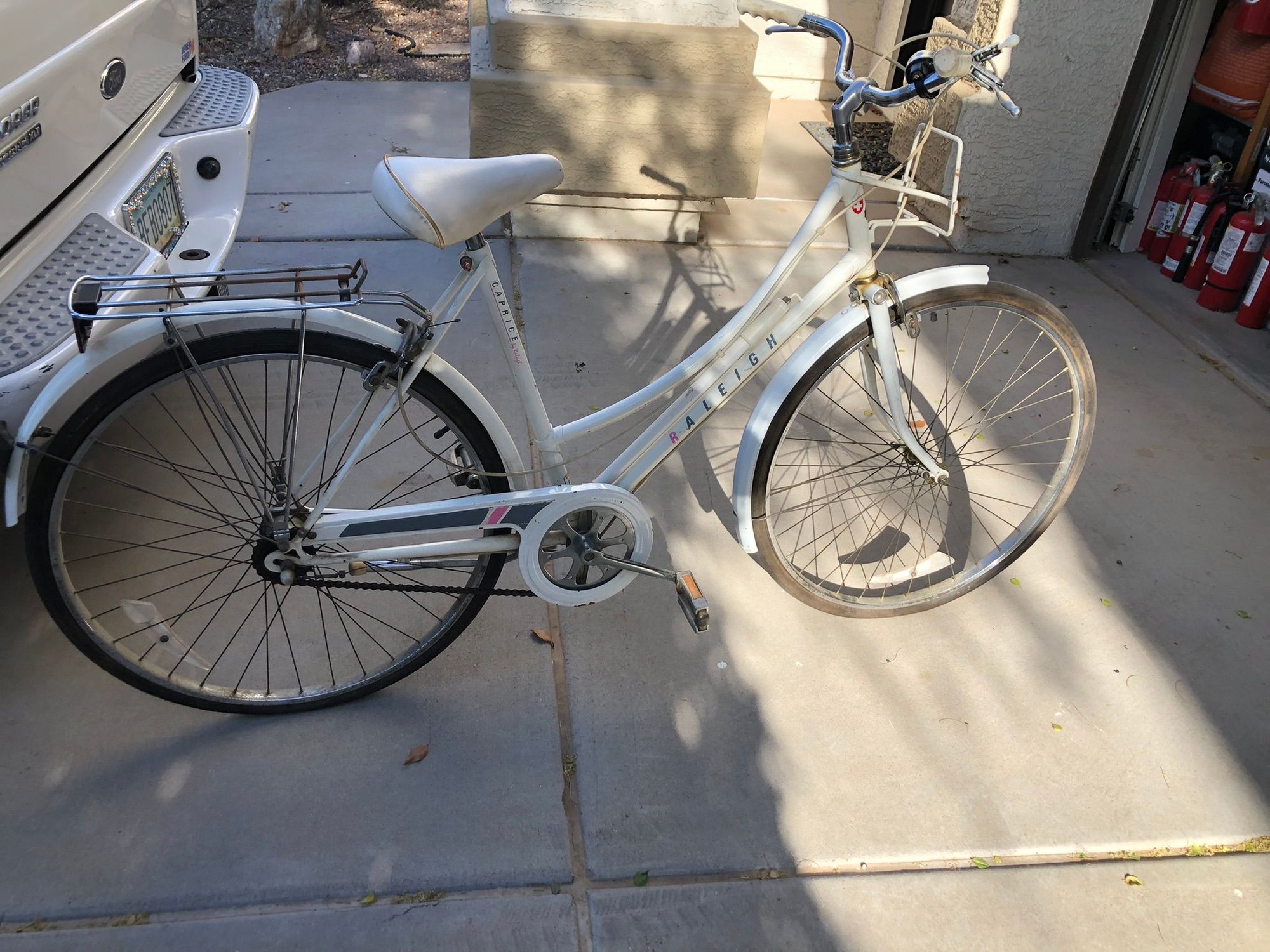

I picked up an older (1990) made in England Raleigh Caprice for my wife, she really likes the bike, and all is in reasonable condition except for the wheels, they have a good amount of rust in two areas. I'd like the swap out the wheels for aluminum, the bike currently has English 26x1 3/8 (590) wheels. Is there something with more common tires that will fit that might come with a Sturmey Archer 3 speed? All I can find are old Schwinn 26x1 3/8 which are also steel and the tires are also uncommon like the tires it already has. Do I just need to buck up and learn to lace wheels so I can do my own?

Alleytom is offline
Old 05-31-22, 06:37 AM
  #2
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO and Tucson, AZ
Posts: 2,584

Bikes: 2016 Fuji Tread, 1983 Trek 520

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 593 Post(s)
Liked 475 Times in 312 Posts
This would be a good bike to learn wheel building. It can be done cheaply if you don't plan on making a career out of it. You can use the frame for truing, stacks of books for dishing, and a musical ear for tension. If you happen to find a new alloy rim with the same ERD, lacing is simple--tape the new rim to the old and transfer spokes one at a time. Otherwise, get someone else to double-check your spoke calculations.
andrewclaus is offline
Old 05-31-22, 06:39 AM
  #3
soyabean
Senior Member

soyabean's Avatar

Join Date: Feb 2022
Posts: 291
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 110 Times in 79 Posts
I dunno how close those are to 650 wheels, you'd have to get your hand on some to see if the brake pads still line up on them.

If by miracle 650 rims work, you can opt to relace, but that's an awful lot of work for a meh beach cruiser.

Otherwise it may be easier to soak those wheels in rust remover (can do one-third section of the wheel each night) and repaint.
soyabean is offline
Old 05-31-22, 06:49 AM
  #4
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,378

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 2289 Post(s)
Liked 2,413 Times in 1,494 Posts
They won't come with an old SA AW 3 speed hub but a newer model.Lots of UK sellers

The Sun Ringle CR-18 is one of the few alloy rims in ISO 590 and drilled for 32/36/40 for SA AW hubs, but getting hard to find.

​​​​​​https://www.cycleking.co.uk/wheel/wh...3-speed__13117

​​​​​​https://www.somafab.com/archives/pro...00c-rear-wheel
dedhed is online now
Old 05-31-22, 07:23 AM
  #5
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 5,299
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1529 Post(s)
Liked 1,205 Times in 716 Posts
If you want to rebuild your wheels, the best current choice would be 650B which are pretty close at 584 mm BCD to your current wheels. Actually, your front wheel is probably not worth rebuilding, but the 3 speed rear hub is probably worth salvaging if it is working well. The smaller diameter 650B rim would require that you move the brake pads downward by 3 mm so you would have to check to see if your brakes have that much adjustment. 650B tires are much more readily available than 26 x 1 3/8
alcjphil is online now
Old 05-31-22, 07:33 AM
  #6
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 5,299
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1529 Post(s)
Liked 1,205 Times in 716 Posts
Originally Posted by soyabean View Post
I dunno how close those are to 650 wheels, you'd have to get your hand on some to see if the brake pads still line up on them.
.
Which 650 wheel are you referring to? 650A, 650B, or 650C?
alcjphil is online now
Old 05-31-22, 08:20 AM
  #7
ClydeClydeson
Senior Member

Join Date: Mar 2019
Posts: 1,473
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 513 Post(s)
Liked 782 Times in 453 Posts
I would say lacing a new set of wheels with 650B (584BSD) rims would be the best solution. Plenty of tire choices, and should fit the bike without any major mods.

Second choice IMO is to find a set of 650A (26 x 1 3/8, 590BSD, same size as current) alloy rims and relace those on the current hubs.

As mentioned above, the front hub may not be worth the effort of re-lacing, but it may be difficult to find pre-laced wheels in either size... 650B is becoming more common but generally only with disc brakes and not with rim-brake compatible rims. Also, the front is the rim I would swap for aluminum first because the biggest improvement you'll see is in the braking (esp. in the wet) of aluminum braking surface vs chrome steel braking surface. An aluminum rim on the front and some nice new brake pads and a new cable and housing will give the bike reasonable brakes.

You can de-uglify the chrome rims very quickly with steel wool.
ClydeClydeson is offline
