Is there a difference between Shimano brake cables and shift cables?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Is there a difference between Shimano brake cables and shift cables?

Old 05-31-22, 10:34 AM
  #1
donhaller
Senior Member
Thread Starter

donhaller's Avatar

Join Date: Aug 2005
Location: Chesapeake Beach, Maryland USA
Posts: 514

Bikes: GIANT TCR C1, Gary Fisher Aquila MTB, Custom Nishiki, TREK Antelope

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 8 Times in 4 Posts
Is there a difference between Shimano brake cables and shift cables?

I replaced my shifter cables with new Jagwire Stainless Steel cables and was planning on changing my brake cables as well. A buddy told me they are different cables. True? if so, what cable is recommended. When shopping on Amazon and Ebay I saw no real differences???

Last edited by donhaller; 05-31-22 at 11:32 AM.
donhaller is offline
Old 05-31-22, 10:38 AM
  #2
hokiefyd
Senior Member

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,914

Bikes: '18 Redline Zander, '14 Surly Pugsley, '97 GT Vantara, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1346 Post(s)
Liked 630 Times in 475 Posts
The direct answer to your question is, "yes, there is a difference between Shimano brake cables and shift cables." There's a difference between brake and shift cables regardless of brand -- brake cables are typically thicker (1.2mm rings a bell to me) and have different cable ends than shift cables, which are usually thinner (1.0mm?).

Many people use the multi-packs you can get on Amazon and eBay, many people use only high-end stainless cables, and many people prefer to trust the quality of whatever the local bike shop carries (which is usuallly Jagwire). Most bike shops carry both standard and stainless varieties, so you usually have a few choices there.
hokiefyd is offline
Old 05-31-22, 10:39 AM
  #3
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,559

Bikes: lots

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1802 Post(s)
Liked 2,642 Times in 1,367 Posts
Not sure I understand your question. Are you asking if shift and brake cables are different? If so I don't understand how anyone could not see that they are in fact very different.
cxwrench is offline
Old 05-31-22, 10:49 AM
  #4
donhaller
Senior Member
Thread Starter

donhaller's Avatar

Join Date: Aug 2005
Location: Chesapeake Beach, Maryland USA
Posts: 514

Bikes: GIANT TCR C1, Gary Fisher Aquila MTB, Custom Nishiki, TREK Antelope

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 8 Times in 4 Posts
Well, I haven't had the brake cables out to inspect them and have not done this before. The shift cable replacements were easy enough. I just didn't know the brake cables were different. Thanks for the confirmation and now I need to order the correct configuration to replace my brake cables.
donhaller is offline
Old 05-31-22, 12:01 PM
  #5
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 7,099

Bikes: Bob Jackson, Wizard, Pegoretti Duende, Merckx ProSLX, Pelizzoli, Cannondale ST, Schwinn Tempo, Schwinn Voyageur, Canyon Endurace, Richard Sachs, Davidson Discovery

Mentioned: 198 Post(s)
Tagged: 0 Thread(s)
Quoted: 1809 Post(s)
Liked 1,940 Times in 761 Posts
Don, also be aware that Shimano compatible road bike brake cables and mountain bike/hybrid brake cables use different ends.
Based on your profile, you own both kinds.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Likes For rccardr:
Old 05-31-22, 12:09 PM
  #6
donhaller
Senior Member
Thread Starter

donhaller's Avatar

Join Date: Aug 2005
Location: Chesapeake Beach, Maryland USA
Posts: 514

Bikes: GIANT TCR C1, Gary Fisher Aquila MTB, Custom Nishiki, TREK Antelope

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 8 Times in 4 Posts
Originally Posted by rccardr View Post
Don, also be aware that Shimano compatible road bike brake cables and mountain bike/hybrid brake cables use different ends.
Based on your profile, you own both kinds.
Thanks! Yeah this is for my road bike! So thanks for that clarification
donhaller is offline
Old 05-31-22, 12:16 PM
  #7
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,525

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4688 Post(s)
Liked 3,180 Times in 2,218 Posts
I think that on the very old bikes of the 70's that the cables were about the same diameter if not the same. But the terminus or whatever the proper word is for the thing on the end of the cable was different depending on whether it was to fit in a shifter or a brake lever.

When indexed shifting came along and particularly with STI's and their cousins, the shift cables got even narrower in diameter.

I might be speaking nonsense, someone else should double check what I'm spouting from just off the top of my head. <grin>
Iride01 is offline
Old 05-31-22, 01:47 PM
  #8
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,111
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Liked 658 Times in 498 Posts
I would also recommend using the Jagwire Brake Housing from their top tier group as they are much less prone to compression sponginess. You'll notice a difference when switching from Shimano and others that the brakes will feel firmer and easier to modulate. Also, Shimano uses a 1.2mm shift cable and Jagwire plus some others use a 1.1mm. I've used both cables in JW or Shim housing and no issues so basically interchangeable.
Crankycrank is offline
Old 05-31-22, 08:59 PM
  #9
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 10,239

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), R+M Supercharger2 Rohloff, Habanero Ti 26

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2994 Post(s)
Liked 2,219 Times in 1,467 Posts
Yes they are very different.

If I were buying new stuff I would go with Jagwire Elite Link kits for both brakes and shifters or at least the Pro Level and I would make sure I am getting the right stuff. Luckily your local shop can help you out both with getting the parts (if they don't already have them) and also with install. Buy local Billionaire Jeff Bezos does not need any more of your money, he is plenty rich without it plus he is useless when it comes to bike queries or fixing anything.

Always buy the best slick stainless (and ideally polished) cables and the highest quality housing for your bike as it will improve things quite a bit without costing a whole lot.
veganbikes is offline
Likes For veganbikes:
Old 06-01-22, 04:36 AM
  #10
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,282

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1421 Post(s)
Liked 1,042 Times in 697 Posts
Originally Posted by donhaller View Post
I replaced my shifter cables with new Jagwire Stainless Steel cables and was planning on changing my brake cables as well. A buddy told me they are different cables. True? if so, what cable is recommended. When shopping on Amazon and Ebay I saw no real differences???
The inner cables are different and, crucially, the housings are of very different construction, shift housing being substantially weaker. Never use shift cable or housing for brake systems, ever.
dsbrantjr is offline
Likes For dsbrantjr:
Old 06-01-22, 08:30 AM
  #11
MudPie
Senior Member

MudPie's Avatar

Join Date: May 2004
Location: Southern California
Posts: 2,152
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 97 Times in 75 Posts

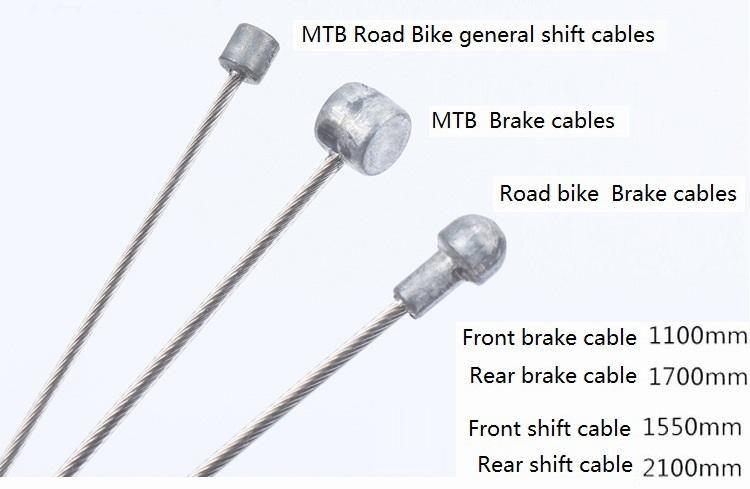

Just to add an illustration to the above info, here are end differences in the cables (note, don't pay too much attention to the cable lengths shown in the bottom right. Most likely the cable you buy will be sufficiently long and you just cut to fit). You can get road or mountain specific brake cables, or you can buy universal brake cable that has the road (mushroom) and the mountain (barrel) configuration on each end and you cut off what you don't need.

MudPie is offline
Likes For MudPie:
Old 06-01-22, 09:23 AM
  #12
ofajen
Cheerfully low end

ofajen's Avatar

Join Date: Jun 2020
Posts: 1,556
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 493 Post(s)
Liked 791 Times in 504 Posts
Originally Posted by Iride01 View Post
I think that on the very old bikes of the 70's that the cables were about the same diameter if not the same.
The main change is that back then we used the same steel wound housing for brake cables and shifter cables. With indexed shifting came the new shifter housing with longitudinal wires. I donít recall any change in cable widths.

Otto
ofajen is offline
Old 06-01-22, 10:09 AM
  #13
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,525

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4688 Post(s)
Liked 3,180 Times in 2,218 Posts
Originally Posted by ofajen View Post
The main change is that back then we used the same steel wound housing for brake cables and shifter cables. With indexed shifting came the new shifter housing with longitudinal wires. I donít recall any change in cable widths.

Otto
When I first replaced the the shifter cable on my '78 Raleigh Competition GS, what I took off was quite a bit larger diameter. I don't think it was quite as big as the brake cable, but certainly not as small a diameter as what I replaced it with.

At the time I did this back circa 2010, there was a site talking about how the diameters changed over the progression from down tube friction shifters and just 5 speeds on the rear to more modern indexed shifting with more speeds on the rear.

Of course now that I need some backup I can't find the site or article I thought I'd read. So it's not a big worry one way or the other for me.
Iride01 is offline
Old 06-01-22, 11:06 AM
  #14
Bike Gremlin
Mostly harmless ô

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,263

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1021 Post(s)
Liked 103 Times in 68 Posts
If it's of any help, I wrote in some detail about the shifter, brake cable, and housing standards - with pics and all.
Bike Gremlin is offline
Likes For Bike Gremlin:
Old 06-01-22, 12:36 PM
  #15
hokiefyd
Senior Member

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,914

Bikes: '18 Redline Zander, '14 Surly Pugsley, '97 GT Vantara, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1346 Post(s)
Liked 630 Times in 475 Posts
It's clear that I was off with my thickness recollection above. I appreciate the resources listed giving the correct info!
hokiefyd is offline
Likes For hokiefyd:
Old 06-01-22, 01:32 PM
  #16
2_i
Senior Member

Join Date: Sep 2005
Location: Michigan
Posts: 3,455

Bikes: Trek 730 (quad), 720 & 830, Bike Friday NWT, Brompton M27R & M6R, Dahon HAT060 & HT060, ...

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 723 Post(s)
Liked 266 Times in 199 Posts
Originally Posted by dsbrantjr View Post
The inner cables are different and, crucially, the housings are of very different construction, shift housing being substantially weaker. Never use shift cable or housing for brake systems, ever.
Well, I switched to the linked housing from the cheap TRLREQ brand and it is the same for brake and shift cables and superior, mostly vastly, in other ways. Actuation is more precise, tight turns are possible, no housing ends are needed, the links are reusable and color combinations can be used to mark individual cable runs.
2_i is offline
Old 06-01-22, 05:38 PM
  #17
icemilkcoffee
Senior Member

icemilkcoffee's Avatar

Join Date: Aug 2009
Posts: 1,404
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 825 Post(s)
Liked 678 Times in 411 Posts
BTW unless you have a problem with yuor cables rusting, stainless cables are not better than galvanized cables. Galvanized cables are self lubricating and less brittle.
icemilkcoffee is offline
Old 06-02-22, 03:44 AM
  #18
SurferRosa
SeŮor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 6,141

Bikes: Old school lightweights

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 2575 Post(s)
Liked 3,557 Times in 1,893 Posts
Originally Posted by dsbrantjr View Post
Crucially, the housings are of very different construction...
Not on my bikes!

SurferRosa is offline
Old 06-02-22, 06:31 PM
  #19
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 5,188
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1471 Post(s)
Liked 1,129 Times in 673 Posts
Simple. Buy a Shimano shift cable and a brake cable, Compare, The difference will be obvious
alcjphil is online now
Old 06-03-22, 05:33 AM
  #20
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,342

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1132 Post(s)
Liked 824 Times in 509 Posts
Originally Posted by Iride01 View Post
I think that on the very old bikes of the 70's that the cables were about the same diameter if not the same. But the terminus or whatever the proper word is for the thing on the end of the cable was different depending on whether it was to fit in a shifter or a brake lever.
You could buy a 'universal' cable that had a brake terminus on one end and a shift terminus on the other end. Handy to carry as a spare on a long tour.
tcs is offline
Likes For tcs:
Old 06-03-22, 08:12 AM
  #21
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,525

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4688 Post(s)
Liked 3,180 Times in 2,218 Posts
Originally Posted by tcs View Post
You could buy a 'universal' cable that had a brake terminus on one end and a shift terminus on the other end. Handy to carry as a spare on a long tour.
Well that's interesting. I wasn't aware of that or if I was then old age and dementia have addled my mind. <grin>

Since the bike was just acquired by me in 2010 it's probably very likely the cables weren't original to the bike made in 1978. Perhaps this better explains why they seemed the same size.
Iride01 is offline
Old 06-03-22, 09:21 AM
  #22
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,559

Bikes: lots

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1802 Post(s)
Liked 2,642 Times in 1,367 Posts
Originally Posted by tcs View Post
You could buy a 'universal' cable that had a brake terminus on one end and a shift terminus on the other end. Handy to carry as a spare on a long tour.
Please provide a link to this as I've never heard of it. The cable diameter is different, 1.6mm for brake and 1.1-1.2mm for shift. Explain how this would work. There are 'universal' brake cables that are mountain on one end and road on the other, and shift cables that are Campy on one end and Shimano/SRAM on the other...but a cable that doubles as both shift and brake? I doubt it.
cxwrench is offline
Old 06-03-22, 11:47 AM
  #23
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,938

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1105 Post(s)
Liked 297 Times in 223 Posts
Originally Posted by ofajen View Post
The main change is that back then we used the same steel wound housing for brake cables and shifter cables. With indexed shifting came the new shifter housing with longitudinal wires. I donít recall any change in cable widths.
Otto
This, and the size (1.2mm shfit vs 1.5mm for brakes) and the cable ends are different.
WizardOfBoz is offline
Old 06-03-22, 12:11 PM
  #24
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,342

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1132 Post(s)
Liked 824 Times in 509 Posts
Originally Posted by cxwrench View Post
Please provide a link to this as I've never heard of it. The cable diameter is different, 1.6mm for brake and 1.1-1.2mm for shift. Explain how this would work. There are 'universal' brake cables that are mountain on one end and road on the other, and shift cables that are Campy on one end and Shimano/SRAM on the other...but a cable that doubles as both shift and brake? I doubt it.
You want an internet link to something that was available 40+ years ago...

In the 10-speed, friction shift, single pivot brake, pre-mountain bike era, things were more forgiving. As were people.
tcs is offline
Likes For tcs:
Old 06-03-22, 12:15 PM
  #25
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,525

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4688 Post(s)
Liked 3,180 Times in 2,218 Posts
Originally Posted by tcs View Post
You want an internet link to something that was available 40+ years ago...

In the 10-speed, friction shift, single pivot brake, pre-mountain bike era, things were more forgiving. As were people.
You might also have to explain that 40 years ago, 10 speed was 5 on the rear times the 2 on the front.
Iride01 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
