Slick Shift by DNP cassette removal tool question

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Slick Shift by DNP cassette removal tool question

Old 08-03-22, 07:30 AM
  #1
tjfastback66
Junior Member
Thread Starter

tjfastback66's Avatar

Join Date: Dec 2020
Location: Minnesota
Posts: 199

Bikes: a few

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Liked 196 Times in 78 Posts
Slick Shift by DNP cassette removal tool question

Greetings All,

I got a used set of wheels for $20.00 and I wanted to remove the Slick Shift by DNP cassette. My research led me to believe that I needed the Park Tool FR-5.2 and a Chain Whip tool.
This was too small. Are there any suggestions for removal of this cassette?

Thank You!

tjfastback66 is offline
Old 08-03-22, 07:44 AM
  #2
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,482

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4665 Post(s)
Liked 3,163 Times in 2,204 Posts
Shouldn't need a chain whip just to remove a freewheel from a hub. Nor even to put it back on.

Looks like the Shimano FW removal tool might work. Or some version of the splined tool. Various brands have similar splined tools that aren't quite the same.

Likely if you just take the wheel to a local bike shop, they'll loosen it for you and you won't have to spend so much on tools you might only use a few times.
Iride01 is offline
Old 08-03-22, 07:53 AM
  #3
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 5,173
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1465 Post(s)
Liked 1,111 Times in 666 Posts
Right. That is a freewheel not a cassette
alcjphil is online now
Old 08-03-22, 08:04 AM
  #4
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,109
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Liked 655 Times in 497 Posts
Originally Posted by tjfastback66 View Post
Greetings All,
I got a used set of wheels for $20.00 and I wanted to remove the Slick Shift by DNP cassette. My research led me to believe that I needed the Park Tool FR-5.2 and a Chain Whip tool.
This was too small. Are there any suggestions for removal of this cassette?
Did you remove the axle to use the tool on the freewheel? I've seen a pic of what looks like yours and the removal notches look like they can only be accessed by at least removing the axle nut and possibly the axle too. Not certain though but give it a shot.
Crankycrank is offline
Old 08-03-22, 08:25 AM
  #5
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,482

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4665 Post(s)
Liked 3,163 Times in 2,204 Posts
Page 11 of the product catalog on their website shows some removal tools. Which you specifically need I don't know.

https://dnpgears.webnode.page/catalog/#!

https://dnpgears.webnode.page/

Still, I'd go to a shop first unless you feel you will be removing this freewheel often.

It might be possible that it is a freehub with a cassette. But their current cassettes all use lock rings. Perhaps a older model no longer made had a threaded small cog.
Iride01 is offline
Old 08-03-22, 08:41 AM
  #6
tjfastback66
Junior Member
Thread Starter

tjfastback66's Avatar

Join Date: Dec 2020
Location: Minnesota
Posts: 199

Bikes: a few

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Liked 196 Times in 78 Posts
Originally Posted by alcjphil View Post
Right. That is a freewheel not a cassette
The reason that I thought it was a cassette was from the PO said that it was (and he is a bicycle mechanic).
Plus doing some research the video explained the difference also leads me to think that it is a cassette as the inner ring moves with the gears :

Determining Cassette / Freewheel Type | Park Tool

I will try the local shop today and see if they can clarify.
I would rather buy the tool than pay the $9.00 to the shop to remove the gears - then I simply have it for future use if needed.

Thank you All!
tjfastback66 is offline
Old 08-03-22, 08:49 AM
  #7
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,482

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4665 Post(s)
Liked 3,163 Times in 2,204 Posts
If you have a good rapport with your local shops they might just charge you an hour or so of decent conversation. Though if your shops are busy and the mechanics not the people running or owning the shop, then maybe not.
Iride01 is offline
Old 08-03-22, 09:36 AM
  #8
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,542

Bikes: lots

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1792 Post(s)
Liked 2,632 Times in 1,363 Posts
Originally Posted by tjfastback66 View Post
The reason that I thought it was a cassette was from the PO said that it was (and he is a bicycle mechanic).
Plus doing some research the video explained the difference also leads me to think that it is a cassette as the inner ring moves with the gears :

Determining Cassette / Freewheel Type | Park Tool

I will try the local shop today and see if they can clarify.
I would rather buy the tool than pay the $9.00 to the shop to remove the gears - then I simply have it for future use if needed.

Thank you All!
I don't know what kind of 'research' you've done but that's a freewheel. Everything I saw in the search I did said 'DNP freewheel...'.
cxwrench is offline
Old 08-03-22, 12:31 PM
  #9
tjfastback66
Junior Member
Thread Starter

tjfastback66's Avatar

Join Date: Dec 2020
Location: Minnesota
Posts: 199

Bikes: a few

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Liked 196 Times in 78 Posts
Originally Posted by cxwrench View Post
I don't know what kind of 'research' you've done but that's a freewheel. Everything I saw in the search I did said 'DNP freewheel...'.
Yep it is and thank God for that!

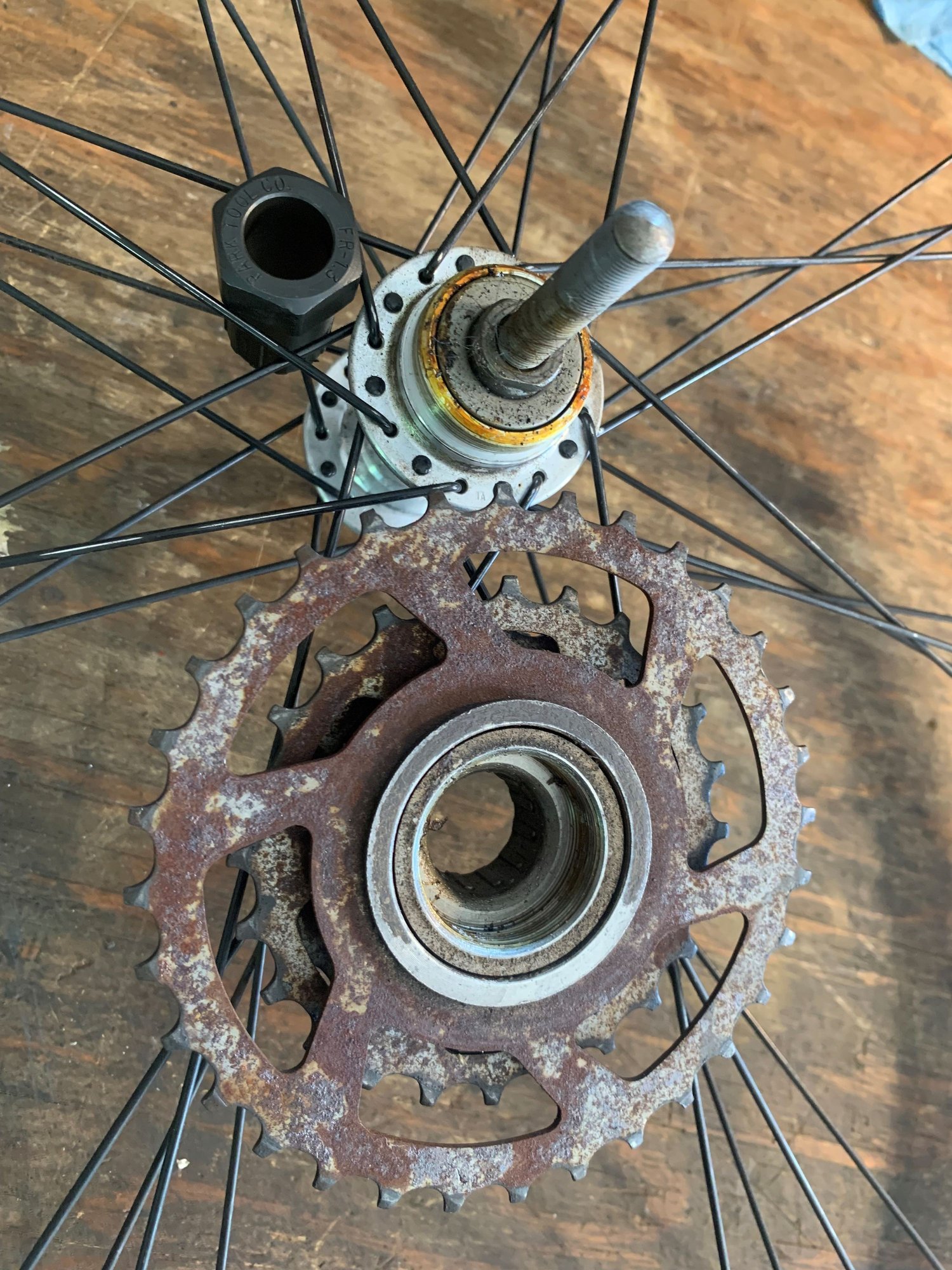

I had a Park Tool FR-1.3 and it came off without any struggle.
I am a novice at being any type of bike mechanic but I do enjoy learning what I can.
Thanks All
