How to distinguish a tubular wheel from a clincher

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

How to distinguish a tubular wheel from a clincher

Old 04-26-23, 10:16 AM
  #1
Full Member
Thread Starter

Join Date: Sep 2020
Posts: 210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 50 Times in 32 Posts
How to distinguish a tubular wheel from a clincher

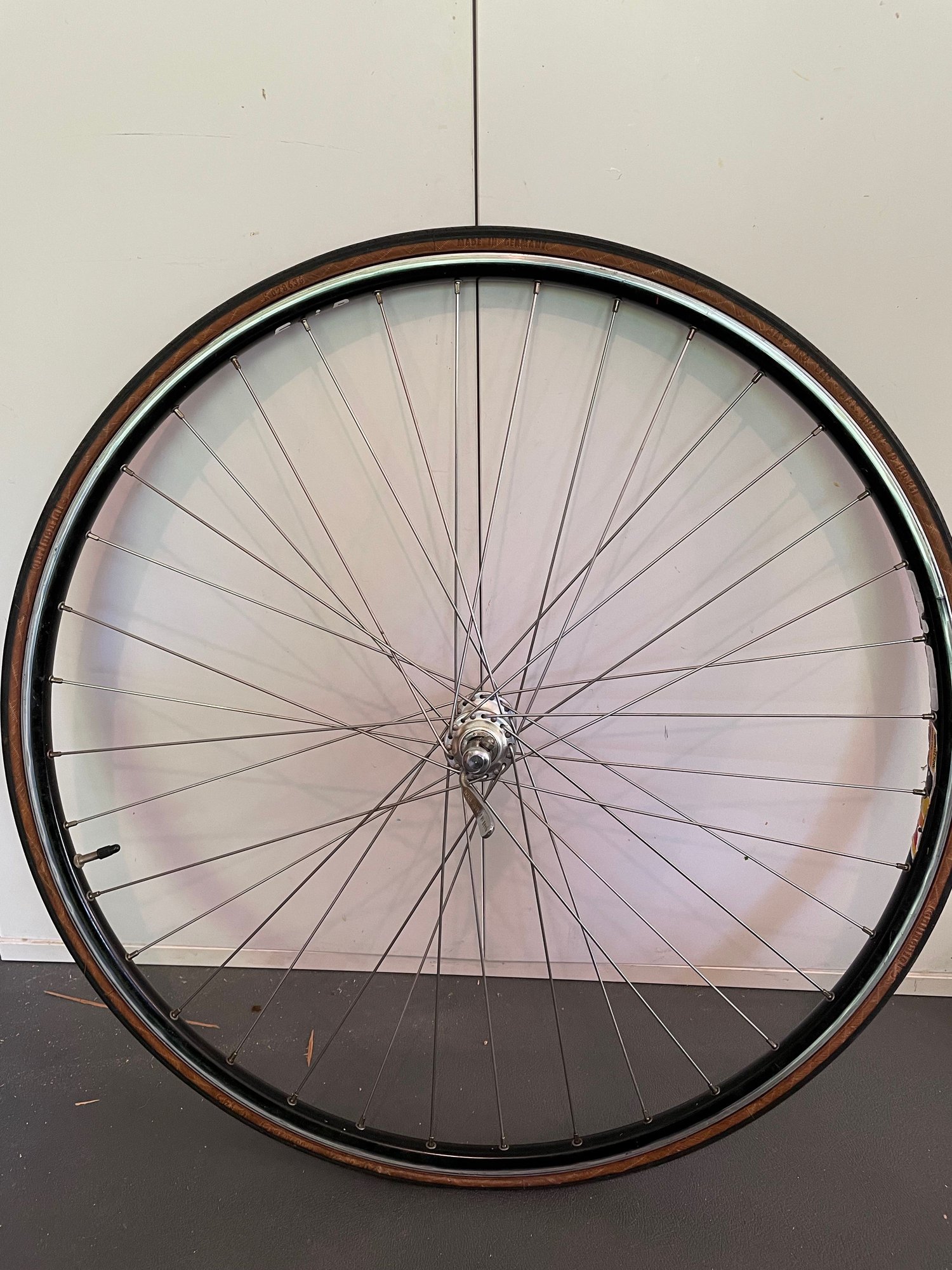

I thought I could distinguish a clicher 700c wheel from a tubular, but I'm not completely sure here. I think I see underlying tape and the tire does not easily come off, but I'm not 100% sure. I've attached pictures. The wheels are FiR, with 700x 20 Continental tires.


Last edited by WT160; 04-26-23 at 10:17 AM. Reason: spelling
WT160 is offline
Old 04-26-23, 10:19 AM
  #2
Senior Member

Join Date: Jul 2013
Location: Chicago North Shore
Posts: 2,354

Bikes: frankenbike based on MKM frame

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 728 Post(s)
Liked 625 Times in 384 Posts
It's easier with the tire off. Used tubular rims will show evidence of glue or tape vs. rim tape, and tub rims will pretty clearly show themselves unable to hold onto a tire bead.
philbob57 is offline
Old 04-26-23, 10:21 AM
  #3
Full Member
Thread Starter

Join Date: Sep 2020
Posts: 210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 50 Times in 32 Posts
Well, there's part of the problem. I tried to get these tires off and couldn't.
WT160 is offline
Old 04-26-23, 12:52 PM
  #4
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 24,839

Bikes: Several, mostly not name brands.

Mentioned: 154 Post(s)
Tagged: 0 Thread(s)
Quoted: 3616 Post(s)
Liked 3,446 Times in 1,957 Posts
Rims for tubular tires don't have raised sidewalls to hold the tire:
JohnDThompson is offline
Likes For JohnDThompson:
Old 04-26-23, 12:55 PM
  #5
I'm good to go!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 15,209

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 6319 Post(s)
Liked 4,908 Times in 3,383 Posts
So what model of tire is it?

I can make out that it's a Continental. And I see what looks like a tire part number of 028636 along with the Bar and PSI pressures. So if with the left side of the tire being in such readable shape then what is on the right side of the tire. Which is usually for certain where they put the model and brand as properly bicycles are supposed to be photographed from the drive side or right side.

Looks like the brake track might be about to be worn out on that rim.
Iride01 is offline
Old 04-26-23, 12:59 PM
  #6
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 24,839

Bikes: Several, mostly not name brands.

Mentioned: 154 Post(s)
Tagged: 0 Thread(s)
Quoted: 3616 Post(s)
Liked 3,446 Times in 1,957 Posts
Originally Posted by WT160
Well, there's part of the problem. I tried to get these tires off and couldn't.
Deflate the tire and try to roll it off the rim. If it's a tubular tire, you will see the base tape:

If it's a clincher tire, you will see the raised sidewalls of the rim and the bead on the tire.
JohnDThompson is offline
Likes For JohnDThompson:
Old 04-26-23, 02:33 PM
  #7
Full Member
Thread Starter

Join Date: Sep 2020
Posts: 210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 50 Times in 32 Posts
Thanks for the replies. It turned out to be a clincher. It was just stuck on weirdly.
WT160 is offline
Old 04-26-23, 02:34 PM
  #8
Full Member
Thread Starter

Join Date: Sep 2020
Posts: 210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 50 Times in 32 Posts
Originally Posted by Iride01

Looks like the brake track might be about to be worn out on that rim.
Can this be rehabilitated by sanding?
WT160 is offline
Old 04-26-23, 02:36 PM
  #9
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 18,139

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4231 Post(s)
Liked 3,940 Times in 2,347 Posts
The rim has some brand and/or model decals in it. Perhaps you could have googled that first. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 04-26-23, 02:38 PM
  #10
Full Member
Thread Starter

Join Date: Sep 2020
Posts: 210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 50 Times in 32 Posts
Originally Posted by Andrew R Stewart
The rim has some brand and/or model decals in it. Perhaps you could have googled that first. Andy
I did. It wasn't conclusive.
WT160 is offline
Old 04-26-23, 04:22 PM
  #11
Senior Member

Join Date: Aug 2009
Posts: 1,866
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 522 Post(s)
Liked 681 Times in 398 Posts
This can't be serious, can it?
wheelreason is offline
Old 04-26-23, 04:54 PM
  #12
Senior Member

mackgoo's Avatar

Join Date: Mar 2017
Location: San Clemente
Posts: 669

Bikes: 87 Bianchi X4, 95 Bianchi Ti Mega Tube, 06 Alan Carbon Cross X33, 74 Galmozzi Super Competizione, 64 Bianchi Specialissima.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 261 Post(s)
Liked 559 Times in 170 Posts
The give away was the nut on the valve stem.
mackgoo is offline
Likes For mackgoo:
Old 04-26-23, 05:46 PM
  #13
Full Member
Thread Starter

Join Date: Sep 2020
Posts: 210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 50 Times in 32 Posts
I recognize that the original question may have seemed a little silly for the experts, but the tire really was stuck on in a way that seemed like the whole thing was glued to the rim. It was like nothing I had ever experienced before. It gave way and opened about an hour later, but there was no way to get a tire lever in at first. The whole thing was monolithic. After I got the tire off, I saw that it was the liner that was causing the trouble. It's some kind of plastic that I guess got sticky and was acting like glue, holding everything together.
WT160 is offline
Old 04-26-23, 07:02 PM
  #14
Senior Member

Kontact's Avatar

Join Date: Apr 2011
Posts: 7,301
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4553 Post(s)
Liked 1,695 Times in 1,113 Posts
Originally Posted by WT160
Can this be rehabilitated by sanding?
No amount of sanding will make the rim wall thicker.

The problem is not the brake track itself, but the structural integrity of the rim. Eventually, braking causes the walls of the rim to get so thin that tire pressure cracks them.
Kontact is offline
Old 04-27-23, 06:51 AM
  #15
Full Member
Thread Starter

Join Date: Sep 2020
Posts: 210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 50 Times in 32 Posts
Originally Posted by Kontact
No amount of sanding will make the rim wall thicker.

The problem is not the brake track itself, but the structural integrity of the rim. Eventually, braking causes the walls of the rim to get so thin that tire pressure cracks them.
I see. Thanks.
Is there a rule of thumb for replacement?
WT160 is offline
Old 04-27-23, 07:21 AM
  #16
Senior Member

Kontact's Avatar

Join Date: Apr 2011
Posts: 7,301
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4553 Post(s)
Liked 1,695 Times in 1,113 Posts
Originally Posted by WT160
I see. Thanks.
Is there a rule of thumb for replacement?
If your thumb fits deeply in the groove left by the brake pads, replace the rim.

I would say when the rim wall is half its original depth thickness, but that may not be conservative enough.
Kontact is offline
Old 04-27-23, 10:08 PM
  #17
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 18,139

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4231 Post(s)
Liked 3,940 Times in 2,347 Posts
These types of questions, "how much/little is enough" will never have an answer that pertains to every rider. As a rim brake track wears and gets thinner it will begin to flex outwards more until the cracks start. How sensitive to brake feel is the rider and will they feel this widening as a late term heads up? What pressures does the rider run, more PSI is greater side wall widening stress. How abrasive are the pads? How much grit and such are carried up and onto the rims during riding? How much braking force is used during one's rides? How tolerant of a rim's brake track blow out is the rider? Will they sue someone or just accept it as what pushing limits can get you?

Some rim brands do have wear indicators and guidelines for rim wear. I assume the "spec" is somewhat liability driven... Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 04-28-23, 06:28 PM
  #18
Full Member
Thread Starter

Join Date: Sep 2020
Posts: 210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 50 Times in 32 Posts
I took the wheels to my LBS. I was potentially interested in new rims and having them build me new wheels. They said what I have are fine...happy even to see a FiR rims in the flesh. Good shop.
WT160 is offline
Old 04-28-23, 06:56 PM
  #19
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,548
Mentioned: 217 Post(s)
Tagged: 0 Thread(s)
Quoted: 18424 Post(s)
Liked 4,544 Times in 3,376 Posts
Originally Posted by WT160
Can this be rehabilitated by sanding?
Be very gentle with sanding or filing any really high or rough spots.

I've only had one rim fail years ago. The brake tracks were worn very concave, until one day the lip of the rim just popped off.

I can see a couple of worn spots on your rim, but it is difficult to discern how bad it is overall.
CliffordK is offline
Old 04-30-23, 01:04 AM
  #20
señor miembro

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 6,659

Bikes: '70s - '80s Campagnolo

Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 3919 Post(s)
Liked 6,549 Times in 3,247 Posts
Originally Posted by WT160
I took the wheels to my LBS. I was potentially interested in having them build me new wheels.
Can you follow simple directions? Do it yourself. It's easy. Don't let anybody tell you differently.

https://www.sheldonbrown.com/wheelbuild.html
SurferRosa is offline
Old 05-01-23, 09:38 AM
  #21
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,428

Bikes: yes

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 512 Post(s)
Likes: 0
Liked 411 Times in 177 Posts
The appearance of the sidewalls make the tires seem to be shot anyway. In such cases, where the tires are hard to come off, I just cut through the tire and peel it off like a banana skin.
Vintage_Cyclist is offline
Old 05-01-23, 12:51 PM
  #22
Senior Member

Join Date: Feb 2011
Location: NW Peloponnese, Greece
Posts: 553
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Likes: 0
Liked 26 Times in 23 Posts
I had a pair of Shimano Ultegra wheels purchased in 2004. The hubs ran smoothly with no play. I checked the trueness occasionally, but they needed minimum adjustment.
In 2020 the rear wheel's braking surface showed a minor vertical crack so I decided to measure the thickness of the braking surface with a special tool.
I found that both sides on the braking surface of the rear wheel measured 0.7 to 0.9 mm. The front wheel was slightly better. Most of my riding is done in dry conditions.
I decided to replace these wheels.
