Derailleur mod enables maintenence

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Derailleur mod enables maintenence

Old 09-17-23, 02:30 PM
Junior Member
Thread Starter
Join Date: Dec 2015
Posts: 165
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 44 Times in 30 Posts
Derailleur mod enables maintenence

Save your front mech from the scrap pile!

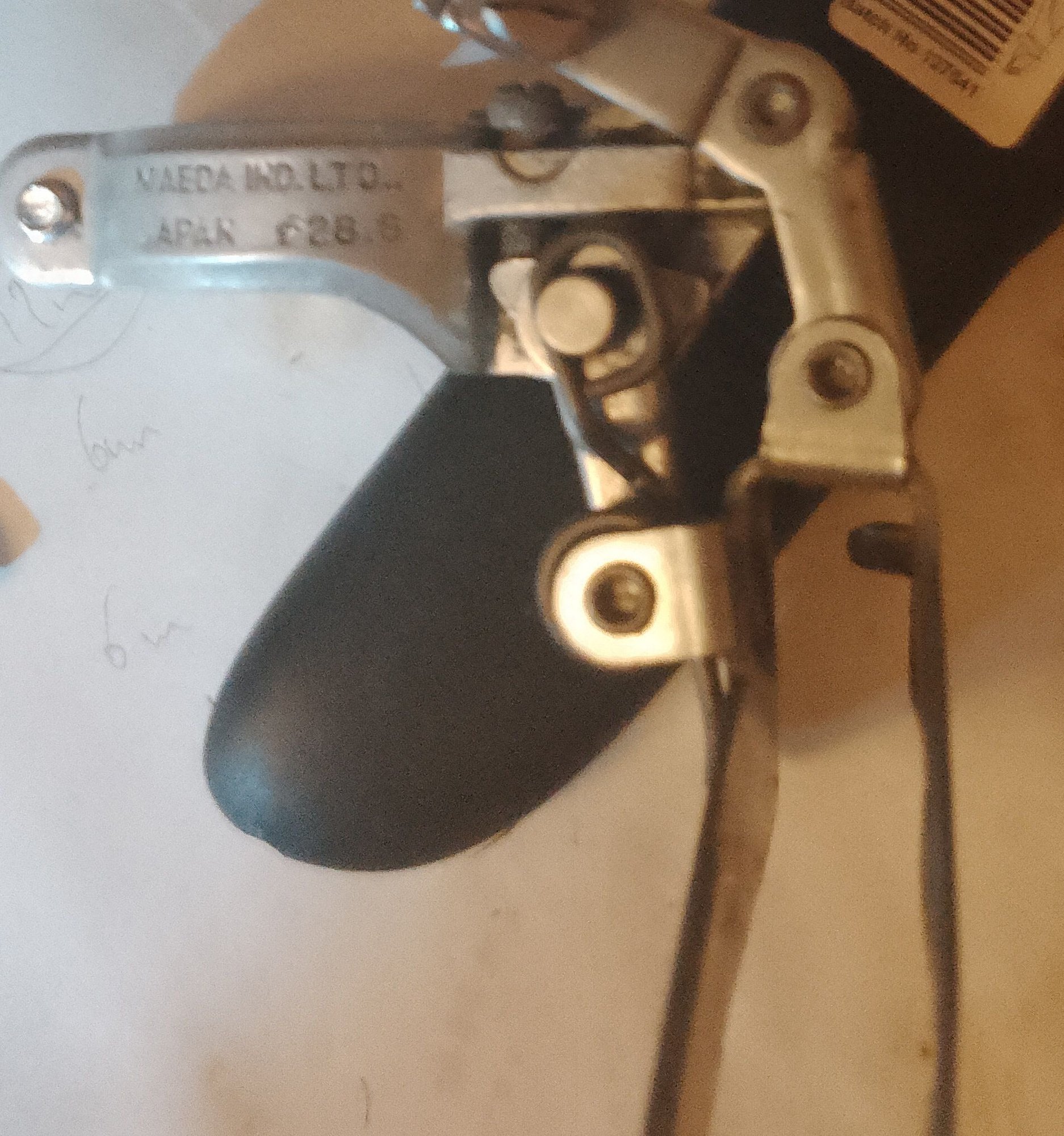

Crunchy front mech movements can often be remedied by greasing the pivots. Unfortunately some front mechs exclusively use rivets, making the pivots unaccessible. By drilling out the rivets and replacing them with partially threaded bolts, the pivots can be maintained indefinitely. Drilling only took a few seconds, a punch was used when needed to eject what was left. For my suntour mech, 4 mm shaft diameter bolts fit well. Some pictures are included below. The bolts have not been optimized for length etc.

Last edited by ign1te; 09-17-23 at 02:44 PM.
ign1te is offline
Likes For ign1te:
Old 09-17-23, 02:41 PM
Senior Member
Troul's Avatar
Join Date: Oct 2013
Location: Mich
Posts: 6,961

Bikes: RSO E-tire dropper fixie brifter

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 2,750 Times in 1,781 Posts
I've done that, & not just with bicycle parts that had rivets.

Fun fact: A bolt [what you used] has threads partially along the shank & is affixed using a nut/fastener, whereas a set screw will be threaded all the way to the hex head & the component it is screwed into will have the mating threads for securing in-place.
-Oh Hey!
Troul is offline
Likes For Troul:
Old 09-17-23, 02:51 PM
Senior Member
Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 4,844

Bikes: 1989 Cinelli Supercorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 2889 Post(s)
Liked 2,442 Times in 1,470 Posts
Swap out regular nuts for Nylocks, and the pivots will be virtually bomb proof!
smd4 is offline
Likes For smd4:
Old 09-17-23, 03:00 PM
Senior Member
alcjphil's Avatar
Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 5,792
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1747 Post(s)
Liked 1,609 Times in 921 Posts
Originally Posted by smd4
Swap out regular nuts for Nylocks, and the pivots will be virtually bomb proof!
A meeting of the minds.
alcjphil is offline
