Cannot remove end caps from Origin8 RD-1120 front hub
09-15-24 | 08:29 PM
#1
Thread Starter
Senior Member
Joined: Sep 2015
Posts: 720
Likes: 181
From: /dev/null
Bikes: Soma Double Cross Disc (2017), Surly DT (2023)
Cannot remove end caps from Origin8 RD-1120 front hub
Hi
Has anyone successfully removed the end caps from the Origin8 RD-1120 convertable front hub?
I tried many methods without success:
Maybe a more practical solution is to use a 12 mm TA to QR adaptor, probably the only downside is that the edges will not have serrations.

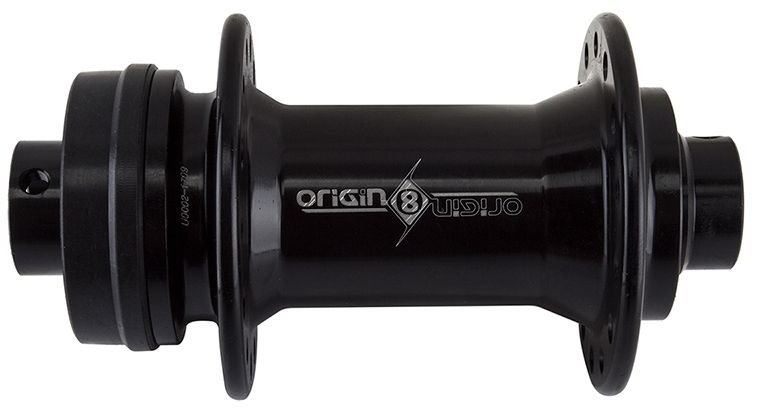

Origin8 RD-1120 front hub

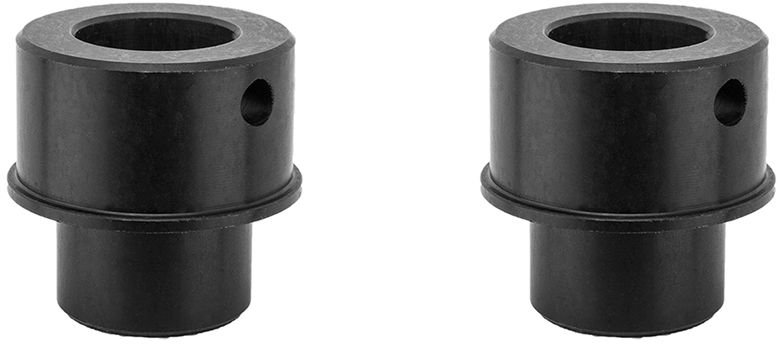

12mm TA end caps (installed by default)
QR end caps
Has anyone successfully removed the end caps from the Origin8 RD-1120 convertable front hub?
I tried many methods without success:
- Inserting a spoke into the holes in the end cap and pulling - the spoke bends easily. Tried a screwdriver and the handle broke off.
- Blind bearing puller - it is too short to completely insert into the end cap and lock
- Tried gripping the end cap in vice and pulling the hub rocking it from side to side - no success
Maybe a more practical solution is to use a 12 mm TA to QR adaptor, probably the only downside is that the edges will not have serrations.
Origin8 RD-1120 front hub
12mm TA end caps (installed by default)
QR end caps
09-16-24 | 04:25 AM
#2
Full Member
Joined: Mar 2022
Posts: 219
Likes: 114
From: Australia
I'm not familiar with these but if it's worth anything :
1) Can you not tap the end caps out from the other side with a rod / drift passed through the centre of the hub ?
2) There is an expanding fastener ( for masonry fixing ) called a Dynabolt ( in Australia. Photo.) Maybe an appropriate size one could be used with a slide hammer.
3) And only if you get desperate.... you could run a bead of weld around the end caps and the contracting weld as it cools may shrink the part enough for it to fall out.
1) Can you not tap the end caps out from the other side with a rod / drift passed through the centre of the hub ?
2) There is an expanding fastener ( for masonry fixing ) called a Dynabolt ( in Australia. Photo.) Maybe an appropriate size one could be used with a slide hammer.
3) And only if you get desperate.... you could run a bead of weld around the end caps and the contracting weld as it cools may shrink the part enough for it to fall out.
09-16-24 | 06:26 AM
#3
SE Wis
Joined: Apr 2005
Posts: 11,555
Likes: 4,332
From: Milwaukee, WI
Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970
09-16-24 | 06:45 AM
#4
“We don’t need no badges”
Joined: Sep 2019
Posts: 2,609
Likes: 1,630
From: SF Bay Area
Bikes: 1981 Holdsworth Special, 1993 C-dale MT3000 & 1996 F700CAD3, 2018 & 2019 Cervelo R3’s & 2022 R5, JustGo Runt, Ridley Oval, Kickr Bike 8-)
Can you go through the middle of the left side & tap out the right side ?
Barry
Barry
__________________
01-05-26 | 06:55 AM
#5
Newbie
Joined: Jan 2026
Posts: 1
Likes: 3
As a follow up on this thread. I have the same hub and turns out it was pretty easy to remove. Insert the largest Allen key into the holes then just take a rod of some sort and from the other end tap gently against the Allen key. Took a few taps but came out cleanly then had to use an axle press and headstem spacers were just the right size to get them back on.
