Cause of big splits in tubes?
10-12-24 | 02:29 PM
#2
Thread Starter
Newbie
Joined: May 2020
Posts: 33
Likes: 7

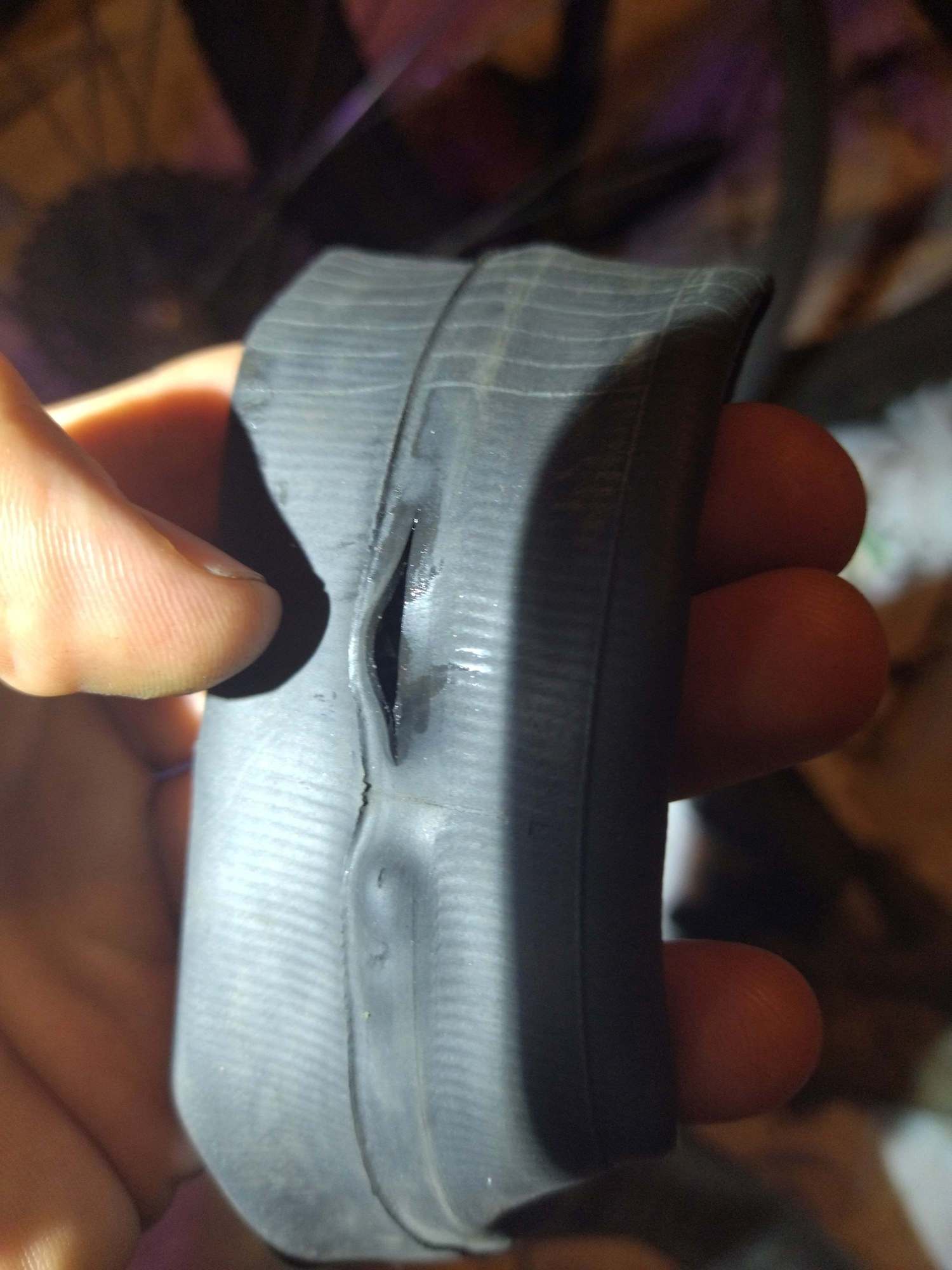

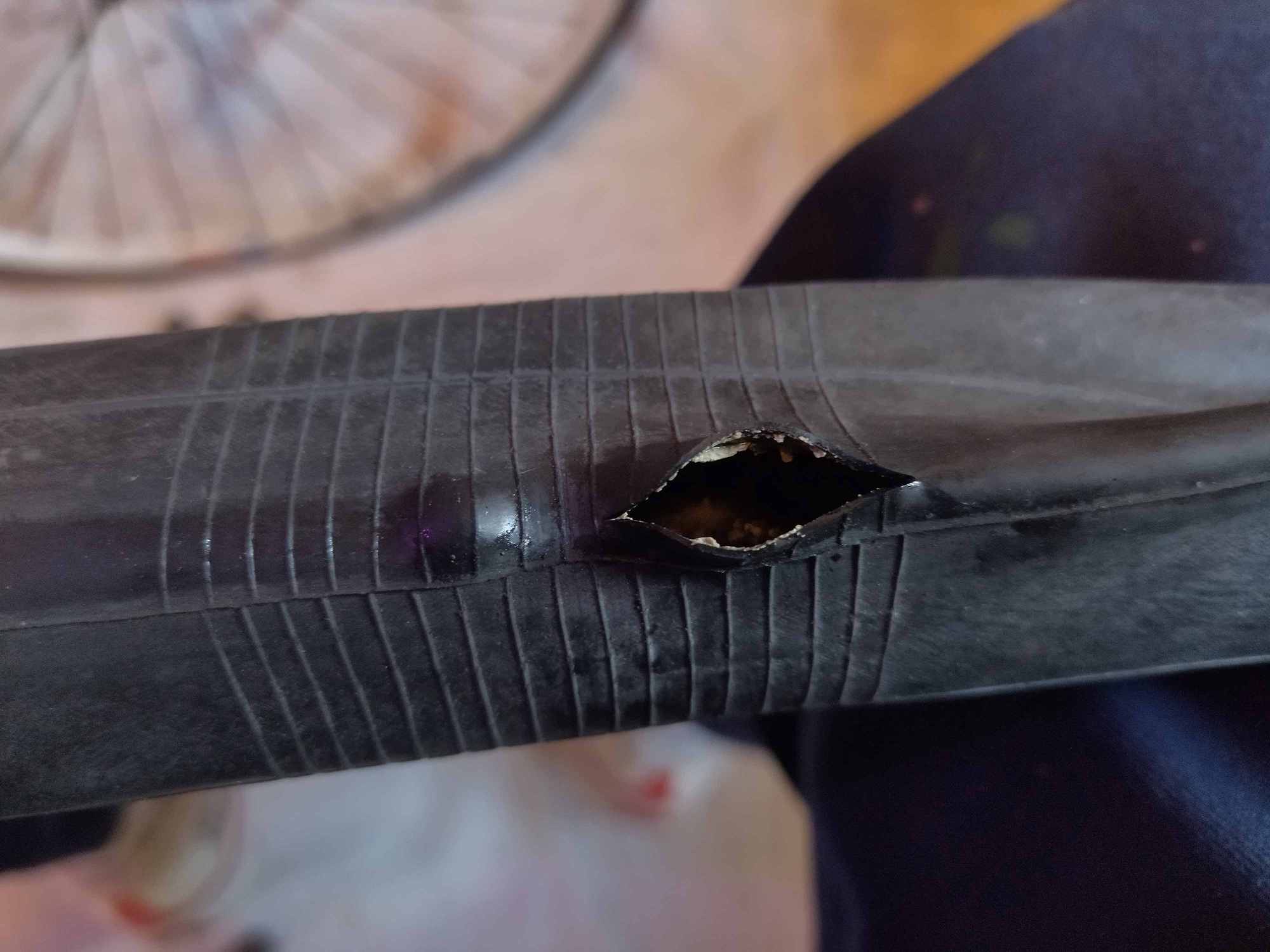

I've had two identical tube failures within a few days of each other, consisting of a big split and a little deformation next to the split. These tubes were in different wheels. I can't see anything wrong with the rim tape in either wheel. Cloth tape in one rim, plastic in the other. I've had the wheels and tubes for quite a while without any problems. The splits were on the rim side of the tubes. I didn't over-inflate the tires (about 50 PSI for tires rated for 65). Neither happened while riding.
10-12-24 | 03:15 PM
#6
Senior Member
Joined: Jan 2016
Posts: 1,515
Likes: 644
Or something in the 'molding' of the tube in that area leads to weakness.
10-12-24 | 03:39 PM
#7
Thread Starter
Newbie
Joined: May 2020
Posts: 33
Likes: 7
Pinched by the tire? They are both wire bead tires and I had just mounted both (they are old but different sizes and I wanted to check to see what clearances my frame has, so I took them off and put them back on again without riding). I didn't use levers to install them. The tires are very old, the tubes probably are too but I'm not sure.
Last edited by Roundis; 10-12-24 at 04:09 PM.
10-12-24 | 04:51 PM
#8
Senior Member
Joined: Jan 2009
Posts: 4,385
Likes: 1,659
From: San Diego, CA
Pinched by the tire? They are both wire bead tires and I had just mounted both (they are old but different sizes and I wanted to check to see what clearances my frame has, so I took them off and put them back on again without riding). I didn't use levers to install them. The tires are very old, the tubes probably are too but I'm not sure.
10-12-24 | 05:05 PM
#9
Senior Member
Joined: Jul 2015
Posts: 7,393
Likes: 3,236
From: NW Oregon
Bikes: 1982 Trek 930R Custom, '91 Diamondback Ascent w/ XT, XTR updates, Fuji Team Pro CF road flyer, Specialized Sirrus Gravel Convert, '09 Comencal Meta 5.5 XC, '02 Marin MBX500, '84 Gitane Criterium bike
tube was pinched between the rim bead area and the tire bead... you inflated the tube and it got tighter... it then blew out.
next time. inflate the tube ever so slightly so that it takes on a rounded appearance, but is still fairly soft... it only takes a few pump strokes... then insert the tube into the tire....once the tire beads are inside the rims' lips, add a few more pump strokes.. then Grab the tire with Both Hands and Twist it Side-To-Side in 6 to ten places around the circumference of the Tire... this gives that pesky tube an opportunity to behave as it should!.. continue pumping until desired pressure is achieve, and check that the tire has fully seated into the rim lips.
i do this EVERY Time i mount a Bicycle tire up... and i dismount/mount up a Lot of tires here.... two just rolled out the door 15 minutes ago...
next time. inflate the tube ever so slightly so that it takes on a rounded appearance, but is still fairly soft... it only takes a few pump strokes... then insert the tube into the tire....once the tire beads are inside the rims' lips, add a few more pump strokes.. then Grab the tire with Both Hands and Twist it Side-To-Side in 6 to ten places around the circumference of the Tire... this gives that pesky tube an opportunity to behave as it should!.. continue pumping until desired pressure is achieve, and check that the tire has fully seated into the rim lips.
i do this EVERY Time i mount a Bicycle tire up... and i dismount/mount up a Lot of tires here.... two just rolled out the door 15 minutes ago...
Last edited by maddog34; 10-12-24 at 09:11 PM.
10-12-24 | 06:22 PM
#10
Senior Member
Joined: Apr 2016
Posts: 3,841
Likes: 1,773
10-12-24 | 06:48 PM
#12
A very long shot, but: if you haven't already done so, check the tire sidewall and the rubber enclosing the bead for a split. Occasionally, a brake pad that's just a bit too high in the arm (or that has worn enough to arc upward into the tire) can wear into the tire.
10-13-24 | 01:16 AM
#13
Thread Starter
Newbie
Joined: May 2020
Posts: 33
Likes: 7
tube was pinched between the rim bead area and the tire bead... you inflated the tube and it got tighter... it then blew out.
next time. inflate the tube ever so slightly so that it takes on a rounded appearance, but is still fairly soft... it only takes a few pump strokes... then insert the tube into the tire....once the tire beads are inside the rims' lips, add a few more pump strokes.. then Grab the tire with Both Hands and Twist it Side-To-Side in 6 to ten places around the circumference of the Tire... this gives that pesky tube an opportunity to behave as it should!.. continue pumping until desired pressure is achieve, and check that the tire has fully seated into the rim lips.
i do this EVERY Time i mount a Bicycle tire up... and i dismount/mount up a Lot of tires here.... two just rolled out the door 15 minutes ago...
next time. inflate the tube ever so slightly so that it takes on a rounded appearance, but is still fairly soft... it only takes a few pump strokes... then insert the tube into the tire....once the tire beads are inside the rims' lips, add a few more pump strokes.. then Grab the tire with Both Hands and Twist it Side-To-Side in 6 to ten places around the circumference of the Tire... this gives that pesky tube an opportunity to behave as it should!.. continue pumping until desired pressure is achieve, and check that the tire has fully seated into the rim lips.
i do this EVERY Time i mount a Bicycle tire up... and i dismount/mount up a Lot of tires here.... two just rolled out the door 15 minutes ago...
10-13-24 | 06:37 AM
#15
Senior Member
Joined: Jan 2009
Posts: 4,385
Likes: 1,659
From: San Diego, CA
The tube could be pinched at any spot depending on if it was twisted when installing. Not unusual. You may never know if your tube was pinched or not in this case but just pay attention when you mount your next tire. If this happens again after you carefully check that the tube isn't caught under the bead when installing another tube let us know. The fact that it was two tubes mounted on two different wheels with different rim strips and tires suggests that it probably wasn't some other cause.
10-13-24 | 09:37 AM
#16
Senior Member
Joined: Apr 2011
Posts: 12,681
Likes: 4,806
10-13-24 | 09:53 AM
#17
Senior Member
Joined: Jul 2015
Posts: 7,393
Likes: 3,236
From: NW Oregon
Bikes: 1982 Trek 930R Custom, '91 Diamondback Ascent w/ XT, XTR updates, Fuji Team Pro CF road flyer, Specialized Sirrus Gravel Convert, '09 Comencal Meta 5.5 XC, '02 Marin MBX500, '84 Gitane Criterium bike
except that the blow out splits and bubbled areas are extremely close to each other in both pics, indicating that, if they WERE from a rim strip problem, they would have to come from a 72+ spoke double walled low rider rim... or maybe a 48 spoke double walled rim... neither of which exist in the real world.
10-13-24 | 10:00 AM
#18
Senior Member
Joined: Apr 2011
Posts: 12,681
Likes: 4,806
except that the blow out splits and bubbled areas are extremely close to each other in both pics, indicating that, if they WERE from a rim strip problem, they would have to come from a 72+ spoke double walled low rider rim... or maybe a 48 spoke double walled rim... neither of which exist in the real world.
But thanks for suggesting that blowouts above the rimstrip don't involve the rim strip so the OP doesn't look at the rim strip.
10-13-24 | 10:07 AM
#19
Mad bike riding scientist
Joined: Nov 2004
Posts: 29,161
Likes: 6,229
From: Denver, CO
Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones
Your problem is due to the way that tubes inflate and (likely) due to less stretch of modern tubes. Here’s my take on the problem after many flats and a lot of thinking about the problem.
I might have agreed even a few months ago. However, nearly every flat I’ve experienced over the last year have been on the interior of the tube…i.e. the rim side. I’ve changed rim strips from cloth Velox just in case there was something in the tape. I marked the tube with direction arrows and clocked my tubes to the label. Nothing seemed to work. I still experienced internal pinhole flats.
About a month ago, I went through flat hell in Wisconsin and Michigan while on tour. I experienced 8 to 10 flats of exactly the same kind including 4 in a single day. One of them was on one of the few really nice downhills in the U.P. in Michigan. I did a quick dodge around rumble strips to get out into the lane rather than do 20+ mph on a very narrow shoulder. The picture below is typical of Michigan’s rumble strips.
I experienced a blow out…which is very scary on a loaded touring bike at normal speed and petrifying at high speed. But it wasn’t a normal blowout…i.e. tire coming off the rim. The tire was still securely attached to the rim. When I took the tire off, there was a rip on the inside of the tube about an inch long. After changing my bike shorts (
), a light bulb went off. There is no way that I could have had anything inside the tire that would cause the tube to actually rip. I eventually decided that what had happened was that the quick steering to avoid the rumble strips had allowed the tube to be pulled too far in one direction. The rubber was obviously thin on the rim side and it tore due to the extra force on the rubber.
I have, in the past, been a proponent of using smaller tubes. They are lighter to carry and rubber expands to fill the space. I didn’t, however, take into account something that I’ve noticed when pumping up a tube outside of the tire. Tubes tend to expand more on the outside of the torus that is the tube than on the inside of the torus. If the tube were a straight pipe, the pressure expansion would look a bit like this (please excuse the extremely simple drawings). The pressure would expand equally in all directions and the tube (pipe, actually) would expand equally in all directions.
But in a torus shape, the outside edge expands slightly more than the inner edge like in the diagram below. The inner edge doesn’t have room to expand as much as the outer edge…it packs up a bit more. You can observe this when you pump up the tube outside of the tire.
Now think of the tube in the rim, especially if the tube is a smaller sized tube. When the tube is put in the tire and filling is started, the tube expands towards the tire first. Then as the tube fills, it expands into the rim channel. The outer part of the tube is trapped against the tire and the inner part has to expand into the channel where it thins. I suspect (but can’t really prove) that the tube thins a lot and, rather than the tube being punctured, the tube tears and creates a pin hole.
Here’s a better representation of the cross section. The tube expands towards in the direction of the red arrows first… especially at low pressure…then it expands in the direction of the green arrow as the pressure increases. The part of the tube trapped at the “bottom” of the tube stretches more and thins leaving it prone to tearing.
My solution was to replace my 23/28mm tubes with 38/44mm tubes. The wider tubes had more material in the channel and were less prone to tearing. The proof of this idea was that my inner punctures disappeared at about the 1/2 way point of my 1200 mile tour.
Going forward, I’m going to stop using small diameter tubes and use wider ones.
About a month ago, I went through flat hell in Wisconsin and Michigan while on tour. I experienced 8 to 10 flats of exactly the same kind including 4 in a single day. One of them was on one of the few really nice downhills in the U.P. in Michigan. I did a quick dodge around rumble strips to get out into the lane rather than do 20+ mph on a very narrow shoulder. The picture below is typical of Michigan’s rumble strips.
I experienced a blow out…which is very scary on a loaded touring bike at normal speed and petrifying at high speed. But it wasn’t a normal blowout…i.e. tire coming off the rim. The tire was still securely attached to the rim. When I took the tire off, there was a rip on the inside of the tube about an inch long. After changing my bike shorts (
), a light bulb went off. There is no way that I could have had anything inside the tire that would cause the tube to actually rip. I eventually decided that what had happened was that the quick steering to avoid the rumble strips had allowed the tube to be pulled too far in one direction. The rubber was obviously thin on the rim side and it tore due to the extra force on the rubber.I have, in the past, been a proponent of using smaller tubes. They are lighter to carry and rubber expands to fill the space. I didn’t, however, take into account something that I’ve noticed when pumping up a tube outside of the tire. Tubes tend to expand more on the outside of the torus that is the tube than on the inside of the torus. If the tube were a straight pipe, the pressure expansion would look a bit like this (please excuse the extremely simple drawings). The pressure would expand equally in all directions and the tube (pipe, actually) would expand equally in all directions.
But in a torus shape, the outside edge expands slightly more than the inner edge like in the diagram below. The inner edge doesn’t have room to expand as much as the outer edge…it packs up a bit more. You can observe this when you pump up the tube outside of the tire.
Now think of the tube in the rim, especially if the tube is a smaller sized tube. When the tube is put in the tire and filling is started, the tube expands towards the tire first. Then as the tube fills, it expands into the rim channel. The outer part of the tube is trapped against the tire and the inner part has to expand into the channel where it thins. I suspect (but can’t really prove) that the tube thins a lot and, rather than the tube being punctured, the tube tears and creates a pin hole.
Here’s a better representation of the cross section. The tube expands towards in the direction of the red arrows first… especially at low pressure…then it expands in the direction of the green arrow as the pressure increases. The part of the tube trapped at the “bottom” of the tube stretches more and thins leaving it prone to tearing.
My solution was to replace my 23/28mm tubes with 38/44mm tubes. The wider tubes had more material in the channel and were less prone to tearing. The proof of this idea was that my inner punctures disappeared at about the 1/2 way point of my 1200 mile tour.
Going forward, I’m going to stop using small diameter tubes and use wider ones.
