Is this brake cable installed right?
11-24-25 | 02:39 PM
#1
Thread Starter
Full Member
Joined: Apr 2014
Posts: 216
Likes: 61
Is this brake cable installed right?

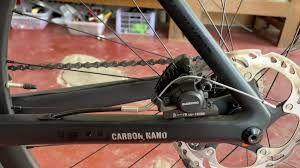

This is my first build with disc brakes. The frame has the rear brake cable outlet on the inside of the chainstay (pictured) and the best way of connecting the cable housing to the caliper is routing it underneath the chainstay (pictured). Is this how it belongs, or are there calipers better designed for inside outlets? The brakes are mechanical. Thanks.
11-24-25 | 02:47 PM
#2
Mad bike riding scientist
Joined: Nov 2004
Posts: 29,137
Likes: 6,183
From: Denver, CO
Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones
Although the routing looks tortured, it doesn’t look like the cable could run any other way. Going over the top of the chainstay would kink the cable even more.
__________________
Stuart Black
Dreamin' of Bemidji Down the Mississippi (in part)
Plan Epsilon Around Lake Michigan in the era of Covid
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Stuart Black
Dreamin' of Bemidji Down the Mississippi (in part)
Plan Epsilon Around Lake Michigan in the era of Covid
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
11-24-25 | 02:56 PM
#4
Senior Member
Joined: Oct 2023
Posts: 1,109
Likes: 990
Bikes: *'00 LS Vortex/Chorus 12/Campag Zondas*98 LS Classic - S&S couplers/Chorus 12/Rolf Vector Pros*'95 DeBernardi Cromor S/S, Mavic Open Pros on Phil Wood track hubs*
This is my first build with disc brakes. The frame has the rear brake cable outlet on the inside of the chainstay (pictured) and the best way of connecting the cable housing to the caliper is routing it underneath the chainstay (pictured). Is this how it belongs, or are there calipers better designed for inside outlets? The brakes are mechanical. Thanks.
11-24-25 | 03:17 PM
#6
Amateur Member
Joined: Mar 2021
Posts: 5,114
Likes: 8,488
From: SoCal
Bikes: Cuevas & Cimmaron are my full time riders, small MB-3 and large Competition GS are my sometimers
This is my first build with disc brakes. The frame has the rear brake cable outlet on the inside of the chainstay (pictured) and the best way of connecting the cable housing to the caliper is routing it underneath the chainstay (pictured). Is this how it belongs, or are there calipers better designed for inside outlets? The brakes are mechanical. Thanks.
Different Elves, but this shows a caliper with much better routing -
11-24-25 | 03:22 PM
#7
Full Member
Joined: Oct 2013
Posts: 264
Likes: 32
Bikes: Space Horse Disc, Domane SL5 Disc
It looks to me like these calipers are designed for external routing or full housing brake cable routing. I think this frame would work better with hydraulic brakes and hose routing.
11-24-25 | 03:27 PM
#9
Thread Starter
Full Member
Joined: Apr 2014
Posts: 216
Likes: 61
that's what I was thinking
might be on to something
Different Elves, but this shows a caliper with much better routing - https://www.youtube.com/watch?v=FcjWnk4ci4Q
might be on to something
Different Elves, but this shows a caliper with much better routing - https://www.youtube.com/watch?v=FcjWnk4ci4Q
11-24-25 | 03:46 PM
#10
Clark W. Griswold
Joined: Mar 2014
Posts: 18,205
Likes: 6,606
From: ,location, location
Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), R+M Supercharger2 Rohloff, Habanero Ti 26
It looks like a hard pass frame for me. Looks expensive from a long distance but get close and you notice they spent little time on R+D which is how they get it so low in price.I would go with hydraulics and hopefully that solves it or skip the frame entirely and find something designed with better routing, that is pretty atrocious.
There is only one El Vez and he is the Mexican Elvis!
There is only one El Vez and he is the Mexican Elvis!
11-24-25 | 06:20 PM
#11
Senior Member
Joined: Apr 2016
Posts: 3,810
Likes: 1,754
This is my first build with disc brakes. The frame has the rear brake cable outlet on the inside of the chainstay (pictured) and the best way of connecting the cable housing to the caliper is routing it underneath the chainstay (pictured). Is this how it belongs, or are there calipers better designed for inside outlets? The brakes are mechanical.
Other calipers have the cable stop more towards the inside, you might want to spend a while looking for one that would let the cable run inside the stay.
11-25-25 | 08:20 AM
#12
Thread Starter
Full Member
Joined: Apr 2014
Posts: 216
Likes: 61
11-25-25 | 08:38 AM
#13
Senior Member
Joined: Sep 2004
Posts: 3,277
Likes: 1,028
From: Chicago area
Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"
I have an ignorant question, having no experience with disc brakes. Is that a cable-operated caliper, or is it hydraulic? If the latter, why does the tortuous path matter?
11-25-25 | 09:44 AM
#14
Senior Member
Joined: Apr 2019
Posts: 3,817
Likes: 1,449
From: UK
11-25-25 | 09:49 AM
#15
Senior Member
Joined: Sep 2004
Posts: 3,277
Likes: 1,028
From: Chicago area
Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"
11-25-25 | 11:09 AM
#16
Thread Starter
Full Member
Joined: Apr 2014
Posts: 216
Likes: 61
11-25-25 | 11:27 AM
#17
Senior Member
Joined: Sep 2004
Posts: 3,277
Likes: 1,028
From: Chicago area
Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"
Thanks. I don't have any experience with disc brakes, but I didn't see the inner cable. On second (third, fourth) look, I saw the attachment point.
Well, based on what I know about other cable-actuated components... that's quite a severe bend. Luckily, it's the rear brake!
Well, based on what I know about other cable-actuated components... that's quite a severe bend. Luckily, it's the rear brake!
11-27-25 | 08:40 PM
#18
Senior Member
Joined: Jul 2015
Posts: 7,327
Likes: 3,195
From: NW Oregon
Bikes: 1982 Trek 930R Custom, '91 Diamondback Ascent w/ XT, XTR updates, Fuji Team Pro CF road flyer, Specialized Sirrus Gravel Convert, '09 Comencal Meta 5.5 XC, '02 Marin MBX500, '84 Gitane Criterium bike
Thanks. I don't have any experience with disc brakes, but I didn't see the inner cable. On second (third, fourth) look, I saw the attachment point.
Well, based on what I know about other cable-actuated components... that's quite a severe bend. Luckily, it's the rear brake!
Well, based on what I know about other cable-actuated components... that's quite a severe bend. Luckily, it's the rear brake!
11-27-25 | 10:05 PM
#19
Mad bike riding scientist
Joined: Nov 2004
Posts: 29,137
Likes: 6,183
From: Denver, CO
Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones
The rear would have the same cable routing as we see in hardknox1’s pictures. The Spyres will probably be a better routing.
__________________
Stuart Black
Dreamin' of Bemidji Down the Mississippi (in part)
Plan Epsilon Around Lake Michigan in the era of Covid
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Stuart Black
Dreamin' of Bemidji Down the Mississippi (in part)
Plan Epsilon Around Lake Michigan in the era of Covid
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
11-27-25 | 10:47 PM
#20
Senior Member
Joined: Apr 2011
Posts: 12,627
Likes: 4,781
This bike seems to have a dip in the stay just before the brake, which isn't helping matters. But this is your serving suggestion:
Note the silver noodle and the adapter. The noodle comes with the caliper from Shimano.
Note the silver noodle and the adapter. The noodle comes with the caliper from Shimano.
11-28-25 | 06:30 AM
#21
Full Member
Joined: Mar 2022
Posts: 291
Likes: 269
It looks like a hard pass frame for me. Looks expensive from a long distance but get close and you notice they spent little time on R+D which is how they get it so low in price.I would go with hydraulics and hopefully that solves it or skip the frame entirely and find something designed with better routing, that is pretty atrocious.
There is only one El Vez and he is the Mexican Elvis!
There is only one El Vez and he is the Mexican Elvis!
11-28-25 | 10:25 AM
#22
Senior Member
Joined: Mar 2007
Posts: 9,165
Likes: 5,350
From: SF Bay Area, East bay
Bikes: Miyata 618 GT, Marinoni, Kestral 200, Soma double cross 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Mondia Special, Univega Alpina, Miyata team Ti, Santa Cruz Highball, Waterford rs11
About 12 minutes into it they install the brakes. Looks like you'll need a different setup.
