What Cassette is this?

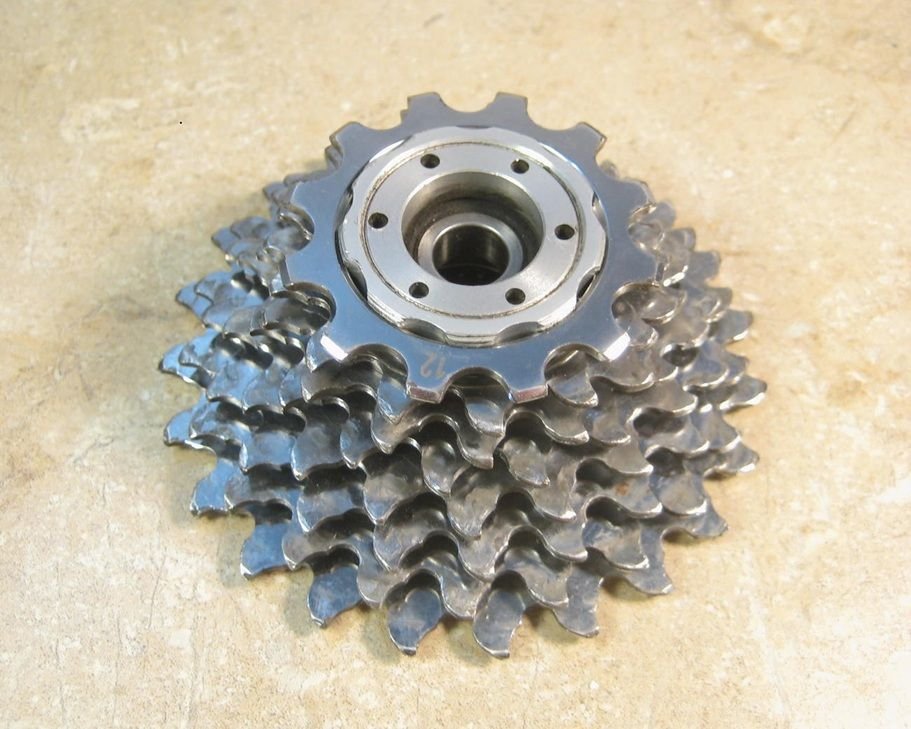

So I picked up this cassette recently. I know nothing about it. Do you know what it is? Please let me know. Thank you.




Jicafold is offline
Reply
Old 03-30-26 | 05:57 PM
  #2
Dave Mayer's Avatar
Senior Member
15 Anniversary

Joined: Dec 2006
Posts: 2,852
Likes: 848
Mavic 571. Freehub is still attached. Note the thread-on first cog. IIRC, Mavic's attempt to develop an alternative to Hyperglide. Good thing this never took off.
Dave Mayer is offline
Reply
Old 03-30-26 | 06:14 PM
  #3
Bill Kapaun's Avatar
Really Old Senior Member
15 Anniversary
Community Builder

Joined: Feb 2007
Posts: 14,610
Likes: 1,861
From: Mid Willamette Valley, Orygun

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds. 2019 Giant Explore E+3

Originally Posted by Dave Mayer
Mavic 571. Freehub is still attached. Note the thread-on first cog. IIRC, Mavic's attempt to develop an alternative to Hyperglide. Good thing this never took off.
Is that the same threading as Uni Glide?
Bill Kapaun is offline
Reply
Old 03-30-26 | 06:29 PM
  #4
Senior Member

Joined: May 2021
Posts: 881
Likes: 848
Originally Posted by Dave Mayer
Mavic 571. Freehub is still attached. Note the thread-on first cog. IIRC, Mavic's attempt to develop an alternative to Hyperglide. Good thing this never took off.
Suntour's last ditch effort to stay relevant included a similar design. I only worked on one and it was a battle to get it off; I recall breaking a tooth on the threaded cog before it finally cut loose.
jolly_codger is offline
Reply
Old 03-31-26 | 12:28 PM
  #5
Dave Mayer's Avatar
Senior Member
15 Anniversary

Joined: Dec 2006
Posts: 2,852
Likes: 848
Originally Posted by Bill Kapaun
Is that the same threading as Uni Glide?
Don't know but I doubt it. The last thing that the larger bike and component brands would want is to introduce cross-compatibility into their systems.

I do know that the Mavic freehub bodies had circular-shaped splines instead of the sharp-edged splines of HG, so I doubt there was dimensional compatibility there as well.
Dave Mayer is offline
Reply
Old 03-31-26 | 05:39 PM
  #6
Full Member

Joined: Mar 2022
Posts: 214
Likes: 111
From: Australia
Also known as the "Sharktooth" cassette (for Mavic 571 freehubs, as mentioned.)

And yes that freehub has Mavic's own semi-circular splines so that cassette fits nothing but those.

(And even though it's not relevant to this issue, I'll just mention for information that Mavic 571 freehubs also came in variants with Shimano Hyperglide and also Campagnolo spline patterns.)
redshift1 is offline
Reply
Old 04-02-26 | 12:14 PM
  #7
Dave Mayer's Avatar
Senior Member
15 Anniversary

Joined: Dec 2006
Posts: 2,852
Likes: 848
Here:

Urban legends, and things I was right to believe in... ~ tears for gears
