Wrapping Handlebars - Which direction?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Wrapping Handlebars - Which direction?

Old 06-07-10, 08:21 PM
  #1
ScoJo
Senior Member
Thread Starter

Join Date: Apr 2005
Posts: 290
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Wrapping Handlebars - Which direction?

There seems to be a lot of debate on the comments of YouTube videos that I've been looking at. Which direction should the wrap go? Starting from the bottom of the bar, should you wrap up and over the bar TOWARDS the center or AWAY from the center?
ScoJo is offline
Old 06-07-10, 08:25 PM
  #2
Rocknificent
Junior Member

Join Date: Aug 2009
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Park Tool had a pretty good tutorial on handlebar wrapping. They explain why they wrap the direction the do in it (so that it doesn't loosen etc.)

https://parktool.com/repair/readhowto.asp?id=71
Rocknificent is offline
Old 06-07-10, 09:13 PM
  #3
AndrewP
Senior Member

Join Date: Sep 2001
Location: Montreal
Posts: 6,521

Bikes: Peugeot Hybrid, Minelli Hybrid

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Start at bottom. viewed from the rear, clockwise on the right and anticlockwise on the left. Reverse direction when you pass the brake levers.
AndrewP is offline
Old 06-07-10, 09:17 PM
  #4
Steve530
Senior Member

Join Date: Jul 2008
Location: Knoxville, TN
Posts: 909

Bikes: Klein

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I like to wrap away from the center at the bottom and reverse at the brake levers.
Steve530 is offline
Old 06-07-10, 09:34 PM
  #5
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 9,840

Bikes: Klein, Merckx, Trek

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 3952 Post(s)
Liked 2,454 Times in 1,337 Posts
wrap in the same direction your thumbs wrap around the bars: top and bottom, left and right.
DiabloScott is offline
Old 06-08-10, 12:33 AM
  #6
Torchy McFlux
Senior Member

Torchy McFlux's Avatar

Join Date: Sep 2007
Location: Vancouver
Posts: 1,438

Bikes: NOYB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Rocknificent
Park Tool had a pretty good tutorial on handlebar wrapping. They explain why they wrap the direction the do in it (so that it doesn't loosen etc.)

https://parktool.com/repair/readhowto.asp?id=71
In the first series of pictures they're wrapping in the wrong direction, and the completed wrap jobs are laughably bad.

AndrewP got it right, but I don't think it's necessary to "reverse direction" at the levers. Just do a figure-8 wrap there and continue on.
Torchy McFlux is offline
Old 06-08-10, 06:39 AM
  #7
Yan
Senior Member

Yan's Avatar

Join Date: Jan 2006
Posts: 2,481
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1119 Post(s)
Liked 306 Times in 203 Posts
The figure eight reverses the direction. Wrap from the bar ends to the stem. Otherwise the tape will eventually curl and peel at the hoods.

Above the brake lever, wrap front to rear. Below, wrap inside to outside.
Yan is offline
Old 06-08-10, 07:17 AM
  #8
Lawrence08648
Advisor

Join Date: Mar 2008
Location: Central New Jersey
Posts: 544
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I start at the top and wrap outward finishing at the bottom.

Reasoning:

Wrapping outwards - You are pushing with your hands away from you so the pressure is in this direction. This way the tape gets tighter.

Start at the top, center of the handlebars - When you wrap towards the bottom, the side of the bar tape facing the rider is covered by the next wrap and there is no peeling up. If you wrap from the bottom up, then the edge of the tape facing the rider is covered by the next wrap and your hands as you grip and push forward, the tape starts to peel up.
Lawrence08648 is offline
Old 06-08-10, 07:54 AM
  #9
LarDasse74
Guest

Join Date: Jul 2008
Location: Grid Reference, SK
Posts: 3,768

Bikes: I never learned to ride a bike. It is my deepest shame.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 6 Times in 6 Posts
I wrap starting at the bottom, when viewed from the rear ccw on the right, cw on the left (over the top from outside to inside). When I reach the top I am wrapping front-to-back over the top.

I think most people agree on wrapping bottom to top and securing with electrical tape. Most people also reccomend wrapping front to back on the bar top. To accomplish a front-to-back wrap over the top, unless you flip it around at the lever, you need to be wrapping outside-to-inside on the flats.

However, a lot of people do it differently and all of them claim their tape never loosens - my tape used to chronically loosen when I wrapped top to bottom, so I have trouble believeing them... but since you need to be changing tape very so often anyway, try whatever makes the most sense to you and see how it works. Consider getting non-adhesive tape so it is easier to unwrap if you don't like your pattern.
LarDasse74 is offline
Old 06-08-10, 07:57 AM
  #10
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 7,048

Bikes: Cinelli superstar disc, two Yoeleo R12

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 974 Post(s)
Liked 509 Times in 410 Posts
Based on the responses so far, there is no consensus. Starting at the center of the bars is most often considered to be incorrect because the edges will be more likely to curl up.

I wrap from the ends and go in the opposite direction that Park suggests - CW on the right, CCW on the left, looking at the bar ends.

With Campy levers, there is no need for figure 8s or any reversal of direction. Keep going the same way as you go around the brake hoods.

If you tend to rotate your hands to the back, while on the tops, my wrapping would cause the tape to loosen. I've never had a problem with loosening tape.

Last edited by DaveSSS; 06-08-10 at 02:19 PM.
DaveSSS is offline
Old 06-08-10, 09:16 AM
  #11
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Posts: 37,159

Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter

Mentioned: 132 Post(s)
Tagged: 1 Thread(s)
Quoted: 5013 Post(s)
Liked 1,135 Times in 661 Posts
I'm with DaveSSS, Wrap upward and finish with tape.

It used to be that you wrapped outward and used plugs to finish, but no one uses plugs to secure the tape anymore so I wrap bottom to top the same way you tile a roof so the tape is shingled in the right direction to prevent curling. It's also easier to wrap in that direction with cables under the tape because you're working toward the free end of the cable.

Tape doesn't move if it's wrapped tightly enough, so it really doesn't matter which way other than preference.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline
Old 06-08-10, 09:13 PM
  #12
waldowales
Old Fogy

Join Date: Oct 2006
Location: Murray, Utah
Posts: 1,225
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
On other peoples bikes, or bikes I plan to sell, I do it the conventional way, start at the ends and finish with tape at the stem. On my own bikes, I start at the stem and finish with plugs or a bar end mirror, simply because I think the tape looks crude. One old farts opinion.
waldowales is offline
Old 06-09-10, 09:26 AM
  #13
CACycling
Senior Member

Join Date: Feb 2008
Location: Oxnard, CA
Posts: 4,571

Bikes: 2009 Fuji Roubaix RC; 2011 Fuji Cross 2.0; '92 Diamond Back Ascent EX

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 15 Times in 12 Posts
Originally Posted by waldowales
I start at the stem and finish with plugs or a bar end mirror, simply because I think the tape looks crude.
CACycling is offline
Old 06-09-10, 08:48 PM
  #14
bjtesch
Senior Member

Join Date: Aug 2008
Location: Irving, TX
Posts: 358

Bikes: Schwinn Paramount

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I just checked my bike and both are wrapped opposite of the park tool one-directional method. I've probably been doing it that way for a long time but I don't know for sure. But I also have problems with the tape on the tops of the bars slipping around. I've tried adhesive on the bars, I've tried double-sided tape, hasn't helped. I'll try the Park method next and see if it works better.

Now what wrap should I use- Cinelli cork or Profile synthetic cork? (I've been using Profile Wrap but I didn't know it was what they called "cork".)
bjtesch is offline
Old 06-09-10, 08:54 PM
  #15
mike_s
Senior Member

Join Date: Sep 2008
Posts: 202
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by ScoJo
Which direction should the wrap go?
This is easy. The wrap goes in the opposite direction from the way you did it first.
mike_s is offline
Old 06-10-10, 07:40 AM
  #16
KeithSR
MiyataFan

Join Date: Feb 2010
Location: Ottawa, Canada
Posts: 21

Bikes: Miyata 610

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I usually wrap from stem and finish with plugs. It's just the esthetics - I don't like finishing with electrical tape. If it is wrapped tight it works fine either way. I've had tape on a bike for several years that way.
KeithSR is offline
Old 06-10-10, 11:03 AM
  #17
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 9,840

Bikes: Klein, Merckx, Trek

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 3952 Post(s)
Liked 2,454 Times in 1,337 Posts
Originally Posted by waldowales
I think the tape looks crude. One old farts opinion.
Chacun à son goût - I see it as a nice place to add some style.

DiabloScott is offline
Old 06-10-10, 11:48 AM
  #18
fuzz2050
Real Men Ride Ordinaries

fuzz2050's Avatar

Join Date: Sep 2008
Posts: 3,723
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
It depends on what kind of tape above all else, and to a lesser extent what kind of shifters. If you have STI, or downtube I suppose, and you happen to be using either a synthetic tape, or cloth tape, you're pretty much free to wrap from the stem down. As long as you wrap them tightly, they don't really curl at the edges, and you get the pretty no tape look. 'Natural' cork tape is pickier, but as long as you do a nice tight wrap, you can usually get away with either direction. By the time it's started to peel, it's usually time to replace it anyway.
fuzz2050 is offline
Old 06-10-10, 03:38 PM
  #19
Soil_Sampler
A little North of Hell

Join Date: Mar 2006
Posts: 4,892
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Merckx style

center out.

Soil_Sampler is offline
Old 06-12-10, 04:41 AM
  #20
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 9,505

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1506 Post(s)
Liked 704 Times in 499 Posts
Wrapping from the centre out causes the tape to eventually curl no matter how tight you stretch it, so I put double-sided tape along the edge that would otherwise be curled - it lasts heaps longer.

I also cut an angle off the end of the tape so there's only a minimal bulge where I start wrapping it.
Kimmo is offline
Old 06-12-10, 05:05 AM
  #21
Asi
Engineer

Asi's Avatar

Join Date: May 2010
Location: Bucharest, Romania, Europe
Posts: 590

Bikes: 1989 Krapf (with Dura-ace) road bike, 1973 Sputnik (made by XB3) road bike , 1961 Peugeot fixed gear, 2010 Trek 4400

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I start from the stem. because the handlebars are three piece like the photo above (3ttt paris roubaix) and the tape is flush with the center part that holds the side parts of the handlebars.

An advantage of wrapping from plugs is that when it rains, water will slope like on a roof top with tiles. But I don't ride on rain, and even if it rains it' only occasional and also a tape wrapped from stem still lasts long enough for me.. I usually change it when it's too dirty, teared from a spill, or I get bored of it, and this usually comes first before coming loose.
Asi is offline
Old 06-12-10, 05:26 AM
  #22
oldroads
OldBikeGuide.com

oldroads's Avatar

Join Date: Feb 2002
Location: Massachusetts
Posts: 696
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 20 Times in 10 Posts
Originally Posted by Lawrence08648
I start at the top and wrap outward finishing at the bottom.

Reasoning:

Wrapping outwards - You are pushing with your hands away from you so the pressure is in this direction. This way the tape gets tighter.

Start at the top, center of the handlebars - When you wrap towards the bottom, the side of the bar tape facing the rider is covered by the next wrap and there is no peeling up. If you wrap from the bottom up, then the edge of the tape facing the rider is covered by the next wrap and your hands as you grip and push forward, the tape starts to peel up.
Thats how I do it.
oldroads is offline
Old 06-12-10, 03:35 PM
  #23
Soil_Sampler
A little North of Hell

Join Date: Mar 2006
Posts: 4,892
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Originally Posted by Kimmo
Wrapping from the centre out causes the tape to eventually curl no matter how tight you stretch it, so I put double-sided tape along the edge that would otherwise be curled - it lasts heaps longer.
you are wrapping in the wrong direction.
Soil_Sampler is offline
Old 06-13-10, 03:48 PM
  #24
LarDasse74
Guest

Join Date: Jul 2008
Location: Grid Reference, SK
Posts: 3,768

Bikes: I never learned to ride a bike. It is my deepest shame.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 6 Times in 6 Posts
Originally Posted by Soil_Sampler
center out.

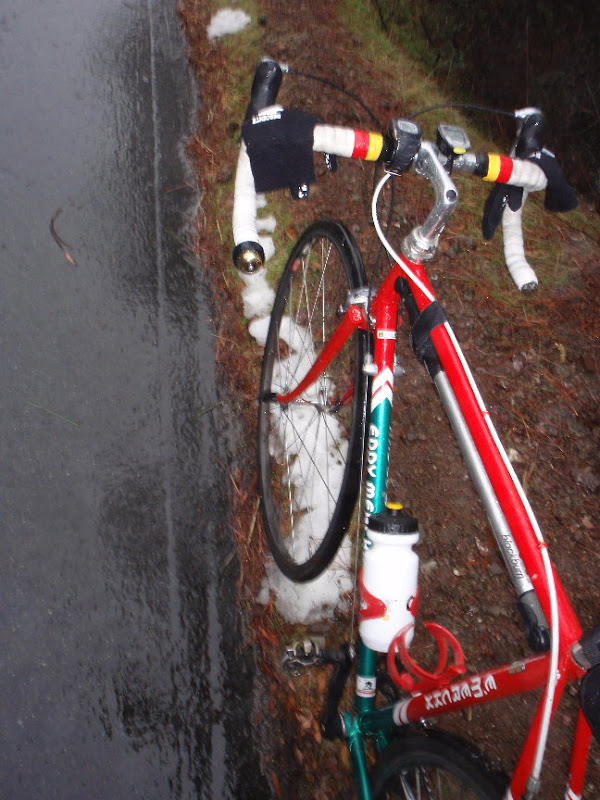

I think you may be mistaken... those bars were clearly wrapped bottom-to-top... the wraps closer to the top are on top of the wraps closer to the bottom, meaning that the top part was wrapped after the bottom.


.... unless I am mistaken about what I am seeing in the picture.
LarDasse74 is offline
Old 06-21-10, 11:43 PM
  #25
insub2
Michigander

Join Date: Oct 2009
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
No. You are totally right; that is bottom up. But I don't know how they finished it off so nice. And without electrical tape. Anyone able to enlighten us?
insub2 is offline
