22.2 Handlebar Options Needed
Hi all, love the GB stem on the Raleigh but the bars are unusually narrow.
Has anyone got opinions on wider bars but with a 22.2 clamp diameter?
Cheers, Matthew
Has anyone got opinions on wider bars but with a 22.2 clamp diameter?
Cheers, Matthew
#2
Senior Member
Join Date: Jul 2011
Location: Denver, CO
Posts: 678
Bikes: 1966 Carlton, 197X MKM, 1983 Trek 620, 1988 Schwinn High Sierra, 1995 DBR Axis Ti, 1999 Waterford, 2016 DBR Release, 2017 Surly Travelers Check
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 65 Post(s)
Likes: 0
Liked 7 Times
in
7 Posts
22.2 stem clamp or 22.2 shifter/brake clamp?
#3
Senior Member
Thread Starter
Join Date: Jun 2015
Location: Melbourne, Australia
Posts: 706
Bikes: 1974 Copper Raleigh International, 1975 Olive Green Raleigh Grand Prix, 1974 Raleigh Europa Custom
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 104 Post(s)
Likes: 0
Liked 2 Times
in
2 Posts
Hi, the centre of the handlebars where it bulges to be clamped by the head stem is 22.2 in diameter. The bars are 360mm approx wide so want to find some bars around 400-420mm that will fit though the GB stem.
If I ream out the head stem to fit standard 25.4 diameter bars it seems a lot to ream it might weaken the stem
If i put wider bars on will that fatigue the stem through the extra leverage, this bike will be a commuter rather than going hard
Is there more options available with steel bars
having said all this I want to keep the GB stem - it's quite distinctive, I realise I could swap the stem for a better design cinelli or ttt which would solve the problem
If I ream out the head stem to fit standard 25.4 diameter bars it seems a lot to ream it might weaken the stem
If i put wider bars on will that fatigue the stem through the extra leverage, this bike will be a commuter rather than going hard
Is there more options available with steel bars
having said all this I want to keep the GB stem - it's quite distinctive, I realise I could swap the stem for a better design cinelli or ttt which would solve the problem
#4
Senior Member
Join Date: Jul 2011
Location: Denver, CO
Posts: 678
Bikes: 1966 Carlton, 197X MKM, 1983 Trek 620, 1988 Schwinn High Sierra, 1995 DBR Axis Ti, 1999 Waterford, 2016 DBR Release, 2017 Surly Travelers Check
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 65 Post(s)
Likes: 0
Liked 7 Times
in
7 Posts
Didn't know GB made stems with that narrow of a clamp -- the few I've come across have all been 25.4mm.
Sheldon suggests that you're going to be limited to steel / bmx bars -- maybe good terms to start searching. See: Sheldon Brown's Bicycle Handlebar and Stem Dimension Crib Sheet
Sheldon suggests that you're going to be limited to steel / bmx bars -- maybe good terms to start searching. See: Sheldon Brown's Bicycle Handlebar and Stem Dimension Crib Sheet
#5
Aspiring curmudgeon
Join Date: Aug 2014
Location: Saint Louis
Posts: 2,686
Bikes: Guerciotti, Serotta, Gaulzetti
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Likes: 0
Liked 25 Times
in
12 Posts
New one to me. I though most GB stems were 25.4 or the obsolete 23.8.
__________________
"Party on comrades" -- Lenin, probably
"Party on comrades" -- Lenin, probably
#6
Senior Member
Join Date: Nov 2013
Location: Near Pottstown, PA: 30 miles NW of Philadelphia
Posts: 2,185
Bikes: 2 Trek Mtn, Cannondale R600 road, 6 vintage road bikes
Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 471 Post(s)
Liked 1,016 Times
in
398 Posts
just an alternative......
#7
Decrepit Member
Note that Sheldon's crib sheet linked to in post 4, 2nd row entry, states that 22.2mm clamp diameter is "Obsolete British size for steel handlebars, common on older 3-speeds.
This size was also used for older British steel drop bars."
This size was also used for older British steel drop bars."
#8
Senior Member
Join Date: Jul 2011
Location: Denver, CO
Posts: 678
Bikes: 1966 Carlton, 197X MKM, 1983 Trek 620, 1988 Schwinn High Sierra, 1995 DBR Axis Ti, 1999 Waterford, 2016 DBR Release, 2017 Surly Travelers Check
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 65 Post(s)
Likes: 0
Liked 7 Times
in
7 Posts
[TABLE="class: tgrid, width: 808"]
[TR]
[TH]23.8 mm[/TH]
[TH]15/16"[/TH]
[TH]22.2 mm[/TH]
[TH]7/8"[/TH]
[TD]Obsolete British size for steel handlebars, common on older 3-speeds.
This size was also used for older British steel drop bars.[/TD]
[/TR]
[/TABLE]
The first column is stem-clamp diameter. Third column is grip area size.
#9
Decrepit Member
Think you're reading that wrong...2nd row is:
[TABLE="class: tgrid, width: 808"]
[TR]
[TH]23.8 mm[/TH]
[TH]15/16"[/TH]
[TH]22.2 mm[/TH]
[TH]7/8"[/TH]
[TD]Obsolete British size for steel handlebars, common on older 3-speeds.
This size was also used for older British steel drop bars.[/TD]
[/TR]
[/TABLE]
The first column is stem-clamp diameter. Third column is grip area size.
[TABLE="class: tgrid, width: 808"]
[TR]
[TH]23.8 mm[/TH]
[TH]15/16"[/TH]
[TH]22.2 mm[/TH]
[TH]7/8"[/TH]
[TD]Obsolete British size for steel handlebars, common on older 3-speeds.
This size was also used for older British steel drop bars.[/TD]
[/TR]
[/TABLE]
The first column is stem-clamp diameter. Third column is grip area size.
#10
multimodal commuter
Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,852
Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...
Mentioned: 584 Post(s)
Tagged: 0 Thread(s)
Quoted: 1908 Post(s)
Liked 574 Times
in
339 Posts

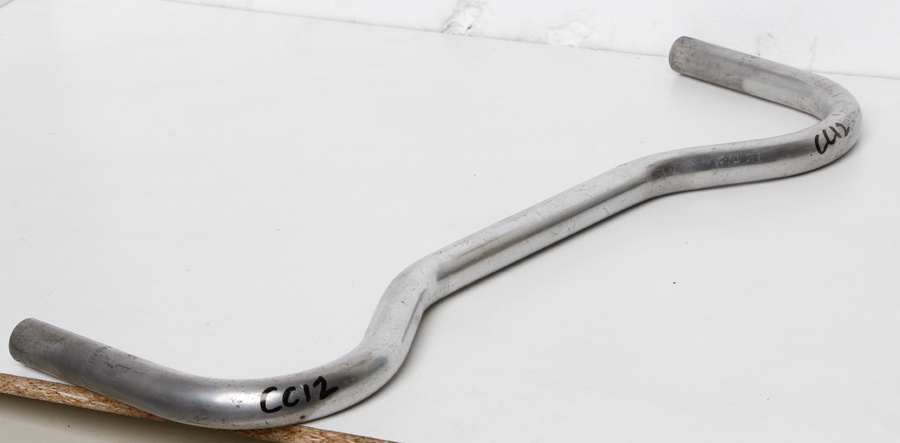

22.2 mm clamp handlebars did exist once upon a time, and are still to be found occasionally, though not cheap:
Hilary Stone has a few.
Hilary Stone Classic Corner Handlebars
But you are not likely to find a wider bar than the one you have. Handlebar widths are one of many aspects of bicycle fitment that change with fashions; I'm guessing your bike is from a time when narrow bars were preferred. I strongly suggest you keep the old bar and stem together; if they are not functional for you, just get a new bar and stem (not too new, though!). But keep the old ones so you can return the bike to 'collectible' condition if you wish.
Were it mine, I'd probably just ride it with the narrow bar... get that whole vintage bike experience.
Hilary Stone has a few.
Hilary Stone Classic Corner Handlebars
But you are not likely to find a wider bar than the one you have. Handlebar widths are one of many aspects of bicycle fitment that change with fashions; I'm guessing your bike is from a time when narrow bars were preferred. I strongly suggest you keep the old bar and stem together; if they are not functional for you, just get a new bar and stem (not too new, though!). But keep the old ones so you can return the bike to 'collectible' condition if you wish.
Were it mine, I'd probably just ride it with the narrow bar... get that whole vintage bike experience.
__________________
www.rhmsaddles.com.
www.rhmsaddles.com.
#11
Senior Member
Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,672
Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma
Mentioned: 210 Post(s)
Tagged: 0 Thread(s)
Quoted: 1370 Post(s)
Likes: 0
Liked 1,743 Times
in
934 Posts
Interesting information, regarding the GB steering stems. I got a small box full. Think I will do some measuring after I finish my Rickard's Red.
__________________
"98% of the bikes I buy are projects".
"98% of the bikes I buy are projects".
#12
Senior Member
Thread Starter
Join Date: Jun 2015
Location: Melbourne, Australia
Posts: 706
Bikes: 1974 Copper Raleigh International, 1975 Olive Green Raleigh Grand Prix, 1974 Raleigh Europa Custom
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 104 Post(s)
Likes: 0
Liked 2 Times
in
2 Posts
Oops, my mistake must be too much inhalation of Silvo, I've just remeasured the bars and the bulge area is 25.4.
Sorry about that!
Cheers, Matthew.
Sorry about that!
Cheers, Matthew.
#13
Decrepit Member
With 25.4 clamp diameter you have all kinds of options.
