Old 03-29-16, 08:46 PM   #1
sneakywrist
Senior Member
Thread Starter

sneakywrist's Avatar

Join Date: Dec 2011
Bikes: 1979 Schwinn Varsity
Posts: 69
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Varsity Groupset Upgrade

Looking for suggestions for a 3x7 Groupset for a 70's Varsity, in particular, brifters and front and rear derailleur. Could you please include part numbers. Thank You
sneakywrist is offline   Reply With Quote
Old 03-29-16, 09:05 PM   #2
Metacortex
Senior Member

Join Date: Apr 2011
Bikes: Fillet-brazed Schwinns
Posts: 2,208
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Some suggestions were previously posted here: http://www.bikeforums.net/classic-vi...-upgrades.html
Metacortex is offline   Reply With Quote
Old 03-29-16, 10:19 PM   #3
oddjob2
Still learning

oddjob2's Avatar

Join Date: May 2012
Location: North of Canada, Adirondacks, NNJ
Bikes: Too many
Posts: 10,932
Mentioned: 51 Post(s)
Tagged: 2 Thread(s)
Quoted: 570 Post(s)
If costs are a concern, buying a Le Tour, Traveler, or a World Sport may be cheaper than upgrading.
__________________
Life is like riding a bicycle. To keep your balance you must keep moving. Albert Einstein
Official supplier to THE Centurion Ironman brand Ambassador.
oddjob2 is offline   Reply With Quote
Old 03-30-16, 01:50 AM   #4
Senrab62
Senior Member

Join Date: Jan 2016
Bikes:
Posts: 194
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Quote:
Originally Posted by oddjob2 View Post
If costs are a concern, buying a Le Tour, Traveler, or a World Sport may be cheaper than upgrading.
Agreed. Buy something lighter and sportier to begin with. Unless you have a sentimental attachment to the varsity. My dad did when he rode. They are truly hard to kill.
Senrab62 is offline   Reply With Quote
Old 03-30-16, 07:10 AM   #5
mstateglfr
Senior Member

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Bikes: '87 Miyata 912, '80 Schwinn Voyageur 11.8, '90 Fuji Saratoga, '90 Diamondback Ascent EX, Black Mountain Cycles Monstercross V4
Posts: 5,445
Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 1531 Post(s)
http://www.amazon.com/microSHIFT-Shi...SNYS9KEDG652BN

3x7 shifters, front derailleur, and rear derailleur for under $100.
The RD is a short cage though, which is odd since they have a long cage and its a 3x7 system. You could sell the short cage or just keep it as an extra. Pick up basically any long cage indexed Shimano derailleur from the last 35+ years and itll work.




http://www.amazon.com/Shimano-Tourne.../dp/B00GQCC9A0
This is also an option as they are 3x7.
mstateglfr is offline   Reply With Quote
Old 03-30-16, 11:19 AM   #6
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.
Posts: 5,257
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
I prefer the a-la-carte approach to upgrading a bike like the Varsity.

This way, you focus on the specific items that seem to be a nuisance, while leaving the bike's character as original as possible, and saving money and time.

Bike's like this make for more-complicated upgrading, everything from dropout spacing to bb shell standards to cable housing stops introduces additional fussing (i.e. work).

So start with say, the bike's miserable saddle and handlebar, then maybe the wheels and finally the modernized drivetrain that will lead to cabling concerns.

Best to leave the crankset alone and search out suitable 1/2" pedals, or a different bike.

Likewise with the excellent .9lb kickstand, if you're even thinking of removing it then you are using the wrong bike!

At least these bikes easily accept 700c rims, which actually lowers the bb shell height a little closer to normal. I use Kool-Stop long MTB brake pads on my original Weinmann calipers for really good braking effect o the 700c rims.
dddd is offline   Reply With Quote
Old 03-30-16, 11:39 AM   #7
big chainring
Senior Member

Join Date: Sep 2007
Location: Wilmette, IL
Bikes:
Posts: 5,931
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 183 Post(s)
I'm still contemplating the title of this thread. Makin my head hurt.
big chainring is online now   Reply With Quote
Old 03-30-16, 11:58 AM   #8
icepick_trotsky
Aspiring curmudgeon

icepick_trotsky's Avatar

Join Date: Aug 2014
Location: Saint Louis
Bikes: Guerciotti, Serotta, Gaulzetti
Posts: 2,647
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
1. Buy a different bike.

2. Buy Varsity decals and apply them to the new bike.
__________________
"Party on comrades" -- Lenin, probably
icepick_trotsky is offline   Reply With Quote
Old 03-30-16, 12:02 PM   #9
USAZorro
Seņor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Florence, KY
Bikes: Mostly English - predominantly Raleighs
Posts: 15,409
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 432 Post(s)
Quote:
Originally Posted by dddd View Post
...This way, you focus on the specific items that seem to be a nuisance...
Which in this case, would be the frame (for me)
__________________
In search of what to search for.
USAZorro is offline   Reply With Quote
Old 03-30-16, 12:09 PM   #10
Sidney Porter
Senior Member

Join Date: Dec 2011
Bikes:
Posts: 510
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Before you buy a fd messurements the seat tube. It is narrow and a lot of deraileur will not fit
Sidney Porter is offline   Reply With Quote
Old 03-30-16, 12:09 PM   #11
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr
Posts: 3,163
Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 947 Post(s)
Quote:
Originally Posted by sneakywrist View Post
Looking for suggestions for a 3x7 Groupset for a 70's Varsity, in particular, brifters and front and rear derailleur. Could you please include part numbers. Thank You
I thought this was more than a bit of a silly idea, then I looked at DDDD's restomodded green Varsity in that other link. So cool! I want one!

Even so, I'd start with relacing or swapping out the steel wheels for something aluminum and putting better tires on. Derailleurs and drive train components won't make it any faster. Tires and lighter wheels will.

You will need to respace the frame (bend it open by 6mm) and realign the dropouts to use a 7 speed rear end on that bike. It's perfectly doable, just a heads up. (You may already know this) You will also need an Ashtabula bottom bracket adapter.

Has anyone ever made a titanium Ashtabula crank? Now that would be cool.
Salamandrine is offline   Reply With Quote
Old 03-30-16, 03:42 PM   #12
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.
Posts: 5,257
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
I thought about whether a lighter 1-piece crank could be made, hollow maybe, but titanium would be flexy as hell.

I'll post a picture of the green machine, for reference. I used parts that I had already, so built it on the cheap!




This month, I sort of "resto-modded" a new department-store "650b-plus" bike with the older spare parts I had laying around. The Kmart bike needed better shifters, grips and brake levers real bad, so those went on the first day. After riding it some more, I rebuilt the fork since it so easily became contaminated inside, and added the rubber boot gaiters while I had it apart.
I had also got tired of having to re-adjust the bb after every ride, so yesterday replaced the whole crankset and bb with lighter parts. Steel handlebars gave way to carbon, a better chain went on, and an Ultegra Triple rear derailer replaced the plastic crap.
Now it finishes rides without having to be fussed over every time.
Pictured at bottom, it was a $250 bike (bought on sale for $189). I value the parts that I added at about $225, bringing the "total" to just over $400, plus labor.

Funny thing is, the "retro" part of this "resto-mod" is the components, while the frame/fork/wheels/brakes are the new stuff!




Last edited by dddd; 03-30-16 at 05:24 PM.
dddd is offline   Reply With Quote
Old 03-30-16, 04:45 PM   #13
sneakywrist
Senior Member
Thread Starter

sneakywrist's Avatar

Join Date: Dec 2011
Bikes: 1979 Schwinn Varsity
Posts: 69
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Nice
sneakywrist is offline   Reply With Quote
Old 03-30-16, 05:34 PM   #14
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.
Posts: 5,257
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
I just noticed that some of the overseas sites now sell Campagnolo Xenon 10s Ergolever sets, with complete cabling, for about $80.

I mention this because these are easily paired with Shimano derailers to correctly index either 9s, 8s or a slightly-respaced 7s cassette, depending on how the cable is anchored at the derailer. This makes these shifters versatile as an upgrade item that lends a touch of quality and class vs. typical low-end Microshift-built (and much heavier) Integrated levers. And the lever shape is the very popular Gen-2 style hoods.

I just bought two sets, to keep my imagination rumbling and to get some good flippers out of the door.

This is about just a $60 upgrade in lieu of simply replacing hoods and cables with lowest-cost options!
dddd is offline   Reply With Quote
Old 03-30-16, 06:13 PM   #15
Paramount1973
Senior Member

Paramount1973's Avatar

Join Date: Sep 2011
Location: The First State.
Bikes: Schwinn Continental, Schwinn Paramount, Schwinn High Plains, Schwinn World Sport, Trek 420, Trek 930,Trek 660, Novara X-R, Giant Iguana. Fuji Sagres mixte.
Posts: 1,146
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Quote:
Originally Posted by Sidney Porter View Post
Before you buy a fd messurements the seat tube. It is narrow and a lot of deraileur will not fit
It is a 1" seat tube. Just get a 25.4 to 28.6 shim (these are for 1 1/8" threadless stems to a 1" threadless steerer tube. Just hacksaw it in half and use it to shim a front derailleur with a 28.6 clamp.
Paramount1973 is offline   Reply With Quote
Old 03-30-16, 06:28 PM   #16
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)
Posts: 10,605
Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 198 Post(s)
Quote:
Originally Posted by Paramount1973 View Post
It is a 1" seat tube. Just get a 25.4 to 28.6 shim (these are for 1 1/8" threadless stems to a 1" threadless steerer tube. Just hacksaw it in half and use it to shim a front derailleur with a 28.6 clamp.
I found a 1" round bronze bearing at my local ACE and did the same. Works like a champ and is flexy enough to fit snuggly around the seat tube without slipping out of place while you position the FD.

__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is online now   Reply With Quote
Old 03-30-16, 07:13 PM   #17
sneakywrist
Senior Member
Thread Starter

sneakywrist's Avatar

Join Date: Dec 2011
Bikes: 1979 Schwinn Varsity
Posts: 69
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Looks good and it works
sneakywrist is offline   Reply With Quote
Old 03-30-16, 07:25 PM   #18
andr0id
Senior Member

andr0id's Avatar

Join Date: Feb 2009
Bikes:
Posts: 2,496
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1207 Post(s)
Quote:
Originally Posted by icepick_trotsky View Post
1. Buy a different bike.

2. Buy Varsity decals and apply them to the new bike.
Honestly, it would be quite cool to get a fillet brazed steel frame and have the builder round out the seat stays tips. Then paint it to look like a Varsity. I'd make all the rest of it modern so I could hang a new Dura Ace group on it.
andr0id is offline   Reply With Quote
Old 03-30-16, 07:35 PM   #19
icepick_trotsky
Aspiring curmudgeon

icepick_trotsky's Avatar

Join Date: Aug 2014
Location: Saint Louis
Bikes: Guerciotti, Serotta, Gaulzetti
Posts: 2,647
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Quote:
Originally Posted by andr0id View Post
Honestly, it would be quite cool to get a fillet brazed steel frame and have the builder round out the seat stays tips. Then paint it to look like a Varsity. I'd make all the rest of it modern so I could hang a new Dura Ace group on it.
This actually is a project I've been thinking about for a while. Get one of those Match Cycles built Reynolds 853 Pelotons from the late '90s with bad paint, rattle can it Varsity purple, and hang an 11 speed group and carbon wheels on it. Then apply Varsity decals, complete with "Caution: wet rims increase stopping distance."
__________________
"Party on comrades" -- Lenin, probably
icepick_trotsky is offline   Reply With Quote
Old 03-30-16, 08:14 PM   #20
Chrome Molly
Senior Member

Chrome Molly's Avatar

Join Date: Jan 2012
Location: Forksbent, MN
Bikes: Yes
Posts: 3,074
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 215 Post(s)
What I first thought of when I saw the thread title...

Campagnolo Super Record 11 Speed Carbon Double Groupset - Groupsets - Ribble Cycles
Chrome Molly is offline   Reply With Quote
Old 03-31-16, 12:56 AM   #21
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Bikes: A green one, "Ragleigh," or something.
Posts: 5,814
Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 665 Post(s)
Your Varsity is what it is. Practically an icon. Clean it up and ride it the way it is. Save the brifters for some other project.
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1972 Peugeot UE-18 Mixte ● 1980 Apollo "Legnano" ● 1982 Bianchi Limited ● 1984 Nishiki Landau ● 1984 Peugeot Vagabond ● 1985 Trek 600 ● 1985 Shogun Prairie Breaker ● 1986 Univega Nuovo Sport ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1990 Cannondale ST600 ● 1990 Technium Pro ● 1993 Technium RT600 ● 1996 Kona Lava Dome ● And a Bike to Be Named Later ●
Lascauxcaveman is offline   Reply With Quote
Old 03-31-16, 03:23 AM   #22
gugie
Crapmaster

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports
Posts: 4,912
Mentioned: 352 Post(s)
Tagged: 0 Thread(s)
Quoted: 1087 Post(s)
Quote:
Originally Posted by big chainring View Post
I'm still contemplating the title of this thread. Makin my head hurt.
Yep
Quote:
Originally Posted by USAZorro View Post
Which in this case, would be the frame (for me)
Uh-huh

Quote:
Originally Posted by pastorbobnlnh View Post
I found a 1" round bronze bearing at my local ACE and did the same. Works like a champ and is flexy enough to fit snuggly around the seat tube without slipping out of place while you position the FD.

Campy on a Varsity? Now I've seen everything.

Quote:
Originally Posted by icepick_trotsky View Post
1. Buy a different bike.

2. Buy Varsity decals and apply them to the new bike.
Or make up your own.
__________________
Pictures of my bikes
gugie is offline   Reply With Quote
Old 03-31-16, 04:23 AM   #23
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)
Posts: 10,605
Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 198 Post(s)

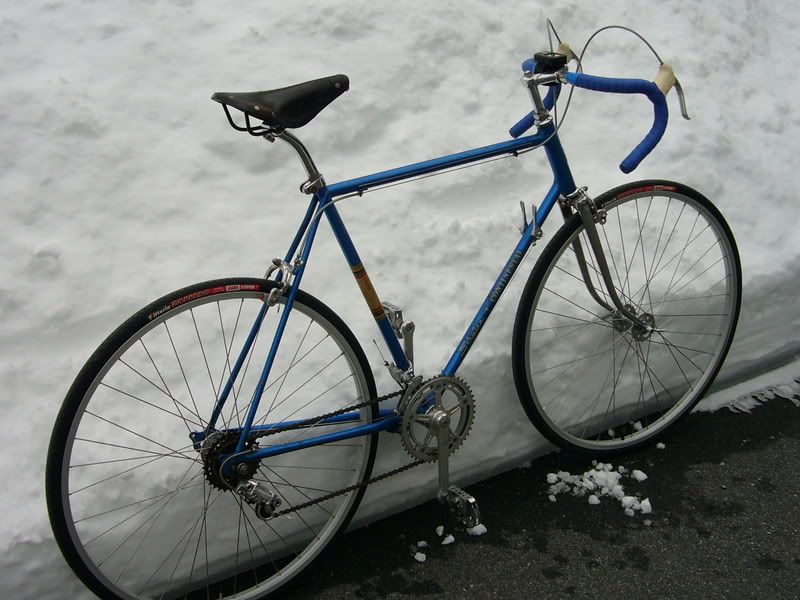

@gugie it is a '62 Continental. Sometime later this spring I'll unveil the '65 Continental I've been rehabbing over the winter. Takes this one to a different level.

__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is online now   Reply With Quote
Old 03-31-16, 08:32 AM   #24
Paramount1973
Senior Member

Paramount1973's Avatar

Join Date: Sep 2011
Location: The First State.
Bikes: Schwinn Continental, Schwinn Paramount, Schwinn High Plains, Schwinn World Sport, Trek 420, Trek 930,Trek 660, Novara X-R, Giant Iguana. Fuji Sagres mixte.
Posts: 1,146
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Quote:
Originally Posted by pastorbobnlnh View Post
@gugie it is a '62 Continental. Sometime later this spring I'll unveil the '65 Continental I've been rehabbing over the winter. Takes this one to a different level.

A different level... What? Aero levers, crabon crank and wheelset? Tubulars? What?!?
Paramount1973 is offline   Reply With Quote
Old 03-31-16, 07:57 PM   #25
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)
Posts: 10,605
Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 198 Post(s)
Quote:
Originally Posted by Paramount1973 View Post
A different level... What? Aero levers, crabon crank and wheelset? Tubulars? What?!?
You guess correctly.
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is online now   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -6. The time now is 07:19 AM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    get answers from real people!
Click to start entering your question.
I HAVE A QUESTION
