Sorry, I just had to kill it!......

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Sorry, I just had to kill it!......

Old 04-16-17, 03:35 PM
  #1
Chombi1
Senior Member
Thread Starter

Chombi1's Avatar

Join Date: Nov 2015
Posts: 4,076
Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1464 Post(s)
Likes: 0
Liked 593 Times in 391 Posts
Sorry, I just had to kill it!......

Yesterday, I started disassembling a bike I just bought.
Everything went well till the last part I had to take off the bike, the NDS crank arm.
For some reason, I had a bad feeling about this last bit of dismantling, everything just went too well.....
Sure enough, the Campy crank dustcap is well seized on to the crank arm, and previous removals had pretty much worn out the allen head hole to make any attempt of using it to take it off, uyseless.

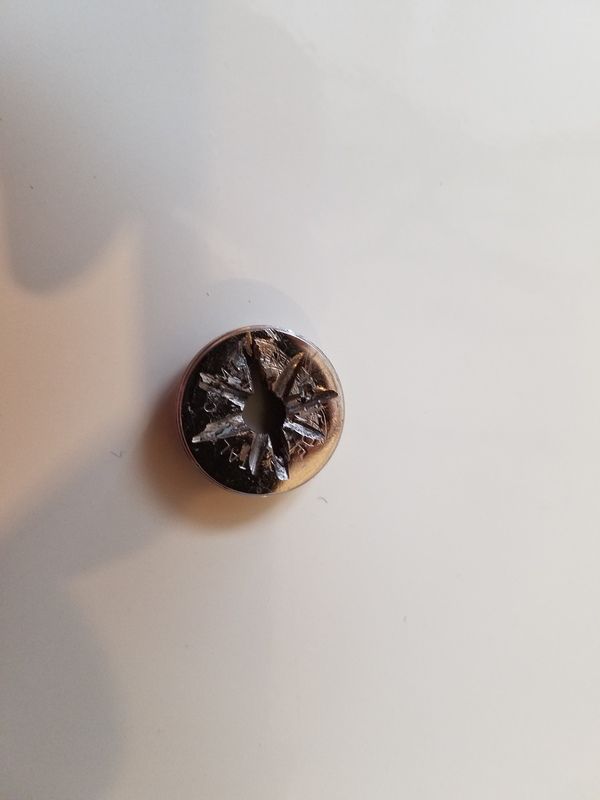

After some well placed cuts with my Dremel, a copious amount of spray penetrant lube, a couple of twisted coins and bent screwdriver tips later, it slowly let go of it's grip on the crank threads and it finally came off....

I know it's an ugly way to win, but Yay! Victory! The crankarm survived the traumatic removal unscathed! On to the clean and re-build phase!
Funny thing was, While waiting for the bike to be delivered, I bought a pair of NOS Campy dustcaps (on sale for 20% less) after I misunderstood the seller calling out a dustcap missing from the bike on his ad. It turns out it was a pedal dustcap and not from the crankset. Coincidence?, Clairvoyance?, Just luck?....... I should really buy that winning Lotto ticket this week.....
Chombi1 is offline
Old 04-16-17, 03:48 PM
  #2
Fahrenheit531
my bikes have chrome

Fahrenheit531's Avatar

Join Date: Aug 2013
Location: Tucson, AZ
Posts: 3,993

Bikes: Schwinn Volare ('78); Raleigh Competition GS ('79)

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 733 Post(s)
Liked 602 Times in 303 Posts
Winning ain't always pretty!
__________________
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
Fahrenheit531 is offline
Old 04-16-17, 04:38 PM
  #3
Otis
Senior Member

Join Date: Mar 2006
Posts: 2,756
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 81 Post(s)
Likes: 0
Liked 9 Times in 9 Posts
Two small holes and a pin-spanner, next time maybe....
__________________
Flickr stuff:

https://www.flickr.com/photos/54616231@N04/
Otis is offline
Old 04-16-17, 05:48 PM
  #4
Chombi1
Senior Member
Thread Starter

Chombi1's Avatar

Join Date: Nov 2015
Posts: 4,076
Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1464 Post(s)
Likes: 0
Liked 593 Times in 391 Posts
Originally Posted by Otis View Post
Two small holes and a pin-spanner, next time maybe....
Thought of that too, but no way the holes and the pin spanner would have held up to the amount and type of force I had to exert to remove it. the holes wold have stretched and the pin spanner would have slipped. It needed a lot of impact force to break free, not just torque.....
Chombi1 is offline
Old 04-16-17, 06:21 PM
  #5
Otis
Senior Member

Join Date: Mar 2006
Posts: 2,756
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 81 Post(s)
Likes: 0
Liked 9 Times in 9 Posts
Originally Posted by Chombi1 View Post
Thought of that too, but no way the holes and the pin spanner would have held up to the amount and type of force I had to exert to remove it. the holes wold have stretched and the pin spanner would have slipped. It needed a lot of impact force to break free, not just torque.....
Heat, and penetrating fluid first. Of course it's just a dust cap, no big deal anyway.
__________________
Flickr stuff:

https://www.flickr.com/photos/54616231@N04/
Otis is offline
Old 04-16-17, 07:33 PM
  #6
qcpmsame
Semper Fi

Join Date: Jan 2008
Posts: 12,911
Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1160 Post(s)
Liked 319 Times in 214 Posts
Hold a proper funeral service for it, that is about all to do at this point. Have a directeur sportif do the words over the corpse, say three "Hail Eddys", and a "Tullio Our Father". Then its off to the closest Italian bar for the wake, and several toasts.

Bill
__________________
Semper Fi, USMC, 1975-1977

I Can Do All Things Through Him, Who Gives Me Strength. Philippians 4:13


qcpmsame is offline
Old 04-16-17, 07:51 PM
  #7
jyl
Senior Member

jyl's Avatar

Join Date: Aug 2006
Location: Portland OR
Posts: 7,643

Bikes: 61 Bianchi Specialissima 71 Peugeot G50 7? P'geot PX10 74 Raleigh GranSport 75 P'geot UO8 78? Raleigh Team Pro 82 P'geot PSV 86 P'geot PX 91 Bridgestone MB0 92 B'stone XO1 97 Rans VRex 92 Cannondale R1000 94 B'stone MB5 97 Vitus 997

Mentioned: 144 Post(s)
Tagged: 0 Thread(s)
Quoted: 391 Post(s)
Likes: 0
Liked 48 Times in 30 Posts
everyone knows bikes without dustcaps are faster!
jyl is offline
Old 04-16-17, 08:41 PM
  #8
Chombi1
Senior Member
Thread Starter

Chombi1's Avatar

Join Date: Nov 2015
Posts: 4,076
Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1464 Post(s)
Likes: 0
Liked 593 Times in 391 Posts
Originally Posted by jyl View Post
everyone knows bikes without dustcaps are faster!
Yup, my brother and I always binned crankset dustcaps along with dork discs, chainring guards and CPSC reflectors the first thing after we get our new bikes home. For some weird reason, I only started putting the dustcaps on my crankset after I joined this forum
Little did I know that those chintzy chromed plastic dustcaps from Stronglight will be prized/priced so much these days......
Chombi1 is offline
Old 04-17-17, 06:12 AM
  #9
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 5,191

Bikes: Seriously downsizing.

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 522 Post(s)
Liked 435 Times in 213 Posts
Originally Posted by Otis View Post
Two small holes and a pin-spanner, next time maybe....
Or tap in a 5.5mm allen.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 04-17-17, 11:03 AM
  #10
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Posts: 17,415
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 442 Post(s)
Likes: 0
Liked 16 Times in 16 Posts
Originally Posted by top506 View Post
Or tap in a 5.5mm allen.

Top
How will that help?
Grand Bois is offline
Old 04-17-17, 02:26 PM
  #11
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,924

Bikes: A green one, "Ragleigh," or something.

Mentioned: 191 Post(s)
Tagged: 0 Thread(s)
Quoted: 1591 Post(s)
Liked 535 Times in 307 Posts
Originally Posted by Grand Bois View Post
How will that help?
I've actually done this. The 5mm hex hole on an old campy cap was so badly stripped out that a 5.5mm hex tapped right in with a little judicious hammer work. The metal on these old campy dustcaps is soft enough to allow it. The 5.5 grabbed in the newly enlarged hole quite well and the cap is still in use.
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1979 Motobecane Grand Jubile ●1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●


Last edited by Lascauxcaveman; 04-17-17 at 02:46 PM.
Lascauxcaveman is offline
Old 04-17-17, 04:59 PM
  #12
old's'cool
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,429

Bikes: 2 many 2 fit here

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 263 Post(s)
Liked 108 Times in 68 Posts
Originally Posted by top506 View Post
Or tap in a 5.5mm allen.

Top
Given the circumstances described by the OP, most likely the 5.5 Allen would have acted like a dull reamer, and swaged the hole out to 6.35mm diameter.
old's'cool is offline
Old 04-17-17, 08:01 PM
  #13
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 5,191

Bikes: Seriously downsizing.

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 522 Post(s)
Liked 435 Times in 213 Posts
Still worth a shot. It's worked for me, and apparently for others here as well.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 04-17-17, 08:18 PM
  #14
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,924

Bikes: A green one, "Ragleigh," or something.

Mentioned: 191 Post(s)
Tagged: 0 Thread(s)
Quoted: 1591 Post(s)
Liked 535 Times in 307 Posts
Originally Posted by old's'cool View Post
Given the circumstances described by the OP, most likely the 5.5 Allen would have acted like a dull reamer, and swaged the hole out to 6.35mm diameter.
Yeah, mine probably wasn't quite as stuck as the OP's. Also I'm guessing that pounding in the 5.5 also helped the PB Blaster I'd squirted in there work it's way into the crank threads as well. A little of this and a little of that.
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1979 Motobecane Grand Jubile ●1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●

Lascauxcaveman is offline
Old 04-17-17, 08:27 PM
  #15
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 7,414

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaņa pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 807 Post(s)
Liked 545 Times in 303 Posts
No problem, just paint the crank bolt heads '70s style.
Reynolds is offline
Old 04-17-17, 10:10 PM
  #16
Chombi1
Senior Member
Thread Starter

Chombi1's Avatar

Join Date: Nov 2015
Posts: 4,076
Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1464 Post(s)
Likes: 0
Liked 593 Times in 391 Posts
Lesson learned: The small Philips head screwdriver that finally worked to drive the cap around worked much better than the flat headed one that just cut through the material and hit the crank bolt below the cap. Having the cross pattern on the Philips also helped anchor the tip in position (It dug into the material, but did not punch through) and not slip off the slots I cut with the Dremel, as I pounded away with a hammer on it. I don't think a flat tipped awl would have worked as well (most like would have slipped off the slots before it can make the seized cap turn).

Last edited by Chombi1; 04-17-17 at 10:14 PM.
Chombi1 is offline
Old 04-18-17, 06:10 AM
  #17
qcpmsame
Semper Fi

Join Date: Jan 2008
Posts: 12,911
Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1160 Post(s)
Liked 319 Times in 214 Posts
Craftsman's bit tips for screw heads that have been gouged/stripped out works for me. I have used them on some really stubborn applications, like your dust cap problem child. They work very well in the hex key situations, also.

I cannot for the life of me remember what they call them, and I am at work so I cannot look in the tool chest right now. Edit coming a bit later.

Bill
__________________
Semper Fi, USMC, 1975-1977

I Can Do All Things Through Him, Who Gives Me Strength. Philippians 4:13


qcpmsame is offline
Old 04-18-17, 04:39 PM
  #18
1987
Senior Member

1987's Avatar

Join Date: Oct 2011
Posts: 860

Bikes: Cinelli SC 1971, Daccordi 1985

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 7 Times in 7 Posts
I had a similar problem. Solved it by taking an allen key that was larger than the partly stripped hex hole, in my case 7/32" for Campagnolo, and filed a taper until it got a perfect fit.
