Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Welded Steel Frames

Old 11-29-17, 10:45 PM
  #26
thinktubes
Fast+Bulbous

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 4,479

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 322 Post(s)
Liked 22 Times in 11 Posts
^^^^^^
Good call!
thinktubes is offline
Old 11-29-17, 10:58 PM
  #27
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,341
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 936 Post(s)
Likes: 0
Liked 13 Times in 11 Posts
There were a few British builders that welded, not bronze brazed Reynolds 531 adjacent to the period around WWll. It was offered as stronger and less expensive. I read the Reynolds spec on welding as a joining method, a migration of welding airframes.

Also done by Penton motorcycles in the late 60's early 70's on Thier frames that were made of Reynolds 531.
Surprised me when I saw the '531' transfer on the swing arm and frame. So, I concluded straight ga.
repechage is offline
Old 11-29-17, 11:10 PM
  #28
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 18,514

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 2028 Post(s)
Liked 95 Times in 79 Posts
Originally Posted by jyl View Post
Are there any welded steel road frames that you consider C&V?

I was mulling this over and I can't actually think of one.

Note: steel, and road. Cannondales, Merlins, and MTBs don't qualify.

EDIT: I'm asking about welded, not filet brazed.
Andre Reiss gas-welded his Reyhand bicycles in the 1930s. The thinwall tubing didn't seem to pose a problem for him:


(Image from this great blog: https://anciensveloslyonnais.weebly....ute-reiss.html .)
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 11-30-17, 01:13 AM
  #29
jyl
Senior Member
Thread Starter

jyl's Avatar

Join Date: Aug 2006
Location: Portland OR
Posts: 7,516

Bikes: 61 Bianchi Specialissima 71 Peugeot G50 7? P'geot PX10 74 Raleigh GranSport 75 P'geot UO8 78? Raleigh Team Pro 82 P'geot PSV 86 P'geot PX 91 Bridgestone MB0 92 B'stone XO1 97 Rans VRex 92 Cannondale R1000 94 B'stone MB5 97 Vitus 997

Mentioned: 124 Post(s)
Tagged: 0 Thread(s)
Quoted: 337 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
That's gorgeous!
jyl is offline
Old 11-30-17, 10:35 AM
  #30
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 37,158

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 419 Post(s)
Tagged: 0 Thread(s)
Quoted: 5368 Post(s)
Liked 83 Times in 65 Posts
Does anyone know more about those Peugeot internally lugged frames? They were light and cheap and rode well. Why didn’t the method catch on?
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 11-30-17, 11:18 AM
  #31
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,829
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2474 Post(s)
Likes: 0
Liked 58 Times in 54 Posts
Originally Posted by noglider View Post
Does anyone know more about those Peugeot internally lugged frames? They were light and cheap and rode well. Why didn’t the method catch on?
I assume you're talking about the Carbolite and HLE frames? If so, they weren't internally lugged but lugless and internally brazed. A pre-form of brazing material was inserted inside the mitred tubes. When heated, the pre-form re-flowed with a large fillet on the inside and capillary action forming a smaller fillet on the outside.

The process was highly automated, eliminating skilled labour. It also had the had the distinct advantage of being able to visually inspect for joint quality, unlike lugged construction. Since the brazing material flowed from the inside to the outside of the tube, the quality of the joint could be assessed by examining the external fillet for size, voids, etc.

The same process was used by Motobecane and Gitane, among others. Procycle, the Canadian manufacture of Peugeot started using this method in 1988 and continued to use it on their other brands upon the expiration of their Peugeot license in 2001. Attached is a video segment from the How It's Made television program showing the Procycle manufacturing faciilty circa 2001. The brazing process is shown around 1:20 and this is the exact process as used on the Peugeot models, though CCMs are depicted.


Last edited by T-Mar; 11-30-17 at 12:07 PM.
T-Mar is offline
Old 11-30-17, 11:32 AM
  #32
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,829
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2474 Post(s)
Likes: 0
Liked 58 Times in 54 Posts
Originally Posted by vettracer View Post
Slim Chance there's a worthy welded road frame considered C&V.
Circa 1990, Chris Chance produced a TIG welded road frame that was actually called the Slim Chance.
T-Mar is offline
Old 11-30-17, 01:58 PM
  #33
vettracer
Senior Member

Join Date: Jan 2011
Posts: 209
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by T-Mar View Post
Circa 1990, Chris Chance produced a TIG welded road frame that was actually called the Slim Chance.
Thus the Pun
vettracer is offline
Old 11-30-17, 02:15 PM
  #34
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,829
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2474 Post(s)
Likes: 0
Liked 58 Times in 54 Posts
Originally Posted by vettracer View Post
Thus the Pun
Yeah, I got it but others might not have, thus the post.

Last edited by T-Mar; 11-30-17 at 03:28 PM.
T-Mar is offline
Old 11-30-17, 03:07 PM
  #35
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,341
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 936 Post(s)
Likes: 0
Liked 13 Times in 11 Posts
Originally Posted by noglider View Post
Does anyone know more about those Peugeot internally lugged frames? They were light and cheap and rode well. Why didn’t the method catch on?
I think the problem was that in the USA at least the visual was preceded by department store offerings with the same basic look at the head tube that were offered from the 60's on. The cheapness association was just repeated by non Peugeot retailers… reasonably good system that lacked aesthetics.
repechage is offline
Old 11-30-17, 03:13 PM
  #36
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 37,158

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 419 Post(s)
Tagged: 0 Thread(s)
Quoted: 5368 Post(s)
Liked 83 Times in 65 Posts
Originally Posted by repechage View Post
I think the problem was that in the USA at least the visual was preceded by department store offerings with the same basic look at the head tube that were offered from the 60's on. The cheapness association was just repeated by non Peugeot retailers… reasonably good system that lacked aesthetics.
That's absolutely true. When they came out, I didn't care how good they were. I wouldn't have wanted one because it looked like a cheap bike.

Then I test rode one, in about 2010, i.e. much later. I was impressed!

Thanks for the video, @T-Mar!
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 11-30-17, 05:43 PM
  #37
old's'cool
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,224

Bikes: 2 many 2 fit here

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 192 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
Originally Posted by vettracer View Post
Slim Chance there's a worthy welded road frame considered C&V.
...Unless you disregard the V in C&V
__________________
Geoff
"There is no Fail without Try" - Yoda Simpson
old's'cool is offline
Old 11-30-17, 05:47 PM
  #38
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,928

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6836 Post(s)
Likes: 0
Liked 215 Times in 179 Posts
Originally Posted by jyl View Post
How did Cannondale make its welds so beautiful? That's what got me wondering about this. In the 1980s, when C'dale was welding aluminium bikes, was no-one thinking about welding steel bikes? Was all the innovation focused on other materials, was steel already musty and tradition-bound by then, at least until the MTB guys came along?

air powered 1/2" belt sanders..

early on the solution normalizing heat treatment left the tubes less than straight,
but the jig held them an alignment
fietsbob is offline
Old 11-30-17, 07:49 PM
  #39
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,466
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 170 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by repechage View Post
There were a few British builders that welded, not bronze brazed Reynolds 531 adjacent to the period around WWll. It was offered as stronger and less expensive. I read the Reynolds spec on welding as a joining method, a migration of welding airframes.

Also done by Penton motorcycles in the late 60's early 70's on Thier frames that were made of Reynolds 531.
Surprised me when I saw the '531' transfer on the swing arm and frame. So, I concluded straight ga.
I've wondered about this when browsing old English catalogs. The welded frames were offered at a lower price point than the lugged ones. Was the process arc welding, or something else? There seem to be a fair number of them around, if one is shopping for a vintage English frame, so they couldn't be that bad, from a durability point of view.
Charles Wahl is offline
Old 11-30-17, 08:22 PM
  #40
SirMike1983
On the road

SirMike1983's Avatar

Join Date: Aug 2005
Posts: 1,634

Bikes: U.S. and British Roadsters

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 2 Times in 2 Posts

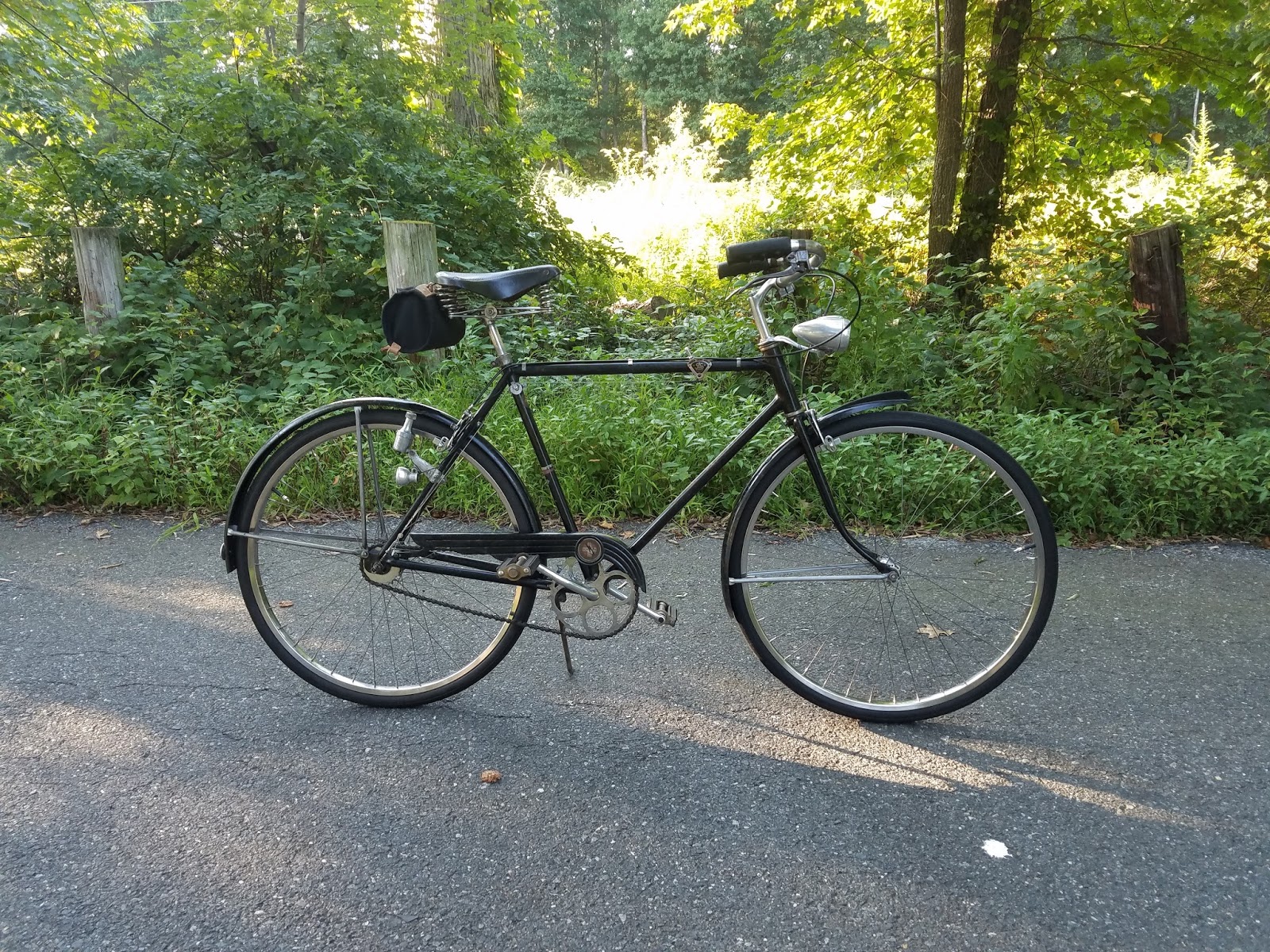

The electroforged 3-speeds, especially the early ones from the 1940s-50s were not bad at all. Here's a 1947 Schwinn New World:

__________________
Classic American and British Roadsters, Utility Bikes, and Sporting Bikes (1935-1979):
http://bikeshedva.blogspot.com/
SirMike1983 is offline
Old 11-30-17, 11:22 PM
  #41
jyl
Senior Member
Thread Starter

jyl's Avatar

Join Date: Aug 2006
Location: Portland OR
Posts: 7,516

Bikes: 61 Bianchi Specialissima 71 Peugeot G50 7? P'geot PX10 74 Raleigh GranSport 75 P'geot UO8 78? Raleigh Team Pro 82 P'geot PSV 86 P'geot PX 91 Bridgestone MB0 92 B'stone XO1 97 Rans VRex 92 Cannondale R1000 94 B'stone MB5 97 Vitus 997

Mentioned: 124 Post(s)
Tagged: 0 Thread(s)
Quoted: 337 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by T-Mar View Post
Circa 1990, Chris Chance produced a TIG welded road frame that was actually called the Slim Chance.
There's one at Velocult. I was admiring it tonight. Too small for me. For sale, too.
jyl is offline
Old 12-01-17, 09:48 AM
  #42
Roger M
Senior Member

Roger M's Avatar

Join Date: May 2010
Location: Snohomish, WA.
Posts: 2,068
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I have a TIG welded Serotta Legend TG from the early 90s. In my opinion it rides about as good as my lugged Serotta Atlanta. It’s not as pretty. But the welds are nicely done.
Roger M is offline
Old 12-02-17, 11:33 AM
  #43
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,745
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 346 Post(s)
Liked 58 Times in 48 Posts
I won't be here in 20 years, but I'm sure many Wraiths will. Welded steel, and they'll be C&V by then.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 12-02-17, 02:46 PM
  #44
cdmurphy
Senior Member

cdmurphy's Avatar

Join Date: May 2015
Location: San Marcos, CA
Posts: 553

Bikes: Too many, but sometimes not enough.

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 215 Post(s)
Likes: 0
Liked 6 Times in 3 Posts
Originally Posted by Charles Wahl View Post
I've wondered about this when browsing old English catalogs. The welded frames were offered at a lower price point than the lugged ones. Was the process arc welding, or something else? There seem to be a fair number of them around, if one is shopping for a vintage English frame, so they couldn't be that bad, from a durability point of view.
They were gas welded. It uses the same sort of oxy / acetylene torch that is used for lugged or fillet brazed construction. Rather than heating the joint just hot enough to melt the brass or silver filler, they get it hot enough to actually melt the steel tubes and steel filler rod. The finished result isn't really much different than any other sort of steel welding (TIG, MIG, Arc, etc.). This is how the majority of steel aircraft frames were welded until Heliarc (TIG) welding became popular in the 60's. The advantage, or possible downside to gas welding is how hot the whole joint gets, and how long it stays hot. Other methods of welding are faster, allowing for the joint to be finished with less heat input, and less heating of the surrounding tubes. This can be both good and bad. The big heat input is nice, in that everything is almost the same temperature, so warping and resisdual stresses are much lower. This would probably also help with fatigue life. It would be bad in that the heat effected zone is usually softer and weaker than the cold worked tubing that hasn't been heated to transition temperatures. Also, some steels can become brittle if kept hot for too long in an oxidizing atmosphere. (I was under the impression that 531 ( a Chrome - Manganese steel) was one of these "hot short" steels. I believe CrMo steel, like 4130, is better in this regard. )
cdmurphy is offline
