Eight Speed Master Link...
#1
Thread Starter
Senior Member


Joined: Apr 2007
Posts: 12,563
Likes: 2,739
From: Thunder Bay, Ontario, Canada - burrrrr!
Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma
Eight Speed Master Link...
I like to use the eight speed chain on most of my five and six cog freewheels/rings these days. Having a master link is fine with me, however; there must be an easy way to uncouple them. I damaged my left hand in a dog fight a week, or so, ago and now do not have the strength to unlink the master on my chain. Any hints for how to do this with reasonable ease would be much appreciated. On that thought, comes a second...
When I first started using the eight speed chain with a master link (SRAM), I had trouble applying enough pressure to snap the link into secured place. Robbie, a nice young fellow at a local bike shop told me to put the brake on and hit the pedal with my hand. That would snap the link solidly into place. So, I tried just that when I got home. I was, at first, disappointed...
Disappointed? Yup, because when I hit the pedal, the chain went slack and I could not figure out (at first) what I had done wrong. The following picture pictures what I learned and now do correctly. Can you guess what I was, so stupidly, doing wrong? And, don't forget to tell me how to get the darn master link apart.
When I first started using the eight speed chain with a master link (SRAM), I had trouble applying enough pressure to snap the link into secured place. Robbie, a nice young fellow at a local bike shop told me to put the brake on and hit the pedal with my hand. That would snap the link solidly into place. So, I tried just that when I got home. I was, at first, disappointed...
Disappointed? Yup, because when I hit the pedal, the chain went slack and I could not figure out (at first) what I had done wrong. The following picture pictures what I learned and now do correctly. Can you guess what I was, so stupidly, doing wrong? And, don't forget to tell me how to get the darn master link apart.
__________________
"98% of the bikes I buy are projects".
"98% of the bikes I buy are projects".
#2
Senior Member
Joined: Oct 2015
Posts: 6,280
Likes: 611
From: Los Angeles
Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr
If you don't already have the Park master link tool, it's worth it. I avoided getting one for some time because I'm just a guy, not a shop. Now I don't know why I hesitated. I'm cheap I guess. Simple tool but a lot easier than trying to do it by hand or by mis-using wire strippers or whatever similar tool.
#3
Thread Starter
Senior Member


Joined: Apr 2007
Posts: 12,563
Likes: 2,739
From: Thunder Bay, Ontario, Canada - burrrrr!
Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma
Thanks for the information, Salamandrine. Will check out the local bike shop tomorrow. I go to the city on Wednesdays to help, or visit, B4H guys and gals(don't really do much work there anymore). Will pick one up then, if one is available. I could do it with bare hands, before Fido and Fidette got at it. Fidette isn't even my dog, I am just dog sitting.
__________________
"98% of the bikes I buy are projects".
"98% of the bikes I buy are projects".
#4
Senior Member


Joined: Jul 2006
Posts: 11,474
Likes: 4,879
From: San Jose (Willow Glen) Ca
Bikes: Kirk Custom JK Special, 86 De Rosa Pro, '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque
If you don't already have the Park master link tool, it's worth it. I avoided getting one for some time because I'm just a guy, not a shop. Now I don't know why I hesitated. I'm cheap I guess. Simple tool but a lot easier than trying to do it by hand or by mis-using wire strippers or whatever similar tool.
__________________
Life is too short not to ride the best bike you have, as much as you can.
Life is too short not to ride the best bike you have, as much as you can.
#5
I use a pair of pliers. "Squeeze/expose" the link by itself, and place one jaw on one side of the link, the other jaw on the diagonal side, and squeeze. Pops right off, no specialty tool required.
And I don't hit the pedal with my hand. I just step on it with my foot - not in a stand of course
And I don't hit the pedal with my hand. I just step on it with my foot - not in a stand of course
#6
If you don't already have the Park master link tool, it's worth it. I avoided getting one for some time because I'm just a guy, not a shop. Now I don't know why I hesitated. I'm cheap I guess. Simple tool but a lot easier than trying to do it by hand or by mis-using wire strippers or whatever similar tool.
#8
SE Wis

Joined: Apr 2005
Posts: 11,546
Likes: 4,324
From: Milwaukee, WI
Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970
I personally have a pair of mig welding pliers I found in the street (or needle nose) that I ground and filed into master link pliers.
Never tried this but should work
Never tried this but should work
#10
Thread Starter
Senior Member


Joined: Apr 2007
Posts: 12,563
Likes: 2,739
From: Thunder Bay, Ontario, Canada - burrrrr!
Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma
Well done DEDHED! I am impressed, not only with the idea, but the straight to the point presentation in the video. Now, I know I have a paper clips like that one, kicking around here somewhere.
__________________
"98% of the bikes I buy are projects".
"98% of the bikes I buy are projects".
#11
Senior Member

Joined: Nov 2010
Posts: 15,315
Likes: 903
From: Tixkokob, Yucatán, México
Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5
If you don't already have the Park master link tool, it's worth it. I avoided getting one for some time because I'm just a guy, not a shop. Now I don't know why I hesitated. I'm cheap I guess. Simple tool but a lot easier than trying to do it by hand or by mis-using wire strippers or whatever similar tool.
#13
Senior Member
Joined: May 2011
Posts: 2,841
Likes: 535
From: Seattle WA
Bikes: 2009 Handsome Devil, 1987 Trek 520 Cirrus, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, 1989 Specialized Allez Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 1986 Schwinn Passage
If you don't already have the Park master link tool, it's worth it. I avoided getting one for some time because I'm just a guy, not a shop. Now I don't know why I hesitated. I'm cheap I guess. Simple tool but a lot easier than trying to do it by hand or by mis-using wire strippers or whatever similar tool.
#14
Death fork? Naaaah!!

Joined: Nov 2005
Posts: 5,529
Likes: 945
From: The other Maine, north of RT 2
Bikes: Seriously downsizing.
Park tool for sure.
There's also a KMC tool that works just backwards, for seating links.
Top
There's also a KMC tool that works just backwards, for seating links.
Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.
(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
You know it's going to be a good day when the stem and seatpost come right out.
(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
#15
Full Member
Joined: May 2017
Posts: 450
Likes: 60
Wippermann Connex link works extremely well and needs no tools to open or close. $5.99 + $1.99 flat rate shipping from amaincycling.com

https://www.amaincycling.com/wipperm...CABEgIogPD_BwE

https://www.amaincycling.com/wipperm...CABEgIogPD_BwE
#16
Senior Member


Joined: Dec 2014
Posts: 5,345
Likes: 5,145
From: Central Virginia
Bikes: Numerous
I used to never struggle with using my hands on a master kink until 4-5 years ago but then something changed, either me or the links. I am now firmly in the Park Master link tool camp.
That trick above is cool, another is to use heavy gauge wire, put it around the rollers and then twist the ends together with some pliers.
That trick above is cool, another is to use heavy gauge wire, put it around the rollers and then twist the ends together with some pliers.
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '95 Gios Compact Pro, '95 Carrera Zeus, ‘81 Masi Gran Criterium, ‘81 Merckx Pro, ‘89 Cinelli Supercorsa, ‘83 Bianchi Specialissima, ‘VO Randonneur, Ritchey Breakaway Steel, Rivendell Rambouillet, Heron Randonneur, ‘92 Ciöcc Columbus EL
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '95 Gios Compact Pro, '95 Carrera Zeus, ‘81 Masi Gran Criterium, ‘81 Merckx Pro, ‘89 Cinelli Supercorsa, ‘83 Bianchi Specialissima, ‘VO Randonneur, Ritchey Breakaway Steel, Rivendell Rambouillet, Heron Randonneur, ‘92 Ciöcc Columbus EL
#17
Senior Member

Joined: Nov 2010
Posts: 15,315
Likes: 903
From: Tixkokob, Yucatán, México
Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5
The mechanic who shortened my chain at SOTR told me that some quicklinks are meant to be re-used and some aren't. Those that aren't can be very difficult to impossible to open by hand.
#18
Thread Starter
Senior Member


Joined: Apr 2007
Posts: 12,563
Likes: 2,739
From: Thunder Bay, Ontario, Canada - burrrrr!
Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma
Well, I tried the paper clip suggestion and it did work. But it was a bit of a hassle and I think I will purchase a set of master link plyers. Thanks for advice, everyone and, for what it is worth, when going for longer rides, I will keep a paper clip in my tool kit.
__________________
"98% of the bikes I buy are projects".
"98% of the bikes I buy are projects".
#19
Thrifty Bill

Joined: Jan 2008
Posts: 23,639
Likes: 1,106
From: Mans of NC & SW UT Desert
Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more
+1 to the pliers.
Lots of people on ebay selling quick links at a low price (shipped from China so you can't be in a hurry).
Lots of people on ebay selling quick links at a low price (shipped from China so you can't be in a hurry).
#20
Thread Starter
Senior Member


Joined: Apr 2007
Posts: 12,563
Likes: 2,739
From: Thunder Bay, Ontario, Canada - burrrrr!
Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

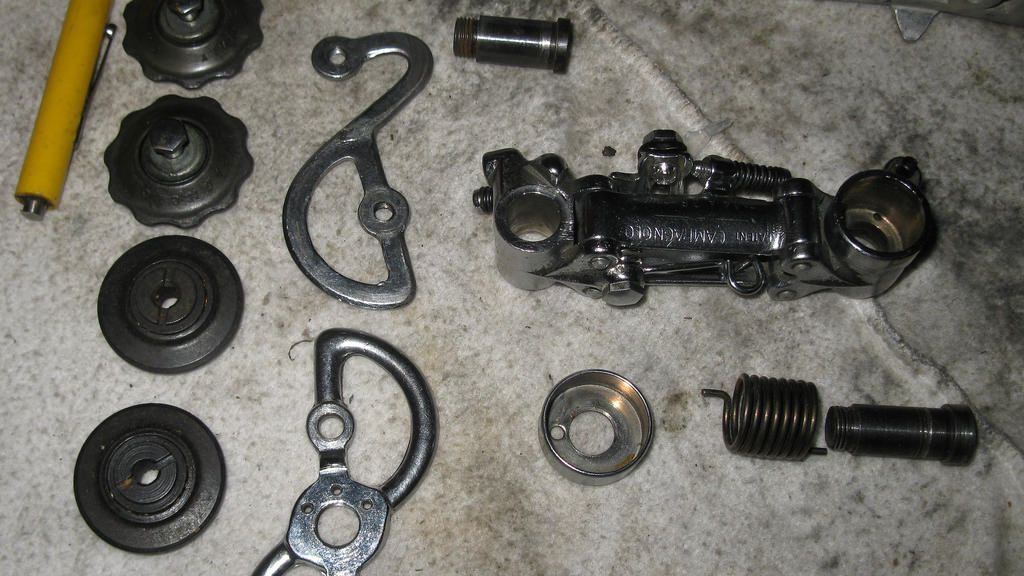

Finally for a bit of time to break the chain, remove the Grand Sport rear derailleur, and have a look inside...

My derailleur was set up with the spring tab in the middle hole of the cage. And, for what it is worth, as I was going through boxes, seeking stuff to sell, I stumbled across a NOS set of Campy ball bearing Grand Sport pulleys. Yahoo!

And, took my Rabeneick out for a little spin and the GS transmission worked just fine...

So, the next thing to do is assemble the derailleur, take the frame set to a local shop and check derailleur alignment, then put is all back together again.

My derailleur was set up with the spring tab in the middle hole of the cage. And, for what it is worth, as I was going through boxes, seeking stuff to sell, I stumbled across a NOS set of Campy ball bearing Grand Sport pulleys. Yahoo!

And, took my Rabeneick out for a little spin and the GS transmission worked just fine...

So, the next thing to do is assemble the derailleur, take the frame set to a local shop and check derailleur alignment, then put is all back together again.
__________________
"98% of the bikes I buy are projects".
"98% of the bikes I buy are projects".
#21
Old Legs

Joined: Nov 2016
Posts: 1,212
Likes: 33
From: Mass.
Bikes: '80 Strayvaigin, '84 Ciocc Aelle-Shimano 105, '90 Concorde Astore /Campy Triple ,85 Bridgestone 500/Suntour, 2005 Jamis Quest, 2017 Raleigh Merit 1, Raleigh Carbon Clubman
Ditto the Park tool. With 6 bikes to keep up, I got one of those Park imitation tools off EBAY. Works for the amount I plan to use it. KB.
