Fuji S12-S 650b conversion finished done...I think...

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Fuji S12-S 650b conversion finished done...I think...

Old 07-17-18, 10:57 AM
  #1
jamesdak
Senior Member
Thread Starter

Join Date: Aug 2010
Location: Utah
Posts: 6,563

Bikes: Too many to keep this current.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1606 Post(s)
Liked 988 Times in 506 Posts
Fuji S12-S 650b conversion finished done...I think...




Finally got back to some final steps on this one and realized I had never really shot a good set of pictures of it. So I did that this morning.

So, found this one locally a couple of years ago for a really cheap price. It's nothing special but I knew if would be a good candidate to dip my toe into 650b territory. Originally I was going to replace the components for a modern triple setup but like the Fuji pantographed look and have left them. So the conversion was mainly just getting a set of Velocity wheels made up and then adding on the Velo Orange fenders and Dia Compe brakes. Tires are nice, soft Compass 650 x 42b tires.

Obviously, this is one of those times I put way more into a bike than it is worth. Still, fun exercise in learning. Had to make some compromises but I think it turned out OK. This turned out OK using one of the major "Bike Boom" bikes.




















__________________
Steel is real...and comfy.
jamesdak is online now
Old 07-17-18, 10:58 AM
  #2
jamesdak
Senior Member
Thread Starter

Join Date: Aug 2010
Location: Utah
Posts: 6,563

Bikes: Too many to keep this current.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1606 Post(s)
Liked 988 Times in 506 Posts

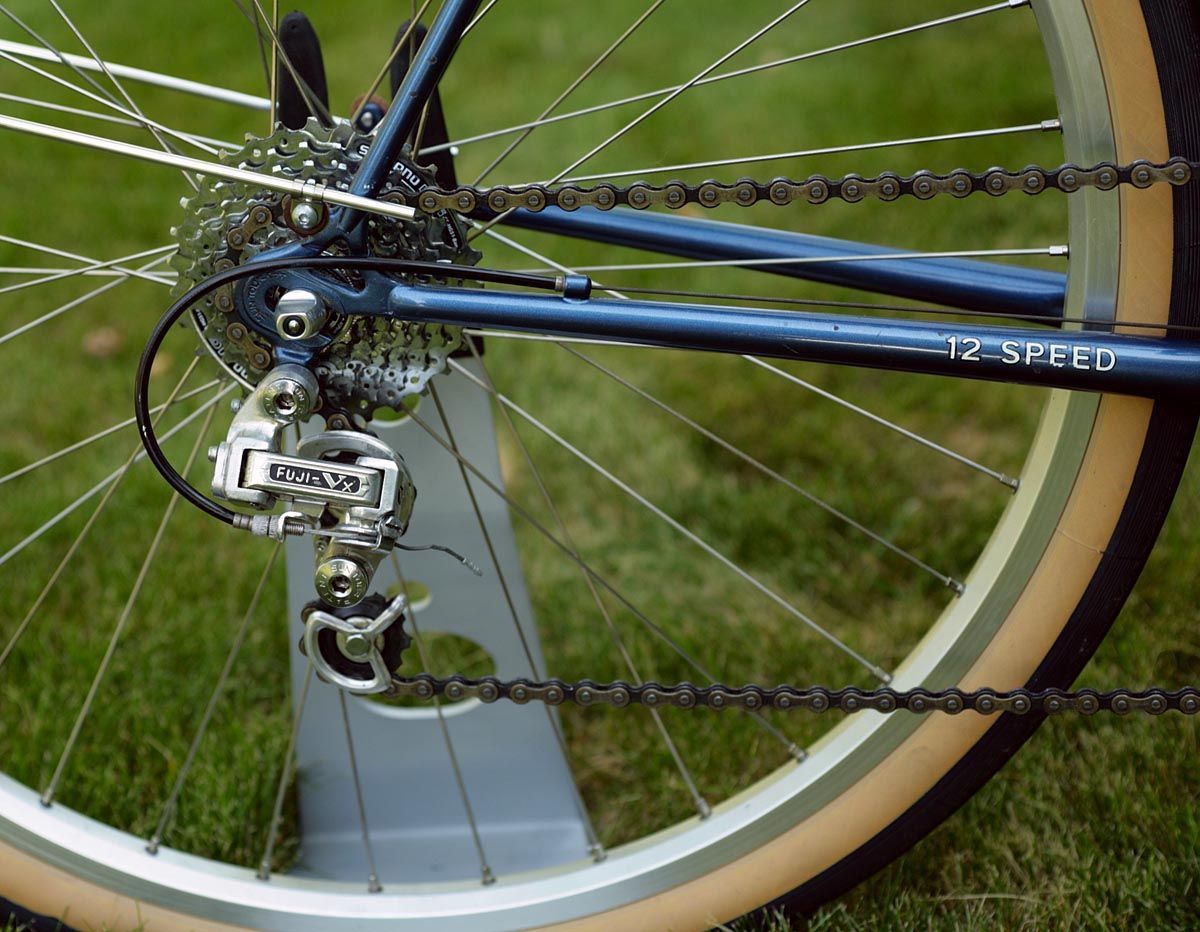

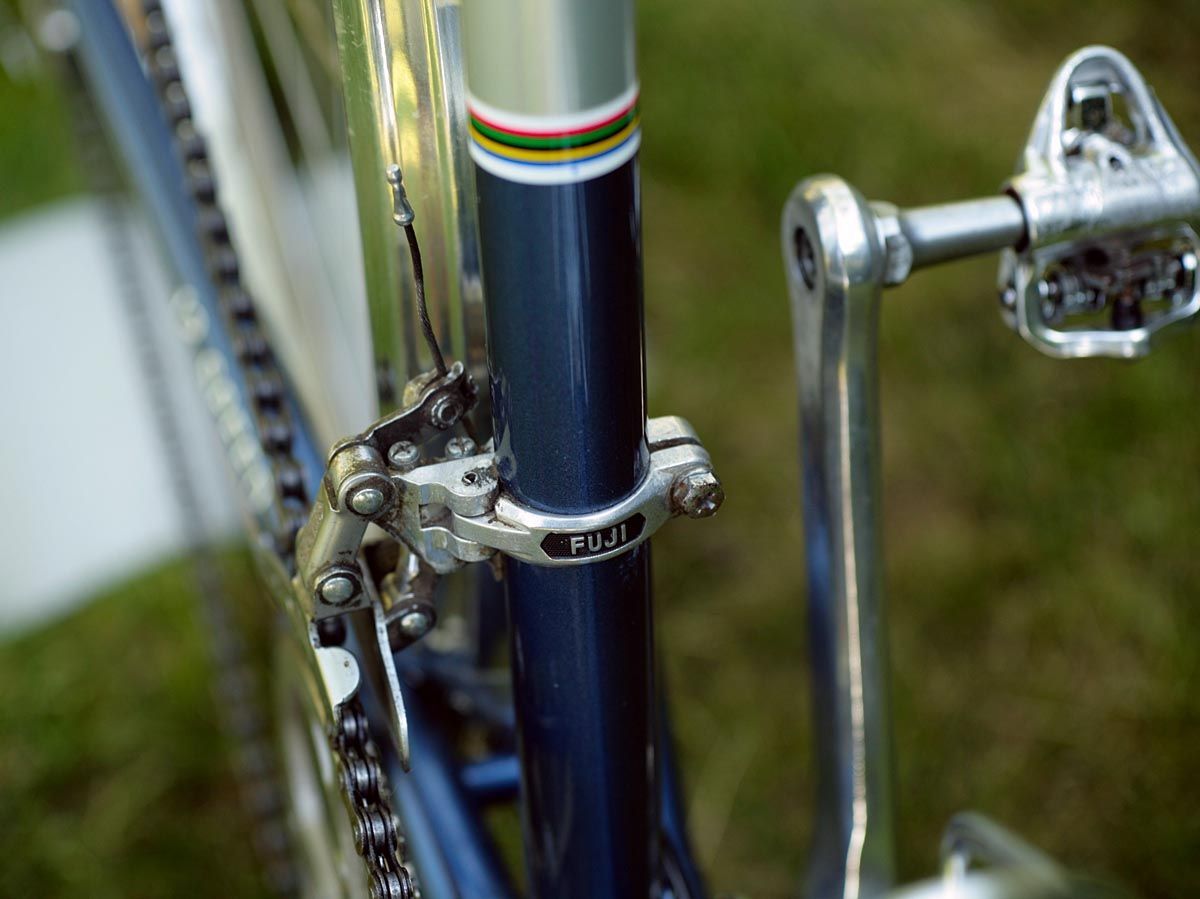

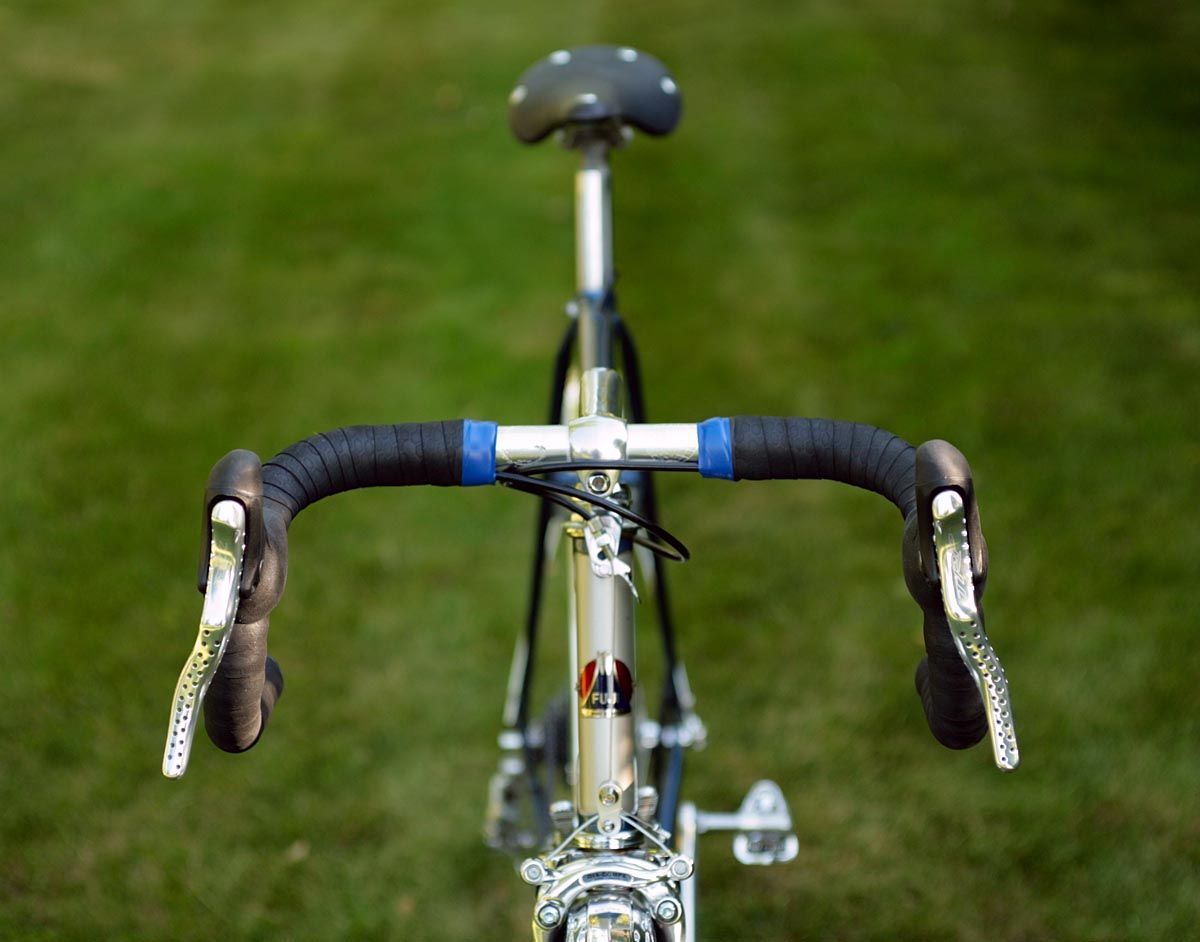

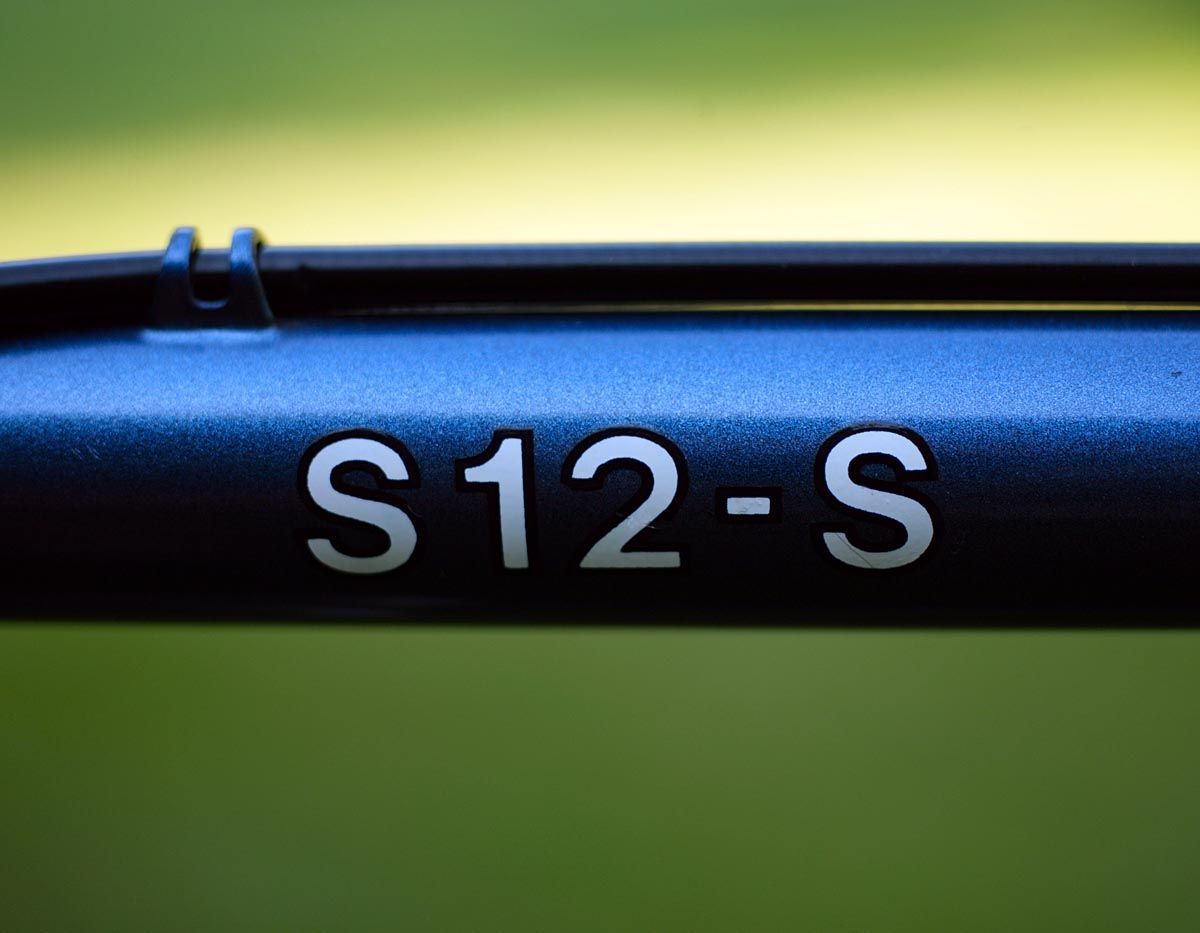

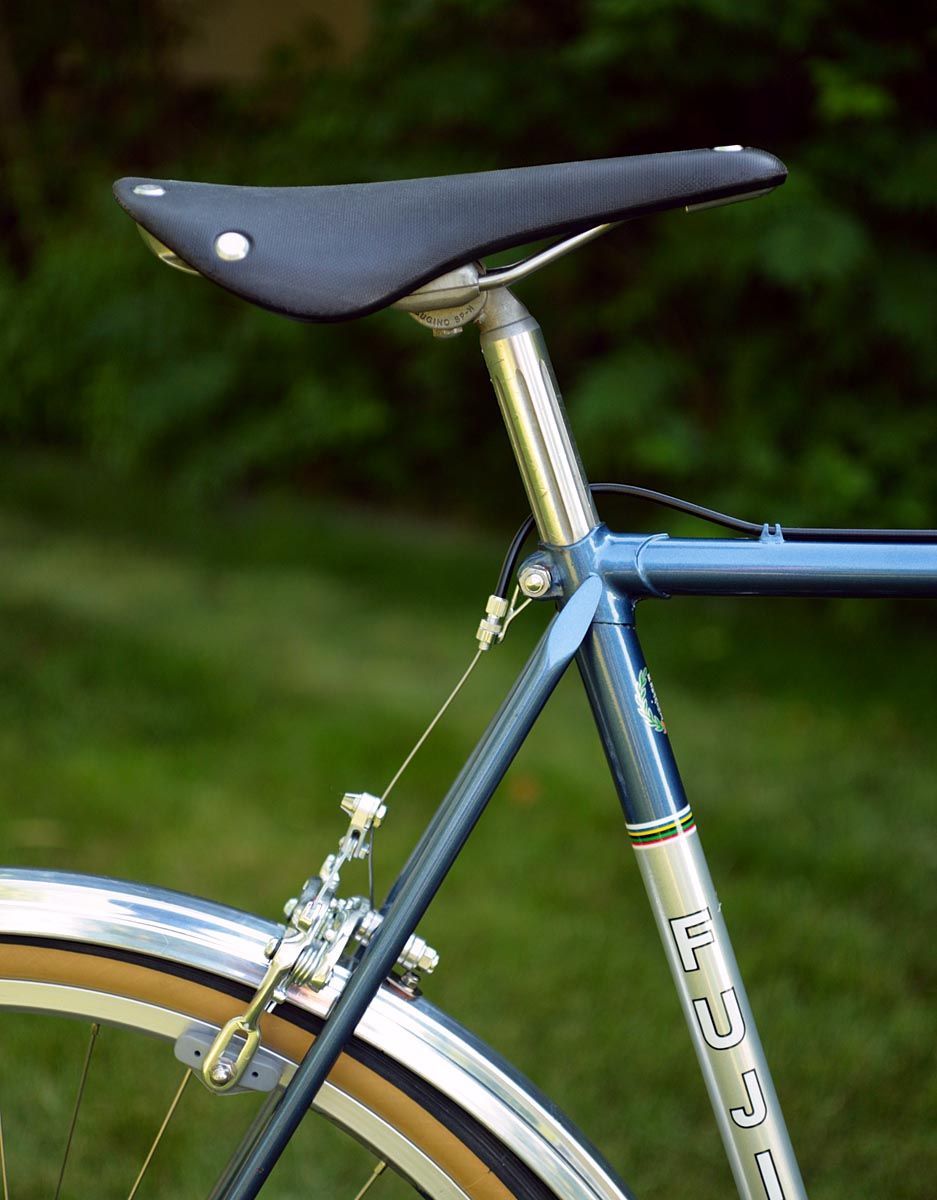

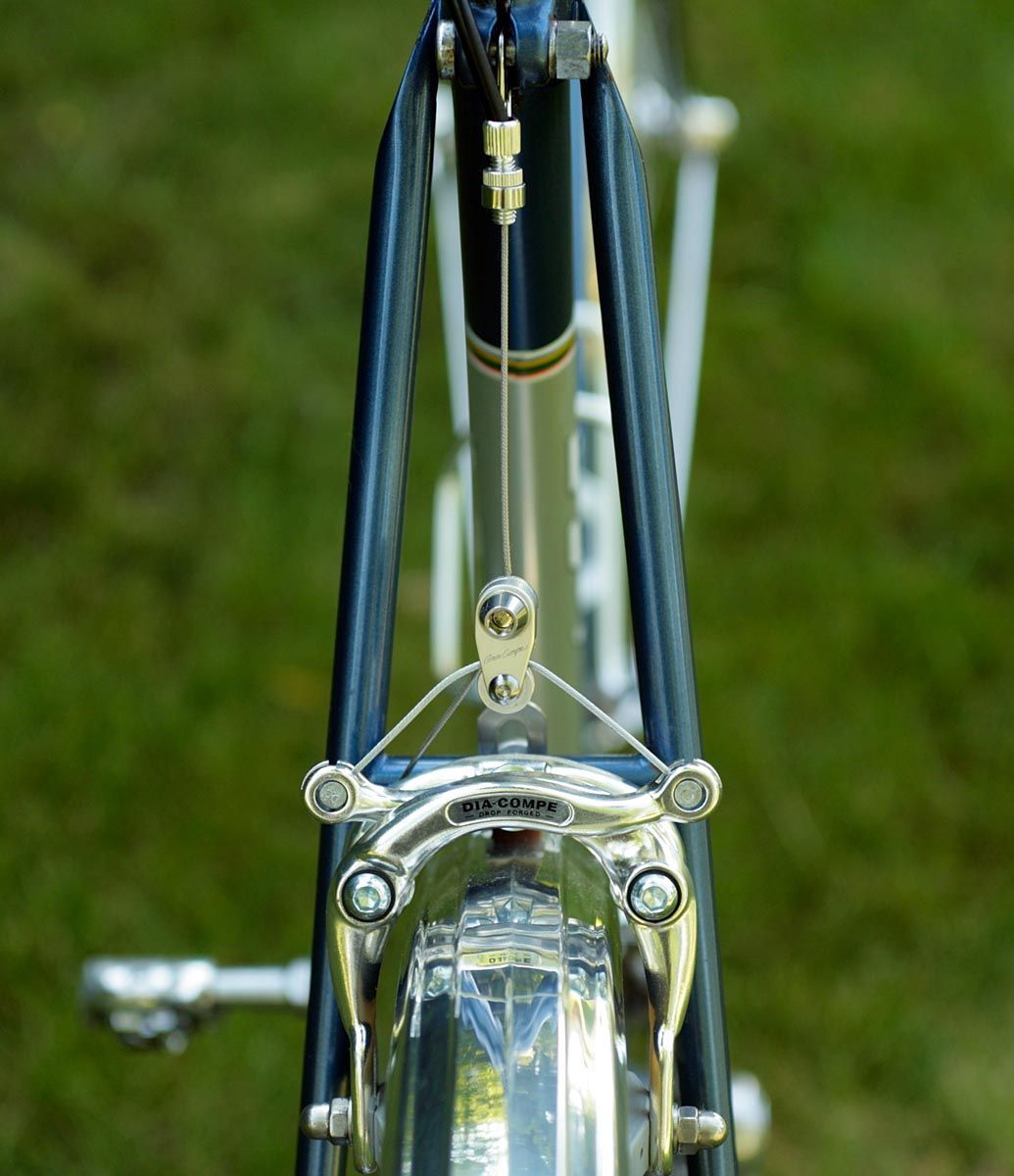

A few more:









Taking these pictures made me notice I still have some cleaning to do on this. Still a fair around of old grime on a lot of the original components.
__________________
Steel is real...and comfy.
jamesdak is online now
Old 07-17-18, 11:10 AM
  #3
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,110

Bikes: It's complicated.

Mentioned: 995 Post(s)
Tagged: 0 Thread(s)
Quoted: 3206 Post(s)
Liked 1,467 Times in 748 Posts
That's a damn fine conversion. I know of several people who have used the S12-S as a base for 650b conversion. It's a "natural" low trail frame with plenty of room for 42's and fenders. If you ever want to add a front rack and handelbar bag, it'll handle quite nicely even with the added front load.

As much money as you think you put into it, it looks like you used a lot of the original kit, and only added essential bits.

Chapeau!
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 07-17-18, 01:36 PM
  #4
abshipp
Senior Member

abshipp's Avatar

Join Date: Sep 2017
Location: Greenville SC
Posts: 3,180

Bikes: 1976 Motobecane Grand Jubile, 1977 Schwinn Super Le Tour 12.2 Chrome, 1981 Trek 710 650b, 2014 Canfield Nimble 9

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 2488 Post(s)
Liked 1,876 Times in 769 Posts
Beautiful!

42s fit without any drama? Or did you have to do any crimping?
abshipp is offline
Old 07-17-18, 02:06 PM
  #5
Chris Chicago
Senior Member

Chris Chicago's Avatar

Join Date: May 2009
Location: near north side
Posts: 1,333
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 81 Post(s)
Liked 24 Times in 16 Posts
looks sharp.
Chris Chicago is offline
Old 07-17-18, 02:52 PM
  #6
jamesdak
Senior Member
Thread Starter

Join Date: Aug 2010
Location: Utah
Posts: 6,563

Bikes: Too many to keep this current.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1606 Post(s)
Liked 988 Times in 506 Posts
Originally Posted by abshipp View Post
Beautiful!

42s fit without any drama? Or did you have to do any crimping?
Easily with plenty of room in my book. I have at least 4 mm on both sides at the tightest point which is the rear chainstays.

No crimping or otherwise adjusting of the stock frame.
__________________
Steel is real...and comfy.
jamesdak is online now
Old 07-17-18, 02:57 PM
  #7
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,862

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 484 Post(s)
Tagged: 0 Thread(s)
Quoted: 6850 Post(s)
Liked 1,456 Times in 926 Posts
I don't think you overdid anything. It's a fine frame to begin with, and it's in such good shape.

I think I'm going to taste the 650b kool-aid.

How much does the bike weigh?

That's a Cambium saddle, right? I have one and like it a lot.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 07-17-18, 04:15 PM
  #8
jamesdak
Senior Member
Thread Starter

Join Date: Aug 2010
Location: Utah
Posts: 6,563

Bikes: Too many to keep this current.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1606 Post(s)
Liked 988 Times in 506 Posts
Originally Posted by noglider View Post
I don't think you overdid anything. It's a fine frame to begin with, and it's in such good shape.

I think I'm going to taste the 650b kool-aid.

How much does the bike weigh?

That's a Cambium saddle, right? I have one and like it a lot.
As in the pictures from today it weighs in at 27 lbs and 4 ozs.

It is Cambium saddle but to be honest I'm not a big fan. It's OK but I find all my Brooks and Gyes leather saddles more comfortable. So this keeps getting moved around to different bikes.

It is a nice old bike. A local teacher was trying to commute on it when I got it and it was a bit of a mess. Dragging brakes and other issues.
__________________
Steel is real...and comfy.
jamesdak is online now
Old 07-18-18, 03:39 AM
  #9
cs1
Senior Member

cs1's Avatar

Join Date: Feb 2004
Location: Clev Oh
Posts: 7,067

Bikes: Specialized, Schwinn

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 14 Times in 13 Posts
Originally Posted by noglider View Post
How much does the bike weigh?
A lot, The S12 was the first bike I bought new back in the Seventies right after high school. Mine was yellow. Still a very cool bike.
cs1 is offline
Old 07-18-18, 06:48 AM
  #10
oddjob2
Still learning

oddjob2's Avatar

Join Date: May 2012
Location: North of Canada, Adirondacks
Posts: 11,617

Bikes: Still a garage full

Mentioned: 91 Post(s)
Tagged: 2 Thread(s)
Quoted: 842 Post(s)
Liked 52 Times in 33 Posts
First class conversion!
oddjob2 is offline
Old 07-18-18, 07:37 AM
  #11
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,915

Bikes: Mostly English - predominantly Raleighs

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1028 Post(s)
Liked 297 Times in 208 Posts
That looks fantastic. Clean as a whistle and a real head-turner.
__________________
In search of what to search for.
USAZorro is offline
Old 07-18-18, 09:27 AM
  #12
jamesdak
Senior Member
Thread Starter

Join Date: Aug 2010
Location: Utah
Posts: 6,563

Bikes: Too many to keep this current.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1606 Post(s)
Liked 988 Times in 506 Posts

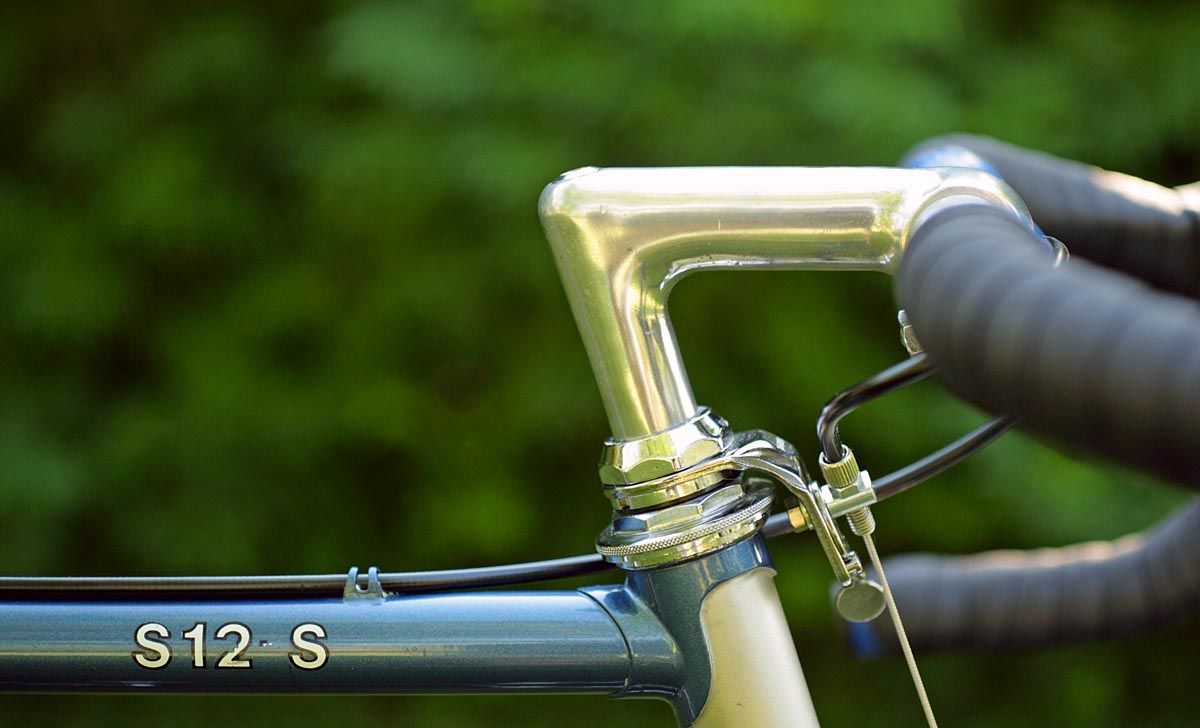

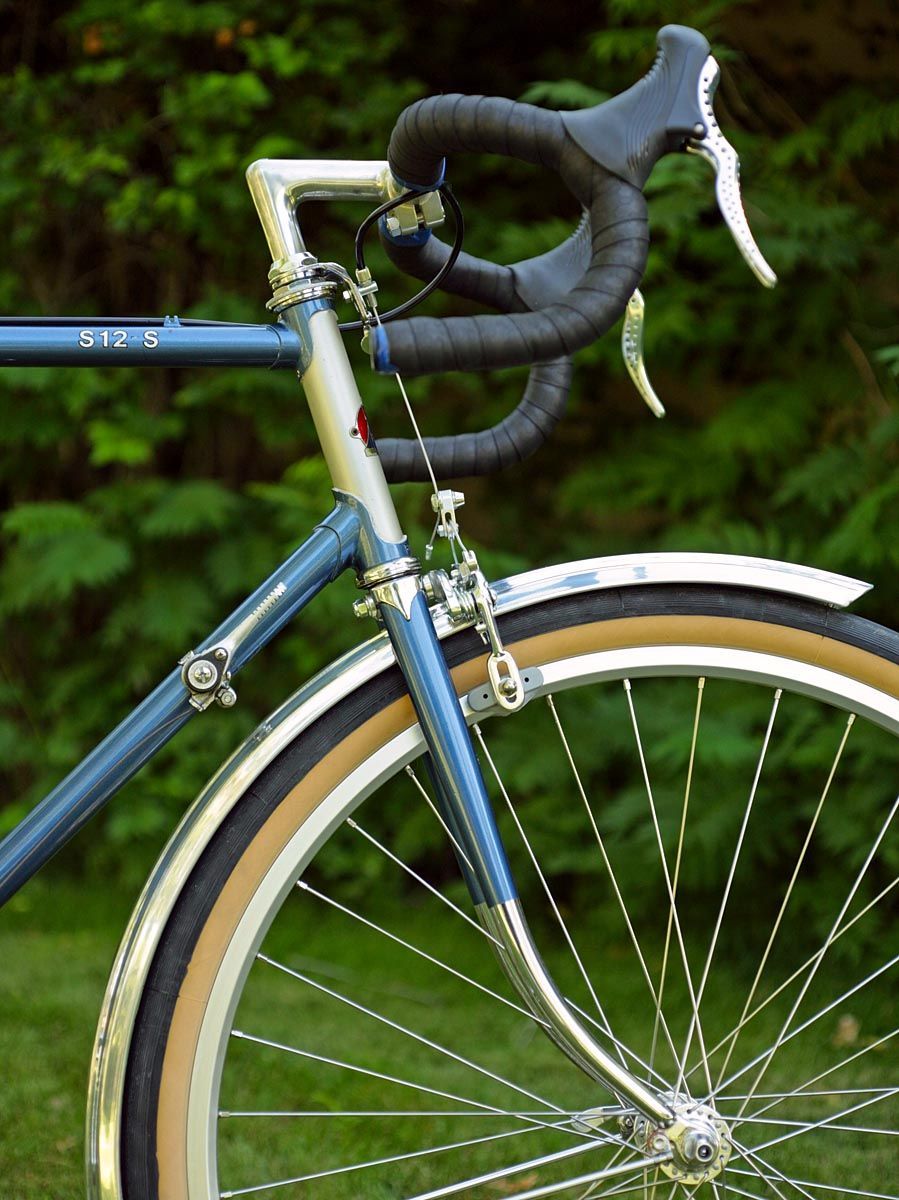

I was a little worried about the front brake cabling. Sorta of a tight mess to make it work. But seems to be functioning fine without any binding so I guess it's ok.
__________________
Steel is real...and comfy.
jamesdak is online now
Old 07-18-18, 10:06 AM
  #13
ptempel
Senior Member

Join Date: Feb 2005
Location: New Jersry the beautiful Garden State
Posts: 1,942

Bikes: 2007 Ridley Excalibur, 2003 Orbea Orca, 199? Cannondale Headshock MTB hardtail

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 519 Post(s)
Likes: 0
Liked 9 Times in 9 Posts
Originally Posted by jamesdak View Post
I was a little worried about the front brake cabling. Sorta of a tight mess to make it work. But seems to be functioning fine without any binding so I guess it's ok.
My first reaction was if you could have shorten the front brake cable. But a second look reveals that the stem bolt was kind of "in the way" of the cable path. If not binding then full steam ahead! I guess the cantilever stop was designed with non-aero brake cabling in mind. I can't get over how clean your bike is. Great job!

Edit: What type of camera did you use for the shots? They look like they could go into a catalog.

Last edited by ptempel; 07-18-18 at 10:10 AM.
ptempel is offline
Old 07-18-18, 10:59 AM
  #14
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,925
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 775 Post(s)
Liked 21 Times in 18 Posts
Originally Posted by jamesdak View Post
I was a little worried about the front brake cabling. Sorta of a tight mess to make it work. But seems to be functioning fine without any binding so I guess it's ok.
James, I have an answer for that. A short v-brake noodle is perfect to get the cable run lined up with the cable stop.
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Old 07-18-18, 11:55 AM
  #15
jamesdak
Senior Member
Thread Starter

Join Date: Aug 2010
Location: Utah
Posts: 6,563

Bikes: Too many to keep this current.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1606 Post(s)
Liked 988 Times in 506 Posts
Originally Posted by ptempel View Post

Edit: What type of camera did you use for the shots? They look like they could go into a catalog.

It's old gear. The camera is a Canon 5D and the lens is a very sweet Leica R 60/2.8 macro lens that I converted to work on the Canon camera.

Normally my camera's are used more for stuff like this:


__________________
Steel is real...and comfy.
jamesdak is online now
Old 07-18-18, 03:28 PM
  #16
abshipp
Senior Member

abshipp's Avatar

Join Date: Sep 2017
Location: Greenville SC
Posts: 3,180

Bikes: 1976 Motobecane Grand Jubile, 1977 Schwinn Super Le Tour 12.2 Chrome, 1981 Trek 710 650b, 2014 Canfield Nimble 9

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 2488 Post(s)
Liked 1,876 Times in 769 Posts
Originally Posted by jamesdak View Post
Easily with plenty of room in my book. I have at least 4 mm on both sides at the tightest point which is the rear chainstays.

No crimping or otherwise adjusting of the stock frame.
Very nice! That certainly makes things easier.

The one conversion I had only gave me maybe 1mm each side of the rear tire at the chainstays. Getting things to aligned and to stay put took a bit of patience!
abshipp is offline
Old 07-18-18, 03:36 PM
  #17
Bikerider007
Senior Member

Bikerider007's Avatar

Join Date: Aug 2015
Location: AZ
Posts: 2,450

Bikes: Yes

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 457 Post(s)
Liked 42 Times in 27 Posts
Oh that is classy! Well done.
__________________
Bikerider007 is offline
Old 07-18-18, 07:58 PM
  #18
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,863

Bikes: 2009 Handsome Devil, 1987 Trek 520 Cirrus, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, 1989 Specialized Allez Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 1986 Schwinn Passage

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 787 Post(s)
Liked 498 Times in 357 Posts
Very nicely done
ryansu is offline
Old 07-19-18, 01:36 AM
  #19
MauriceMoss
Senior Member

MauriceMoss's Avatar

Join Date: Aug 2014
Location: Los Angeles, CA
Posts: 429

Bikes: None in ridable condition

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 97 Post(s)
Liked 178 Times in 76 Posts
Great job @jamesdak, both on the conversion and the photos! The bike just feels right. I do have a soft spot for these blue Fujis.

What rims/hubs are you using there?

On a side note, I always thought S12S frames were made with the Fuji 441 tubing and the S12S LTDs were made with 331 (same as the Americas) but I guess there were 331 S12Ss made as well? Very cool.
MauriceMoss is offline
Old 07-19-18, 06:03 AM
  #20
jamesdak
Senior Member
Thread Starter

Join Date: Aug 2010
Location: Utah
Posts: 6,563

Bikes: Too many to keep this current.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1606 Post(s)
Liked 988 Times in 506 Posts
Originally Posted by MauriceMoss View Post
Great job @jamesdak, both on the conversion and the photos! The bike just feels right. I do have a soft spot for these blue Fujis.

What rims/hubs are you using there?

On a side note, I always thought S12S frames were made with the Fuji 441 tubing and the S12S LTDs were made with 331 (same as the Americas) but I guess there were 331 S12Ss made as well? Very cool.

They are Velocity touring wheels built up with strong Atlas rims.

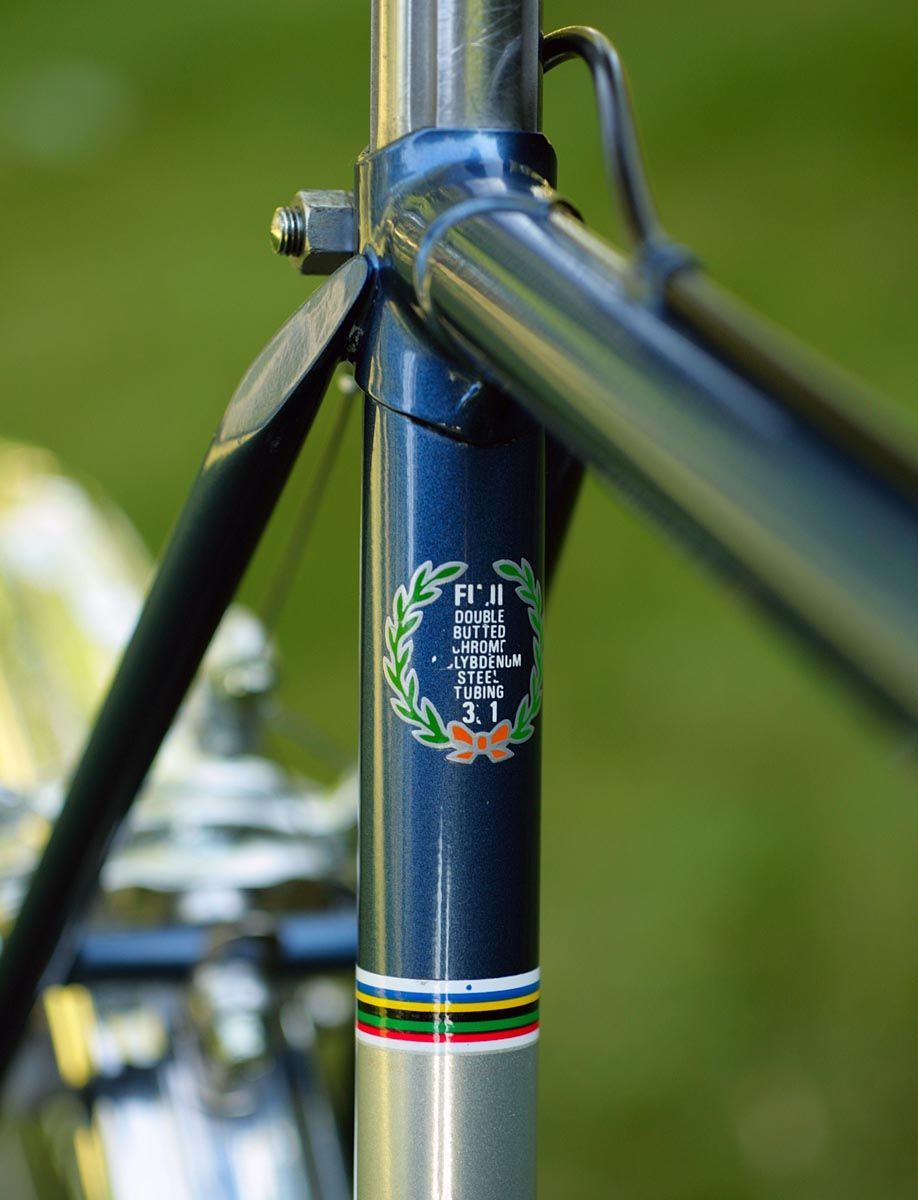

You are right about the tubing thing. Using the catalogs at Classic Fuji I cannot find a direct match for this one. By rights it should be the 441 tubing and a 18 speed. This is going off the color matches in the catalog for the year. Maybe wrong decal, maybe early year 1981, maybe....
__________________
Steel is real...and comfy.
jamesdak is online now
Old 07-19-18, 08:04 AM
  #21
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,862

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 484 Post(s)
Tagged: 0 Thread(s)
Quoted: 6850 Post(s)
Liked 1,456 Times in 926 Posts
I keep coming back to this thread to look at the pictures again.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 07-19-18, 09:43 AM
  #22
jamesdak
Senior Member
Thread Starter

Join Date: Aug 2010
Location: Utah
Posts: 6,563

Bikes: Too many to keep this current.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1606 Post(s)
Liked 988 Times in 506 Posts
Originally Posted by noglider View Post
I keep coming back to this thread to look at the pictures again.

Guess I need to reshoot my pretty Fuji then. I think the Opus III is so much nicer looking.


__________________
Steel is real...and comfy.
jamesdak is online now
Old 07-19-18, 12:07 PM
  #23
DiegoFrogs
Senior Member

DiegoFrogs's Avatar

Join Date: Feb 2005
Location: Toledo, OH
Posts: 2,466

Bikes: '77 Centurion "Pro Tour"; '67 Carlton "The Flyer"; 1984 Ross MTB (in USA)

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 133 Post(s)
Liked 32 Times in 24 Posts
That's great! I like that you preserved the stuff you did, and changed the stuff you wanted to suit you a bit better. The frame also has some nice features, like integrated RD hanger and cable stops, in addition to the classy looks and paint job. I have some serious appreciation for these 'middle end' frames.

Normally I find something that gives me some minor irritation when I look at bikes that are close to perfect. I can't find anything here!
DiegoFrogs is offline
Old 07-20-18, 04:40 AM
  #24
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 3,308

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 504 Post(s)
Liked 229 Times in 126 Posts
Both oft the S-12-Ss that I rebuilt had a front fork spacing of about 92 mm, rather than the more standard 100mm. A little disconcerting to me, though not a major issue. Was that the case with yours as well?
jonwvara is offline
Old 07-20-18, 01:31 PM
  #25
ptempel
Senior Member

Join Date: Feb 2005
Location: New Jersry the beautiful Garden State
Posts: 1,942

Bikes: 2007 Ridley Excalibur, 2003 Orbea Orca, 199? Cannondale Headshock MTB hardtail

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 519 Post(s)
Likes: 0
Liked 9 Times in 9 Posts
Originally Posted by jamesdak View Post
It's old gear. The camera is a Canon 5D and the lens is a very sweet Leica R 60/2.8 macro lens that I converted to work on the Canon camera.

Normally my camera's are used more for stuff like this:


Nice gear. I have thought about mount conversion for Leica R lenses for Pentax K in the past (I still have an old K10D). But the price of the old Leica R lenses make that a little out of reach last I checked. Well, most macro lenses are not cheap for the reasons your images illustrate above. They usually have the least amount of distortion in the entire lens range. I used to shoot some B&W with Rolliecord V, Vb, Nikon FE2, Hasselblad 501, and a Mamiya 7. The 80mm standard on the Mamiya was one of my favorite lenses of the bunch. Sorry for the OT, but I like your photos!

Last edited by ptempel; 07-20-18 at 01:35 PM.
ptempel is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
