DIY Repaint (With a Brush)

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

DIY Repaint (With a Brush)

Old 08-30-18, 09:50 AM
  #1
ollo_ollo
Senior Member
Thread Starter

ollo_ollo's Avatar

Join Date: Nov 2003
Location: Near Sublimity Orygun
Posts: 4,887

Bikes: Still have a few left!

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 338 Post(s)
Liked 45 Times in 33 Posts
DIY Repaint (With a Brush)

Got a bargain priced frame set recently and thought to make a good but cheap rider using the last of my spare parts. It had been poorly re-painted, so I was going to remove the old paint, then do a "rattle can" special. Frame was I.D. as an 87 Specialized Sirrus.

Removed the old paint down to bare metal with a combination of stripper, a curved scraper and 200 grit sandpaper for any bits that remained. Wasn't going to document the build, so sorry I didn't take pics of the bare metal frame, but found investment cast lugs, bottom bracket and sloping fork crown. Quite a bonus, and no excess brazing material to clean up.


I will powder coat this frame eventually, but want to confirm it rides as well as its appearance promised. So, I took brush in hand, some old paint and a gold paint pen to make my ride. I had half of a 1/2 pint can of Rustoleum black and expected it should be just enough, but it took surprisingly little paint. Level only went down about 1/4 inch. It went on thick, so I stopped at 1 coat. I like the black and red Motobecane scheme so used a small brush to add some Val Spar Marine, top coat, polyurethane in Racing Red to the head tube, but chickened out on seat tube stripes. When all was dry, I cranked up Lynrd Skynryd, did some sloppy lug lining and named it "Burnt Ends", a tribute to its fine build quality and also my favorite BBQ food. The end product looks pretty good, considering I didn't do multiple coats with sanding between.

For the build, once I saw how good the frame was, I decided it needed a few better parts and found some at bargain prices: a $20 Brooks Team Pro that was terribly dry and neglected, a used $30 Superbe triple crank just like the one on my Expedition Touring and a $5 105 SLR front brake caliper. For the rest, a NOS Tange cartridge bottom bracket, several shift lever sets, a Cinelli stem and Criterium bar, and a Campy (Athena?) rear brake caliper, Superbe Brake levers, Cyclone rear and Mirage Triple front D.R. and a couple used wheels were available. 1st ride was good, and fit is close, but the bar is a bit wider and stem a bit longer than I like, shift levers not fully compatible with braze-ons and fiddly. So that may change, but I will ride it a while as is. Don
Attached Images
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
ollo_ollo is offline
Old 08-30-18, 10:31 AM
  #2
mitchmellow62
Senior Member

Join Date: Aug 2014
Posts: 158
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 15 Times in 12 Posts
Wow!!! The pictures look beautiful. Nice job. You certainly have me thinking.
mitchmellow62 is offline
Old 08-30-18, 10:44 AM
  #3
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,259

Bikes: 81 Medici, 84 Centurion Turbo, 2011 Richard Sachs, '90 Alpina Team, 85 TREK 620, 2011 Milwaukee Road

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 845 Post(s)
Liked 228 Times in 167 Posts
Very Very Nice! Forget about the powder coat. Now just be careful for a few months while the paint cures. I put mine in the back of my sunny car in-between coats of brushed-on Rustoleum.
Classtime is offline
Old 08-30-18, 10:45 AM
  #4
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 8,436

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 2296 Post(s)
Likes: 0
Liked 709 Times in 494 Posts
Good work! I used to paint my winter/rain/city fix gears with 2-part epoxy; the same paint I used on my boat. I loved that epoxy "flows" as it cures and brush marks disappear.

Ben
79pmooney is offline
Old 08-30-18, 11:13 AM
  #5
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,296

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 464 Post(s)
Liked 84 Times in 60 Posts
Originally Posted by 79pmooney View Post
Good work! I used to paint my winter/rain/city fix gears with 2-part epoxy; the same paint I used on my boat. I loved that epoxy "flows" as it cures and brush marks disappear.
Ben
Please describe the paint more completely so we might be able to buy some - who makes it, exact name of product, etc.
Bad Lag is offline
Old 08-30-18, 11:17 AM
  #6
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,296

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 464 Post(s)
Liked 84 Times in 60 Posts
Originally Posted by ollo_ollo View Post

I had half of a 1/2 pint can of Rustoleum black and expected it should be just enough, but it took surprisingly little paint. Level only went down about 1/4 inch. It went on thick, so I stopped at 1 coat. I like the black and red Motobecane scheme so used a small brush to add some Val Spar Marine, top coat, polyurethane in Racing Red to the head tube, but chickened out on seat tube stripes. When all was dry, I cranked up Lynrd Skynryd, did some sloppy lug lining and named it "Burnt Ends", a tribute to its fine build quality and also my favorite BBQ food. The end product looks pretty good, considering I didn't do multiple coats with sanding between.

Don
Don, it looks terrific! Did you NOT use a primer? If you did, what type? Did you use a clear coat over the top?

I'd like to see a photo after a year of riding it. That will tell the tale.
Bad Lag is offline
Old 08-30-18, 12:02 PM
  #7
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 8,160

Bikes: A few

Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 1546 Post(s)
Liked 339 Times in 250 Posts
You ever want to trade that frame for an 86 56cm Ironman let me know, a Specialized is one I don’t have.

You did a nice job on that repaint!
3speedslow is offline
Old 08-30-18, 01:20 PM
  #8
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 8,436

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 2296 Post(s)
Likes: 0
Liked 709 Times in 494 Posts
Originally Posted by Bad Lag View Post
Please describe the paint more completely so we might be able to buy some - who makes it, exact name of product, etc.
Sorry, I haven't had a 2-part epoxy paint for several decades. I't importance in my life dropped a lot when I moved away from winter salt road country. I'd go on-line and and try "epoxy 2-part paint" and see what;s out there.

Ben
79pmooney is offline
Old 08-30-18, 01:50 PM
  #9
michael k
Senior Member

michael k's Avatar

Join Date: Sep 2009
Location: Portland,Or
Posts: 1,159
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by mitchmellow62 View Post
Wow!!! The pictures look beautiful. Nice job. You certainly have me thinking.
+1

I'm thinking I need to move to Salem....
michael k is offline
Old 08-30-18, 02:14 PM
  #10
deux jambes
Senior Member

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 1,007
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 477 Post(s)
Liked 274 Times in 155 Posts
Nicely done! Not everyone has good sensibility when it comes to laying finish paint down with a brush. How one loads, and pallets the brush, and how they control the stroke are all key elements. Same can be said for the sequence of parts being coated, it takes a little methodical planning. The quality of the paint, and how its mixed too contribute to the end result, as does the environment that the job is being done in. Additionally as the saying goes, its all in the prep!

As a retired house painter who specialized in high end interior cabinetry and trim brush work, I know very well just how lovely, and smooth a coat of enamel, or even epoxy, can turn out. And it looks like youve certainly proven my point!
deux jambes is offline
Old 08-30-18, 02:42 PM
  #11
Colnago Mixte
Senior Member

Join Date: Sep 2017
Location: Center of Central CA
Posts: 1,670
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 897 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Did you thin out your paint at all? I painted my pickup truck with a roller and Rusoleum Gloss White, but I thinned the paint down. Turned out very good, no one would ever guess it was Rustoleum.

The paint is nowhere near as shiny today, 8 years later, but I could easily buff it out and get a nice shine if I wanted to. The one thing I would do different next time is make sure all the surfaces I paint are roughed up. That paint will flake right off if it has nothing rough to stick to.

Congrats, OP, for ignoring all the experts and thinking outside the box. Beautiful result, don't waste your money on Velocals.

One question for the experts though, what kind of steel is used in a Specialized Sirrius? And specialized steel bikes in general, I never see a Tange, Reynolds, or Columbus sticker on Specialized bikes, so I'm baffled.
Colnago Mixte is offline
Old 08-30-18, 02:48 PM
  #12
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 9,934

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac, 196? Torpado Professional

Mentioned: 166 Post(s)
Tagged: 0 Thread(s)
Quoted: 814 Post(s)
Likes: 0
Liked 343 Times in 240 Posts

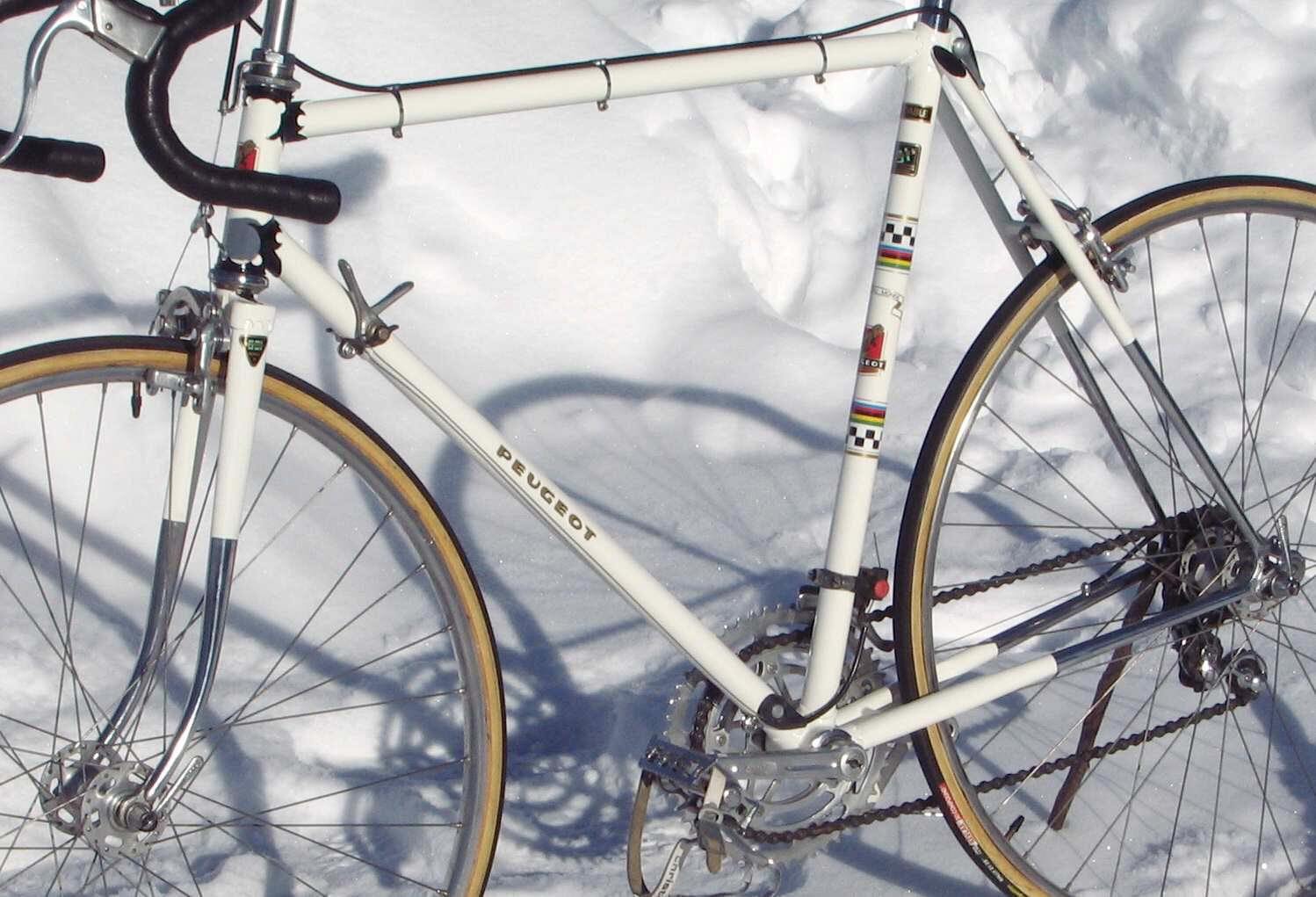

I actually prefer painting with a brush and I cannot complain about the results...
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 08-30-18, 03:07 PM
  #13
satbuilder
Senior Member

Join Date: May 2005
Location: Southern Maryland
Posts: 1,281

Bikes: 1969/70 Legnano Roma, 1971 Guerciotti, 1972 Cinelli SC, 1973 Bianchi Team, 173 Colnago Super, 1974 Marnati Corsa, 1974 ish Motobecane CT, 1971 Mercier 300, 1977/78 Colnago Mexico, 1982 Pinarello Italia,Tesch S-22, 1983 Peugeot Mixte

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 197 Post(s)
Liked 42 Times in 27 Posts
Looks Nice!
satbuilder is offline
Old 08-30-18, 05:55 PM
  #14
Stormy Archer
Senior Member

Stormy Archer's Avatar

Join Date: Jun 2018
Posts: 179
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 2 Times in 2 Posts
Hmm, specialized, I wanna say true temper?

That's pretty awesome. To be honest I think I'll prefer this method if I repaint anything, unless anyone can convince me of serious drawbacks to this method.
Stormy Archer is offline
Old 08-30-18, 06:06 PM
  #15
Colnago Mixte
Senior Member

Join Date: Sep 2017
Location: Center of Central CA
Posts: 1,670
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 897 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
I helped my brother paint his van a custom cool green color with a few cans of Rustoleum that he mixed up himself. After several years in the direct sun, the color began to fade in places. I believe UV can damage paint if no clearcoat is used (he did not use one). But this van sat outside in the sun all day for at least 4 years, I doubt many bikes get subjected to that.

So if you use any color other than white or black, it might be a good idea to use a clearcoat for UV protection. Which is probably the same for any paint, UV can damage them over time, that's one reason why clearcoats are standard.
Colnago Mixte is offline
Old 08-30-18, 08:06 PM
  #16
ollo_ollo
Senior Member
Thread Starter

ollo_ollo's Avatar

Join Date: Nov 2003
Location: Near Sublimity Orygun
Posts: 4,887

Bikes: Still have a few left!

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 338 Post(s)
Liked 45 Times in 33 Posts
So, to answer some of the questions: I didn't use a primer, just cleaned the bare metal thoroughly, wiped everything down with alcohol, then wiped with a tack cloth. Did not thin either color. Also no clear coat, since the paint turned out pretty glossy, but I have used clear coat over rattle can paint jobs in the past with good results. Painted just 1 coat of black all over. Then after a day of drying, did the red head tube over the black, so it's 2 coats on the head tube. The red paint label says pigment content is 11%.

michael k: I did get the saddle and a few parts in Salem but bought the frame in Sandy, Oregon, and last year, in Portland, got a Super Course frame set with some parts for $25. Stella also is from Portland, so maybe you are already in a good place.

Colnago Mixte: I read the 1987 Sirrus was made in Taiwan in several places. Some one also said the 87-89 Allez/Sirrus were the "Golden Years" but the early 80-81 Allez seem to have the best reputation. My 84 Expedition Touring has stickers that just say "Special Series Tubing".

This thread has info that the Expedition tubing was by Tange and that it was same gauge as Columbus SP. Also says they moved manufacturing from Japan to Taiwan in 1986 when the U.S. dollar tanked against the Yen, and that "later" Giant made the Allez and Sirrus: Some Specialized history

I added some extra washers to the shift levers and they work better now. I'll be riding it from time to time until mid-October when the weather turns wet again. I may try a shorter stem and bar I have too, we'll see. Don

Last edited by ollo_ollo; 08-30-18 at 08:08 PM. Reason: fix a word
ollo_ollo is offline
Old 08-30-18, 11:06 PM
  #17
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,296

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 464 Post(s)
Liked 84 Times in 60 Posts
Keep a sharp eye on your paint job. A single coat is subject to pinholes which may not be readily apparent until corrosion starts getting bad (black color will mask the early signs).

A clear overcoat would seal the inner color coat.
Bad Lag is offline
Old 08-31-18, 12:21 AM
  #18
ollo_ollo
Senior Member
Thread Starter

ollo_ollo's Avatar

Join Date: Nov 2003
Location: Near Sublimity Orygun
Posts: 4,887

Bikes: Still have a few left!

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 338 Post(s)
Liked 45 Times in 33 Posts
Good point, I will. Don't plan to ride it in wet weather as have other fendered bikes. Just brushed on 1 coat because I only plan to ride this version for a short time, couple of years tops. Don
ollo_ollo is offline
Old 08-31-18, 05:00 AM
  #19
Colnago Mixte
Senior Member

Join Date: Sep 2017
Location: Center of Central CA
Posts: 1,670
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 897 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
I would point out that the paint is named "Rustoleum". I believe it's designed to paint right over rust, never a good idea, but designed to be able to do that.

I have stripped the stuff before and paint stripper takes it right off easily.
Colnago Mixte is offline
Old 08-31-18, 05:49 AM
  #20
CroMo Mike
All Campy All The Time

CroMo Mike's Avatar

Join Date: Nov 2013
Location: Richmond, Virginia
Posts: 1,263

Bikes: Listed in my signature.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 6 Times in 6 Posts
Never mind the name, read the label. Rustoleum recommends their primer before the topcoat. Rustoleum makes some great rust-converting primer, sold in spray cans.
__________________
My C&V Bikes:
1972 Bottecchia Professional, 1987 Bottecchia Team C-Record, 1982 Colnago Super,
1995 Bianchi Campione d'Italia, 1995 DeBernardi Thron Super Record


CroMo Mike is offline
Old 08-31-18, 07:21 AM
  #21
Colnago Mixte
Senior Member

Join Date: Sep 2017
Location: Center of Central CA
Posts: 1,670
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 897 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Have not looked at the instructions on the lately (I'm terrible at reading instructions) but my understanding at the time was that no primer coat was needed.

When I painted my truck with liquid Rustoleum Gloss White, I did use a primer, wanting to do the job right. I regretted this decision when I got some drips and unevenness in the primer. Even after 5 or 6 coats, I kept having problems with continually sanding through to the primer, which was a totally different color than the main coat and stuck out like sore thumb.

If you do use a primer with this stuff, make damned sure it goes on evenly. But I'm fairly convinced that this stuff does not really even need a primer.
Colnago Mixte is offline
Old 08-31-18, 08:59 AM
  #22
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,259

Bikes: 81 Medici, 84 Centurion Turbo, 2011 Richard Sachs, '90 Alpina Team, 85 TREK 620, 2011 Milwaukee Road

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 845 Post(s)
Liked 228 Times in 167 Posts

Brushed on 2 coats of primer, 3 coats of color, sanding and minimum 6 days between coats. After 2 years of regular 38 mile round trip commuting, it is holding up well. I owe it all to Randy's www guidance.
Classtime is offline
Old 08-31-18, 09:30 AM
  #23
DiegoFrogs
Senior Member

DiegoFrogs's Avatar

Join Date: Feb 2005
Location: Toledo, OH
Posts: 2,421

Bikes: '77 Centurion "Pro Tour"; '67 Carlton "The Flyer"; 1984 Ross MTB (in USA)

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 110 Post(s)
Liked 18 Times in 15 Posts
Oh! The ultra-rare 1-3/8" frame!
DiegoFrogs is offline
Old 09-02-18, 08:38 PM
  #24
Buellster
Senior Member

Buellster's Avatar

Join Date: Jun 2018
Posts: 755
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
These turned out so lovely!
I am planning on painting an already painted, by the previous owner supercourse. The previous job is good but old and chipping now.
I'm trying to decide between a rattle can job or a brush on. What would you guys suggest for a first time painter?
Buellster is offline
Old 09-02-18, 09:09 PM
  #25
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,259

Bikes: 81 Medici, 84 Centurion Turbo, 2011 Richard Sachs, '90 Alpina Team, 85 TREK 620, 2011 Milwaukee Road

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 845 Post(s)
Liked 228 Times in 167 Posts
1/2 pint of primer and 1/2 pint of color Rustoleum for less than 15 bucks plus a decent brush. Added bonus: there is no overspray.
Classtime is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
