Drop bar diameter vs. Stem diameter

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Drop bar diameter vs. Stem diameter

Old 11-04-18, 01:54 PM
  #1
rickrob
Senior Member
Thread Starter

Join Date: Aug 2015
Location: Metro West, Boston
Posts: 316

Bikes: 82 Univega Sportour, 88 Bridgestone RB3, 72 Raleigh Super Course, 75 Jeunet 620

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Drop bar diameter vs. Stem diameter

I have a set of drop bars that are 24.8 mm and a couple of aluminum stems that are 25.4 mm. I tried one and was able to get it to tighten up, but it took a little force-- not excessive though. I saw a couple of 24.8 mm stems on eBay, but they looked like death stems-- which I don't want.

Is there anything I should be concerned about safety wise with the mismatch in stem to bar diameter and having to close the clamp on the 25.4 stem down to 24.8? I figured that's only .6mm or .023 inches, but I'd rather be sure that I'm not over stressing the stem and creating a possible safety issue.
rickrob is offline
Old 11-04-18, 01:58 PM
  #2
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,364

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6989 Post(s)
Liked 376 Times in 289 Posts
Diameter difference is 0.6mm, as you say,
can you find 0.3mm thick, shim stock to get the fit spot on?

Or bars that are not undersized..?






...
fietsbob is offline
Old 11-04-18, 03:55 PM
  #3
rickrob
Senior Member
Thread Starter

Join Date: Aug 2015
Location: Metro West, Boston
Posts: 316

Bikes: 82 Univega Sportour, 88 Bridgestone RB3, 72 Raleigh Super Course, 75 Jeunet 620

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by fietsbob View Post
Diameter difference is 0.6mm, as you say,
can you find 0.3mm thick, shim stock to get the fit spot on?

Or bars that are not undersized..?
...
I had a seat post shim that was .3mm thick -- cut it to width and that works much better. Thanks.
rickrob is offline
Old 11-04-18, 04:53 PM
  #4
wrk101
Thrifty Bill

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 22,599

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 899 Post(s)
Liked 289 Times in 216 Posts
Sounds French. A lot of French bars and stems were 25.0.
wrk101 is offline
Old 11-04-18, 05:00 PM
  #5
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,238

Bikes: old ones

Mentioned: 254 Post(s)
Tagged: 0 Thread(s)
Quoted: 17423 Post(s)
Liked 1,267 Times in 937 Posts
Originally Posted by rickrob View Post

Is there anything I should be concerned about safety wise with the mismatch in stem to bar diameter and having to close the clamp on the 25.4 stem down to 24.8? I figured that's only .6mm or .023 inches, but I'd rather be sure that I'm not over stressing the stem and creating a possible safety issue.
...yeah, there is. Even if you can get it to work, it's a bad idea and can lead to failure at the clamping end. Even 26.0 to 26.4 mismatches can fail sometimes.
It's not guaranteed it will fail, but you're much better off shimming the bar as you've mentioned. MOst of the old bars in that diameter are better off replaced with something more durable anyway. The bar itself can fail after it starts to sag.
3alarmer is offline
Old 11-04-18, 06:05 PM
  #6
rickrob
Senior Member
Thread Starter

Join Date: Aug 2015
Location: Metro West, Boston
Posts: 316

Bikes: 82 Univega Sportour, 88 Bridgestone RB3, 72 Raleigh Super Course, 75 Jeunet 620

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by wrk101 View Post
Sounds French. A lot of French bars and stems were 25.0.
Yep. It's a French bike and the bars are French -- Belleri (BF).

Originally Posted by 3alarmer View Post
...yeah, there is. Even if you can get it to work, it's a bad idea and can lead to failure at the clamping end. Even 26.0 to 26.4 mismatches can fail sometimes.
It's not guaranteed it will fail, but you're much better off shimming the bar as you've mentioned. Most of the old bars in that diameter are better off replaced with something more durable anyway. The bar itself can fail after it starts to sag.
Thanks -- I'm glad I asked. I hope I didn't stress the stem by tightening it down to 24.8. I've had these bars for a long time-- they are in good shape and I wanted to put them to use.

Maybe I should play it safe, toss them both and get new bars and a new stem...
rickrob is offline
Old 11-04-18, 06:07 PM
  #7
old's'cool
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,288

Bikes: 2 many 2 fit here

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 217 Post(s)
Liked 21 Times in 15 Posts
Originally Posted by 3alarmer View Post
...yeah, there is. Even if you can get it to work, it's a bad idea and can lead to failure at the clamping end. Even 26.0 to 26.4 mismatches can fail sometimes.
It's not guaranteed it will fail, but you're much better off shimming the bar as you've mentioned.
This happened to me with a 26.0 stem that, unbeknownst to me, was clamped down onto a 25.4 bar. After many years, I noticed a crack, figured out the cause, and took the stem out of service.
__________________
Geoff
"There is no Fail without Try" - Yoda Simpson
old's'cool is offline
Old 11-04-18, 07:33 PM
  #8
HTupolev
Senior Member

Join Date: Apr 2015
Location: Seattle
Posts: 3,257
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 1464 Post(s)
Liked 322 Times in 187 Posts
DO NOT clamp a too-small thing with a too-big clamp. It creates concentrated stresses that can lead to part failure.

Use compatible parts or an appropriate shim.
HTupolev is offline
Old 11-05-18, 02:38 AM
  #9
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,298

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 159 Post(s)
Tagged: 0 Thread(s)
Quoted: 687 Post(s)
Liked 317 Times in 212 Posts
Hey watch this!

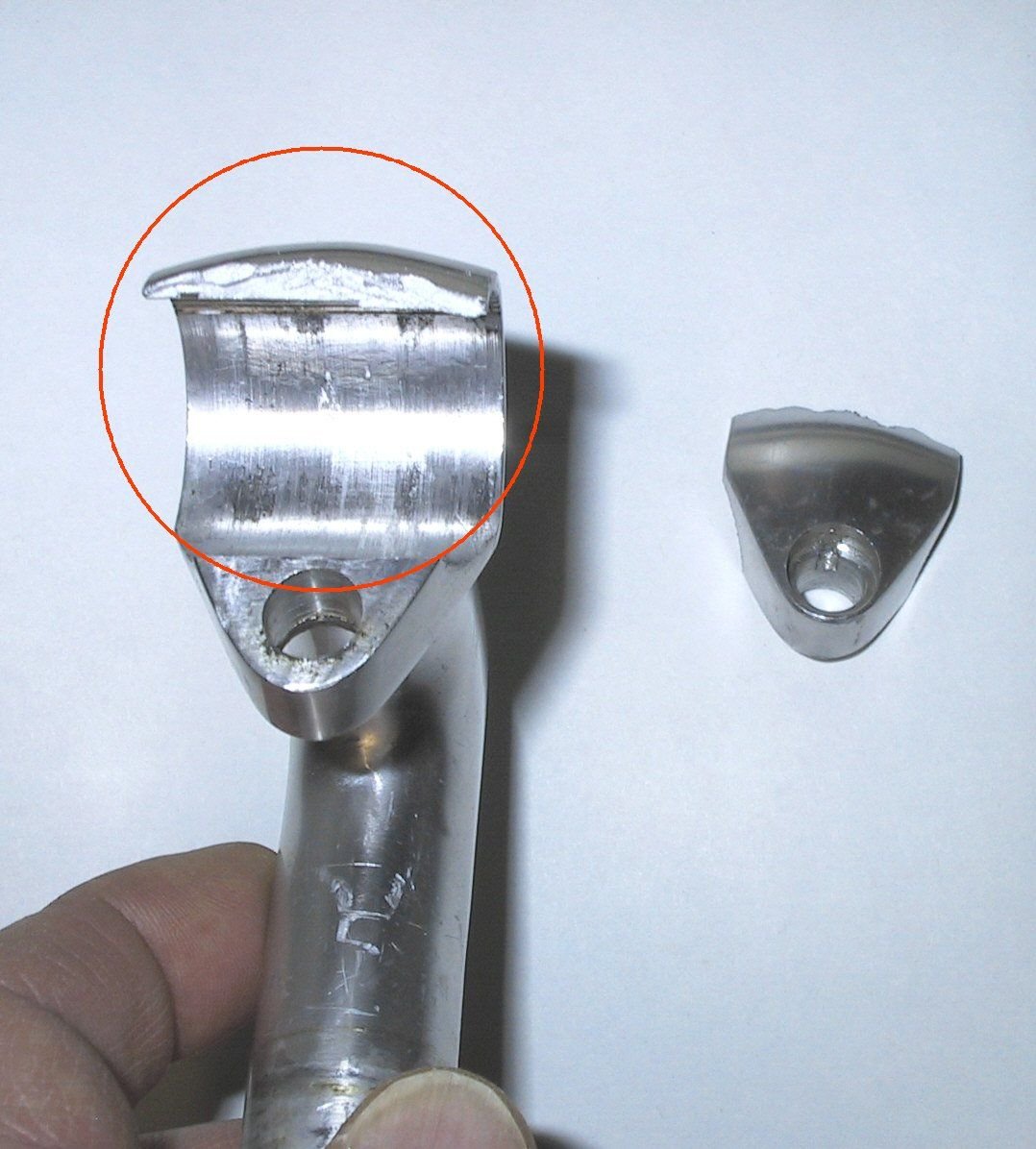

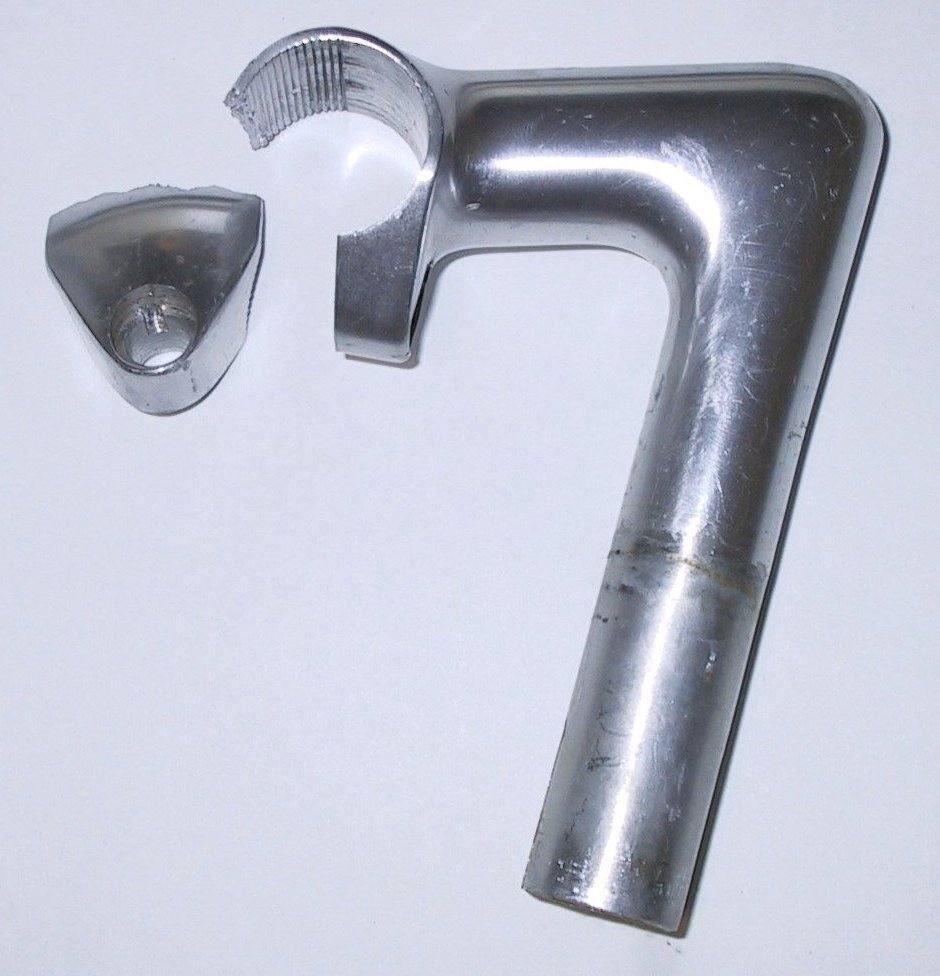

Cinelli 1A 30+ years 26.4mm stem on 25.0mm bars then PING!

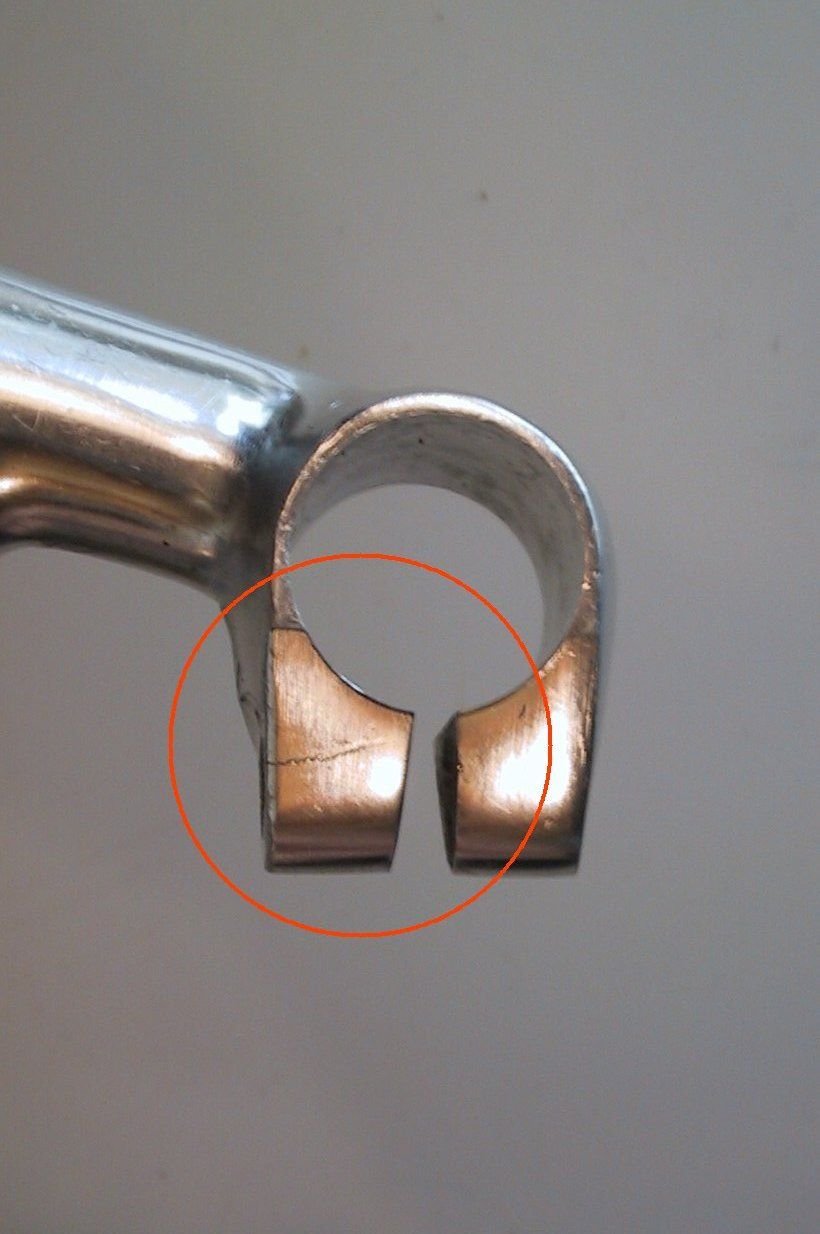

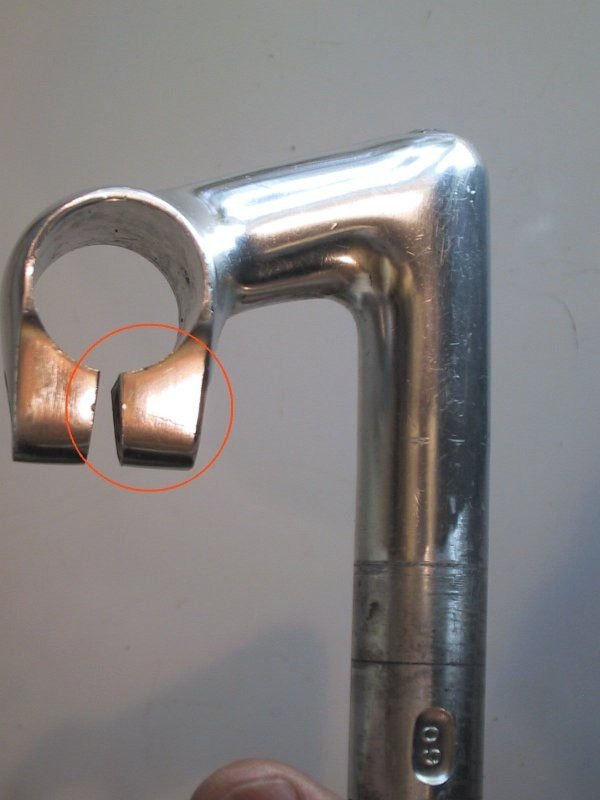

3TTT Record





verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 11-05-18 at 02:45 AM.
verktyg is offline
Old 11-05-18, 05:10 AM
  #10
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,968

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1958 Post(s)
Liked 274 Times in 190 Posts
Originally Posted by verktyg View Post
Cinelli 1A 30+ years 26.4mm stem on 25.0mm bars then PING!
verktyg
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 11-05-18, 09:00 AM
  #11
rickrob
Senior Member
Thread Starter

Join Date: Aug 2015
Location: Metro West, Boston
Posts: 316

Bikes: 82 Univega Sportour, 88 Bridgestone RB3, 72 Raleigh Super Course, 75 Jeunet 620

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by verktyg View Post
Cinelli 1A 30+ years 26.4mm stem on 25.0mm bars then PING!

verktyg
And there's the proof that it's a bad idea to mismatch bar/stem diameters...
I won't even think about trying that again...
rickrob is offline
