Fitting vintage bikes, specifically Treks...

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Fitting vintage bikes, specifically Treks...

Old 11-13-18, 01:01 PM
  #1
Chr0m0ly
Senior Member
Thread Starter

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Lincoln Square, Chicago, IL
Posts: 1,110

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 407 Post(s)
Likes: 0
Liked 11 Times in 10 Posts
Fitting vintage bikes, specifically Treks...

I believe I’m between sizes on the 80’s Trek line up.

I’m 5’10” with an 88.25cm sit bone hight. The 22.5” Treks have me showing quite a bit of seat post, and I’d like the bars a touch higher than they’ll go on a standard (stock) stem.
The saddle to bar reach is very good though, and for faster riding it all works out.

The next size up is a jump the 24” size. This puts the bars nice and high, and gives me the classic “fist full of seatpost” showing, but the bars on the stock stem are too far away. My hands are to far out to allow me to hold my body up.

So so my question is, is it more desirable to have a taller technomic type stem on a slightly smallish bike, or a shorter reach stem on a larger bike?

Chr0m0ly is offline
Old 11-13-18, 01:20 PM
  #2
dailycommute
Senior Member

dailycommute's Avatar

Join Date: Apr 2010
Location: RiverRoad, ME
Posts: 769
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Tough call, but would think that after a few hours in the saddle that 24in trek would get uncomfortable. At 6 ft even I ride the 24in treks.
dailycommute is offline
Old 11-13-18, 01:20 PM
  #3
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 514

Bikes: 1984 Schwinn Supersport, 1988 Trek 400t, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1988 Trek 400 Elance, 1978 Raleigh Supercourse, 1991 PDG Paramount OS

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 168 Post(s)
Liked 23 Times in 23 Posts
Estheticy, I would think the latter, but you gotta ride it so it’s your call. I too like Treks, but there are other brands.
Tim
tkamd73 is online now
Old 11-13-18, 01:22 PM
  #4
HarborBandS
HarborBandS

Join Date: Jun 2018
Location: Chicago Western Suburbs
Posts: 385
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 229 Post(s)
Liked 34 Times in 22 Posts
Back in my Trek dealership days in the 1990's we would do the old "stand over the top tube" fitting method, which is really pretty worthless.

Is the handlebar drop manageable for you with the taller exposed seatpost? Assuming a quill stem, can you raise it up enough to make it work?

How short (reach) of a stem would you need on the larger frame to make it work for you? Anything under 90mm would start to make your steering very odd. I don't like to go below 110mm.

Those are the two variables I would try to balance against each other.

Last edited by HarborBandS; 11-13-18 at 01:24 PM. Reason: grammar
HarborBandS is offline
Old 11-13-18, 01:24 PM
  #5
Standalone
The Drive Side is Within

Standalone's Avatar

Join Date: Dec 2007
Location: New Haven, CT, USA
Posts: 3,328

Bikes: Road, Cargo, Tandem, Etc.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 86 Post(s)
Likes: 0
Liked 2 Times in 1 Post
Larger frame, shorter stem, IMO

You could also go with a stem converter and run threadless stems and modern handlebars for more interchangeability.

I don't like the look of technomic unless for a very tall rider on an already XXL frame.
__________________
The bicycle, the bicycle surely, should always be the vehicle of novelists and poets. Christopher Morley
Standalone is offline
Old 11-13-18, 01:26 PM
  #6
Pemetic2006
Senior Member

Join Date: Apr 2015
Posts: 1,086
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 360 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I'm going to make a guess here since (as far as I can tell) vintagetrek.com doesn't show TT lengths for 60cm bikes, that the TT is about 1 inch longer on a 60cm than it is on a 56cm. I've never used a taller stem but if you want to not go that route it seems a 2cm shorter stem would put you where you want to be with a 60 cm bike.
I have a 56 cm Trek and if I ever buy another vintage Trek I'll likely get a 60 cm. I'd rather have a bike that's slightly bigger than slightly smaller. But that's just me, perhaps.

Last edited by Pemetic2006; 11-13-18 at 01:30 PM.
Pemetic2006 is offline
Old 11-13-18, 01:30 PM
  #7
Pompiere
Senior Member

Join Date: Nov 2005
Location: NW Ohio
Posts: 2,498

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 226 Post(s)
Liked 15 Times in 13 Posts
You could go either way, depending on your visual preference. I am 5' 8", with similar proportions. I have a Soma Sutro stem on a couple bikes. It has about 40 mm more rise than most standard height stems, so it doesn't look horrible. https://www.somafab.com/archives/pro...tro-quill-stem Nitto Technomic stems have about 80 mm of extra height, so they won't work on frames with a smaller head tube if you don't need all that.

I have also used a shorter stem on a bigger frame, but I didn't like how it looked. Going from 100 to 80 mm isn't bad, but from 100 to 60 mm is too much, IMO.

Schwinn Le Tour with Soma Sutro stem
Pompiere is offline
Old 11-13-18, 01:52 PM
  #8
ed4406
Senior Member

Join Date: Dec 2015
Location: The Motor City
Posts: 80

Bikes: Fuji Finest, Trek 460, 970, Miyata One Ten, Maruishi 606, Univega Alpina Uno LX, Browning Grade V

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I've had the same quandary, as a closeout bike I bought new was only available in 25" where 23 1/2 is optimal for me. I only have about two and a half inches of seat post showing. I moved the seat a little further forward and dropped to a 90mm stem. It rides a tiny bit softer than my smaller frames with a comfortable bar height. Without the stem switch, too stretched out. I've put more miles on it than all my other bikes combined.
ed4406 is offline
Old 11-13-18, 02:05 PM
  #9
abshipp
Senior Member

Join Date: Sep 2017
Location: Rockford IL
Posts: 430

Bikes: 1976 Motobecane Grand Jubile, 1977 Schwinn Super Le Tour 12.2 Chrome, 1981 Trek 716, 2010 Banshee Paradox

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 183 Post(s)
Liked 37 Times in 25 Posts
Originally Posted by Chr0m0ly View Post
I believe I’m between sizes on the 80’s Trek line up.

I’m 5’10” with an 88.25cm sit bone hight. The 22.5” Treks have me showing quite a bit of seat post, and I’d like the bars a touch higher than they’ll go on a standard (stock) stem.
The saddle to bar reach is very good though, and for faster riding it all works out.

The next size up is a jump the 24” size. This puts the bars nice and high, and gives me the classic “fist full of seatpost” showing, but the bars on the stock stem are too far away. My hands are to far out to allow me to hold my body up.

So so my question is, is it more desirable to have a taller technomic type stem on a slightly smallish bike, or a shorter reach stem on a larger bike?


I have found myself going to the latter method of short stem on a big frame.

Here are a couple of examples of the extremes I've gone to in order to make things work.

First is a 58cm Passage that I needed a 80mm Technomic for in order to get the bars up high enough. If I remember correctly all Passages have 57cm top tubes. One day I suddenly realized that this looked really strange, and in figuring out why it looked so bizarre I eventually came to the conclusion that I should be riding 62-64cm frames. The stem extension definitely shouldn't be longer than the headtube!



And now at the other end of the spectrum, is a 60cm Velo Orange Polyvalent with a 61cm top tube and 50mm stem. It still looks a little silly, but I don't think it's nearly as bad as the Passage:

abshipp is offline
Old 11-13-18, 02:17 PM
  #10
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 1,651

Bikes: 81 Medici, 84 Turbo, 86 IM, 2010 Milwaukee Road, 2011 RS

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 596 Post(s)
Liked 29 Times in 25 Posts
I think you have some long legs without the long arms/torso. Me too and my Trek 710 doesn't play very nice. It is a little long and I can't use my normal stem length. Holding your body up is sometimes a result of saddle fore/aft position. Maybe you slid the saddle forward to deal with the long TT? And that is confusing things.
Classtime is offline
Old 11-13-18, 03:20 PM
  #11
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 3,252
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 829 Post(s)
Liked 147 Times in 121 Posts
"Shortbacks", as one of the biodynamic fitters at an LBS here would call us. And yes, most standard frames are not proportioned for us. Correct-length seat tube usu. means too-long top tube. Correct-length top tube usu. means too-short seat tube. One possible off-the-shelf option is a WSD frame, if you can find one that's big enough overall. Otherwise, short of a custom build, it comes down to getting creative with Technomic-type stems, zero-offset seatposts, or (and) as said, a threadless adapter. Between a smaller frame and more "sticking out" on the one hand, and a larger frame and shorter reach/offset on the other, I'd lean toward the latter. If nothing else, a larger frame will be less likely to entail front wheel toe strike.
madpogue is online now
Old 11-13-18, 04:26 PM
  #12
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,166

Bikes: Yes

Mentioned: 307 Post(s)
Tagged: 0 Thread(s)
Quoted: 1791 Post(s)
Liked 63 Times in 48 Posts
Originally Posted by madpogue View Post
"Shortbacks", as one of the biodynamic fitters at an LBS here would call us. And yes, most standard frames are not proportioned for us. Correct-length seat tube usu. means too-long top tube. Correct-length top tube usu. means too-short seat tube.
It's nice to hear someone else articulate this. And, of course, the problem is exacerbated you prefer the handlebars close to saddle height. I feel like I've spent the past three years trying to figure out what size frame I actually ride. That is, I have the "fit" based on contact points dialed in really well and I know what range of bikes I can manipulate into that fit, but I've been trying to figure out what size bike does it naturally.

I came into vintage bikes from a background of thinking I knew my fit with modern cyclocross bikes. I ride a 53 or 54 cm CX bike, so I started there with vintage bikes. The results were *ahem* not optimal.


(100mm stem, "generous" seat post extension)

So then I tried out different sizes until I hit the upper limit (which, incidentally, is in my case determined by standover height).


(80mm stem, a handful of seat post only if you've got small hands)

I think I've settled on 57cm as my "ideal" size.


(90mm stem, an adult-sized handful of seat post)

Note, that even with the obviously too small Pinarello I was using a very short reach handlebar. That's what's comfortable for me. Even that bike would have required a short-extension stem with traditional handlebars to get me in the riding position I prefer. Also, even with the "proper" sized bike I use a taller-than-standard stem. On a 57 or 58 I can tolerate a traditional stem at it's maximum height, but I'm more comfortable with the bars higher.

What I've ultimately found is that while the stem length does have some effect on handling, it isn't so large an effect that I will rule a bike out based on that. If I can stand over the top tube and can get the pedals-saddle-bars triangle set up the way I like it, the frame will work. I'm a huge nerd so I have a spreadsheet that calculates stack and reach and from that I can tell what stem size I'll need.

Since I know many of you are also nerds, I'll share a bit here. I derived a fairly complex formula to calculate the stack and reach from the more commonly specified geometry figures, but for a bike with a horizontal top tube it reduces to something fairly simple.

Stack = Seat tube length (CTC) * sin(seat tube angle) + 30mm [The 30mm is a fudge factor that accounts for the top half of the tube and the upper part of the headset.]
Reach = Top tube length - (Stack * tan(90 - seat tube angle))

For those not familiar with these terms, "stack" and "reach" are this:



The idea is that stack and reach eliminate the effect that the tube angles have on fit. You want the relative position of your hips, feet and hands to be the same regardless of the tube angles.

So, having stack and reach numbers for a bike that I have set up for comfort, I can transfer that comfortable fit to another bike by comparing the stack and reach. For instance, if the new bike has 10 mm longer reach than the comfortable bike, I know I'll need a 10 mm shorter stem. If the new bike has 20 mm shorter stack than the comfortable bike, I know I'll need to raise the stem 20 mm higher on the new bike. That puts the bars in place (within +/- 5mm). Then I set the saddle height based on a known measurement from the bottom bracket, and the saddle fore/aft position based on a known measurement from the bars. This is one of the primary reasons I like to use the same bars and saddle on all my bikes. Of course, all of this only helps after you have one bike that you know fits. Once you do, it works like a science (and I mean a real science like physics, not some pseudo-science like psychology).

Anyway, I think I've said enough here. Perhaps slightly more than enough.
__________________
My Bikes
Andy_K is offline
Old 11-13-18, 04:39 PM
  #13
Chr0m0ly
Senior Member
Thread Starter

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Lincoln Square, Chicago, IL
Posts: 1,110

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 407 Post(s)
Likes: 0
Liked 11 Times in 10 Posts
I’ve been tending towards the smaller frame, with the lower bars since I almost exclusively bike as city transportation and that set up works well for an hour or two at a time.

I want to get into longer rides, centuries, Randos, a days long trip, etc. So as I’ve been looking at touring set ups, old Singer and Herse bikes, reading up on the Riv site about “most folks are riding bikes that are too small” I’ve been experimenting. Sizing up to get the taller bars does move the reach ou too far.

I’ve got no problems on a 56/57cm square frame, for spirited riding, but setting up for days in the saddle is where I get a little hung up.

Now the good news is the bars are never further off by more than an inch or about 3cm. I don’t think either stem change would be very extreme at all.

I have one bike I need to put longer toe cages on, so I can move my foot forward, that will shorten my leg reach, that will lower my saddle, that will effectively raise my bars!

Another bike I moved my saddle BACK, so I could crouch lower, to more easily reach the bars.

Bike fitting is crazy!

I did wonder why I couldn’t get comfortable on some stock set up though!

“Shortbacks” huh...?

Last edited by Chr0m0ly; 11-13-18 at 04:48 PM.
Chr0m0ly is offline
Old 11-13-18, 04:40 PM
  #14
seedsbelize
necessary illusions

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 11,632
Mentioned: 100 Post(s)
Tagged: 1 Thread(s)
Quoted: 4886 Post(s)
Liked 63 Times in 48 Posts
I have a 60mm stem on my too big Paramount. It steers just fine. But I rarely surpass 20 mph, in case that makes a difference. For myself, I always go bigger in these cases. But I can't speak for you. I also am 6' and the 24" Treks fit like they are custom made.
__________________
one general tip for when the exact hub cone is not readily available. discovered that the curvature of the bearing surface on the shimano 600 was a pretty good "skeleton key" for many applications. it would sometimes require a small change in ball size to make everything come out correctly.
seedsbelize is offline
Old 11-13-18, 04:47 PM
  #15
friendofpugs
Senior Member

friendofpugs's Avatar

Join Date: Oct 2017
Location: Oshkosh, WI
Posts: 234

Bikes: '12 Puglsey, '12 Caleb, Late 80s Limongi, '88 C'Dale T1000

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Liked 11 Times in 6 Posts
I recently picked up a '91 Trek 520 in "my" size - a 21in seat tube. I get home and do the measurements and the top tube is 22.25 in long! What the heck, Trek?! I guess for that generation of 520s I need to size down so the search continues.
__________________
Some Past Bikes: '05 Cannondale R900, '04 Fuji Roubaix Pro, '96 Bianchi Reparto Course EL OS, '96 Serotta CSI, '89 Trek 400, '89 Bianchi Giro, '89 Peugeot Athena, '88 Panasonic DX4000, '87 Trek 400T, '85 Team Fuji, '87 Bianchi Sport SX, '85 Trek 400, '82 Gitane SC, '82 Trek 614, '81 Gios Torino, '79 Trek 937, '77 Trek TX700, '73 Gitane TdF, '72 Follis 472
friendofpugs is offline
Old 11-13-18, 04:52 PM
  #16
Chr0m0ly
Senior Member
Thread Starter

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Lincoln Square, Chicago, IL
Posts: 1,110

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 407 Post(s)
Likes: 0
Liked 11 Times in 10 Posts
Originally Posted by seedsbelize View Post
I have a 60mm stem on my too big Paramount. It steers just fine. But I rarely surpass 20 mph, in case that makes a difference. For myself, I always go bigger in these cases. But I can't speak for you. I also am 6' and the 24" Treks fit like they are custom made.
Only bike I’ve found that just feels “right” with minor tweaking, is a 60cm Miyata that happens to share the 56cm top tube of the next smallest size. LOVE to find a tourer with those specs!
Chr0m0ly is offline
Old 11-13-18, 05:02 PM
  #17
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 6,874
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 564 Post(s)
Liked 57 Times in 40 Posts
I have 80mm stems on most bikes and the steering seems fine to me. I seem to have the same issue with in-between sizing. If I want to be able to straddle the top tube, and want the hoods at saddle height, that generally necessitates a taller stem, but not Technomic tall. I like the Technomic Deluxe, which is tall but still works with shorter head tubes.
due ruote is offline
Old 11-13-18, 05:13 PM
  #18
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,487

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci x2, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 111 Post(s)
Tagged: 0 Thread(s)
Quoted: 1262 Post(s)
Liked 156 Times in 128 Posts

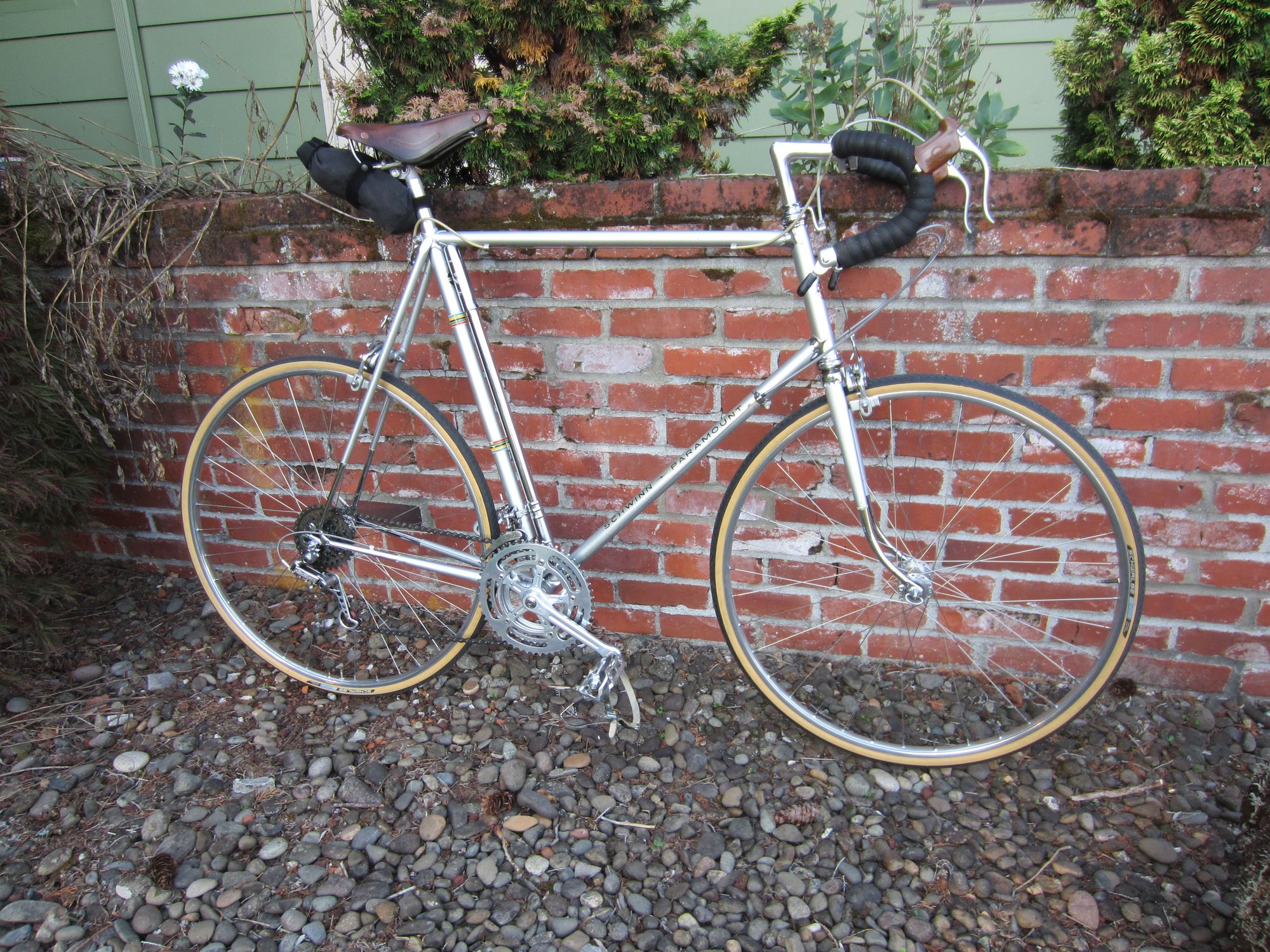

I have battled this all my life, always ridden bikes that were too small, 2+ fists of seatpost, 135mm stems when I was younger, etc.

With a 37in. inseam even tallish bikes end up like this.



Roll into the bike shop like this, guy usually says "whats up with that?" to which I usually say "you tell me", a plumb bob and tape measure later they usually say "huh, that's right where I would put them".

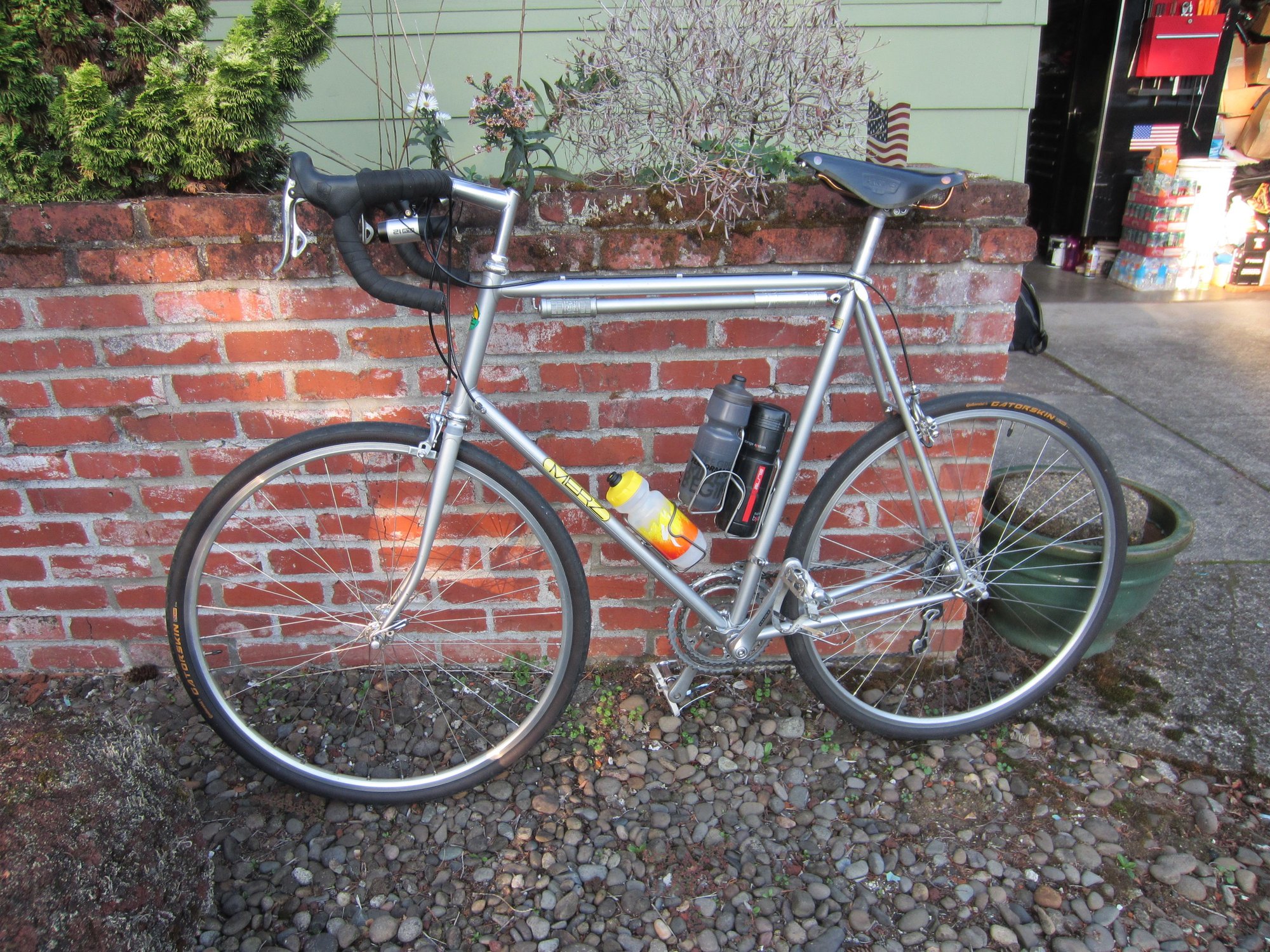

So when this/these came along, I finally decided it was time to see if bigger would be better.





No question, these big ones ride much better, especially on longer rides, several hundred miles on both at this point. Can't believe I waited so long to get big ones.
merziac is online now
Old 11-13-18, 06:32 PM
  #19
bwilli88
Senior Member

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 1,903

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 467 Post(s)
Liked 30 Times in 23 Posts
I wish I could find more stems like this one I have on my 77 Raleigh Supercourse. It gets the bars up where I need them and allows a bit of an upright ride. I do not know what to call it but the angle is 90° and not the typical 83° or so of a normal quill stem.

IMG_20180608_161515266_HDR by Bwilli88, on Flickr
here is a better view close up.

IMG_20180527_220748218_LL by Bwilli88, on Flickr
__________________
My Cambodia bikes; ?? Zunow, 81 Centurion Pro Tour, 85 Gazelle Mens Market bike, ?? Maxwell Allroad, 12 Fuji Stratos.

Last edited by bwilli88; 11-13-18 at 06:39 PM.
bwilli88 is offline
Old 11-13-18, 07:13 PM
  #20
friendofpugs
Senior Member

friendofpugs's Avatar

Join Date: Oct 2017
Location: Oshkosh, WI
Posts: 234

Bikes: '12 Puglsey, '12 Caleb, Late 80s Limongi, '88 C'Dale T1000

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Liked 11 Times in 6 Posts
Originally Posted by bwilli88 View Post
I wish I could find more stems like this one I have on my 77 Raleigh Supercourse. It gets the bars up where I need them and allows a bit of an upright ride. I do not know what to call it but the angle is 90° and not the typical 83° or so of a normal quill stem.

IMG_20180608_161515266_HDR by Bwilli88, on Flickr
here is a better view close up.

IMG_20180527_220748218_LL by Bwilli88, on Flickr
That Sakae stem is the same as what's stock on the '91 Trek 520 - it's more of a 90 degree 'L" shape instead of the traditional "7" shape. Yes, it does raise the bars nicely without looking outlandish.
__________________
Some Past Bikes: '05 Cannondale R900, '04 Fuji Roubaix Pro, '96 Bianchi Reparto Course EL OS, '96 Serotta CSI, '89 Trek 400, '89 Bianchi Giro, '89 Peugeot Athena, '88 Panasonic DX4000, '87 Trek 400T, '85 Team Fuji, '87 Bianchi Sport SX, '85 Trek 400, '82 Gitane SC, '82 Trek 614, '81 Gios Torino, '79 Trek 937, '77 Trek TX700, '73 Gitane TdF, '72 Follis 472
friendofpugs is offline
Old 11-13-18, 10:10 PM
  #21
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 8,891

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '87 Schwinn Prelude, Black Mountain Cycles Monstercross V4, '89 Novara Trionfo, '18 Diamondback Syncr

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 3285 Post(s)
Liked 338 Times in 233 Posts
If its between using a technomic stem and an 800mm reach stem, I would go for theater frane and shorter stem every time.
that is purely from an aesthetic perspective.

I loathe technomic stems that are jacked high up. I get using them if mobility is an issue, but anything else just seems to mean the frame size is off.
And this is coming from someone who rides older bikes thst are a couple cm too small usually as 65cm is a perfect fit and 63/63.5/64 is max for most old quality frames. I get needing to have the bars up a bit higher than ideal and having more seatpost than most.


Nitto makes a dynamic II stem that is 0 degree. It's 110mm long, but it effectively is the same reach as a 100mm stem in -17 angle. It gets the bars up 35mm higher than a -17 stem.
comes in 25.4 and 26.0 clamp sizes.

https://www.ebay.com/i/302936326989?...4526cdffeb360e
mstateglfr is offline
Old 11-14-18, 10:33 AM
  #22
HarborBandS
HarborBandS

Join Date: Jun 2018
Location: Chicago Western Suburbs
Posts: 385
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 229 Post(s)
Liked 34 Times in 22 Posts
Originally Posted by HarborBandS View Post
How short (reach) of a stem would you need on the larger frame to make it work for you? Anything under 90mm would start to make your steering very odd. I don't like to go below 110mm.
It seems like a lot of people here are saying that 60-80 mm stems are working for them. Perhaps get an inexpensive short stem and give it a try on the larger frame? Since you only need a 30mm reduction, this may be a great solution for the larger frame.
HarborBandS is offline
Old 11-14-18, 11:07 AM
  #23
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,608
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1126 Post(s)
Likes: 0
Liked 96 Times in 61 Posts
Rarely discussed is ones initial fitting to later adjusting as one increases mileage.

Body, muscle strength changes and comfort tolerance.

Early riding season could be as example setting a higher and or use a shorter stem. As you clock up the miles, progressively lower the stem or lengthen. You may not be a racer but become more efficient and faster rider.

I have a bad back but as my riding season progresses, the back strengthens and prefer riding more stretched out.
crank_addict is offline
Old 11-14-18, 11:24 AM
  #24
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,608
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1126 Post(s)
Likes: 0
Liked 96 Times in 61 Posts
Originally Posted by Chr0m0ly View Post


I have one bike I need to put longer toe cages on, so I can move my foot forward, that will shorten my leg reach, that will lower my saddle, that will effectively raise my bars!

Consider changing crank arm length. Longer cranks will lower saddle height.

Pedals-
Typically the ball of the foot should center over the pedal axle.

Other-
Tweaking differences in leg extension may even out by slightly 'rotating' the saddle.
crank_addict is offline
Old 11-14-18, 12:48 PM
  #25
Chr0m0ly
Senior Member
Thread Starter

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Lincoln Square, Chicago, IL
Posts: 1,110

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 407 Post(s)
Likes: 0
Liked 11 Times in 10 Posts
Originally Posted by crank_addict View Post
Consider changing crank arm length. Longer cranks will lower saddle height.

Pedals-
Typically the ball of the foot should center over the pedal axle.

Other-
Tweaking differences in leg extension may even out by slightly 'rotating' the saddle.

these are solid ideas! Especially longer cranks seeing as how I just found out about my freakish legs! LOL

Also, I have a nitto dynamic II and holding it up to the bike I’m not sure it will raise the bars. The 90 (or 0 degree) stem has a short rise, and it looks like it will bay almost the same.

But I wouldn’t use a technomic, I know they’re HUGE, they’re just a recognizable name.

Looks like I’ll be doing some stem shopping in the near future!
Chr0m0ly is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
