Headlight bracket hack

Old 12-04-18, 02:18 AM
  #1
panzerwagon
Senior Member
Thread Starter

Join Date: May 2016
Location: Texas Hill Country
Posts: 74

Bikes: Univega Specialissima, Univega Gran Touring

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Headlight bracket hack

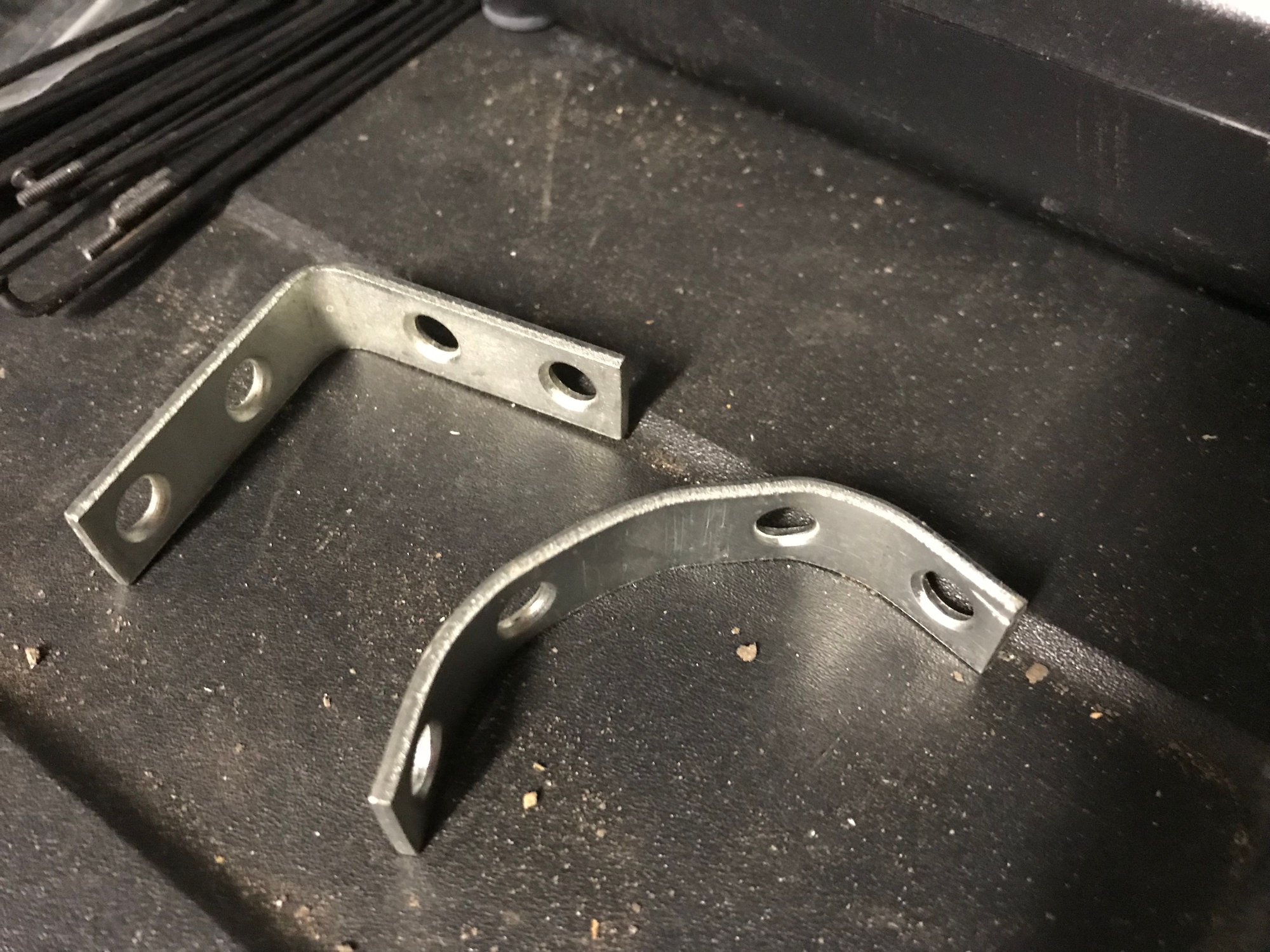

Dont like headlight mounted to the tops, and my handlebar bag makes it hard to mount on front tube. Decided to fashion something from a steel L-bracket. I suspect this will have limited life due to vibration stresses around the unused bolt-holes. Is there already some purpose-built part available?



panzerwagon is offline
Old 12-04-18, 02:41 AM
  #2
jj1091
Mike J

Join Date: Nov 2013
Location: Jacksonville Florida
Posts: 1,611

Bikes: 1975 Peugeot PX-50L, 1971 Peugeot PX-10, 1974 Peugeot PX-8

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 391 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Necessity is the mother of invention. This is one I did a while back. It was mounted between the fender and the fork crown with a daruma. I used a floor mounting-plate from a set of bi-fold doors, drilled a bolt-hole into the mounting plate to mount the bracket to a hinge from a toilet seat, then bolted it to the light.
jj1091 is offline
Old 12-04-18, 03:33 AM
  #3
panzerwagon
Senior Member
Thread Starter

Join Date: May 2016
Location: Texas Hill Country
Posts: 74

Bikes: Univega Specialissima, Univega Gran Touring

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by jj1091 View Post
Necessity is the mother of invention. This is one I did a while back. It was mounted between the fender and the fork crown with a daruma. I used a floor mounting-plate from a set of bi-fold doors, drilled a bolt-hole into the mounting plate to mount the bracket to a hinge from a toilet seat, then bolted it to the light.
Brilliant! Now I don’t feel so bad about my Frankenstein bracket.
panzerwagon is offline
Old 12-04-18, 08:43 AM
  #4
Tamiya
Senior Member

Tamiya's Avatar

Join Date: May 2018
Location: AU, MY, SG & ZZZzzz...
Posts: 190
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Your steel bracket will last long enough; dare say it'll probably succumb to rust first.

Rear rack mounting strip leftovers are my goto for making odd brackets. Most are stainless.
Tamiya is offline
Old 12-04-18, 11:56 AM
  #5
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 2,866
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 650 Post(s)
Liked 49 Times in 42 Posts
^^^ +1; it'll rust before it breaks. Paint it,or "coat" with gorilla tape / electrical tape, or a bit of old innertube, and maybe it'll last long enough to break. Better choice would be a flat mending plate with only one hole at each end.

But +1 on the ingenuity; I have near-zero true fab skills, so I'm always finding "creative" solutions like this.

This rack needed a lower point to hook the pannier lower hook. Behind the tape is a strip of metal pipe strap wrapped around the rods, and a stainless bolt/nut. Version 2.0 will use innertube rubber.

(Eek, those pine needles get everywhere.....)
madpogue is offline
Old 12-04-18, 01:17 PM
  #6
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 22,908

Bikes: Bottecchia Sprint, GT Timberline 29r

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 3029 Post(s)
Liked 108 Times in 90 Posts
well done! that bracket won't break, looks perfect but I might add a lock washer at the fork crown & maybe a thin rubber washer at the light (or do I see a lock washed in there?) just to keep them from rotating. but see how those connections hold up over the next few rides
rumrunn6 is offline
Old 12-04-18, 01:24 PM
  #7
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 22,908

Bikes: Bottecchia Sprint, GT Timberline 29r

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 3029 Post(s)
Liked 108 Times in 90 Posts
or buy this? Bike Front Light Extender Mount Fork Light archmount Extension
rumrunn6 is offline
Old 12-04-18, 02:54 PM
  #8
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,367

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 273 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I made this from a stainless VO front rack bracket with an added 90 degree twist, and a handlebar simulator from Universal Cycles:

Dfrost is offline
Old 12-04-18, 03:09 PM
  #9
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island
Posts: 377

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Electra Cantilever, Schwinn Traveler, Schwinn Le Tour Luxe, Hybrid Drive concoction

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Man, that toilet seat hinge and bifold door stop is great. I was trying to figure out were that hinge came from.
Velo Mule is offline
Old 12-04-18, 04:56 PM
  #10
panzerwagon
Senior Member
Thread Starter

Join Date: May 2016
Location: Texas Hill Country
Posts: 74

Bikes: Univega Specialissima, Univega Gran Touring

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by rumrunn6 View Post
well done! that bracket won't break, looks perfect but I might add a lock washer at the fork crown & maybe a thin rubber washer at the light (or do I see a lock washed in there?) just to keep them from rotating. but see how those connections hold up over the next few rides
Thanks, there’s already a lock washer on the light side. My commute is pretty bumpy, so hoping there’s enough rigidity there.

Now I just need to get used to the funny shadow cast by the cross bar from the front racks. :-D


panzerwagon is offline
Old 12-04-18, 06:28 PM
  #11
panzerwagon
Senior Member
Thread Starter

Join Date: May 2016
Location: Texas Hill Country
Posts: 74

Bikes: Univega Specialissima, Univega Gran Touring

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by rumrunn6 View Post
Thanks for the link, nice concept.
panzerwagon is offline
Old 12-04-18, 07:44 PM
  #12
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 2,866
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 650 Post(s)
Liked 49 Times in 42 Posts
I'd be tempted to come up with a way to mount the light on the over-the-wheel hoop on the lowrider. May be too much vibration, there, however.

Are those low-rider braze-ons on the fork? Cooool.....
madpogue is offline
Old 12-04-18, 10:04 PM
  #13
panzerwagon
Senior Member
Thread Starter

Join Date: May 2016
Location: Texas Hill Country
Posts: 74

Bikes: Univega Specialissima, Univega Gran Touring

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by madpogue View Post
I'd be tempted to come up with a way to mount the light on the over-the-wheel hoop on the lowrider. May be too much vibration, there, however.
I tried that already— fantastic visibility but the old Blackburn racks vibrate the light beam enough to give me seizures.

Originally Posted by madpogue View Post
Are those low-rider braze-ons on the fork? Cooool.....
Yup. 1984 univega specialissima touring— Tange champion tubing, three bottle cage mounts, three sets of fork mounts— IMHO one of the finest touring frames ever made :-D
panzerwagon is offline
Old 12-05-18, 02:41 AM
  #14
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 325

Bikes: 2x pre-1934 Humbers, 1932 Raleigh Tourist, 1946 Raleigh Lenton, 1947 Grand Prix Raleigh, 1949 Golden Arrow, 1950 Robin Hood, 1956 Claude Butler, 1973 Raleigh Wayfarer, 1984 Holdsworth, 1985 EG Bates Lo-pro Funny TT Bike, 1980 Alan,3 x custom TT bikes

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Likes: 0
Liked 8 Times in 7 Posts
Last time I had a light with a remote battery-@pack I put the light on one side of my helmet and the battery on the other. I find powerful helmet mounted lights a life saver and they never get broken/stolen/forgotten.
Johno59 is offline
Old 12-05-18, 08:22 AM
  #15
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 22,908

Bikes: Bottecchia Sprint, GT Timberline 29r

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 3029 Post(s)
Liked 108 Times in 90 Posts
Originally Posted by panzerwagon View Post
just need to get used to the funny shadow cast by the cross bar from the front racks


shadows makes me nutz. spent a long time eliminating mine a cpl yrs ago. I was toying with the idea of a headtube mount, but never worked it out. I see you have a brake cable right in front of the headtube, but I'd bet someone really cleaver could raise that light, mounting it to the headtube, with some kind of accommodation for that brake cable

something like this but with a bigger diameter for the headtube & some kind of reach-around to get around that cable
rumrunn6 is offline
Old 12-05-18, 09:19 AM
  #16
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 22,908

Bikes: Bottecchia Sprint, GT Timberline 29r

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 3029 Post(s)
Liked 108 Times in 90 Posts
maybe change that front rack to one like indyfabz has in post #12 here?

Your best all purpose bike ...

cuz it has a hole for mounting stuff
