Identify Markings on Fork Steerer

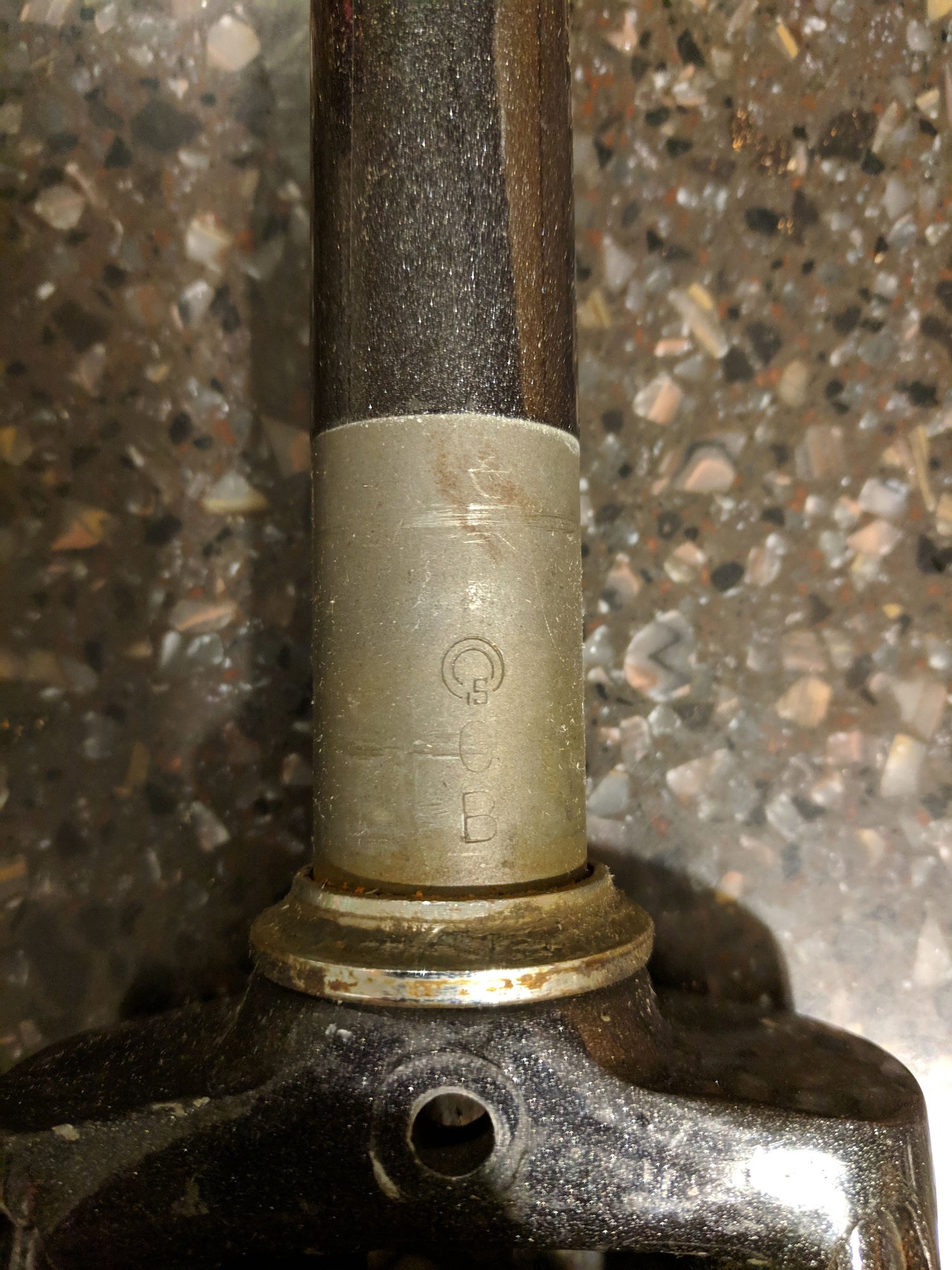

I just bought this fork off of eBay and noticed these markings on the steer tube.

Any ideas as to what the top symbol is?

This was listed as a fork from a 1978-1982 Trek.

Thanks!
abshipp is offline
Reply With Quote
Old 12-06-18, 07:00 PM
  #2
Metacortex
Senior Member

Join Date: Apr 2011
Posts: 2,330

Bikes: Fillet-brazed Schwinns

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 190 Post(s)
The top symbol (logo) indicates the fork was made by Ishiwata. If the other stamp is 0B then I believe that indicates a Feb. 1980 mfg. date.

Metacortex is offline
Reply With Quote
Old 12-06-18, 07:06 PM
  #3
mgopack42
Senior Member

Join Date: Apr 2018
Location: Central Valley, CA
Posts: 122

Bikes: 2011 Pinarello FP Quatro, 1994 Specialized Allez, cheap Scattante cross bike, Mid 80's Ciocc.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
I never cease to be amazed how someone knows the answer to EVERY question! WOW!
mgopack42 is offline
Reply With Quote
Old 12-06-18, 07:16 PM
  #4
abshipp
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Rockford IL
Posts: 256

Bikes: 1977 Schwinn Super Le Tour 12.2 Chrome, 1981 Trek 716, 2010 Banshee Paradox, Velo Orange Polyvalent MKIII

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Originally Posted by Metacortex View Post
The top symbol (logo) indicates the fork was made by Ishiwata. If the other stamp is 0B then I believe that indicates a Feb. 1980 mfg. date.
Perfect! I figured that this was an Ishiwata fork since it was listed as having 58mm offset (I assumed 55mm), but I couldn't find that maker's mark from any Google searches.

Thanks!

Originally Posted by mgopack42 View Post
I never cease to be amazed how someone knows the answer to EVERY question! WOW!
I know! That's why I spend so much time here!
abshipp is offline
Reply With Quote
Old 12-07-18, 06:54 AM
  #5
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 16,682
Mentioned: 358 Post(s)
Tagged: 1 Thread(s)
Quoted: 2015 Post(s)
It's easier to remember the trade mark once you realize that the symbol is a stylized cross-section of a double butted tube, bent into a circle (which is symbolic of bicycle wheels). This isn't apparent from the steerer tube stamp but depicts better on the catalogue sheet. However, it's easiest to see on earlier versions of the trade mark, where the butts are more exaggerated.

Last edited by T-Mar; 12-07-18 at 06:59 AM.
T-Mar is offline
