Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

91 Ochcsner update

Reply

Old 02-11-19, 06:48 PM
  #1
delbiker1
Senior Member
Thread Starter

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 361

Bikes: 1991 Ochsner steel frame, 2002 Airborne Zeppelin titanium, Schwinn DBX SS aluminum, Orbea MD 40 carbon fiber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
91 Ochcsner update



Started to clean

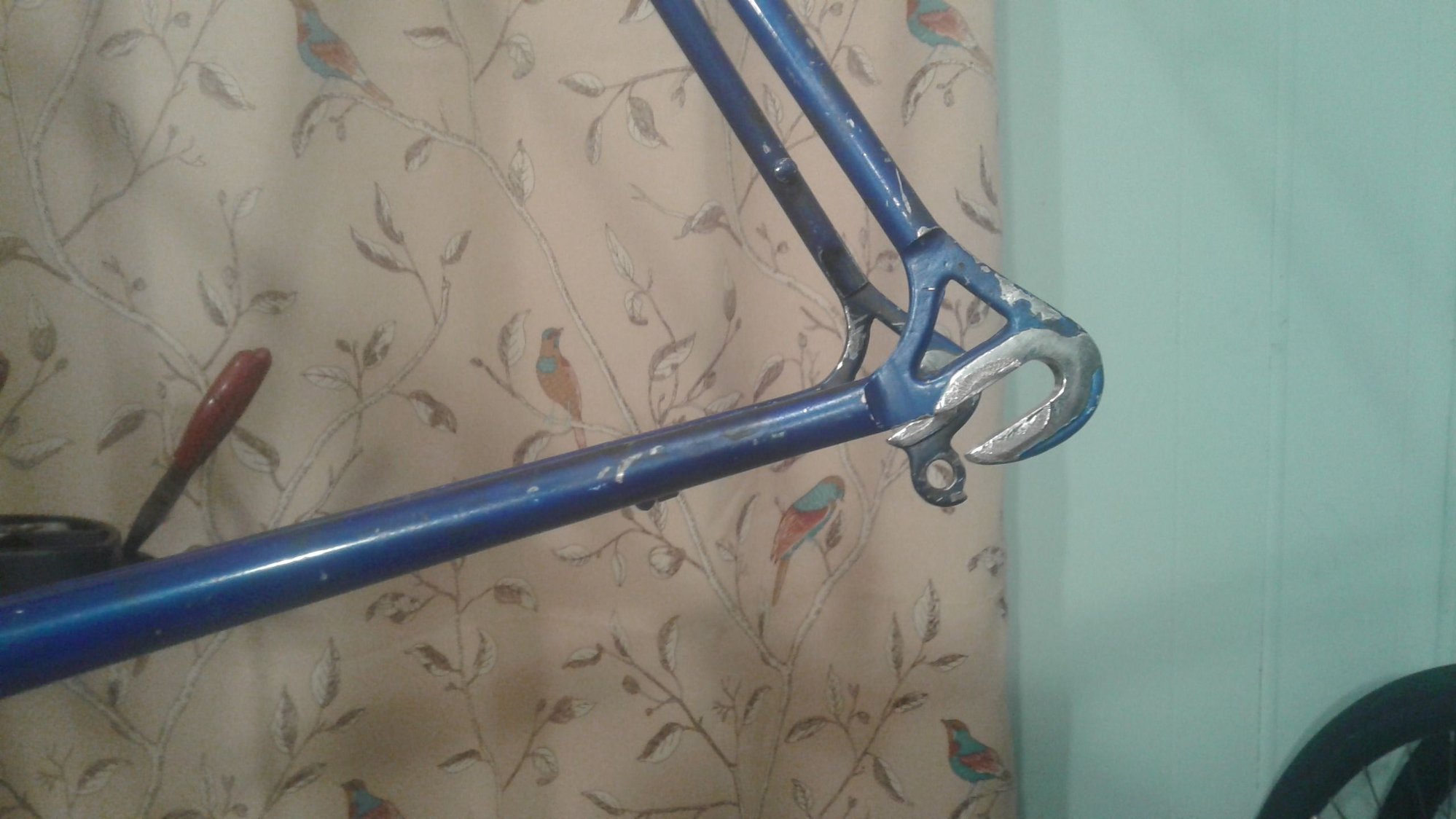

No markings on drop outs


HATTASWAN on bottom of head set

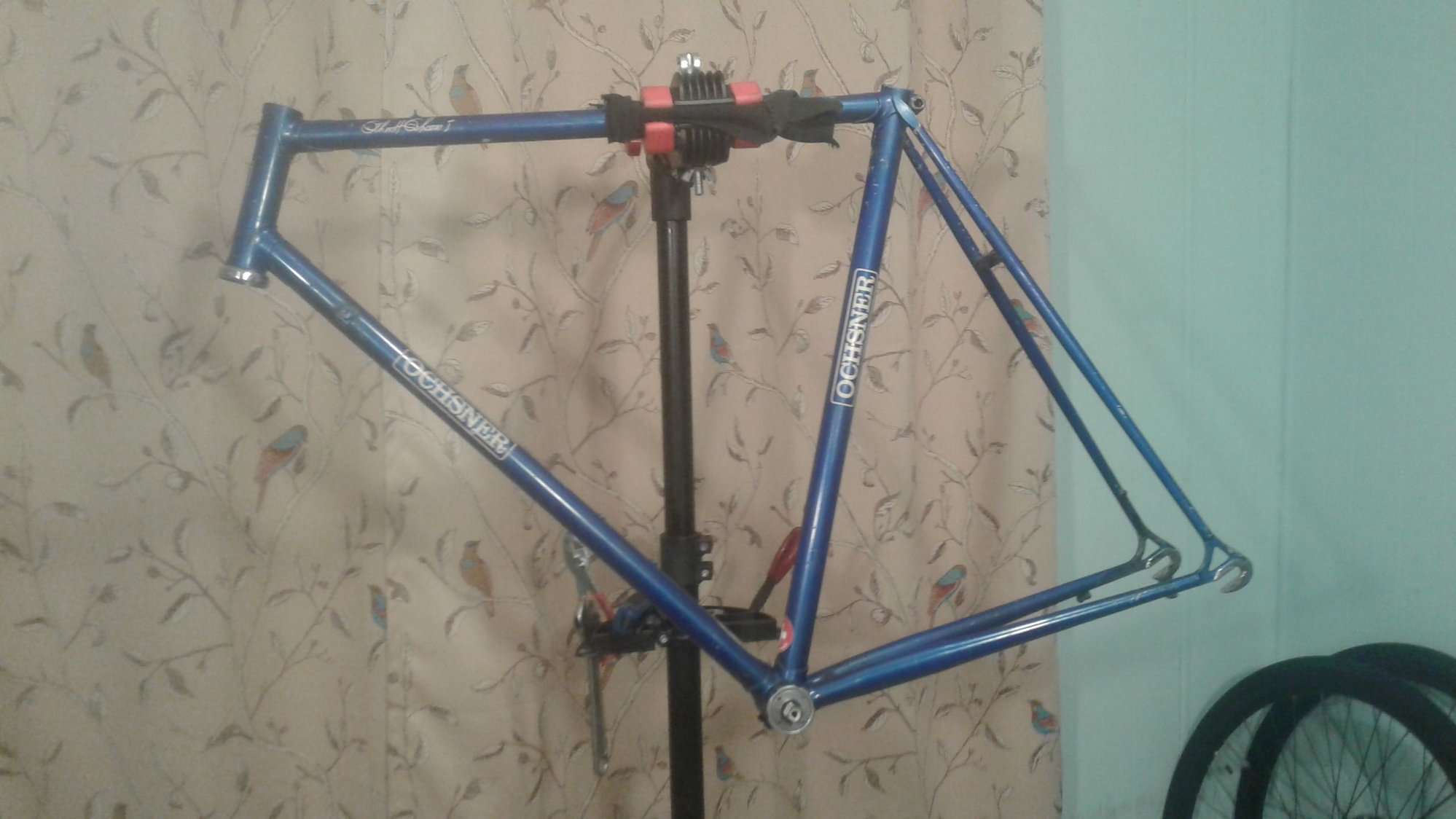

My Ochsner is almost stripped down to the frame. I am going to the LBS tomorrow to get the bottom bracket removed, and the bottom part of the headset remove, and the crown race removed from the fork. I am not going to purchase those tools for what would most likely be a one time use. I will probably go to a cartridge type bottom bracket, but I am not sure about the head set and crown race options. I am pretty sure I want to keep the original fork.The head set bearings had been replaced a couple of years ago, but the fork was locking up in the straight ahead position. It was easy to turn from there but I know it should not be sticking in that position. I started to clean the frame and fork in prep for stripping the paint from them. I could use some input on a proper stripping agent. Is there a way to pull the drop outs or do they remain in the stays during the process? There are no markings of any kind on the drop outs. The bottom part of the headset has "HATTASWAN" on it. I also got good pictures of the decals to maybe have reproduced, per a suggestion from a BF member.
delbiker1 is online now
Reply With Quote
Old 02-11-19, 08:00 PM
  #2
CycleryNorth81
Senior Member

Join Date: Jun 2014
Posts: 380

Bikes: custom Cyclery North (Chicago), Schwinn Circuit

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
You will get more response in the classic & vintage forum. The members there can answer your questions. You can ask the mod to move your thread to the C&V forum.
CycleryNorth81 is offline
Reply With Quote
Old 02-11-19, 08:35 PM
  #3
delbiker1
Senior Member
Thread Starter

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 361

Bikes: 1991 Ochsner steel frame, 2002 Airborne Zeppelin titanium, Schwinn DBX SS aluminum, Orbea MD 40 carbon fiber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Originally Posted by CycleryNorth81 View Post
You will get more response in the classic & vintage forum. The members there can answer your questions. You can ask the mod to move your thread to the C&V forum.
Thanks, I should have realized that.
delbiker1 is online now
Reply With Quote
Old 02-11-19, 08:41 PM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,259

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1625 Post(s)
Hatta is a headset manufacturer, no relation to the bike but that someone put it in. Most likely the headset's bearing surfaces are now indented/brinilled so any ball will seek the low points.

Aircraft Stripper is what you will see references on many threads about paint removal. StrepEze is a common brand but it isn't too effective on some paints. Running some rough emery cloth to break down the shinny surface will speed up any chemical stripper you do use. Leave the drop outs alone, DON"T remove them. The stripper shouldn't effect the chrome. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Reply With Quote
Old 02-11-19, 08:46 PM
  #5
delbiker1
Senior Member
Thread Starter

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 361

Bikes: 1991 Ochsner steel frame, 2002 Airborne Zeppelin titanium, Schwinn DBX SS aluminum, Orbea MD 40 carbon fiber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Andy, thanks for the info, much appreciated!
delbiker1 is online now
Reply With Quote
Old 02-13-19, 02:37 AM
  #6
oliver1850
Member

Join Date: Oct 2011
Posts: 28
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
I'd guess the paint on your frame is nothing more exotic than acrylic enamel. Any decent stripper should work. Get some coarse steel wool, a cheap paint brush to apply the stripper, rubber gloves, a big piece of cardboard to cover the floor and have at it.

Assuming it's not damaged, keep the original fork.
oliver1850 is offline
Reply With Quote
Old 02-13-19, 04:34 AM
  #7
delbiker1
Senior Member
Thread Starter

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 361

Bikes: 1991 Ochsner steel frame, 2002 Airborne Zeppelin titanium, Schwinn DBX SS aluminum, Orbea MD 40 carbon fiber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Stripping

Originally Posted by oliver1850 View Post
I'd guess the paint on your frame is nothing more exotic than acrylic enamel. Any decent stripper should work. Get some coarse steel wool, a cheap paint brush to apply the stripper, rubber gloves, a big piece of cardboard to cover the floor and have at it.

Assuming it's not damaged, keep the original fork.
Thanks for the reply. The paint has already started to come while I was cleaning the frame with Goo Gone and them a blue scrubber with soapy water. I think it is going to be fairly easy to get the frame down to raw steel. I have what I need except for the stripping product. I am definitely using the original fork. My next big decision is going to be the color/colors.
delbiker1 is online now
Reply With Quote
Old 02-13-19, 06:28 PM
  #8
oliver1850
Member

Join Date: Oct 2011
Posts: 28
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
If you don't like the blue, I recall Ochsners painted Ferarri red. Here is one:

https://www.ebay.com/itm/Ochsner-NEW...frcectupt=true
oliver1850 is offline
Reply With Quote
Old 02-13-19, 06:52 PM
  #9
delbiker1
Senior Member
Thread Starter

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 361

Bikes: 1991 Ochsner steel frame, 2002 Airborne Zeppelin titanium, Schwinn DBX SS aluminum, Orbea MD 40 carbon fiber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Sweet!

[QUOTE=oliver1850;20793737]If you don't like the blue, I recall Ochsners painted Ferarri red. Here is one:

Thanks for the reply. I actually had seen that on Ebay and then forgot about it. I have been thinking about a bright red. I really like that one. That frame is obviously a higher quality than mine. The lugs and dropouts clearly nicer. This Swiss flag is high on the seat tube. On mine it is low, just above the bottom bracket. I do not know what tubing my frame is built from. It has no decals regarding them. If I remember correctly, there was a SL and a SLX model. I should research this. This evening I have been working on cleaning both derailleurs and the brake calipers. I look forward to when mine is completely finished. This is a first for me.
delbiker1 is online now
Reply With Quote
Old 02-13-19, 07:04 PM
  #10
delbiker1
Senior Member
Thread Starter

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 361

Bikes: 1991 Ochsner steel frame, 2002 Airborne Zeppelin titanium, Schwinn DBX SS aluminum, Orbea MD 40 carbon fiber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
https://www.ebay.com/itm/132872253351

Here is another Ochsner from the museum. New Italian Dedacciaci U2 Aluminum Frame set Deda Carbon 1-1/8 fork 53cm Ochsner. I did not know they had made aluminum frames.
delbiker1 is online now
Reply With Quote
Old 02-13-19, 07:23 PM
  #11
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 2,015
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 554 Post(s)
The red frames were Columbus SL tubing. I have a red one and there are no splines in it anywhere. Sold a few of them through the shop as well and did not see an SLX frame in their catalogs.
TiHabanero is offline
Reply With Quote
Old 02-13-19, 07:32 PM
  #12
delbiker1
Senior Member
Thread Starter

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 361

Bikes: 1991 Ochsner steel frame, 2002 Airborne Zeppelin titanium, Schwinn DBX SS aluminum, Orbea MD 40 carbon fiber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Originally Posted by TiHabanero View Post
The red frames were Columbus SL tubing. I have a red one and there are no splines in it anywhere. Sold a few of them through the shop as well and did not see an SLX frame in their catalogs.
Do you have any idea what tubing my frame was built from. Just curiosity. Thanks for the info. I have never seen another Ochsner in reality, pictures only.
delbiker1 is online now
Reply With Quote
Old 02-13-19, 07:46 PM
  #13
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,263
Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1001 Post(s)
Highly probable made with Columbus Aelle tubing. Accordingly the blue frames used it and the red frames likely were Columbus SL.

(Theres also variants of Aelle tubing such as R denoting dbl butted and another as Tre Tubi which was a blended tubeset of other Columbus tubing. )

Original decals are available. These are enjoyable bikes and less often seen. Intesting history that's worthy to read up on, especially of Othon I and his son.
crank_addict is offline
Reply With Quote
Old 02-13-19, 08:28 PM
  #14
delbiker1
Senior Member
Thread Starter

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 361

Bikes: 1991 Ochsner steel frame, 2002 Airborne Zeppelin titanium, Schwinn DBX SS aluminum, Orbea MD 40 carbon fiber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Originally Posted by crank_addict View Post

Original decals are available. These are enjoyable bikes and less often seen. Intesting history that's worthy to read up on, especially of Othon I and his son.
Do you have any info on acquiring the decals. I have been searching the web but have not found any. I went to the Ochsner USA website and there is not mention of decals available. I took pictures of all the decals on my bike just in case a source needed them. Thanks much.
delbiker1 is online now
Reply With Quote
Old 02-13-19, 08:50 PM
  #15
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,263
Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1001 Post(s)
Velocals offers them. They offer options as well. Colors, various thickness vinyl or water slide.

Previous employees have carried on portions of Ochsner after Othon II passed away. Good chance they have decals.
crank_addict is offline
Reply With Quote
Old 02-13-19, 09:55 PM
  #16
delbiker1
Senior Member
Thread Starter

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 361

Bikes: 1991 Ochsner steel frame, 2002 Airborne Zeppelin titanium, Schwinn DBX SS aluminum, Orbea MD 40 carbon fiber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Originally Posted by crank_addict View Post
Velocals offers them. They offer options as well. Colors, various thickness vinyl or water slide.

Previous employees have carried on portions of Ochsner after Othon II passed away. Good chance they have decals.
Thanks for the info. You may be the member that gave me this before. I must have been trying something wrong in the name on my search. I got to their web-site and they did have the set of Ochsner decals available. Ordered and should be on the way soon. By the way, I like your user name. Thanks much
delbiker1 is online now
Reply With Quote
Old 02-14-19, 11:28 AM
  #17
VtwinVince
Senior Member

Join Date: Jul 2018
Posts: 58
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Cool project, I'm going to have to look for one of these, as my last name is Ochs.
VtwinVince is offline
Reply With Quote
