1980 Semi-sloping Fork Crowns

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1980 Semi-sloping Fork Crowns

Old 04-29-19, 06:25 PM
  #1
Full Member
Thread Starter

Join Date: May 2009
Posts: 478
Likes: 0
Liked 8 Times in 7 Posts
1980 Semi-sloping Fork Crowns

I am sticking to semi- sloping full crowns because open crowns, flat and full sloping ones have no appeal to me.

Ishiwata 555-Oval 28/20

There is also a 565 with a straighter line from fork blade to crown. Looks like a Cinelli MC.
Ishiwata Catalog pdf on the bottom of this post.



The Bocamas: VeloBase.com - View Single Frame Part the upper has 27.5/20mm sizes for forklegs and the lower has old 28.5/16.5mm sizes.



Cinelli MCA



Cinelli MR:145 grs 28.5/16.5

Cinelli MC:153grs 27/20

Everest


This is the Haden Europa I have on a custom build from 1980: 27/20 27.5/20 29/16


Zeus:the middle is 29/16 145 gr., on the right is 27.5/ 20 140 gr.




The 2 on the right are Davis

Columbus
Attached Files
File Type: pdf
Ishiwata Catalog 2 opt 18.pdf (367.4 KB, 15 views)

Last edited by avhed; 03-27-21 at 03:09 PM.
avhed is offline
Old 04-29-19, 06:35 PM
  #2
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Location: Wurundjeri Country
Posts: 2,516
Liked 1,958 Times in 958 Posts
Davis

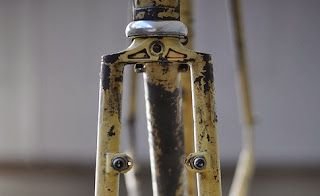

Zeus
Bocama
Ishiwata
Columbus
Tange
3Rensho

Last edited by P!N20; 04-29-19 at 07:57 PM.
P!N20 is offline
Old 04-30-19, 01:52 PM
  #3
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 14,621
Liked 3,624 Times in 2,347 Posts
-----

Milremo (at least four patterns)

Takahashi

Agrati (at least six patterns)

-----
juvela is offline
Old 05-15-19, 09:26 PM
  #4
Full Member
Thread Starter

Join Date: May 2009
Posts: 478
Likes: 0
Liked 8 Times in 7 Posts

Agrati


Roto on the top right

The following 4 pics are for bike brands:

Vitus Continental Crown on the left middle.

Trek

Benotto

Before 1972, these Colnago Crowns have a C around the leaf, 1972 and after, no C.

Last edited by avhed; 03-27-21 at 03:43 PM.
avhed is offline
Old 05-16-19, 06:20 AM
  #5
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 4,035

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1980s DeRosa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1988 Colnago Technos, 1985 RalieghUSA SBDU Team Pro

Liked 1,247 Times in 658 Posts
Fork Crowns - Odds and Ends - Not All Semi-Sloping

[MENTION=333224]juvela[/MENTION] and @jvhed

Milremo was a brand name for primarily private labeled bike components and accessories. The brand was shared by Cycles Andre Bertin in the French market and Ron Kitching in the UK.

They shared a lot of the private labeled items like pedals, hubs, rims, bars, stems and so on in both countries but had specialty products that were sold only in their respective markets.

Milremo made nothing. The name came from the Milan-San Remo early season Italian classic.

The fork crowns pictured above were made by several different manufacturers. The full sloping crown was probably made by Davis but several other manufactures in the UK made that style too. The crown in the upper right corner is probably an Ekla?

The Milremo dropouts were made by Mavic or at least made for them.

Ekla crowns and lugs were popular in the UK during the 40's and 50's. They appear to still have been available in the late 60's or early 70's.


Ekla 23 Bottom view - no idea what the top looks like.



Wagner crowns were available in a wide variety of styles and were popular in many European markets plus with US builders up into the early 1980's. The better quality crowns were made of forged steel. The cheap ones were stamped steel.


The ubiquitous DP+ chevron top model used on 1,000s of mid range Motobecanes and many others during the 70's.




Lest no forget Nervex crowns. They also made a variety of styles. The two most common ones in the 60's and 70's were the Professional and the Dubois models.



Nervex Profession crown.



Two versions of the Nervex Dubois crown. The chevron top was used on PX-10s for years.



Cinelli Twin Plate Crown. Masi used these on some frames in the early 70's.


This is a fake twin plate crown on a Masi.



Twin plate crowns were elegant but a lot of work to braze and finish.

Maxed out at 10 pictures. See my next post below for more fork crowns.

verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 05-16-19 at 07:21 AM.
verktyg is offline
Old 05-16-19, 07:05 AM
  #6
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 24,923

Bikes: Several, mostly not name brands.

Liked 3,533 Times in 2,001 Posts


Attached Images
File Type: jpg
File Type: jpg

Last edited by JohnDThompson; 03-27-21 at 06:44 PM. Reason: Lost pics
JohnDThompson is offline
Old 05-16-19, 07:08 AM
  #7
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 4,035

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1980s DeRosa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1988 Colnago Technos, 1985 RalieghUSA SBDU Team Pro

Liked 1,247 Times in 658 Posts
More Crowns

Swiss made George Fischer crowns were used on top end Italian bikes like Masi, De Rosa and others.



From this crude casting came this sleek beauty. A lot of filing and sanding.



As mentioned above, Davis cast crowns were used on a lot of British bikes. There were several other small British companies that made cast or forged crowns that looked similar. Before picture.



Raleigh Pro with a Davis crown.



I spent a number of hours grinding, filing and sanding this Davis crown on the off road trekking frame that I built back in 1992.



Bocama (BCM) investment cast crowns.



French made aero design Arcor Microfusion investment cast crown. These were used on a lot of the top quality French bikes in the mid to late 80's.



Selection of cast crowns from various manufacturers sold by a frame building supplier in the US.


verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 05-16-19 at 07:19 AM.
verktyg is offline
Likes For verktyg:
Old 05-16-19, 07:18 AM
  #8
Senior Member

Join Date: Nov 2004
Posts: 23,223
Likes: 0
Liked 3,058 Times in 1,888 Posts
In addition to Ishiwata and Tange, Japan had several fork and frame fitting manufacturers including Eisho, Kobayashi, Miwa, Nikko. Otsuya, Sanya and Yamazaki. I imagine that most of them had a semi-sloping crown but the establishment of Ishiwata's and Tange's pre-built fork programs seem to have eliminated them or at least pushed them into obscurity by the 1980s.
T-Mar is offline
Old 05-17-19, 07:54 PM
  #9
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 12,759
Liked 1,189 Times in 872 Posts

Who made this one (on a late '80s CIOCC and Cromor fork blades says the decals). Somebody thought "Cinelli" but I don't recall seeing a pic of it in any catalog nor on Velobase...seen it on other Italian marques, however.
unworthy1 is offline
Old 05-17-19, 09:12 PM
  #10
Senior Member

Nemosengineer's Avatar

Join Date: Aug 2015
Location: Murrieta Ca.
Posts: 537

Bikes: Teledyne Titan, Bob Jackson Audax Club, Bob Jackson World Tour, AlAn Record Ergal, 3Rensho Katana.

Liked 623 Times in 245 Posts
A really outstanding thread. Thank You Everyone!!!

: Mike
Nemosengineer is offline
Old 05-18-19, 01:34 AM
  #11
Full Member

KenNC's Avatar

Join Date: Oct 2013
Posts: 417
Liked 115 Times in 64 Posts
Agreed, great thread, thank you all!
KenNC is offline
Old 05-18-19, 08:06 AM
  #12
Senior Member

Join Date: Aug 2013
Posts: 2,321
Liked 1,899 Times in 889 Posts
A couple crowns for you conversant kings of classic:

Bocama?


From my Bianchi-built Puch
BFisher is offline
Old 09-08-19, 01:37 PM
  #13
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 14,621
Liked 3,624 Times in 2,347 Posts
-----

Agrati crown nr. 000.8048, part of Agrati lug ensemble "AM" nr. 000.8040/U.



-----

Last edited by juvela; 09-08-19 at 01:44 PM. Reason: punctuation
juvela is offline
Old 03-27-21, 02:35 PM
  #14
Full Member
Thread Starter

Join Date: May 2009
Posts: 478
Likes: 0
Liked 8 Times in 7 Posts
I have added a bit to my post #1 & #4
This post is for a couple of current ones:

Allotec 28/19 oval fork blades. 152gr
201124-2240 NOVA SEMI SLOPED ROAD CROWN FOR OVAL BLADES for 28.6 steerer

Last edited by avhed; 03-27-21 at 03:10 PM.
avhed is offline
Likes For avhed:
Old 02-06-22, 10:08 AM
  #15
Newbie

Join Date: Feb 2022
Posts: 1
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by unworthy1
Who made this one (on a late '80s CIOCC and Cromor fork blades says the decals). Somebody thought "Cinelli" but I don't recall seeing a pic of it in any catalog nor on Velobase...seen it on other Italian marques, however.
Produced and sold today by Thecno Italy as B14N (TESTA FORCELLA DIAMETRO 25.4 IN MICROFUSIONE B14N) - cannot post pictures/link due to new account. Sorry.
Unersame is offline
Likes For Unersame:
Old 02-06-22, 03:13 PM
  #16
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 2,179
Liked 2,870 Times in 1,193 Posts
One small correction to make:

Originally Posted by verktyg
<snip>
Cinelli Twin Plate Crown. Masi used these on some frames in the early 70's.

That crown is made for Columbus C&C tandem oversize (32x22 mm) blades. I have made a couple forks with them, still have the blades and crowns in case I ever want to make more (probably won't though!) The Masi two-plate crown was a lot more svelte than that.

I don't know what C&C stands for, anyone?

Mark B
bulgie is offline
Old 02-19-22, 03:11 AM
  #17
Junior Member

Join Date: May 2021
Posts: 22
Likes: 0
Liked 12 Times in 6 Posts
Fork crowns

I was searching for Ekla fork crowns and saw this thread, which started off looking at semi sloping, but later added flat top fork crowns.
I am still trying to identify my track frame, but now know the lugs used, and have just seen that the fork crown


is Ekla round - see earlier pictures of the six they made and the picture of my forks.
GMull is offline
