Old 08-10-21, 02:51 AM
  #576
identity
Junior Member

Join Date: Jul 2021
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 1 Time in 1 Post
Finally got my 10 posts so here! the photo album: https://imgur.com/a/u8OWvoT

edit: one more pic: https://imgur.com/a/95HlTBF

can you confirm what rear spacing this should be? i'm worried the frame is bent but it may be that the previous owner made the rear wider to fit a 130mm wheel. a buyer is coming probably tomorrow to have a look so i need to fix that in the right way...many thanks, much appreciated!

Last edited by identity; 08-10-21 at 03:11 AM.
identity is offline
Old 08-10-21, 12:49 PM
  #577
nunol
Junior Member

Join Date: Sep 2020
Posts: 22
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 8 Times in 4 Posts
Originally Posted by CyclesMakaron View Post
It's not EMC gear, at Merckx's they were only fitting Campagnolo at the time.
It is likely that the frame was exported to France and the shop there fitted it in this way.
Well, it makes sense.
The bicycle was brought to me from France.
I have seen some other post asking for info about an older EM frame (I think also from France) using just about this same gear as in mine.
I guess I will put it back rolling like this and later try to find a campagnolo period group set to "dress" it properly.
Thanks again for your help.
nunol is offline
Old 08-14-21, 02:00 AM
  #578
th0m
Senior Member

Join Date: Sep 2020
Location: Sweden
Posts: 60
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 46 Times in 17 Posts
Found this Corsa Extra for sale locally and became a little curious... Is anyone able to tell the approximate year and what the tubing might be?
https://photos.app.goo.gl/5L1TRUfy5pzTwMzu7

Last edited by th0m; 08-14-21 at 02:16 AM.
th0m is offline
Old 08-15-21, 12:28 AM
  #579
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 825
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Likes: 0
Liked 348 Times in 231 Posts
Construction: 1992 - 1995
Painting pattern: 2002+
Model: ?
Tubes: ?
Factory markings would be useful
CyclesMakaron is offline
Old 08-26-21, 07:43 AM
  #580
south105323
Newbie

Join Date: Aug 2021
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
First post so descriptions only unfortunately... A couple of years ago I picked up a green with yellow detail MX Leader. Pretty scratched and chipped original paint, with some surface rust, but I was looking for a project frame anyway. The guy I bought it from said it was a custom frame used by a semi-pro Belgium team at the time, I know the number hanger doesn't mean much, but the frame is 54/56, does this mean it is custom, i thought all the standard frames were square 54/54 or 56/56? The serial is L -- D 9551, with the L on its own on the left, so I paid particular attention to this post earlier in the thread:

A long, long time ago, the EMC factory in Meise was getting ready for the new season - 1994. It was the Belgian autumn of 1993, it may have been November, and it was the month in which the frames for professional teams was being built... Slightly earlier a frame was built (for sure) for Jan Schur (Motorola - D9563) and after about a week a frame for Frank Vandenbroucke (Lotto-Caloi - D9674) was built (also for sure).

So a frame built around the time of the two above, November 1993? The colour scheme is the green/yellow in the '94 brochure beside the Team Telekom.
There was a name on the frame that was scraped off...

Second frame is new to me: A -- D3586, size 54, dark blue original paint, doesn't have the MX-Leader fork, and has a pump peg instead of the number hanger. 'A' builder should be 'prototypes to B3000', how come I have 'D' series number? What year would this be?
south105323 is offline
Old 08-26-21, 09:49 AM
  #581
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 825
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Likes: 0
Liked 348 Times in 231 Posts
L D9551 - Mx Leader had a "century geo", check the tables on BigSourcEMerCkx; the frame is from the same period as profi frames, but they didn't build "profi only" frames back then - anything is possible (I don't know of teams using this paint scheme)
A D3586 - built late summer 1992; "EMC worker" A markings also appear after "B3000", updated information in BigSourcEMerCkx
CyclesMakaron is offline
Old 08-27-21, 05:08 AM
  #582
south105323
Newbie

Join Date: Aug 2021
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks, great information there. hours lost yesterday...


D3586 is a standard 55 - 55cm seat tube, 55.5cm top tube.

D9551 is definitely custom - 55cm seat tube, 57.5cm top tube.


Odd one- as you said, that colour combination wasn't used for a pro team, not a nice colour scheme, dark metallic green and bright yellow. It is a different colour now :-)
south105323 is offline
Old 08-27-21, 08:33 AM
  #583
Nuovo Record
Junior Member

Join Date: Apr 2019
Posts: 155

Bikes: Colnago Super (panto) - Gios Professional (1st Generation C-Record) - Eddy Merckx Corsa Extra (Team USA) - Barellia Reynolds 531 - Fully chromed Columbus steel bike (Patelli?) Super Record Titanium

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 25 Times in 21 Posts
My friend owns what we consider an early "Professional".
The frame number on the bottom bracket reads
"6." ("six dot") on the left and "749" on the right.
The seat stay caps have the signature on them. The fork crown has "Merckx" engraved.
Can you date it?
There is something unusual on the underside of the lower frame tube, a marking that reads "MPS - STC 06548" (?, sorry for the bad pictures). This marking is not engraved but raised, like Braille. What is that...?

Thank you very much in advance!








Last edited by Nuovo Record; 08-27-21 at 08:37 AM.
Nuovo Record is offline
Old 08-28-21, 08:50 AM
  #584
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 825
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Likes: 0
Liked 348 Times in 231 Posts
Autumn 1980 - congratulations
MPS..... it's an anti-theft code - nothing to do with EMC
CyclesMakaron is offline
Old 08-28-21, 09:08 AM
  #585
Nuovo Record
Junior Member

Join Date: Apr 2019
Posts: 155

Bikes: Colnago Super (panto) - Gios Professional (1st Generation C-Record) - Eddy Merckx Corsa Extra (Team USA) - Barellia Reynolds 531 - Fully chromed Columbus steel bike (Patelli?) Super Record Titanium

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 25 Times in 21 Posts
I see... Thank you, Jacek!
Nuovo Record is offline
Old 09-22-21, 06:47 PM
  #586
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 11,810

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 232 Post(s)
Tagged: 0 Thread(s)
Quoted: 3690 Post(s)
Liked 4,248 Times in 2,539 Posts
@CyclesMakaron

Do you know what tubing they used on 06-07 7-11 tribute bikes?
merziac is offline
Old 09-24-21, 12:05 AM
  #587
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 825
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Likes: 0
Liked 348 Times in 231 Posts
The idea behind the 'special editions' was to get rid of excess old steel tubing... in an elegant way
As 7-Eleven is a Corsa Extra frame, you should expect SLX or TSX (but I don't know for sure, I have never seen such a frame "from the inside")
CyclesMakaron is offline
Likes For CyclesMakaron:
Old 09-24-21, 12:42 AM
  #588
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 11,810

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 232 Post(s)
Tagged: 0 Thread(s)
Quoted: 3690 Post(s)
Liked 4,248 Times in 2,539 Posts
Originally Posted by CyclesMakaron View Post
The idea behind the 'special editions' was to get rid of excess old steel tubing... in an elegant way
As 7-Eleven is a Corsa Extra frame, you should expect SLX or TSX (but I don't know for sure, I have never seen such a frame "from the inside")
Tx,

Well unfortunately, I traded the 10th Anniversary TSX frame for the tribute frame from Steve at Millfield Velo without scrutinizing it inside as I should have (what was I thinking), should have looked it over good as I had to strip and pack it.

Maybe if I follow through with this you can help me figure it out, this gives me what I need for now, I assume you know some? of these have no tubing sticker as this one does not.
merziac is offline
Old 09-24-21, 11:57 PM
  #589
Hrista
Newbie

Join Date: Jul 2014
Posts: 39

Bikes: Francesco Moser

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 3 Times in 3 Posts

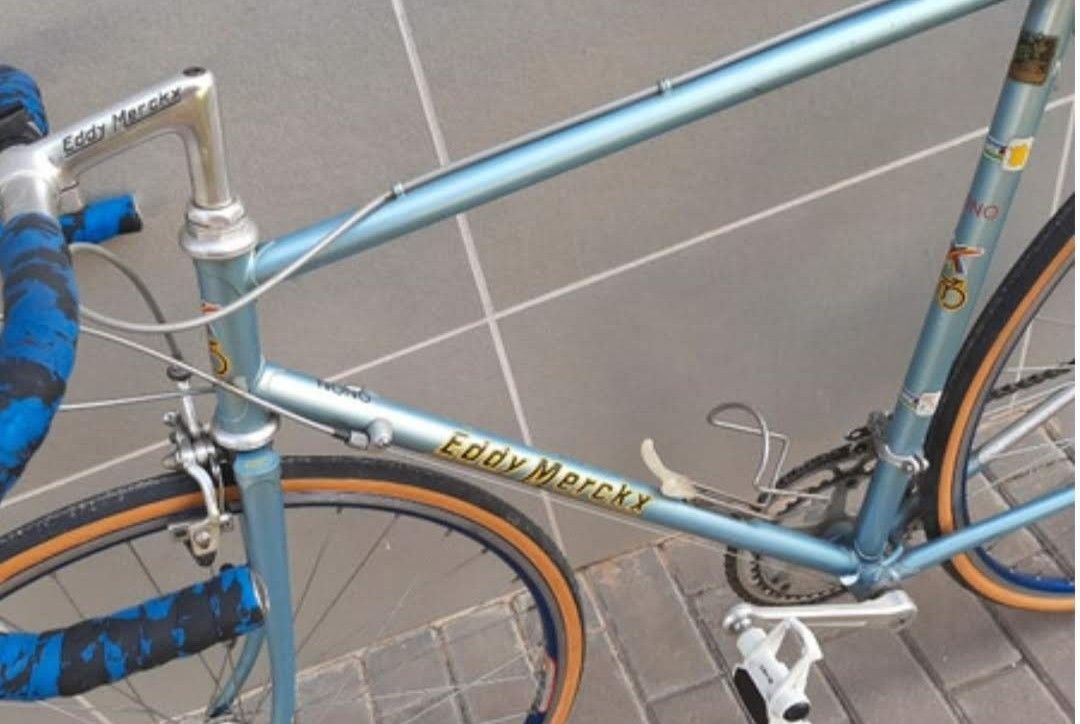

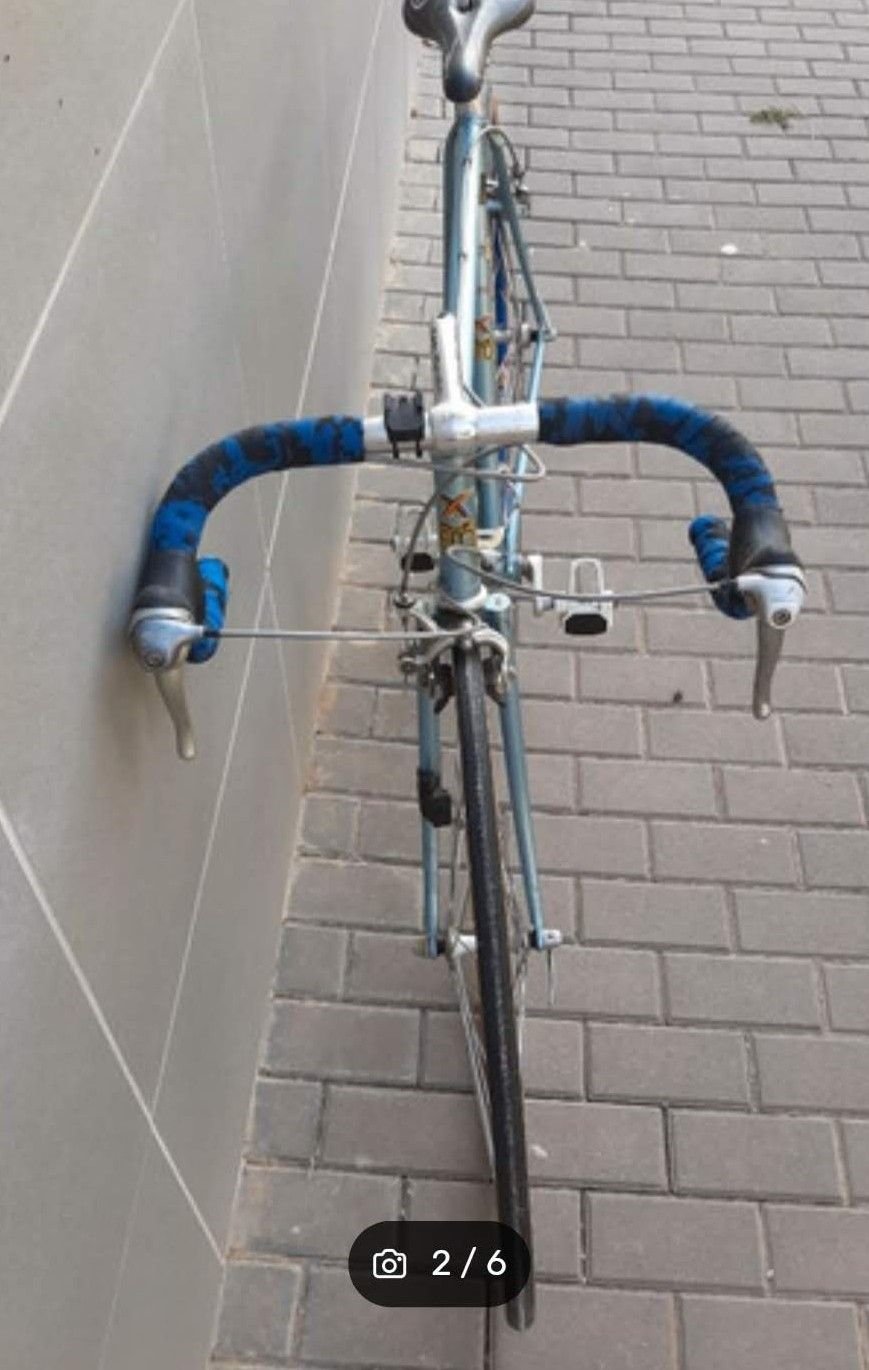

who can tell me what model this is? thanks,







Hrista is offline
Old 09-26-21, 11:17 PM
  #590
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 825
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Likes: 0
Liked 348 Times in 231 Posts
Professional 1983 (Columbus SL)
CyclesMakaron is offline
Old 09-28-21, 03:48 PM
  #591
ogx
Member

Join Date: Jan 2016
Location: Spain
Posts: 30
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Here we go with my recently purchase (campagnolo dropouts and reynolds 531 tubing). Profesional model from 1981 or 1982? @CyclesMakaron







ogx is offline
Old 09-28-21, 10:48 PM
  #592
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 825
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Likes: 0
Liked 348 Times in 231 Posts
1981
CyclesMakaron is offline
Old 09-29-21, 05:33 AM
  #593
Vito Moreno
Junior Member

Join Date: Sep 2021
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hey,

I just got an EM in Motorola colors
Serial number
Left side. Drive Side
M Z9496
Following the serial number this should from end 87, but Motorola colors didnīt come until much later, no?
Also there is a columbus sticker with SLX and eyelet racer
Info in the steerer tube is
Z9496
TM
2p. chromé later


Maybe you can give me more information about this frame?

Thanks a lot!
Vito Moreno is offline
Old 09-29-21, 09:27 AM
  #594
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 825
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Likes: 0
Liked 348 Times in 231 Posts
Z9496 is a fall 1986 copy.
TM is a Motorola paint scheme
2p. chrome (p=pattern, chrome pattern)
later=information about repainting the frame at Merckx.
Not sure what model it is - no markings (M is EMC employee code)
What does the brake bridge look like -
"cube" or with Eddy Merckx lettering?
What do the lugs look like - with or without "cutouts"?
CyclesMakaron is offline
Old 09-29-21, 09:36 AM
  #595
Vito Moreno
Junior Member

Join Date: Sep 2021
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks for the info!
Lugs without cutout and brake bridge with Eddy Merckx lettering, like the silva one?
Brake cable routing inside the top tube, front and back coming in and out from above
And no graving close to the seatpost clamp...
Sorry I canīt upload pictures, otherwise would be easier...

Thanks again!
Vito Moreno is offline
Old 09-29-21, 09:48 AM
  #596
Paul J
Senior Member

Paul J's Avatar

Join Date: Sep 2012
Location: Upstate South Carolina
Posts: 1,068

Bikes: 1980's Spectrum 10 sp Campagnolo Centaur, 1990 Eddy Merckx 10 sp Campagnolo Centaur, Bushnell Tandem, Co-Motion Speedster Tandem

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 178 Post(s)
Liked 98 Times in 61 Posts
Originally Posted by Vito Moreno View Post
Thanks for the info!
Lugs without cutout and brake bridge with Eddy Merckx lettering, like the silva one?
Brake cable routing inside the top tube, front and back coming in and out from above
And no graving close to the seatpost clamp...
Sorry I canīt upload pictures, otherwise would be easier...

Thanks again!
If you go to the "Introductions" thread in the Community Connections section at the top of the home page, you can introduce yourself welcome new members which will get you to your post count quickly so you can post pictures.
Paul J is offline
Old 09-29-21, 12:12 PM
  #597
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 11,810

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 232 Post(s)
Tagged: 0 Thread(s)
Quoted: 3690 Post(s)
Liked 4,248 Times in 2,539 Posts
@CyclesMakaron

How about this one?

Driveside
U06475

Nondriveside
L
7105

TIA
merziac is offline
Old 09-29-21, 11:27 PM
  #598
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 825
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Likes: 0
Liked 348 Times in 231 Posts
Vito Moreno: Corsa Extra (95%) or Criterium (5%)
Look for other designations around M: X or CX

merziac: L7105 U06 475
Is it the Corsa Extra 7-Eleven limited series? from March 2006, number 91/100
CyclesMakaron is offline
Old 09-30-21, 12:25 AM
  #599
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 11,810

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 232 Post(s)
Tagged: 0 Thread(s)
Quoted: 3690 Post(s)
Liked 4,248 Times in 2,539 Posts
Originally Posted by CyclesMakaron View Post
Vito Moreno: Corsa Extra (95%) or Criterium (5%)
Look for other designations around M: X or CX

merziac: L7105 U06 475
Is it the Corsa Extra 7-Eleven limited series? from March 2006, number 91/100
Yep, guess I already knew what there is to know, Tx!

So, you think SLX or TSX?
merziac is offline
Old 09-30-21, 11:47 AM
  #600
Vito Moreno
Junior Member

Join Date: Sep 2021
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks a lot!

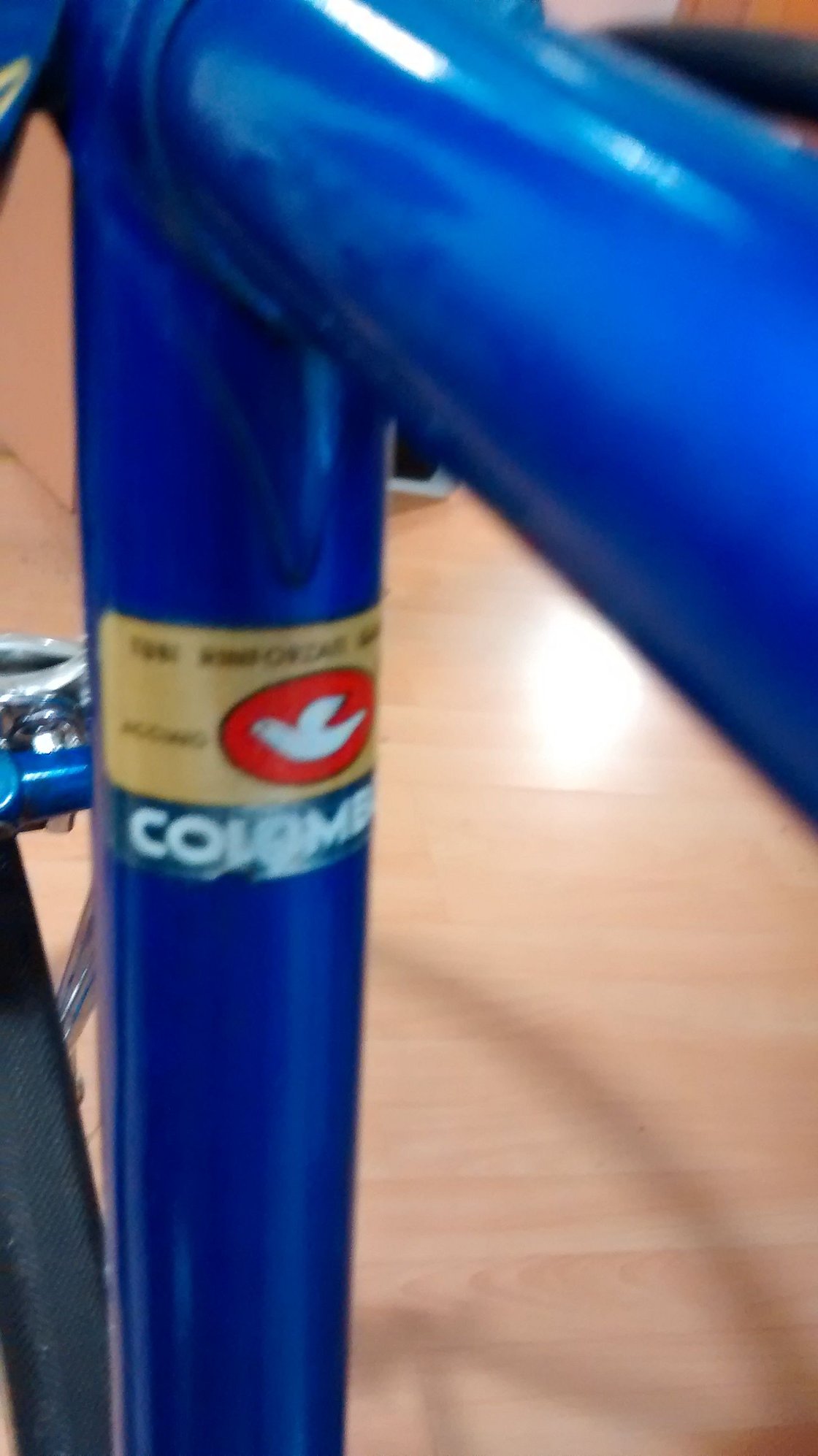

There is only an M in the left side.And also have an sticker of Columbus SLX, so, I think is an Corsa Extra

Last edited by Vito Moreno; 10-02-21 at 01:15 AM.
Vito Moreno is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
