Decoding of Eddy Merckx frames

Old 10-24-22, 12:10 AM
  #776
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 11,745

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 231 Post(s)
Tagged: 0 Thread(s)
Quoted: 3663 Post(s)
Liked 4,201 Times in 2,515 Posts
Originally Posted by CyclesMakaron View Post
These are different marking systems.
It seems to me that Litespeed has so far been providing information on the manufacturing date of the frames for EMC.
You sneaked in while I was typing.
merziac is offline
Old 10-24-22, 01:25 AM
  #777
RobinWarrington
Newbie

Join Date: Feb 2012
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
Originally Posted by merziac View Post
You're welcome and you may be at 10 now if they all count.

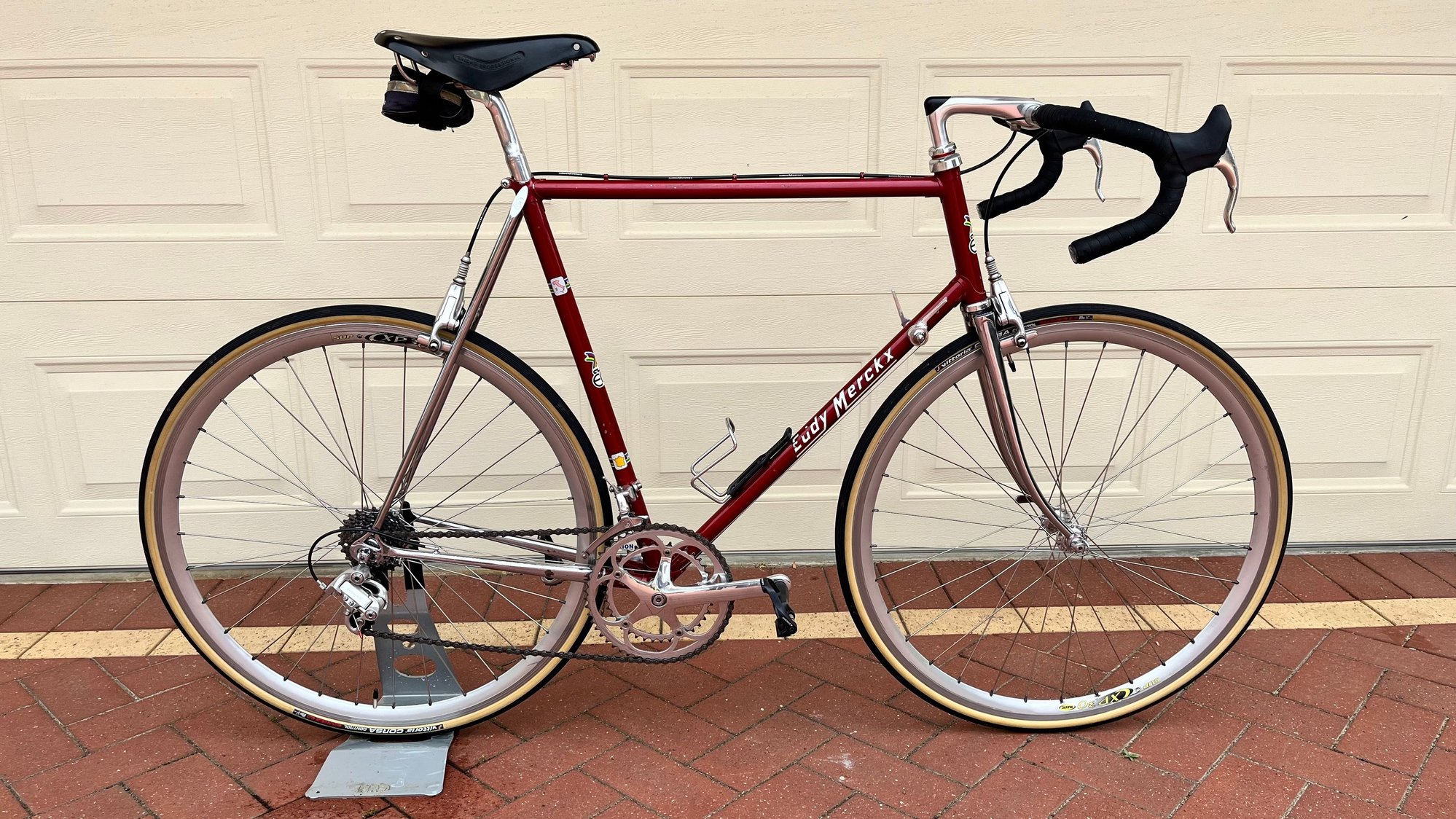

Ok some pics of frame 1662. After your dating, I presume it's SL/SP as it's a size 60 c-c frame. I have been told that to get the chrome forks and rear it had to be a special factory order (but I'm just repeating that and have no real knowledge). Also if it is true that it was a special order, did the customer have to order it or did the shop generally order it and just have them on the floor at, I'm guessing, a premium.
All the transfers look original or at least have some age apart from the head tube one which looks like a replacement to me. No fame materials sticker, only two, hour record bands. The paint could possibly be original. I'm only saying that as it's quite sharp around the lugs (and lots of the ones I see that are repainted get what I would call thick around the lugs and they lose their sharp edges).







RobinWarrington is offline
Likes For RobinWarrington:
Old 10-24-22, 05:33 AM
  #778
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 822
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 192 Post(s)
Likes: 0
Liked 340 Times in 228 Posts
A very elegant Merckx.
Chrome plating - definitely custom order.
The paint looks original.
Stickers correct (original or well-matched) - only "Columbus" on the seat tube is missing.
Interesting fact: unusual brake bridge pads in the shape of diamonds.
If you feel like it, dismantle the fork and check the inscriptions on the piece of paper attached to the fork steering tube - you may find the customer's name (and other curiosities) there.
CyclesMakaron is offline
Likes For CyclesMakaron:
Old 10-24-22, 05:50 AM
  #779
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 13,143
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 3664 Post(s)
Liked 2,463 Times in 1,465 Posts
Originally Posted by CyclesMakaron View Post
These are different marking systems.
It seems to me that Litespeed has so far been providing information on the manufacturing date of the frames for EMC.
OK, as long as they're providing the info for people when needed, that's good enough. I didn't know if you were trying to maintain a database and wanted the Ti exemplars as reference points. Mine has the 1996 decals and the EM engraving on the rear dropouts. My mechanic says that the first batch of Ti bikes that Litespeed did for Merckx didn't have the dropout markings, but the 2nd batch did. If that's accurate, that'd date it to late 1996, which is more precise than I really need as being able to find other images from 1996 with the exact same decal set on the internet was enough for me.
himespau is offline
Likes For himespau:
Old 10-24-22, 10:34 AM
  #780
botty kayer
Full Member

Join Date: Jun 2018
Location: London, UK
Posts: 469

Bikes: yes, loads

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 196 Post(s)
Liked 1,523 Times in 324 Posts
Originally Posted by himespau View Post
OK, as long as they're providing the info for people when needed, that's good enough. I didn't know if you were trying to maintain a database and wanted the Ti exemplars as reference points. Mine has the 1996 decals and the EM engraving on the rear dropouts. My mechanic says that the first batch of Ti bikes that Litespeed did for Merckx didn't have the dropout markings, but the 2nd batch did. If that's accurate, that'd date it to late 1996, which is more precise than I really need as being able to find other images from 1996 with the exact same decal set on the internet was enough for me.
Your guesstimate for the age sounds about right. I've got one of those ti EX frames.....

...like yours mine has the EM logo stamped on the stays, which I think are described as 'bullet' stays because of their shape. I love the deep 3d decals too on this model. Mine came as just a frame and fork and I built it up from there. It came with an old Kestral fork alu fork with a carbon wrap and a steel steerer, and so the fork you see above is a Columbus Max one I bought and added ay a later date.

Its been a few years since I contacted Litespeed to get it dated, so don't know if they still do it this way, but then the service was not free. I think I had to pay $10-15 for the info, but all that money went to some fund for injured cyclists or something I think, so it seemed a worthy cause so I stumped up the cash.

The serial numbers are printed very small on the BB shell. Mine is marked with what looks like 2760 2, and according to Litespeed this means it was built in November 1996.
botty kayer is offline
Likes For botty kayer:
Old 10-25-22, 03:27 AM
  #781
RobinWarrington
Newbie

Join Date: Feb 2012
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
Originally Posted by CyclesMakaron View Post
A very elegant Merckx.
Chrome plating - definitely custom order.
The paint looks original.
Stickers correct (original or well-matched) - only "Columbus" on the seat tube is missing.
Interesting fact: unusual brake bridge pads in the shape of diamonds.
If you feel like it, dismantle the fork and check the inscriptions on the piece of paper attached to the fork steering tube - you may find the customer's name (and other curiosities) there.
Ok thanks and much appreciated. I will have a look. Not sure where it was sold but it now lives in Australia.
RobinWarrington is offline
Old 10-25-22, 04:49 AM
  #782
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 2,115
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 915 Post(s)
Liked 1,457 Times in 732 Posts
Originally Posted by RobinWarrington View Post
Not sure where it was sold but it now lives in Australia.
Cool, which part?
P!N20 is offline
Old 10-25-22, 06:28 AM
  #783
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 13,143
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 3664 Post(s)
Liked 2,463 Times in 1,465 Posts
Originally Posted by botty kayer View Post
Your guesstimate for the age sounds about right. I've got one of those ti EX frames.....

...like yours mine has the EM logo stamped on the stays, which I think are described as 'bullet' stays because of their shape. I love the deep 3d decals too on this model. Mine came as just a frame and fork and I built it up from there. It came with an old Kestral fork alu fork with a carbon wrap and a steel steerer, and so the fork you see above is a Columbus Max one I bought and added ay a later date.

Its been a few years since I contacted Litespeed to get it dated, so don't know if they still do it this way, but then the service was not free. I think I had to pay $10-15 for the info, but all that money went to some fund for injured cyclists or something I think, so it seemed a worthy cause so I stumped up the cash.

The serial numbers are printed very small on the BB shell. Mine is marked with what looks like 2760 2, and according to Litespeed this means it was built in November 1996.
Mine appears to be your bike's sibling. At least as far as I can tell (printing is very light and incomplete), mine is 2760 8.


Apparently, this Litespeed-branded carbon fork (with steel steerer) by Look was an original option.
himespau is offline
Likes For himespau:
Old 10-30-22, 05:30 AM
  #784
RobinWarrington
Newbie

Join Date: Feb 2012
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
Originally Posted by P!N20 View Post
Cool, which part?
Sorry it's taken me so long to answer. Over in Perth WA
RobinWarrington is offline
Likes For RobinWarrington:
Old 10-31-22, 02:49 PM
  #785
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 2,115
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 915 Post(s)
Liked 1,457 Times in 732 Posts
Originally Posted by RobinWarrington View Post
Sorry it's taken me so long to answer. Over in Perth WA
Nice one, Im in Melbourne. Im making my first trip to Perth this Christmas; sans bike unfortunately.

Anyway, back to Merckx decoding!
P!N20 is offline
Old 10-31-22, 07:45 PM
  #786
MarkinOz
Junior Member

Join Date: Oct 2020
Location: Sydney, Australia
Posts: 117

Bikes: Wilier Cento10Ndr, Giant Anthem 2, 1985 Gefsco, 1979 Gios Torino Super Record, 1983 Peugeot PFN10, Terry Dolan built Reynolds 753 Cougar for Malcolm Elliott

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 33 Times in 18 Posts

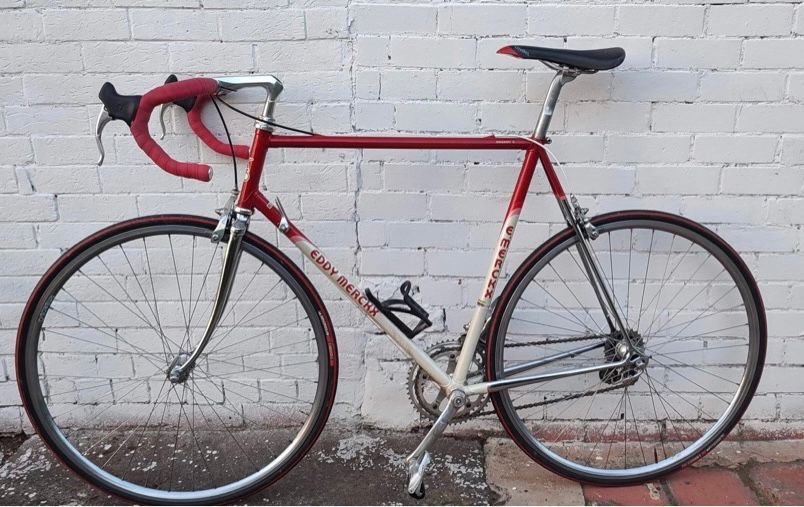

Early Corsa Extra Team Teve Blad?

Photos for decoding please. Also, what is the script on top of the brake bridge?
Thanks.



MarkinOz is offline
Old 11-01-22, 12:20 AM
  #787
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 822
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 192 Post(s)
Likes: 0
Liked 340 Times in 228 Posts
A3331 Y9X
Corsa Extra 1987 (May/June)
Y - EMC employee
9 - 59 cm seat tube (c-c)
X - Columbus SLX/SPX tubes
Paint pattern: team Kelme (or TeVe Blad) 1986-1987
Brake bridge pattern: Silva 2, used exclusively in EMC 1986-1987
The inscription on the top of the bridge is MOD.DEP - probably an abbreviation for the French (!) "modele depose" (sorry, no accents) meaning more or less "reserved design".
CyclesMakaron is offline
Likes For CyclesMakaron:
Old 11-01-22, 12:33 AM
  #788
MarkinOz
Junior Member

Join Date: Oct 2020
Location: Sydney, Australia
Posts: 117

Bikes: Wilier Cento10Ndr, Giant Anthem 2, 1985 Gefsco, 1979 Gios Torino Super Record, 1983 Peugeot PFN10, Terry Dolan built Reynolds 753 Cougar for Malcolm Elliott

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 33 Times in 18 Posts
Appreciate your work as always CyclesMakaron
Originally Posted by CyclesMakaron View Post
A3331 Y9X
Corsa Extra 1987 (May/June)
Y - EMC employee
9 - 59 cm seat tube (c-c)
X - Columbus SLX/SPX tubes
Paint pattern: team Kelme (or TeVe Blad) 1986-1987
Brake bridge pattern: Silva 2, used exclusively in EMC 1986-1987
The inscription on the top of the bridge is MOD.DEP - probably an abbreviation for the French (!) "modele depose" (sorry, no accents) meaning more or less "reserved design".
MarkinOz is offline
Old 11-01-22, 04:48 PM
  #789
Nuovo Record
Junior Member

Join Date: Apr 2019
Posts: 155

Bikes: Colnago Super (panto) - Gios Professional (1st Generation C-Record) - Eddy Merckx Corsa Extra (Team USA) - Barellia Reynolds 531 - Fully chromed Columbus steel bike (Patelli?) Super Record Titanium

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 25 Times in 21 Posts
Hi Jacek,

What is T 8 (left) 810 (right), please...?

Thank you very much in advance!

Cheers,
NR
Nuovo Record is offline
Old 11-04-22, 12:37 AM
  #790
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 822
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 192 Post(s)
Likes: 0
Liked 340 Times in 228 Posts
Not enough information
Check carefully that these are definitely all the markings - there should be a letter around 810.
Photos would help a lot.
CyclesMakaron is offline
Old 11-05-22, 07:58 AM
  #791
Nuovo Record
Junior Member

Join Date: Apr 2019
Posts: 155

Bikes: Colnago Super (panto) - Gios Professional (1st Generation C-Record) - Eddy Merckx Corsa Extra (Team USA) - Barellia Reynolds 531 - Fully chromed Columbus steel bike (Patelli?) Super Record Titanium

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 25 Times in 21 Posts
Originally Posted by CyclesMakaron View Post
Not enough information
Check carefully that these are definitely all the markings - there should be a letter around 810.
Photos would help a lot.
Thank you.
This bike is on offer on ebay (item 175469127711)

https://www.ebay.de/itm/175469127711...&segname=11010
Nuovo Record is offline
Old 11-05-22, 10:21 AM
  #792
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 822
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 192 Post(s)
Likes: 0
Liked 340 Times in 228 Posts
It looks like BT8 E810
Professional Columbus SL/SP early 1981.
CyclesMakaron is offline
Old 11-07-22, 03:03 PM
  #793
Nuovo Record
Junior Member

Join Date: Apr 2019
Posts: 155

Bikes: Colnago Super (panto) - Gios Professional (1st Generation C-Record) - Eddy Merckx Corsa Extra (Team USA) - Barellia Reynolds 531 - Fully chromed Columbus steel bike (Patelli?) Super Record Titanium

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 25 Times in 21 Posts
Originally Posted by CyclesMakaron View Post
It looks like BT8 E810
Professional Columbus SL/SP early 1981.
Thanks for taking a look at those ebay pictures!
1980/81 Professional "Signature" was my guess, too. The frame size would be 58 c/c, I think?
Nuovo Record is offline
Old 11-08-22, 12:38 AM
  #794
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 822
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 192 Post(s)
Likes: 0
Liked 340 Times in 228 Posts
The marking indicates 58.
"Signature" is just one of the seatstay cap designs (this frame is extremely late for this design, the EM-logo design having already been introduced en masse earlier).
CyclesMakaron is offline
Old 11-08-22, 12:22 PM
  #795
Nuovo Record
Junior Member

Join Date: Apr 2019
Posts: 155

Bikes: Colnago Super (panto) - Gios Professional (1st Generation C-Record) - Eddy Merckx Corsa Extra (Team USA) - Barellia Reynolds 531 - Fully chromed Columbus steel bike (Patelli?) Super Record Titanium

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 25 Times in 21 Posts
Thank you so much!
Nuovo Record is offline
Old 12-07-22, 04:41 AM
  #796
nenad
Junior Member

Join Date: Mar 2007
Location: Krakow, Poland
Posts: 111

Bikes: Scott Addict, Tommasini Tecno, Eddy Merckx Strada

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 21 Times in 11 Posts
Hi Jacek,

this is coming my way.






Let me see if I can get this right:

G - EMC quality control man
8 - size 58
E 2022 - Professional from 1981

Other queues pointing to early model: seat stay caps, BB cable routing on top, derailleur hanger has holes in it, decals applied.
Did I get it right?
Also, based on serial number can you tell when exactly in 1981 it was made (as in month/season)?
nenad is offline
Old 12-09-22, 12:09 AM
  #797
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 822
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 192 Post(s)
Likes: 0
Liked 340 Times in 228 Posts
Flawless description
Dating EMC E-series frames is getting more and more difficult
New information is coming out (most of it unconfirmed) that neatly blows away the dating I thought most likely.
This is a topic for a new update thread.
E 2022 is definitely 1981.
Earliest month is March, most likely April/May, latest is July.
Without new verified data I can't be more accurate
CyclesMakaron is offline
Old 12-09-22, 01:46 PM
  #798
dynomatt
Newbie

Join Date: Feb 2015
Posts: 3
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have a U Scanini / Eric Van Der Aerden branded MX Leader frame.

The serial number is

L (employee Im guessing)

D 9939

Has Merckx dropouts

Panto has been filled in Im told by U Scanini to de identify the manufacturer.

Anything else I can learn from it?

Cant post photos sorry
dynomatt is offline
Old 12-09-22, 02:36 PM
  #799
Nuovo Record
Junior Member

Join Date: Apr 2019
Posts: 155

Bikes: Colnago Super (panto) - Gios Professional (1st Generation C-Record) - Eddy Merckx Corsa Extra (Team USA) - Barellia Reynolds 531 - Fully chromed Columbus steel bike (Patelli?) Super Record Titanium

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 25 Times in 21 Posts
Hi Jacek,

Am looking at frame no.
P 0
Z 7300

The size should be 50 cm. The seller calls it a Corsa Extra but that would mean an "X" in the frame number, wouldnt it?
What is it, really...?

Thank you very much in advance.

Cheers,
Nuovo

Last edited by Nuovo Record; 12-09-22 at 06:38 PM. Reason: Photo added
Nuovo Record is offline
Old 12-09-22, 02:53 PM
  #800
CO_Hoya
Seor Member

Join Date: Dec 2007
Location: Colorado
Posts: 937
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 250 Post(s)
Liked 202 Times in 113 Posts
Originally Posted by dynomatt View Post
I have a U Scanini / Eric Van Der Aerden branded MX Leader frame.

The serial number is

L (employee Im guessing)

D 9939

Has Merckx dropouts

Panto has been filled in Im told by U Scanini to de identify the manufacturer.

Anything else I can learn from it?

Cant post photos sorry
Pic assist (from this album):






CO_Hoya is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
