Hey guys, I found something

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Hey guys, I found something

Old 05-17-19, 07:07 PM
  #1
Tomsl923833
Senior Member
Thread Starter

Join Date: May 2017
Posts: 96
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Hey guys, I found something

I acquired another old Schwinn but, as per usual all the decals are fubar'ed. Maybe one of you historians can help..
It's probably a mid seventies but, I don't know for sure.... The serial # off the bottom reads SD402668 and, the number stamp on the badge reads 1024. It's a 12 speed 4130 chromemoloy frame. Any thoughts????
Tomsl923833 is offline
Likes For Tomsl923833:
Old 05-17-19, 07:29 PM
  #2
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 1,764
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 660 Post(s)
Liked 55 Times in 41 Posts
Your bike is probably a Japanese-made Schwinn assembled in either 1974 or 1984.

The headbadge number can be decoded as such: 102nd day (April 12) of year ending in 4. So April 12, 1974 or 1984.

There were various serial number formats over the years. Your format looks like the format S(month letter)(year number)(frame number) which was used for Japanese-made bikes. So SD402668 would be the 2668th bike assembled in April 1974 or 1984 in Japan. That's consistent with your headbadge number.

Post some pictures and it should be easy to tell if it is from the 70s or 80s. The model can be gleaned by looking at the catalogs once the decade is confirmed.

How do you know it's chrome-moly?

Last edited by TenGrainBread; 05-17-19 at 07:36 PM.
TenGrainBread is offline
Old 05-18-19, 04:11 AM
  #3
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,181

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 463 Post(s)
Liked 15 Times in 9 Posts
A 12 speed most likely points to 1984--- unless someone in the past upgraded the original 5 speed freewheel on a 1974 to a 6 speed Ultra or narrow spaced Suntour, Atom or Regina. However, with that said, IIRC, the four digit date code stamped in head badge did not become universal until 1975-76? My money is on 1984. Take a look here at this Findley-Cooper Page.
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Old 05-18-19, 05:13 PM
  #4
Tomsl923833
Senior Member
Thread Starter

Join Date: May 2017
Posts: 96
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by TenGrainBread View Post
Your bike is probably a Japanese-made Schwinn assembled in either 1974 or 1984.

The headbadge number can be decoded as such: 102nd day (April 12) of year ending in 4. So April 12, 1974 or 1984.

There were various serial number formats over the years. Your format looks like the format S(month letter)(year number)(frame number) which was used for Japanese-made bikes. So SD402668 would be the 2668th bike assembled in April 1974 or 1984 in Japan. That's consistent with your headbadge number.

Post some pictures and it should be easy to tell if it is from the 70s or 80s. The model can be gleaned by looking at the catalogs once the decade is confirmed.

How do you know it's chrome-moly?
This is probably going to sound stupid but, it has the decal. I know it can be faked but, it looks like it's been on there a long time. Someone could have changed the free wheel from 5 to 6. It's easy I've done it myself. I have a 79 that is very similar. The 2 things that stand out are 1) the spoke guard is metal. That makes me think it's older 2) the suicide shifter is screwed to the frame. It's got Suntour arx derailures and, wheels. That probably got added later. Idk why I just like the old Schwinns!!! That what I stumble across most of the time. It was a freebie!!! To me free is good!!!lol
Tomsl923833 is offline
Old 05-18-19, 05:20 PM
  #5
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 1,764
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 660 Post(s)
Liked 55 Times in 41 Posts
Originally Posted by Tomsl923833 View Post
This is probably going to sound stupid but, it has the decal. I know it can be faked but, it looks like it's been on there a long time. Someone could have changed the free wheel from 5 to 6. It's easy I've done it myself. I have a 79 that is very similar. The 2 things that stand out are 1) the spoke guard is metal. That makes me think it's older 2) the suicide shifter is screwed to the frame. It's got Suntour arx derailures and, wheels. That probably got added later. Idk why I just like the old Schwinns!!! That what I stumble across most of the time. It was a freebie!!! To me free is good!!!lol
​​​​​​Oh, I thought all the decals were gone per your original post.

Still post pictures if you can. Should be quick to ID it with pics.

You'll have no argument from me on picking up old Schwinns. I currently have 3: a '95 Super Stock (BMX), '86 High Sierra, and '73 Sports Tourer. And I used to have an '88 Paramount. They're all cool bikes!
TenGrainBread is offline
Old 05-18-19, 08:28 PM
  #6
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,534

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 343 Post(s)
Likes: 0
Liked 21 Times in 16 Posts
'84 LeTour is my best guess. Shifters will be bolted to the TOP of the down tube, rather than the sides.

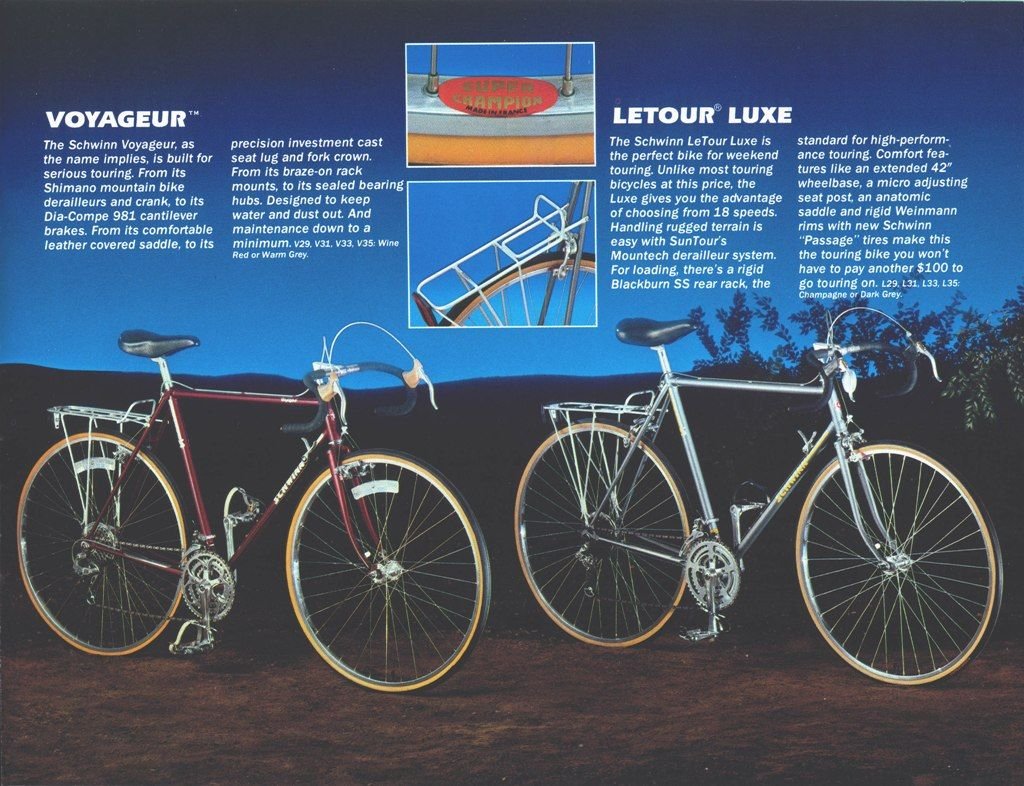

Note the bike on the right.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey

Last edited by Hudson308; 05-18-19 at 08:31 PM. Reason: added pic
Hudson308 is offline
Old 05-18-19, 09:19 PM
  #7
Tomsl923833
Senior Member
Thread Starter

Join Date: May 2017
Posts: 96
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Hudson308 View Post
'84 LeTour is my best guess. Shifters will be bolted to the TOP of the down tube, rather than the sides.
Note the bike on the right.
You're right it's an 84 probably a Le Tour by the looks of it. The remnates that are left of the decals are yellow. I wish I could post a pic!!! The site won't let me take one from my phone. The 74s have a much larger spoke guard.
Tomsl923833 is offline
Old 05-19-19, 03:08 AM
  #8
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,181

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 463 Post(s)
Liked 15 Times in 9 Posts
The Suntour ARX derailleurs point most likely to either the Super LeTour or LeTour (and take a look at the next page). What's the brand of the freewheel?
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Old 05-19-19, 06:12 AM
  #9
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,534

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 343 Post(s)
Likes: 0
Liked 21 Times in 16 Posts
LeTour Luxe vs. Super Letour should be easy to sort, based on the crank (triple vs. double), and the paint color.
It likely isn't a '74. The only lugged frames that Schwinn sold in '74 were the LeTour, Voyageur and Paramount.
The 74 LeTour wasn't made of chrome moly, the Voyageur that year had chrome lugs, and the Paramount... well those are obvious and easy to spot with chrome Nervex lugs.
Your '84 LeTour tubing decal would look like this:
Pay no attention to the Schwinn downtube decal on the photo above. I removed the original yellow and white graphic and replaced it with the decal from about '79.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey

Last edited by Hudson308; 05-19-19 at 06:15 AM. Reason: decal clarification
Hudson308 is offline
Old 05-19-19, 01:48 PM
  #10
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,639

Bikes: Too many to list here check my signature.

Mentioned: 94 Post(s)
Tagged: 2 Thread(s)
Quoted: 1266 Post(s)
Liked 39 Times in 30 Posts
It is too bad more people don't have access to cameras.
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is online now
Old 05-19-19, 04:42 PM
  #11
Fahrenheit531
50th Anniversary Edition

Fahrenheit531's Avatar

Join Date: Aug 2013
Location: Tucson, AZ
Posts: 3,454

Bikes: Schwinn Paramount ('71) and Volare ('78); Raleigh Competition GS ('79)

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 544 Post(s)
Liked 57 Times in 32 Posts
Originally Posted by Hudson308 View Post
Pay no attention to the Schwinn downtube decal on the photo above. I removed the original yellow and white graphic and replaced it with the decal from about '79.
Hilarious. I did the exact same thing to an '84 Tempo that started with the same wretched yellow/white decals. Even chose the same replacement decals.
__________________
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
Fahrenheit531 is offline
Old 05-19-19, 07:54 PM
  #12
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,534

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 343 Post(s)
Likes: 0
Liked 21 Times in 16 Posts
Originally Posted by Fahrenheit531 View Post
Hilarious. I did the exact same thing to an '84 Tempo that started with the same wretched yellow/white decals. Even chose the same replacement decals.
HA!
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Old 05-19-19, 08:26 PM
  #13
Tomsl923833
Senior Member
Thread Starter

Join Date: May 2017
Posts: 96
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Hudson308 View Post
LeTour Luxe vs. Super Letour should be easy to sort, based on the crank (triple vs. double), and the paint color.
It likely isn't a '74. The only lugged frames that Schwinn sold in '74 were the LeTour, Voyageur and Paramount.
The 74 LeTour wasn't made of chrome moly, the Voyageur that year had chrome lugs, and the Paramount... well those are obvious and easy to spot with chrome Nervex lugs.
Your '84 LeTour tubing decal would look like this:
Pay no attention to the Schwinn downtube decal on the photo above. I removed the original yellow and white graphic and replaced it with the decal from about '79.
That's the decal in the exact same spot. It's a double crank set Surgino BT. It's got Weiman 614 stainless wheels I didn't think to look for a brand name on the freewheel.
Tomsl923833 is offline
Old 05-19-19, 08:31 PM
  #14
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,534

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 343 Post(s)
Likes: 0
Liked 21 Times in 16 Posts
Yep. Sounds like an '84 Super LeTour like @pastorbobnlnh suggested.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Old 06-06-19, 10:45 AM
  #15
Tomsl923833
Senior Member
Thread Starter

Join Date: May 2017
Posts: 96
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Hudson308 View Post
LeTour Luxe vs. Super Letour should be easy to sort, based on the crank (triple vs. double), and the paint color.
It likely isn't a '74. The only lugged frames that Schwinn sold in '74 were the LeTour, Voyageur and Paramount.
The 74 LeTour wasn't made of chrome moly, the Voyageur that year had chrome lugs, and the Paramount... well those are obvious and easy to spot with chrome Nervex lugs.
Your '84 LeTour tubing decal would look like this:
Pay no attention to the Schwinn downtube decal on the photo above. I removed the original yellow and white graphic and replaced it with the decal from about '79.
How many teeth are on the small ring? 36?
Tomsl923833 is offline
Old 06-06-19, 11:11 AM
  #16
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,534

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 343 Post(s)
Likes: 0
Liked 21 Times in 16 Posts
Originally Posted by Tomsl923833 View Post
How many teeth are on the small ring? 36?
The factory rings on that 86mm BCD Sekae Super Custom crank were 50-42-28. As shown in the photo, I'm currently running 50-40-28.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Old 06-06-19, 11:47 AM
  #17
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,851
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2481 Post(s)
Likes: 0
Liked 65 Times in 59 Posts
One thing that I don't think has been mentioned, is that the manufacturer was Bridgestone.
T-Mar is offline
Old 06-06-19, 12:06 PM
  #18
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,534

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 343 Post(s)
Likes: 0
Liked 21 Times in 16 Posts
Originally Posted by T-Mar View Post
One thing that I don't think has been mentioned, is that the manufacturer was Bridgestone.
I'm not one to disagree with you lightly Tom, but I'm pretty sure mine was brazed in Greenville, MS.
I believe a number of other Schwinn models were made in Japan that year, however.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey

Last edited by Hudson308; 06-06-19 at 12:25 PM.
Hudson308 is offline
Old 06-06-19, 12:56 PM
  #19
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,851
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2481 Post(s)
Likes: 0
Liked 65 Times in 59 Posts
Originally Posted by Hudson308 View Post
I'm not one to disagree with you lightly Tom, but I'm pretty sure mine was brazed in Greenville, MS.
I believe a number of other Schwinn models were made in Japan that year, however.
Sorry, I thought I'd read that it was Japanese model.
T-Mar is offline
Old 06-06-19, 08:25 PM
  #20
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,534

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 343 Post(s)
Likes: 0
Liked 21 Times in 16 Posts
Originally Posted by T-Mar View Post
Sorry, I thought I'd read that it was Japanese model.
Well thank you for enlightening us that models made in Japan during this period were made by Bridgestone.
I would have just assumed Panasonic, like it was in the mid-70's.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Old 06-07-19, 05:35 AM
  #21
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,851
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2481 Post(s)
Likes: 0
Liked 65 Times in 59 Posts
Originally Posted by Hudson308 View Post
Well thank you for enlightening us that models made in Japan during this period were made by Bridgestone.
I would have just assumed Panasonic, like it was in the mid-70's.
They could be from either. The serial number format will distinguish between the two.
T-Mar is offline
Old 06-07-19, 07:09 PM
  #22
Tomsl923833
Senior Member
Thread Starter

Join Date: May 2017
Posts: 96
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Hudson308 View Post
LeTour Luxe vs. Super Letour should be easy to sort, based on the crank (triple vs. double), and the paint color.
It likely isn't a '74. The only lugged frames that Schwinn sold in '74 were the LeTour, Voyageur and Paramount.
The 74 LeTour wasn't made of chrome moly, the Voyageur that year had chrome lugs, and the Paramount... well those are obvious and easy to spot with chrome Nervex lugs.
Your '84 LeTour tubing decal would look like this:
Pay no attention to the Schwinn downtube decal on the photo above. I removed the original yellow and white graphic and replaced it with the decal from about '79.
Sorry to bother you but, what size spacers did you use on your triple and, am I going to be forced to change the BB going from double to triple? I got the exact same front and, rear derailleures you do.
Tomsl923833 is offline
Old 06-08-19, 08:44 PM
  #23
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,534

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 343 Post(s)
Likes: 0
Liked 21 Times in 16 Posts
Not sure how thick the spacers are... they're the factory ones. I can measure them sometime in the next day or two. When I took it apart to refurbish it, I was a bit surprised that all three rings used the same bolts.
As far as the BB spindle length, I would assume you'll need a longer one. I never measured the length when I had it apart.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Old 06-10-19, 06:00 AM
  #24
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,534

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 343 Post(s)
Likes: 0
Liked 21 Times in 16 Posts
Originally Posted by Tomsl923833 View Post
Sorry to bother you but, what size spacers did you use on your triple and, am I going to be forced to change the BB going from double to triple? I got the exact same front and, rear derailleures you do.
Third-ring spacers appear to be 5mm thick.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Old 06-10-19, 06:59 AM
  #25
SamSpade1941
Senior Member

SamSpade1941's Avatar

Join Date: Apr 2016
Posts: 636
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 359 Post(s)
Liked 13 Times in 11 Posts
Originally Posted by Bianchigirll View Post
It is too bad more people don't have access to cameras.
Probably a good thing you don't want to accidentally capture someone else's soul ...
SamSpade1941 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
