Tommasini barn find? Help needed.

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Tommasini barn find? Help needed.

Old 06-12-19, 03:51 PM
  #1
Macktheknife
Junior Member
Thread Starter

Join Date: Jun 2019
Posts: 14
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Tommasini barn find? Help needed.

Hey,

I found a racing bike in my grandfather's shed. Think it's a Tommasini. I'd like to restore it but i know little about this. Will upload pics as soon as possible. But as newbie, i need 10 posts. So. Looking for experts who want to assist me.
Macktheknife is offline
Old 06-12-19, 04:05 PM
  #2
CO_Hoya
Señor Member

Join Date: Dec 2007
Location: Colorado
Posts: 606

Bikes: Yes

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 123 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
From what I see (over BB cable routing, single water bottle, top tube cable guides), I’d guess early 80s. But what do I know?

Pic assist:


CO_Hoya is offline
Old 06-12-19, 04:07 PM
  #3
Macktheknife
Junior Member
Thread Starter

Join Date: Jun 2019
Posts: 14
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Do you think it's a real one?
Any more info about the type?
Macktheknife is offline
Old 06-12-19, 04:09 PM
  #4
Macktheknife
Junior Member
Thread Starter

Join Date: Jun 2019
Posts: 14
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
If you know any other expert on the matter, don't hesitate to contact them.
Macktheknife is offline
Old 06-12-19, 04:19 PM
  #5
xiaoman1
Senior Member

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angeles
Posts: 1,961

Bikes: Paramounts, PX-10s, Mondias, Motobecane Grand Record, Specialized Allez Carbon, and Nishiki Tri-A

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 315 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
MTK,
Any markings on the seat stays, rear-drops or front drops, what do they say?
I thought that Tommasini's had a panto on the rear brake bridge and a T on the tops of the fork and a stylized T on the BB shell... but no expert on that so can't be definitive.
Tommasini expert will chime in soon there are a lot of them on this forum.
In any case lugs look good on my small screen, so for free even if not a T ride and enjoy.
Ben

__________________
Paramount, Mondia, Px-10, Moto

Last edited by xiaoman1; 06-12-19 at 06:25 PM.
xiaoman1 is offline
Old 06-12-19, 04:30 PM
  #6
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 6,677
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 486 Post(s)
Likes: 0
Liked 7 Times in 7 Posts
Looks pretty sweet to me. Legit or not it looks like a high quality frame. Hope it fits you. Is there a box of parts with it? Wheels?
due ruote is offline
Old 06-12-19, 04:33 PM
  #7
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 6,075

Bikes: 90/91 De Rosa, '84 Team Miyata, '82 nishiski,

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 792 Post(s)
Liked 23 Times in 20 Posts
check the inside of the drive side bottom stay....not sure if it is just dirt or stray grass, but kinda looks like a crack

also looks like a repaint....see some dripping paint

good chance it is not a tommasini..... repaint and components but need real experts

but still could be a nice ride
__________________
Looking for Team Miyata F&F 58cm
squirtdad is offline
Old 06-12-19, 06:42 PM
  #8
Spaghetti Legs
Senior Member

Join Date: Dec 2014
Location: Central Virginia
Posts: 3,189

Bikes: Numerous

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 789 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Is there a “T” cutout on the underside of bottom bracket? That has a lot of features of a late 70’s - early 80’s Tommasini. Only question I have is the fork, which on yours doesn’t look to have any distinguishing marks. Some Tommy’s from that era, I think, will have a blank fork crown, but it is less common. Here are pics of a similar era Tommasini I have. It’s a repaint and I think the decals are from later than the ‘81 - ‘82 date of this one.

https://www.flickr.com/photos/151996...57679058778848
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '85 Moser, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, ‘89 Cinelli Supercorsa
Spaghetti Legs is offline
Old 06-12-19, 07:35 PM
  #9
stardognine
Turquoise gatherer.

stardognine's Avatar

Join Date: Jan 2016
Location: Arid Arizona, for now.
Posts: 1,528

Bikes: 1985 Cannondale ST400

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 316 Post(s)
Likes: 0
Liked 12 Times in 12 Posts
I'm not the expert, lol, but it definitely has a certain look. Gotta love those cutouts, on the head tube lugs. 👍 Good luck, hope it's "legit". 😎
stardognine is offline
Old 06-12-19, 08:06 PM
  #10
Steve Whitlatch
Senior Member

Steve Whitlatch's Avatar

Join Date: Sep 2013
Location: Chicago area
Posts: 3,621
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 513 Post(s)
Liked 4 Times in 2 Posts
Just want to point out that it is my size and ........
__________________
My bikes: 1970`s Roberts - 1981 Miyata 912 - 1980`s Ocshner (Chrome) - 1987 Schwinn Circuit - 1987 Schwinn Prologue - 1992 Schwinn Crosspoint - 1999 Schwinn Circuit - 2014 Cannondale Super Six EVO
Steve Whitlatch is offline
Old 06-12-19, 08:18 PM
  #11
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 411
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Likes: 0
Liked 10 Times in 10 Posts
Interestingly there was an alleged Tommasini posted here recently which has some similarities to yours: Need help identifying frame please

I'd also like to see under the bottom bracket shell and if the dropouts are stamped 'Gipiemme' or 'Campagnolo' or nothing.
P!N20 is offline
Old 06-12-19, 08:42 PM
  #12
Manny66
Senior Member

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 136

Bikes: 1970's Windsor Professional,Guerciotti SL,Basso Gap, Vintage Moser,Concorde TSX,Concorde TVT, Mondia Super

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 6 Times in 4 Posts
Could be very early 70's Tommasini. The fork crown should have a "T" . The Asian junk parts are throwing it off as they appear to be from the mid to late 80's.
Manny66 is offline
Old 06-12-19, 09:33 PM
  #13
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,726
Mentioned: 424 Post(s)
Tagged: 1 Thread(s)
Quoted: 2443 Post(s)
Likes: 0
Liked 44 Times in 41 Posts
It's definitely not early 1970s as it has the Portacatena dropout, placing it 1978 to circa 1983. Some of the early Racing models were economy frames, lacking the usual embossing and cutouts, though they typically have the chainring embossed fork crown. I can't confirm that it is a Tommasini but it is a high grade frame.
T-Mar is offline
Old 06-12-19, 11:48 PM
  #14
Manny66
Senior Member

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 136

Bikes: 1970's Windsor Professional,Guerciotti SL,Basso Gap, Vintage Moser,Concorde TSX,Concorde TVT, Mondia Super

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 6 Times in 4 Posts
Originally Posted by T-Mar View Post
It's definitely not early 1970s as it has the Portacatena dropout, placing it 1978 to circa 1983. Some of the early Racing models were economy frames, lacking the usual embossing and cutouts, though they typically have the chainring embossed fork crown. I can't confirm that it is a Tommasini but it is a high grade frame.
It does have all the typical early 70's decals in place,, but you could be correct. We'll find out soon with a few more pics.
Manny66 is offline
Old 06-13-19, 06:52 AM
  #15
qcpmsame
Semper Fi

qcpmsame's Avatar

Join Date: Jan 2008
Location: Barrineau Park, Florida
Posts: 12,396

Bikes: '80 Medici Pro Strada, '86 Tommasini Prestige, '12 CAAD 10 Ultegra

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 969 Post(s)
Liked 6 Times in 6 Posts
Here is a link to the thread in C&V, for Tommasini discussions and gathering information:The Tommasini Lounge. I got a lot of good information from this thread when I built my Prestige, and @T-Mar was a great source of input as well. The business website link:Tommasini Cicli, you can use their link to ask questions about specific bikes and models, but take it with a grain of salt, also.

There is a pretty good Facebook group for Tommasini, the family participates and offers responses frequently, as it is set up and moderated by the business. Please keep us updated if you do decide to build this one up, it looks like has some good potential in it.

Bill
__________________
I Didn't Choose To Have Parkinson's Disease, I Have Chosen Not To Allow It To Define How I Live
Life Member "Hairy Eared Engineer's Society"
"I Can Do All Things Through Christ, Whom Strengthens Me" Philippians 4:13
qcpmsame is online now
Old 06-13-19, 07:25 AM
  #16
Spaghetti Legs
Senior Member

Join Date: Dec 2014
Location: Central Virginia
Posts: 3,189

Bikes: Numerous

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 789 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Also Kevindale’s outstanding thread

Tommasini timeline and serial number registry
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '85 Moser, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, ‘89 Cinelli Supercorsa
Spaghetti Legs is offline
Old 06-13-19, 11:49 AM
  #17
Macktheknife
Junior Member
Thread Starter

Join Date: Jun 2019
Posts: 14
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

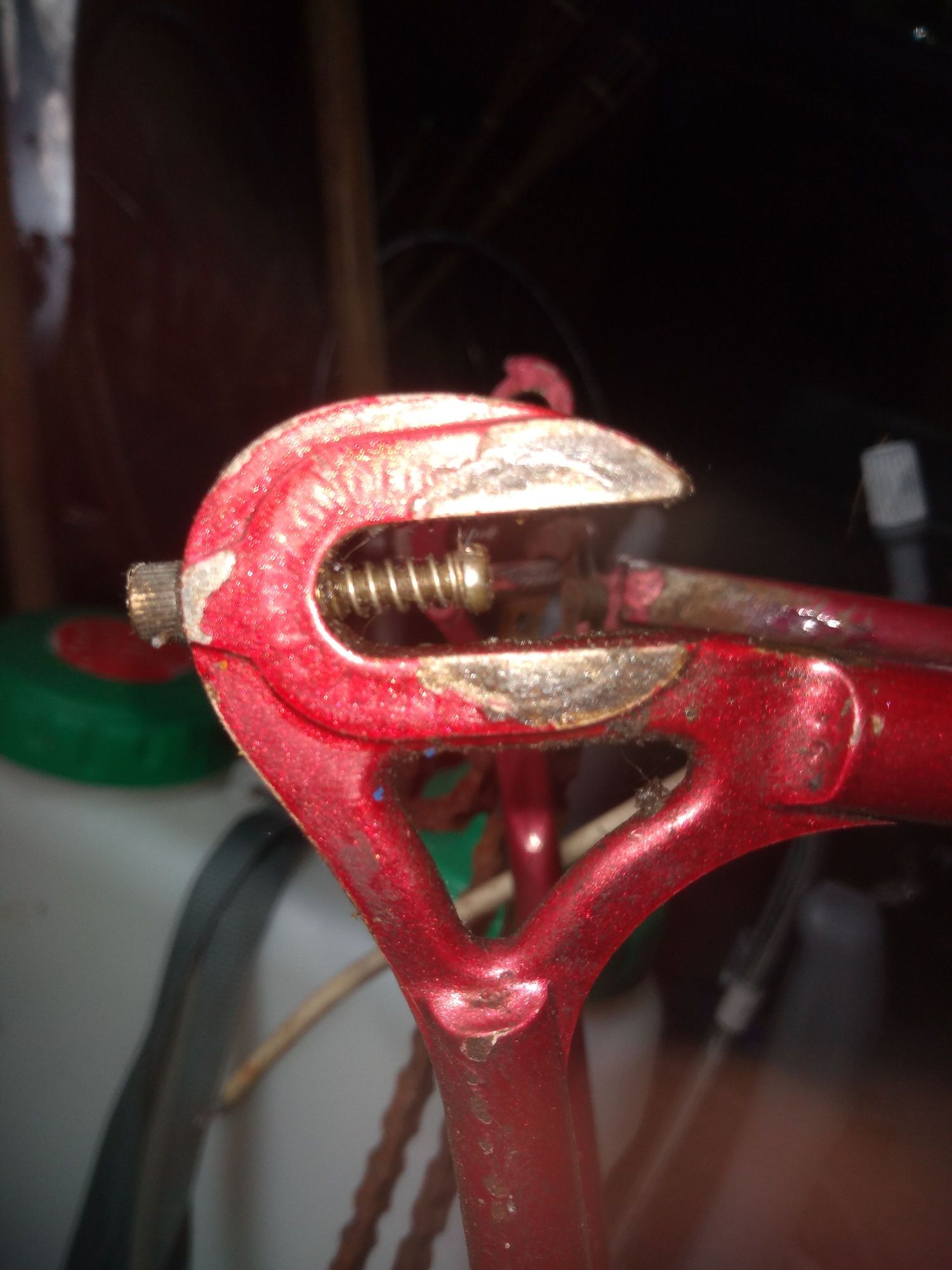

Dropouts are stamped Campagnolo.

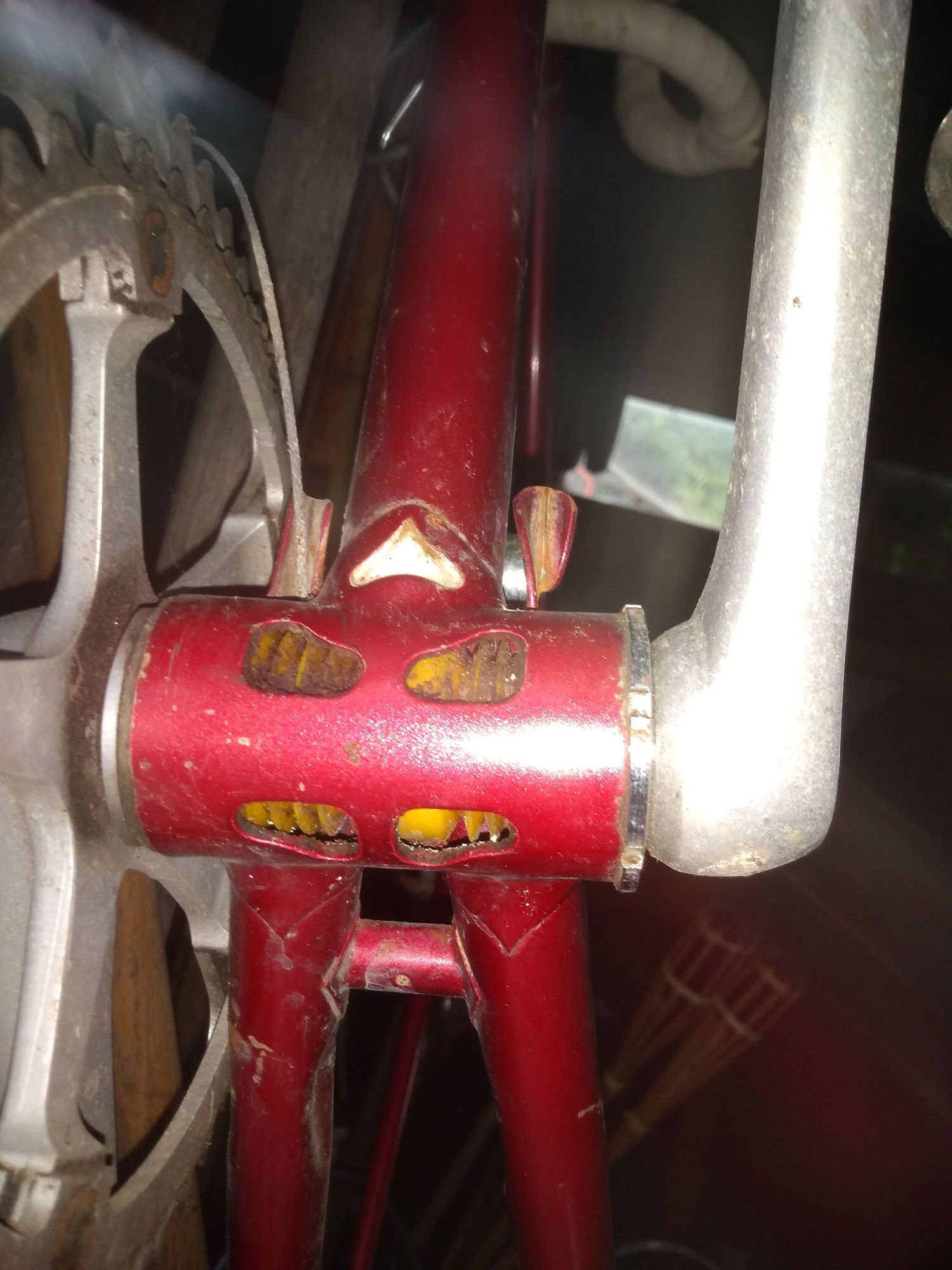

Bottom bracket looks like one from Kevindale's list. Uploaded pics in my album, but cannot post them yet.
Being a newbie sucks.
Maybe one of you guys can post themfor me.
Have looked at all the threads you suggested.
Restoration is high likely.
Should i replace the Japanese parts(Sugino, diacompe) with Campa parts?
How big are my odds to find a Tommasini fork?
Thx for all the advice.

Last edited by cb400bill; 06-16-19 at 07:24 AM. Reason: Edited to finish the word Japanese.
Macktheknife is offline
Old 06-13-19, 12:02 PM
  #18
machinist42
Senior Member

machinist42's Avatar

Join Date: Dec 2016
Location: Trails End, Wilmington, NC
Posts: 966

Bikes: 1972 Falcon San Remo, 1974 Maserati MT-1, 1974 Raleigh International, 1984 Lotus Odyssey, 198? Rossin Ghibli, 1990 LeMond Le Vanquer (sic), 1991 Specialized Allez Transition Pro.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 340 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by Macktheknife View Post
Dropouts are stamped Campagnolo.
Bottom bracket looks like one from Kevindale's list. Uploaded pics in my album, but cannot post them yet.
Being a newbie sucks.
Maybe one of you guys can post themfor me.
Have looked at all the threads you suggested.
Restoration is high likely.
Should i replace the (Asian) parts(Sugino, diacompe) with Campa parts?
How big are my odds to find a Tommasini fork?
Thx for all the advice.
FIFY







machinist42 is offline
Likes For machinist42:
Old 06-13-19, 12:16 PM
  #19
jdawginsc
Senior Member

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 109

Bikes: '87 Crestdale, '87 Basso Gap, ?Rossin Performance EL

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 6 Times in 5 Posts

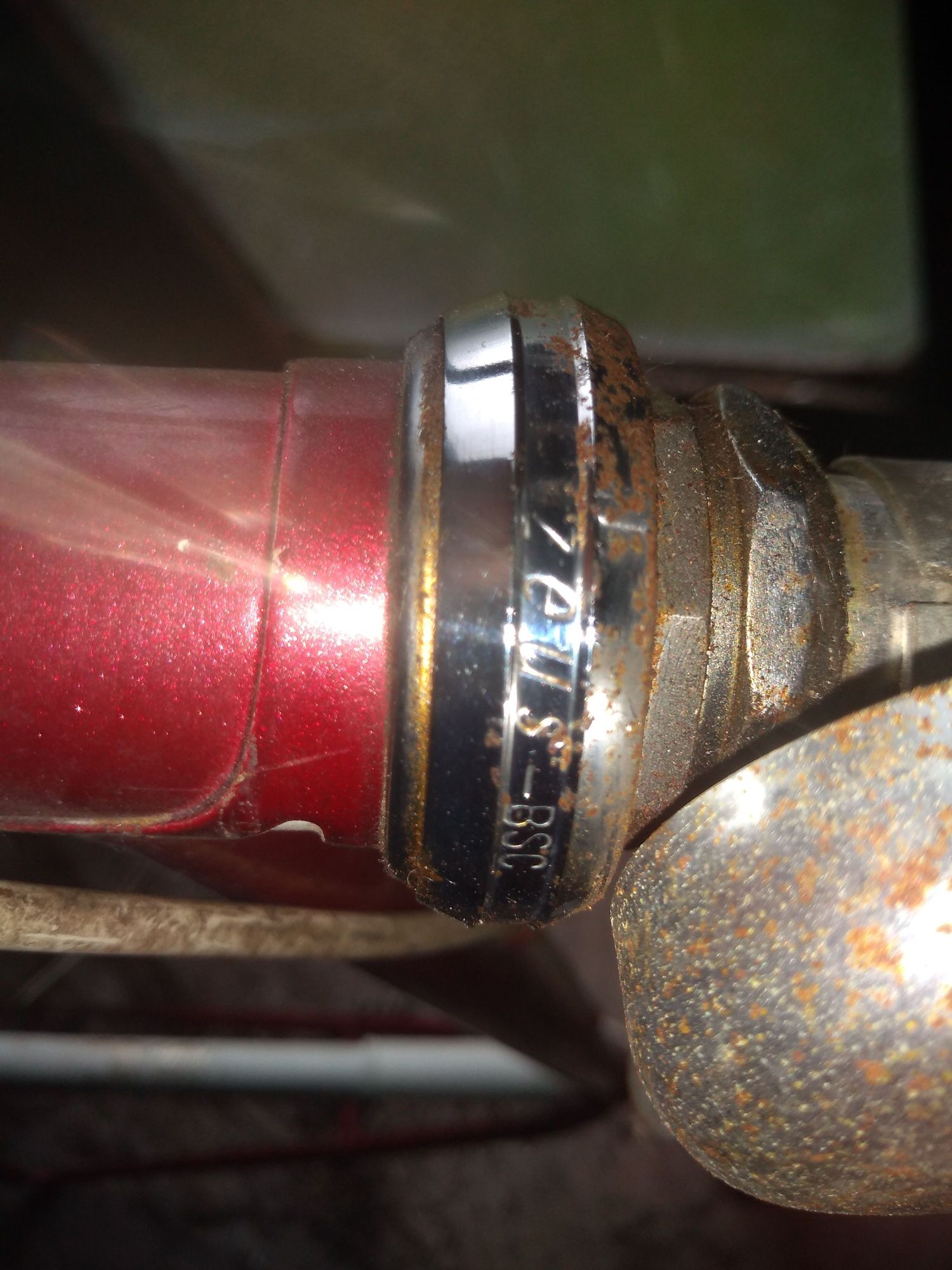

Zeus British thread headset...? Interesting.

Campagnolo drop outs. Has the cut out lugs but not the engraving.

Looks like a fun bike to restore, though.
jdawginsc is offline
Old 06-13-19, 12:33 PM
  #20
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,156

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 412 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
Zeus headset. The plot thickens...
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Old 06-14-19, 06:07 AM
  #21
qcpmsame
Semper Fi

qcpmsame's Avatar

Join Date: Jan 2008
Location: Barrineau Park, Florida
Posts: 12,396

Bikes: '80 Medici Pro Strada, '86 Tommasini Prestige, '12 CAAD 10 Ultegra

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 969 Post(s)
Liked 6 Times in 6 Posts
Originally Posted by Spaghetti Legs View Post
Also Kevindale’s outstanding thread

Tommasini timeline and serial number registry
That's the thread I wanted to link here most, I could not find it and ran out of time to just be lurking here, while at my desk in the office. That is one Tour de Force of a thread for Tommasini owners.

Bill
__________________
I Didn't Choose To Have Parkinson's Disease, I Have Chosen Not To Allow It To Define How I Live
Life Member "Hairy Eared Engineer's Society"
"I Can Do All Things Through Christ, Whom Strengthens Me" Philippians 4:13
qcpmsame is online now
Old 06-14-19, 08:04 AM
  #22
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,726
Mentioned: 424 Post(s)
Tagged: 1 Thread(s)
Quoted: 2443 Post(s)
Likes: 0
Liked 44 Times in 41 Posts
Originally Posted by Manny66 View Post
It does have all the typical early 70's decals in place,, but you could be correct. We'll find out soon with a few more pics.
While it's not the greatest image when enlarged, the photo shows that the medial side of the right rear dropout has the raised circular boss that was added for mounting the Portacatena chain device (see pic). Given that Portacatena was introduced for the 1978 model year, the frame should be no older than this. The other end of the time frame is a bit harder to peg down, as builders often had excess stock of dropouts lying around after the product was discontinued.

Given the additional picture showing the bottom bracket shell treatment, I have no reason to believe this is not a legitimate Tommasini.

The lack of embossing, particularly on the fork crown, suggests that this could be a tretubi version of the Racing model. I'm not aware of Tommasini having produced any frames below this level (i.e. Aelle or Zeta) but it would be interesting to know the seat post diameter and whether the bottom inside of the fork's steerer tube has the five helical ridges indicative of a Columbus steerer. This would aid in determining the frame's tubing configuration, given that there was some variation in the Racing models.


Last edited by T-Mar; 06-14-19 at 08:08 AM. Reason: typos & grammar
T-Mar is offline
Old 06-14-19, 09:56 AM
  #23
Macktheknife
Junior Member
Thread Starter

Join Date: Jun 2019
Posts: 14
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks, T-mar.
That's awesome news. I'm certainly going to restore it now.
I've uploaded close-ups of the right rear drop out. Added pics of the front and rear derailleur. Pics of seat stem and front fork and steering tube are on the way. But having some trouble getting them off. So that will take some more time.
I'm going to try to change everything back to Campa. Thinking of sandblasting and powdercoating the frame, but not yet sure it's the best way to go.
Macktheknife is offline
Old 06-14-19, 10:50 AM
  #24
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,726
Mentioned: 424 Post(s)
Tagged: 1 Thread(s)
Quoted: 2443 Post(s)
Likes: 0
Liked 44 Times in 41 Posts

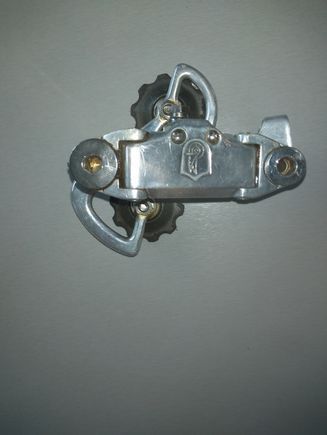

Thank-you for the additional pictures. They confirm a Portacatena dropout, which corroborates the 1978 to circa 1983 date. The rear derailleur is a slightly later, lower mid-range, Campagnolo Triomphe. It was probably built from a frame. I'm looking forward to info on seat post diameter and the presence or absence of helical ridges inside the bottom of the steerer tube. Regarding a repaint, I would give it a good cleaning and re-assess before I made a decision. There's a lot to said for retaining OEM paint and decals, especially on a bicycle like a Tommasini, even if they are far from pristine. Picture assist...


T-Mar is offline
Old 06-14-19, 11:07 AM
  #25
Macktheknife
Junior Member
Thread Starter

Join Date: Jun 2019
Posts: 14
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks for the info.
Do you have any idea where to get a Tommasini fork? Preferably in Europe.
I'm from Belgium.
The rest of the stuff i can find easily.
I'm currently negotiating on Campa brakes, headset and Nuevo Record derailleur.
Macktheknife is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
