Suntour cassettes
12-01-19 | 01:05 PM
#2
Thread Starter
Senior Member
Joined: Apr 2016
Posts: 587
Likes: 369
yes the bearings were cupped there. It was capped by a rubber gasket
the standard FR2 tool is too narrow. The notches show above measure 30mm
Clean it up and take a better pic for us please.
Did bearings fit there where grease is shown in your pic? Looks like an old shimano thread-on model with the bearings outside the freewheel. I've had a couple of those. You can't simply replace them with just any freewheel.
Though, the nice thing about these is you can repack the drive-side bearings without removing the freewheel.
Did bearings fit there where grease is shown in your pic? Looks like an old shimano thread-on model with the bearings outside the freewheel. I've had a couple of those. You can't simply replace them with just any freewheel.
Though, the nice thing about these is you can repack the drive-side bearings without removing the freewheel.
the standard FR2 tool is too narrow. The notches show above measure 30mm
Last edited by LBCwanabe; 12-01-19 at 01:08 PM.
12-01-19 | 01:13 PM
#3
Thrifty Bill
Joined: Jan 2008
Posts: 23,645
Likes: 1,109
From: Mans of NC & SW UT Desert
Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more
IF it is a cassette, it takes two chain whips. BTW, Suntour cassettes have been out of production for decades, and use a unique spline pattern. So no Shimano cassette is going to fit. You will find NOS Suntour cassettes for sale on eBay at higher prices.
The one you have is clearly shot.
The one you have is clearly shot.
12-01-19 | 01:28 PM
#4
Senior Member
Joined: Jun 2010
Posts: 2,136
Likes: 1,524
From: Medford MA
Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem
Yeah, this is a cassette. Suntour AP II was a cassette. As wrk101 says, you'll need two chain whips to remove it. One on the smallest sprocket and one on some other sprocket. Turn to "unscrew" the smallest sprocket and then the rest of them should slide off the splines. For $40-ish you can get a new-old-stock cassette on Ebay.
The two notches in the bearing race in your photo allow you to disassemble the freehub body. This should not be necessary unless the bearings and ratchet when you spin the cassette backwards are really crunchy. I would just drip some oil through these bearings.
The two notches in the bearing race in your photo allow you to disassemble the freehub body. This should not be necessary unless the bearings and ratchet when you spin the cassette backwards are really crunchy. I would just drip some oil through these bearings.
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
12-01-19 | 07:03 PM
#6
Senior Member
Joined: Jun 2010
Posts: 2,136
Likes: 1,524
From: Medford MA
Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem
I ...think so. Is it 7 speed? It looked like 7 speed from the picture, but I could be mistaken. Just stay with 7 speeds and I think you'll be fine. I mean, do a visual comparison first. Those Ebay sellers often post really good pictures. Unfortunately the usual sources don't say much about Suntour cassettes so I don't have anything authoritative, just what I've heard, which is not much.
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
12-01-19 | 07:29 PM
#7
SE Wis
Joined: Apr 2005
Posts: 11,556
Likes: 4,334
From: Milwaukee, WI
Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970
12-02-19 | 07:56 AM
#8
Thread Starter
Senior Member
Joined: Apr 2016
Posts: 587
Likes: 369

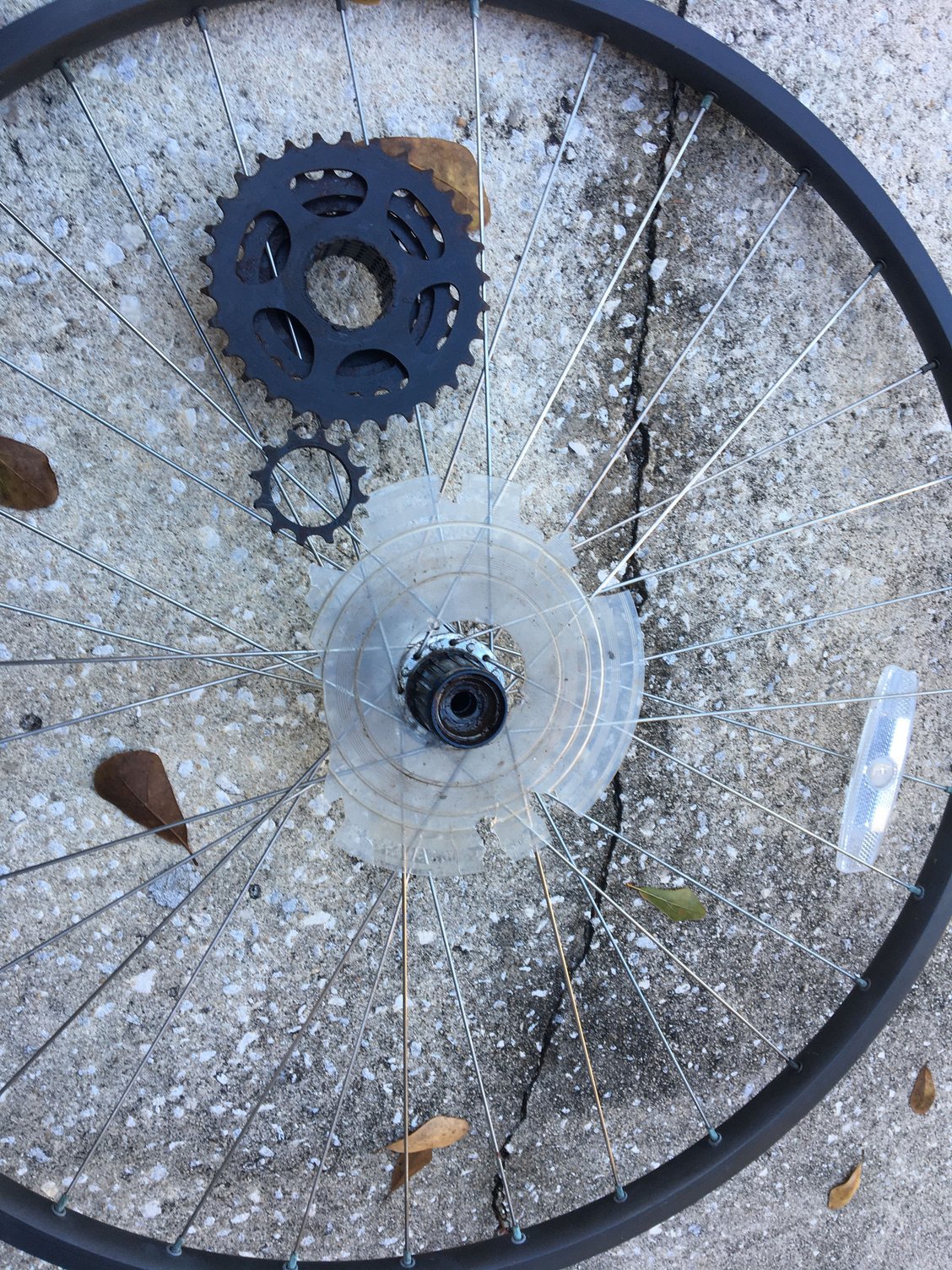

Thanks for the help CV! I ultimately had to put it in the vise and use a screwdriver and hammer 🤨
#SuntourAPII
#SuntourAPII
12-02-19 | 10:04 AM
#9
Senior Member
Joined: Dec 2016
Posts: 2,985
Likes: 1,852
From: Long Island, NY
Bikes: Trek 800 x 2, Schwinn Heavy Duti, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn Continental, Cannondale M400 and Lambert, Schwinn Super Sport
The cassette sprockets are rusty for sure, however, there does not seem to be too much wear. I don't see sharks fins or hooking on the tops of the sprockets. This may be salvageable. Is the hub still good? If so, there are several methods to remove the rust:
Evaporust
Wire Wheel
Sand Paper
Vinegar
What I do is to grind off the rivets on the largest sprocket to break the cassette down to the individual sprockets. The you can clean them up. The rivets are not needed to reassemble. They were only there to make assembly easier in the factory.
Evaporust
Wire Wheel
Sand Paper
Vinegar
What I do is to grind off the rivets on the largest sprocket to break the cassette down to the individual sprockets. The you can clean them up. The rivets are not needed to reassemble. They were only there to make assembly easier in the factory.
12-02-19 | 10:28 AM
#10
The dropped
Joined: Oct 2018
Posts: 2,182
Likes: 1,055
From: Columbus, OH
Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200, 1973 Raleigh Super Course FG, 1969 Raleigh Superbe, 1986 Miyata Nine : 1960/61 Montgomery Ward Hawthorne "thrift" 3 speed, by Hercules (sold), 1966 Schwinn Deluxe Racer (sold)
The cassette sprockets are rusty for sure, however, there does not seem to be too much wear. I don't see sharks fins or hooking on the tops of the sprockets. This may be salvageable. Is the hub still good? If so, there are several methods to remove the rust:
Evaporust
Wire Wheel
Sand Paper
Vinegar
What I do is to grind off the rivets on the largest sprocket to break the cassette down to the individual sprockets. The you can clean them up. The rivets are not needed to reassemble. They were only there to make assembly easier in the factory.
Evaporust
Wire Wheel
Sand Paper
Vinegar
What I do is to grind off the rivets on the largest sprocket to break the cassette down to the individual sprockets. The you can clean them up. The rivets are not needed to reassemble. They were only there to make assembly easier in the factory.
Word of caution if you're replacing: Later Suntour cassettes and hubs had two flavors, Accushift Plus, and Accushift Plus Microdrive. The Microdrive system was meant to reduce drivetrain weight by using 6 speed length freehubs and higher cassette gearing (in 7 speeds) paired with smaller chainrings. Fortunately, the cassettes are easy to spot with two cogs as part of the lockring instead of one. The hubs are much harder to identify, but paying attention to rubber seal that sits proud of the freehub body is a good check.
12-02-19 | 10:32 AM
#11
The dropped
Joined: Oct 2018
Posts: 2,182
Likes: 1,055
From: Columbus, OH
Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200, 1973 Raleigh Super Course FG, 1969 Raleigh Superbe, 1986 Miyata Nine : 1960/61 Montgomery Ward Hawthorne "thrift" 3 speed, by Hercules (sold), 1966 Schwinn Deluxe Racer (sold)
11-28 accushift cassettes aren't too bad, price-wise. 11-32 or the really rare 11-34 cassettes sit listed for months at $200 or get snapped up at $60. It looks like you're missing a tooth on the lockring cog.
