Swapping a 1950's Simplex outer chainring

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Swapping a 1950's Simplex outer chainring

Old 02-08-20, 07:50 AM
  #1
noahsmonark
Senior Member
Thread Starter

Join Date: Jun 2016
Location: Finland
Posts: 106
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 20 Times in 6 Posts
Swapping a 1950's Simplex outer chainring

Looking to build some confidence after having snapped off a bolt twice in the past year, causing a major headache.

I just got a good deal on a nice shiny outer chainring for my 1950's Monark Bl Blixten, will look nice with my new pedals - the old one is still working, but the tooth are starting to look nonexistent - and the shine is long gone. The inner chainring tooth are in better condition (the outer one is all I could find anyway) so I'll be replacing just the big ring.

So what I'm worried about is snapping the 70-year-old bolts, I really don't want to end up there. Not again

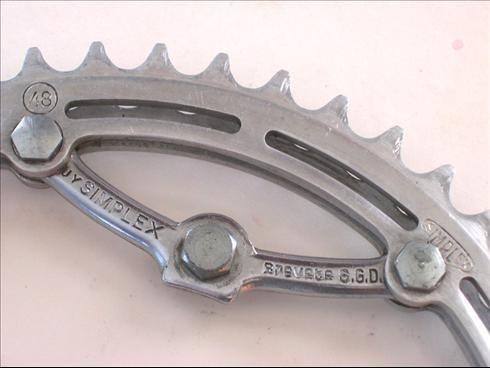

It's a Simplex, this image is from VeloBase - the model is not a 100% match but the bolts are the same type: regular hexagonal up front and a strange looking round-shaped one (with a groove in the middle) in the back.






Anyone been down this same road - any pointers?

I haven't attempted to open yet because I know my day'll be ruined if I snap something in there, so figured it's better to plan ahead/sleep on it.

I have a decent 9mm wrench close by with a shaft of about 12mm / 5 inches to give me a little torque and I'm thinking I'd get some penetrating oil from the local hardware store, let it sit a few hours and then just hope for the best. I do not know if I should apply some heat as well, never done that.

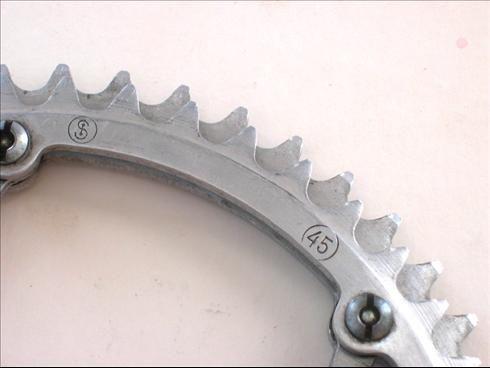

Can I just apply torque from the outward side and nevermind that strange looking nut (?) on the inside, or do I need to grab on to that groove on the inside bolt with something as well?
noahsmonark is offline
Old 02-08-20, 08:30 AM
  #2
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 1,853
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 16 Times in 14 Posts
Im interested in the advice you get as I have the same setup on an old Magistroni crank. If everything was like new its simple: you unscrew the hex head bolts like normal (the strange slotted nut is held with a big screwdriver).

However after many years they can be frozen together - the ones on my magistroni would not budge. Was thinking of trying heat next. Be aware the heads are quite shallow so easy to mar.

oh: and if you do mess up (like I did on another crank) you can use a 10mm cap screw and carefully reprofile it to have the same shape and some with a file if you are patient.
markk900 is offline
Likes For markk900:
Old 02-08-20, 08:37 AM
  #3
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 10,268
Mentioned: 135 Post(s)
Tagged: 0 Thread(s)
Quoted: 1846 Post(s)
Liked 726 Times in 376 Posts
Penetrating oil is good.
Heat is good.
Use a flat screwdriver in the slot.

Not a lot of torque is needed to hold a chainring in place. No need to crank down on it. If you need to, stop, let the oil work for a couple three days, try again.
iab is offline
Likes For iab:
Old 02-08-20, 08:55 AM
  #4
Bianchi84
Senior Member

Bianchi84's Avatar

Join Date: Feb 2017
Location: Concord, NC
Posts: 394

Bikes: 1984 Bianchi Tipo Corsa, 1985 Cannondale SM600 (24/26)

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 119 Post(s)
Liked 73 Times in 54 Posts
A flat screwdriver may or may not fit that bolt-slot; the bottom of the bolt might extend too far into the slot. You may need a specific chaining bolt tool - with two "prongs" to fit into that rear bolt.
Bianchi84 is offline
Old 02-08-20, 09:09 AM
  #5
noahsmonark
Senior Member
Thread Starter

Join Date: Jun 2016
Location: Finland
Posts: 106
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 20 Times in 6 Posts
Great stuff, appreciated.


Originally Posted by iab View Post
Heat is good.
So, going with the tools I got.

First cleanup all around the area, then some oil... Let it soak properly... Then, maybe if I used a soldering iron (?) to touch both sides of the bolt for a little while (say, 10 seconds) which would... Make the metal expand am I correct? And then let it cool off completely afterwards, then some more penetrating oil, let it soak again... Before actually attempting to loosen it. Or should the heat be applied while attempting to open?
noahsmonark is offline
Old 02-08-20, 09:13 AM
  #6
noahsmonark
Senior Member
Thread Starter

Join Date: Jun 2016
Location: Finland
Posts: 106
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 20 Times in 6 Posts
Originally Posted by Bianchi84 View Post
A flat screwdriver may or may not fit that bolt-slot; the bottom of the bolt might extend too far into the slot. You may need a specific chaining bolt tool - with two "prongs" to fit into that rear bolt.
Oh... Dang... You're right, I just checked and the bolt extends just a little too far, so a regular screwdriver won't do me any good here Another special tool to search for...
noahsmonark is offline
Likes For noahsmonark:
Old 02-08-20, 09:39 AM
  #7
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,587

Bikes: Cherubim, Alps, a few Schwinns

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 1070 Post(s)
Liked 384 Times in 249 Posts
A chainring bolt tool is not really a "special tool". Those chainring nuts with the slot are standard on modern cranks as well, although slowly bring replaced by Allen (thankfully).

Give it a try before trying heat. It might come right off. If it's giving resistance then just let it soak in oil. Eventually you can try heat. Don't use a blowtorch for too long or else the chrome will flake off the bolt. You're way more likely to round out the nut slot than break the bolt here.

Last edited by TenGrainBread; 02-08-20 at 11:34 AM.
TenGrainBread is offline
Likes For TenGrainBread:
Old 02-08-20, 10:20 AM
  #8
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 10,268
Mentioned: 135 Post(s)
Tagged: 0 Thread(s)
Quoted: 1846 Post(s)
Liked 726 Times in 376 Posts
Originally Posted by noahsmonark View Post
Great stuff, appreciated.




So, going with the tools I got.

First cleanup all around the area, then some oil... Let it soak properly... Then, maybe if I used a soldering iron (?) to touch both sides of the bolt for a little while (say, 10 seconds) which would... Make the metal expand am I correct? And then let it cool off completely afterwards, then some more penetrating oil, let it soak again... Before actually attempting to loosen it. Or should the heat be applied while attempting to open?
Soldering iron is worthless. Propane torch will not hurt a thing. Couple three minutes per bolt.
iab is offline
Old 02-08-20, 10:21 AM
  #9
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 10,268
Mentioned: 135 Post(s)
Tagged: 0 Thread(s)
Quoted: 1846 Post(s)
Liked 726 Times in 376 Posts
Originally Posted by noahsmonark View Post
Oh... Dang... You're right, I just checked and the bolt extends just a little too far, so a regular screwdriver won't do me any good here Another special tool to search for...
Take a sacrificial screwdriver, file away the middle bit.
iab is offline
Old 02-08-20, 10:23 AM
  #10
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 1,853
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 16 Times in 14 Posts
And easy to grind a slot in a flat screwdriver to clear the centre.....

iab : thanks for confirming heat from a propane torch (used carefully) wont do too much harm.
markk900 is offline
Old 02-08-20, 10:28 AM
  #11
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 10,268
Mentioned: 135 Post(s)
Tagged: 0 Thread(s)
Quoted: 1846 Post(s)
Liked 726 Times in 376 Posts
Originally Posted by markk900 View Post
And easy to grind a slot in a flat screwdriver to clear the centre.....

iab : thanks for confirming heat from a propane torch (used carefully) wont do too much harm.
Propane doesn't get hot. Nowhere near aluminum's nor steel's melting point. Fine with bronze too. It can **** up lead though.
iab is offline
Old 02-08-20, 10:29 AM
  #12
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,955

Bikes: 1959 & 1960 Capo; 1982 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 845 Post(s)
Liked 202 Times in 161 Posts
I have the same setup on one of the Capo Siegers (the one with almost all OEM parts). I applied penetrating oil and let it sit overnight before loosening the bolts, and it all came apart without much effort. I do have a chainring nut wrench and the proper hex socket -- good tools always help.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger (2), S/N 42624, 42597
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
Old 02-08-20, 10:30 AM
  #13
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,726
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1452 Post(s)
Liked 395 Times in 313 Posts
My penatrant of choice for steel fasteners is Kroil
"don't spoil it, Kroil it"

for the hex head, grind back a 6 point socket to provide full engagement of the bolt head.
Ans yes, thin a a wide "minus" screwdriver and notch it.
repechage is offline
Likes For repechage:
Old 02-08-20, 10:54 AM
  #14
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,924

Bikes: old ones

Mentioned: 259 Post(s)
Tagged: 0 Thread(s)
Quoted: 18690 Post(s)
Liked 2,221 Times in 1,632 Posts
Originally Posted by iab View Post
Soldering iron is worthless. Propane torch will not hurt a thing. Couple three minutes per bolt.
Originally Posted by iab View Post
Take a sacrificial screwdriver, file away the middle bit.
...an additional vote for both of these.

Originally Posted by repechage View Post
My penatrant of choice for steel fasteners is Kroil
"don't spoil it, Kroil it"
...I go on and on about this, but making your own penetrant from a 50/50 mix of acetone (from the paint store) and ATF (from the auto parts store) is a valuable addition to the world of taking old stuff apart. It's really quite superior, even to Kroil and the other stuff, Freeze Off (again from the auto parts store). You need to keep it in an acetone proof plastic container, but there are plenty of those around. I use one of those small , reusable plastic squeeze bottles that Tri Flow comes in. The little application straw makes it easier to apply precisely.

For some reason the stuff wicks into threaded interfaces better than anything else I've used. We did some comparison testing on old rusted stuff at the bike co-op here. It's magical.
3alarmer is online now
Old 02-08-20, 11:45 AM
  #15
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,383

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 131 Post(s)
Tagged: 0 Thread(s)
Quoted: 1902 Post(s)
Liked 869 Times in 617 Posts
Originally Posted by repechage View Post
My penatrant of choice for steel fasteners is Kroil
"don't spoil it, Kroil it"

for the hex head, grind back a 6 point socket to provide full engagement of the bolt head.
Ans yes, thin a a wide "minus" screwdriver and notch it.
+1 on grinding the socket down for flat, flush engagement, if purchase is poor, the results will also be.
merziac is offline
Old 02-11-20, 02:26 AM
  #16
noahsmonark
Senior Member
Thread Starter

Join Date: Jun 2016
Location: Finland
Posts: 106
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 20 Times in 6 Posts
Success.

DIYed a rather elegant chainring bolt tool, soaked the backside of the bolts in plenty of penetrating oil overnight (I used CRC Rust Off) and the 70-year-old bolts did come off. Didn't use heat.

Couple of 'em were pretty tight, where I almost risked rounding out the nut. For anyone doing the same thing, I would recommend filing the end of the hex socket nice and flat to get a better grip - as was suggested here. I didn't do that but luckily managed anyway with a regular 6 point socket.

I couldn't resist taking off the whole assembly and cleaning all the bits and pieces and the inner chainring - as well as turning it 90 degrees to get more life out of it. Probably over-tightened everything a bit once again, but oh well.

The inner chainring tooth were surprisingly in better condition than on the (old) outer one (which is what I replaced).

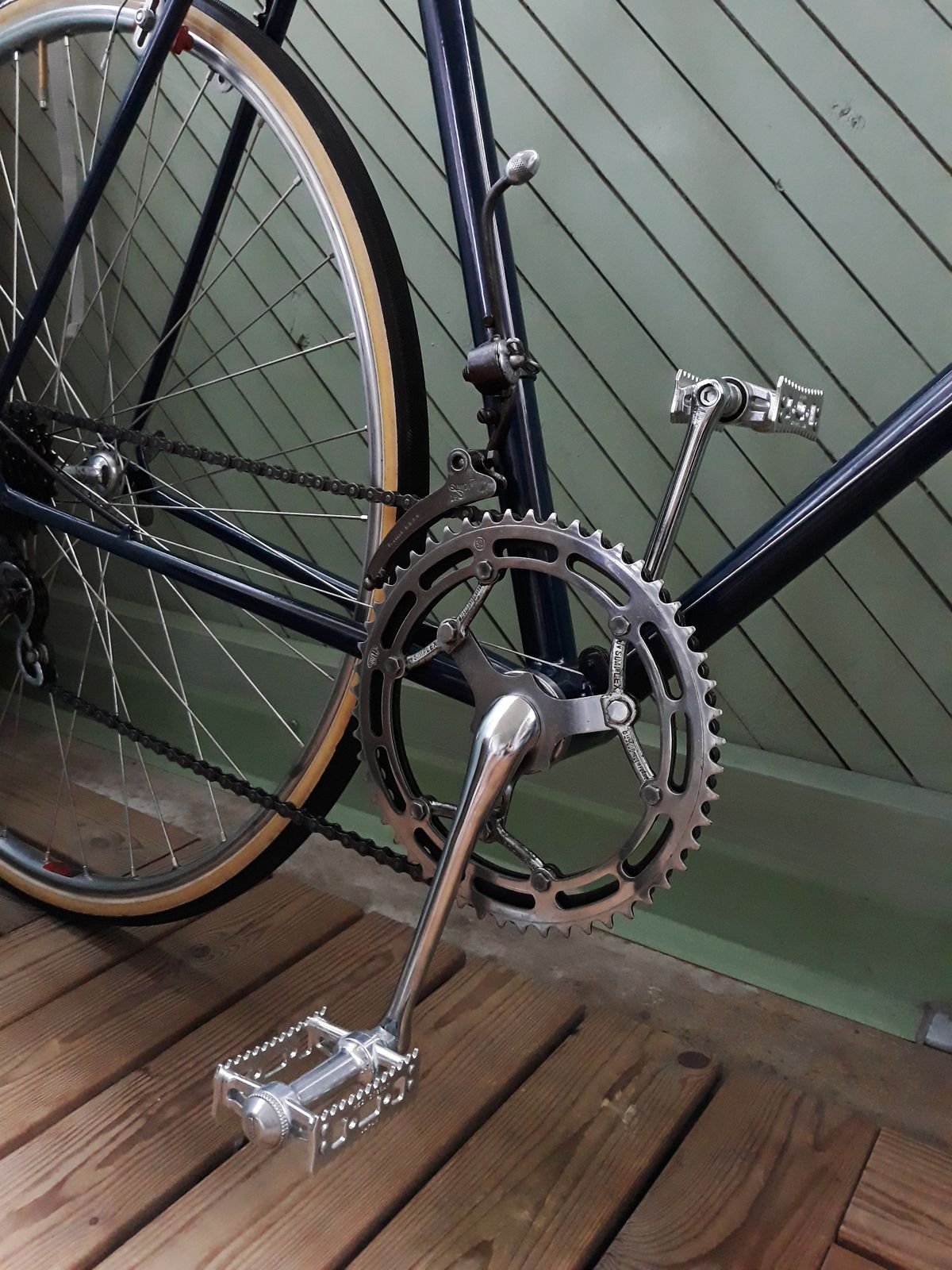

Monark's ready for the summer with it's new chainring and MKS pedals.


Last edited by noahsmonark; 02-11-20 at 02:30 AM.
noahsmonark is offline
Likes For noahsmonark:
