1972? The Dura Mixte
#1
Member
Thread Starter
1972? The Dura Mixte
Here’s a new project I’m trying to get ready for my wife to ride in Eroica California. It’s on loan from an elderly client who toured Europe on it in the early 70’s. She can’t bear to part with it yet, but there is an implied future sale or trade. So, at this time I will be doing the least expensive refurbishment that is safely rideable. Since I got the Allvit derailleur freed and functional through full range, it stays. Hubs and cranks spin relatively smoothly , but the headset is rough. Hopefully a clean and repack will do it. Other than that it’s cables, housings, chain, one bent spoke, tired, tubes and a seat substitution.
The Dura was imported by higher end shops here in the states in a he early 70’s this one by Hans Ohrt Beverly Hills. They were made in Belgium by A Declercq. I’ve only seen a few photos of higher end 531 racers with Campagnolo components. This is the only mixte I’ve seen, unfortunately neither 531 or Campagnolo equipped. Still, the workmanship and aesthetics are very nice.
Likes For Evil Cisum:
#2
Senior Member
Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 20,435
Bikes: A bunch of old bikes and a few new ones
Mentioned: 178 Post(s)
Tagged: 0 Thread(s)
Quoted: 5888 Post(s)
Liked 3,471 Times
in
2,079 Posts
This is a beautiful bike and definitely eroica worthy. Your plans sound very solid.
Are you planning on overhauling the BB and hubs? It's not clear if you plan to do so, but I would recommend it. Even if the crank and hubs turn freely, that is really old grease.
I'd also use new brake shoes.
Also AFAIK, Belgian bikes are British threaded which is a plus (but some of them have a weird 70 mm BSC bottom bracket I believe).
Are you planning on overhauling the BB and hubs? It's not clear if you plan to do so, but I would recommend it. Even if the crank and hubs turn freely, that is really old grease.
I'd also use new brake shoes.
Also AFAIK, Belgian bikes are British threaded which is a plus (but some of them have a weird 70 mm BSC bottom bracket I believe).
Last edited by bikemig; 02-09-20 at 05:39 PM.
#3
Member
Thread Starter
This is a beautiful bike and definitely eroica worthy. Your plans sound very solid.
Are you planning on overhauling the BB and hubs? It's not clear if you plan to do so, but I would recommend it. Even if the crank and hubs turn freely, that is really old grease.
I'd also use new brake shoes.
Also AFAIK, Belgian bikes are British threaded which is a plus (but some of them have a weird 70 mm BSC bottom bracket I believe).
Are you planning on overhauling the BB and hubs? It's not clear if you plan to do so, but I would recommend it. Even if the crank and hubs turn freely, that is really old grease.
I'd also use new brake shoes.
Also AFAIK, Belgian bikes are British threaded which is a plus (but some of them have a weird 70 mm BSC bottom bracket I believe).
#4
Extraordinary Magnitude
Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,646
Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT
Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 2608 Post(s)
Liked 1,700 Times
in
936 Posts
That is a cool bike! The bronze, the lining, the elegance!!!
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*
Commence to jigglin’ huh?!?!
"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
Commence to jigglin’ huh?!?!
"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
#6
Ride, Wrench, Swap, Race
Join Date: Jan 2010
Location: Northern California
Posts: 9,194
Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.
Mentioned: 132 Post(s)
Tagged: 0 Thread(s)
Quoted: 1565 Post(s)
Liked 1,296 Times
in
866 Posts
As a The Dura owner, this thread got my interest, and what an interesting bike!
All of the paint and lining with color accents, along with the silver-painted "socks", is just like on mine.

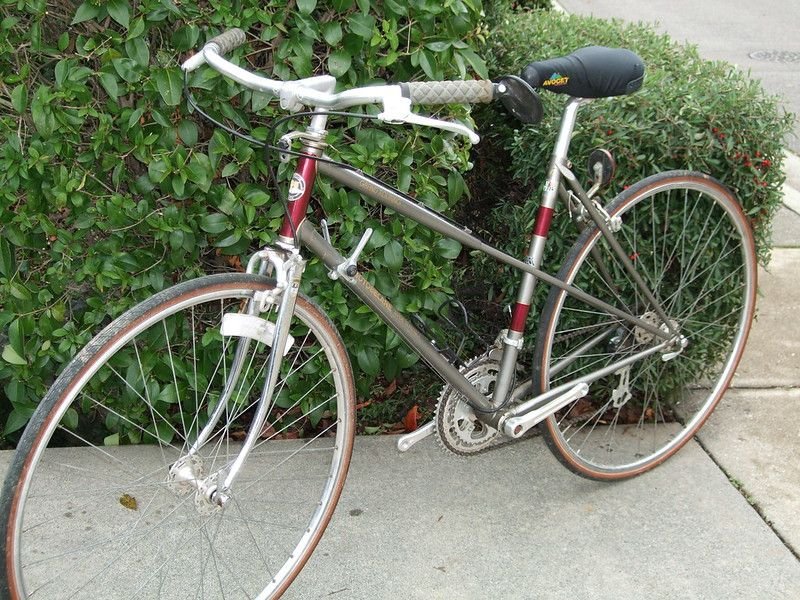

Coincidentally, today I sold a Motobecane Mixte with just that kind of toptube/mid-stay arrangement!
When I found my The Dura 11 years ago, there seemed to be zero information on the marque at that time, but now more is known (thanks for that).
Your crankset and bb will do fine with periodic oil-can lubrication, perhaps every year or two depending on usage.
Do make sure that the cotters are well-seated, alternating hammer blows to the heads of the cotters with some torque on the nuts until the nuts stop wanting to turn.
The Allvit derailer would normally sit at more like a 5-o-clock angle, might just need to be twisted forward after it got left pointing to 7-o-clock after a wheel change(?).
A rearward disposition as shown would only be needed for use with a larger 32t freewheel.
All of the paint and lining with color accents, along with the silver-painted "socks", is just like on mine.
Coincidentally, today I sold a Motobecane Mixte with just that kind of toptube/mid-stay arrangement!
When I found my The Dura 11 years ago, there seemed to be zero information on the marque at that time, but now more is known (thanks for that).
Your crankset and bb will do fine with periodic oil-can lubrication, perhaps every year or two depending on usage.
Do make sure that the cotters are well-seated, alternating hammer blows to the heads of the cotters with some torque on the nuts until the nuts stop wanting to turn.
The Allvit derailer would normally sit at more like a 5-o-clock angle, might just need to be twisted forward after it got left pointing to 7-o-clock after a wheel change(?).
A rearward disposition as shown would only be needed for use with a larger 32t freewheel.
#7
Member
Thread Starter
As a The Dura owner, this thread got my interest, and what an interesting bike!
All of the paint and lining with color accents, along with the silver-painted "socks", is just like on mine.
Coincidentally, today I sold a Motobecane Mixte with just that kind of toptube/mid-stay arrangement!
When I found my The Dura 11 years ago, there seemed to be zero information on the marque at that time, but now more is known (thanks for that).
Your crankset and bb will do fine with periodic oil-can lubrication, perhaps every year or two depending on usage.
Do make sure that the cotters are well-seated, alternating hammer blows to the heads of the cotters with some torque on the nuts until the nuts stop wanting to turn.
The Allvit derailer would normally sit at more like a 5-o-clock angle, might just need to be twisted forward after it got left pointing to 7-o-clock after a wheel change(?).
A rearward disposition as shown would only be needed for use with a larger 32t freewheel.
All of the paint and lining with color accents, along with the silver-painted "socks", is just like on mine.
Coincidentally, today I sold a Motobecane Mixte with just that kind of toptube/mid-stay arrangement!
When I found my The Dura 11 years ago, there seemed to be zero information on the marque at that time, but now more is known (thanks for that).
Your crankset and bb will do fine with periodic oil-can lubrication, perhaps every year or two depending on usage.
Do make sure that the cotters are well-seated, alternating hammer blows to the heads of the cotters with some torque on the nuts until the nuts stop wanting to turn.
The Allvit derailer would normally sit at more like a 5-o-clock angle, might just need to be twisted forward after it got left pointing to 7-o-clock after a wheel change(?).
A rearward disposition as shown would only be needed for use with a larger 32t freewheel.
My wife had a Moto Grand Touring mixte 650b conversion that she loved, but it was stolen. Consequently I watch for Moto mixtes on CL. I’ve not seen this external braising of the midstsys on them before. All that I’ve seen were fed inside the single top tube which was ovalized at the insertion. Do you know what year the one you sold was? I think my wife’s was ‘78. Do you have pictures?
#8
Shifting is fun!
Join Date: Aug 2009
Location: South Holland, NL
Posts: 11,006
Bikes: Yes, please.
Mentioned: 280 Post(s)
Tagged: 0 Thread(s)
Quoted: 2198 Post(s)
Liked 4,601 Times
in
1,764 Posts
Very nice! Thanks for sharing it. Hoping to see more.
#9
Ride, Wrench, Swap, Race
Join Date: Jan 2010
Location: Northern California
Posts: 9,194
Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.
Mentioned: 132 Post(s)
Tagged: 0 Thread(s)
Quoted: 1565 Post(s)
Liked 1,296 Times
in
866 Posts
I didn't describe the Moto well enough, it is as you describe with the stays entering the toptube.
I am more familiar with the ones having the stays going all the way to the head tube.
I am more familiar with the ones having the stays going all the way to the head tube.
#10
Senior Member
Join Date: Jun 2006
Posts: 20,305
Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 3464 Post(s)
Liked 2,829 Times
in
1,995 Posts
The shop I worked for sold this bike. '71-'72 was a trick to import them and the exchange rates were variable and a challenge.
This was also the early post containerized cargo days, consolidating less than a full container was another hassle.
Well done bikes, very little on them on the web.
Another pointer on the date would be the locations noted on the bottom of the sold by sticker.
This was also the early post containerized cargo days, consolidating less than a full container was another hassle.
Well done bikes, very little on them on the web.
Another pointer on the date would be the locations noted on the bottom of the sold by sticker.
#11
Bikes are okay, I guess.
Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 6,938
Bikes: Waterford Paramount Touring, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT
Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 2647 Post(s)
Liked 2,446 Times
in
1,557 Posts
Looks like a tall mixte frame, probably 22-23". I've never seen European mixtes taller than that. Freewheel looks like a 28T to me.
Nice bike.
Nice bike.
#12
Senior Member
Join Date: Jun 2008
Location: Louisville, KY
Posts: 13,445
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 4234 Post(s)
Liked 2,949 Times
in
1,808 Posts
Unless I'm missing something, this isn't a mixte. Cool step through frame, absolutely, but only one "top" tube.
#13
Bikes are okay, I guess.
Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 6,938
Bikes: Waterford Paramount Touring, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT
Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 2647 Post(s)
Liked 2,446 Times
in
1,557 Posts
"Sport" seems to be it.
Last edited by thumpism; 02-10-20 at 03:30 PM.
#14
Senior Member
Join Date: Jun 2006
Posts: 20,305
Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 3464 Post(s)
Liked 2,829 Times
in
1,995 Posts
Singer made step-through frames in a similar construction. I think the mid stays had more engagement.
The couple that owned the shop was tall, she was exceptionally tall, always seemed to have tall female customers.
23" step-through frames were not ignored.
The couple that owned the shop was tall, she was exceptionally tall, always seemed to have tall female customers.
23" step-through frames were not ignored.
#15
Senior Member
Join Date: Jun 2006
Posts: 20,305
Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 3464 Post(s)
Liked 2,829 Times
in
1,995 Posts
As a The Dura owner, this thread got my interest, and what an interesting bike!
All of the paint and lining with color accents, along with the silver-painted "socks", is just like on mine.
Coincidentally, today I sold a Motobecane Mixte with just that kind of toptube/mid-stay arrangement!
When I found my The Dura 11 years ago, there seemed to be zero information on the marque at that time, but now more is known (thanks for that).
Your crankset and bb will do fine with periodic oil-can lubrication, perhaps every year or two depending on usage.
Do make sure that the cotters are well-seated, alternating hammer blows to the heads of the cotters with some torque on the nuts until the nuts stop wanting to turn.
The Allvit derailer would normally sit at more like a 5-o-clock angle, might just need to be twisted forward after it got left pointing to 7-o-clock after a wheel change(?).
A rearward disposition as shown would only be needed for use with a larger 32t freewheel.
All of the paint and lining with color accents, along with the silver-painted "socks", is just like on mine.
Coincidentally, today I sold a Motobecane Mixte with just that kind of toptube/mid-stay arrangement!
When I found my The Dura 11 years ago, there seemed to be zero information on the marque at that time, but now more is known (thanks for that).
Your crankset and bb will do fine with periodic oil-can lubrication, perhaps every year or two depending on usage.
Do make sure that the cotters are well-seated, alternating hammer blows to the heads of the cotters with some torque on the nuts until the nuts stop wanting to turn.
The Allvit derailer would normally sit at more like a 5-o-clock angle, might just need to be twisted forward after it got left pointing to 7-o-clock after a wheel change(?).
A rearward disposition as shown would only be needed for use with a larger 32t freewheel.
The silver paint instead of chrome was part of their "look" Allegedly due to toxic chrome waste, in an age before most cared.
Always appreciated the pin stripes. Talent and repetition brings production speed.
#16
Bikes are okay, I guess.
Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 6,938
Bikes: Waterford Paramount Touring, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT
Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 2647 Post(s)
Liked 2,446 Times
in
1,557 Posts
OP, be sure to post pix in the Belgian bikes thread, if you have not already done so.
Show us your Belgian bikes!
Show us your Belgian bikes!
Likes For thumpism:
#17
Senior Member
Join Date: Nov 2004
Posts: 23,223
Mentioned: 654 Post(s)
Tagged: 1 Thread(s)
Quoted: 4722 Post(s)
Likes: 0
Liked 3,036 Times
in
1,874 Posts
The Dura is very nice. While it may not be 531, it has several nice touches besides those already mentioned. The finish is reminiscent of the Willier team colour. The flush fit between the down tube and BB shell s interesting. I especially like the handlebar sleeve.
My recollection of boom era brands from Belgium was that most utilized English threading but that there were some that used French threading. Given that crankset is Nervar and assuming that it has a matching Nervar BB, the adjustable cup lockring has a straight knurl which it should make it one of the French threaded exceptions.
The later style of Motobecane mixtes are different and have what I call a wishbone or split tube configuration, in that the larger diameter tube stops well short of the seat tube and branches off into the two mid-stays, which are then attached to the seat tube via a small bracket behind the sea tube.
My recollection of boom era brands from Belgium was that most utilized English threading but that there were some that used French threading. Given that crankset is Nervar and assuming that it has a matching Nervar BB, the adjustable cup lockring has a straight knurl which it should make it one of the French threaded exceptions.
The later style of Motobecane mixtes are different and have what I call a wishbone or split tube configuration, in that the larger diameter tube stops well short of the seat tube and branches off into the two mid-stays, which are then attached to the seat tube via a small bracket behind the sea tube.
Last edited by T-Mar; 02-11-20 at 12:31 PM. Reason: forgot to include images
#18
Shifting is fun!
Join Date: Aug 2009
Location: South Holland, NL
Posts: 11,006
Bikes: Yes, please.
Mentioned: 280 Post(s)
Tagged: 0 Thread(s)
Quoted: 2198 Post(s)
Liked 4,601 Times
in
1,764 Posts
From where I am sitting, it looks as if the chain may not be routed correctly through the Allvit. That would explain its strange position, I think.
WRT to the top tube arrangement, this was the popular well into at least the sixties. I have a couple of bikes with the same feature.

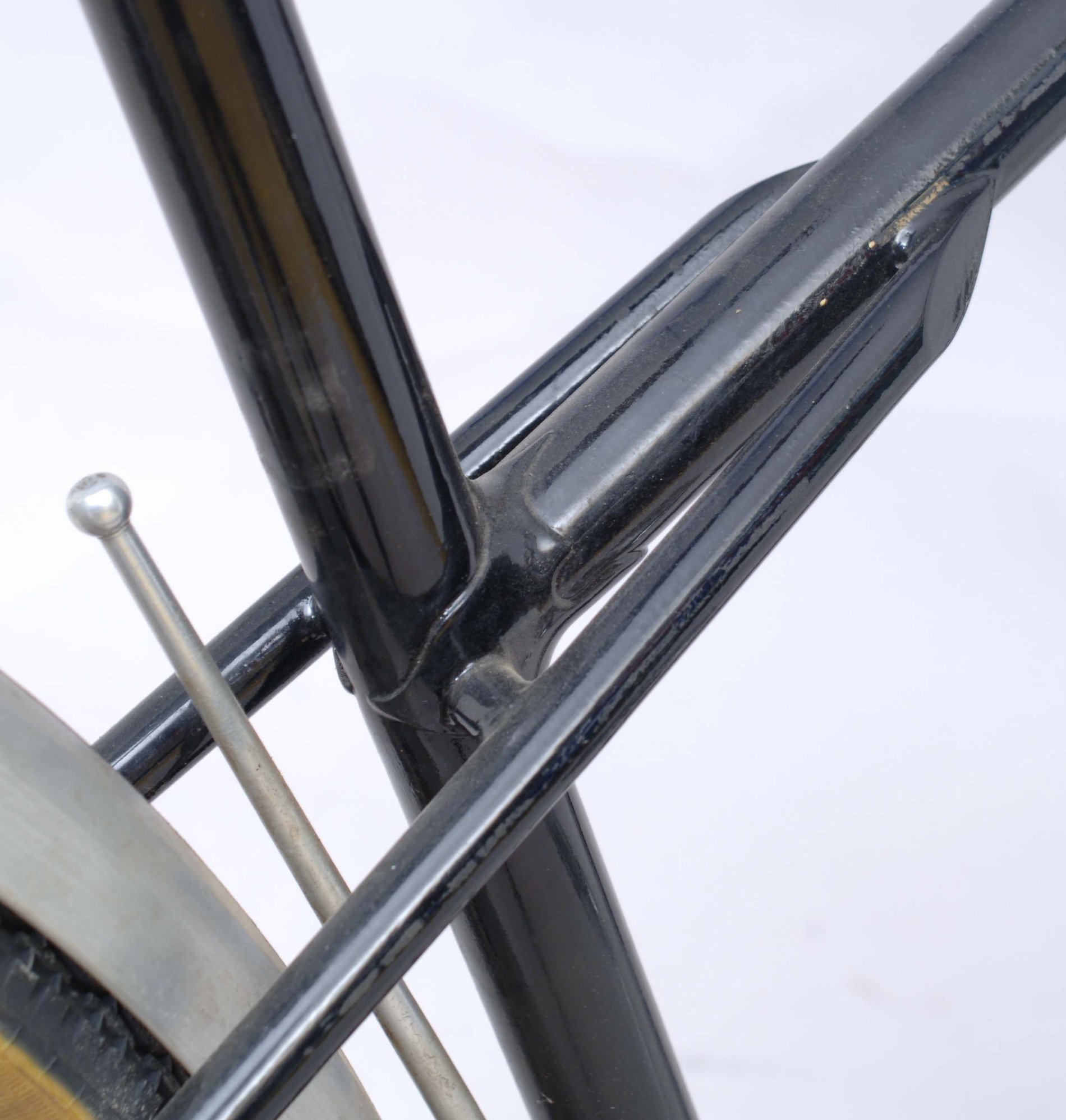

An (also Belgian) Indesteege, which I presume to have come from the Royal Nord shop,given the "RN" decals on the seat tube:

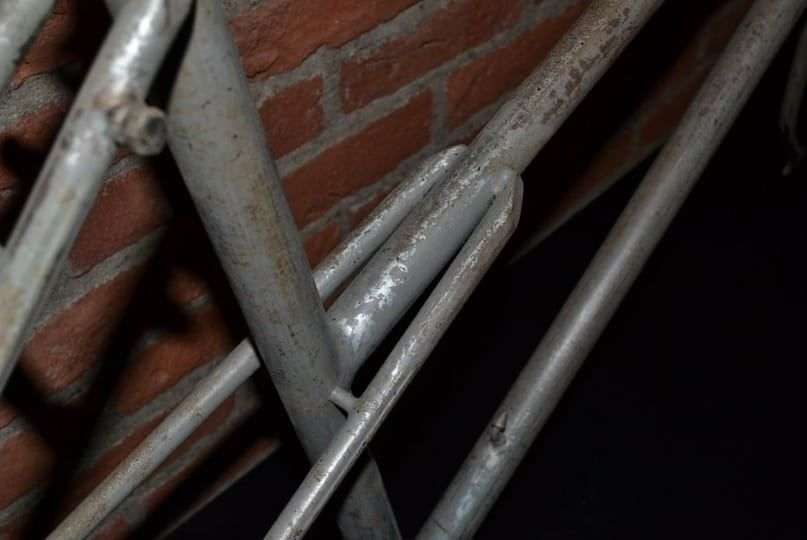

Another, unidentified, but most probably also Belgian:
For comparison, this is how René Herse did it:
WRT to the top tube arrangement, this was the popular well into at least the sixties. I have a couple of bikes with the same feature.
An (also Belgian) Indesteege, which I presume to have come from the Royal Nord shop,given the "RN" decals on the seat tube:
Another, unidentified, but most probably also Belgian:
For comparison, this is how René Herse did it:
Likes For non-fixie:
#19
Member
Thread Starter
The shop I worked for sold this bike. '71-'72 was a trick to import them and the exchange rates were variable and a challenge.
This was also the early post containerized cargo days, consolidating less than a full container was another hassle.
Well done bikes, very little on them on the web.
Another pointer on the date would be the locations noted on the bottom of the sold by sticker.
This was also the early post containerized cargo days, consolidating less than a full container was another hassle.
Well done bikes, very little on them on the web.
Another pointer on the date would be the locations noted on the bottom of the sold by sticker.
Last edited by Evil Cisum; 02-12-20 at 01:06 AM.
#20
Senior Member
Join Date: Jun 2006
Posts: 20,305
Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 3464 Post(s)
Liked 2,829 Times
in
1,995 Posts
With no Los Angeles location, only BH or Westwood, rider on bike not Lightweight Bicycles, Inc
1974 which is later than I would have thought.
The LA location shut down in 1974.
Not a house brand, but rare in the USA, imported by the shop, ordered in 1971-72.
1974 which is later than I would have thought.
The LA location shut down in 1974.
Not a house brand, but rare in the USA, imported by the shop, ordered in 1971-72.
#22
Senior Member
Join Date: Jun 2006
Posts: 20,305
Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 3464 Post(s)
Liked 2,829 Times
in
1,995 Posts
repechage I’m not sure I understand. Did you work at one of the Ohrt bicycle shops?
Before stickers the graphic was a varnish fix transfer, then waterslide decal. There was also a Serviced by decal
The style of sold by sticker reported is curious.
the location evolution on the sold by sticker :
Beverly hills (with bike rider art)
Beverly hills Los Angeles with same art.
Beverly hills, Westwood, Los Angeles with revised art, rider illustration dropped in favor of Lightweight Bicycles, Inc.
Then Beverly Hills, Westwood - typography only - Lightweight Bicycles, Inc.
Finally Westwood. all typography - Lightweight Bicycles, Inc.
There was for a short time a pro sticker, clear background, all typography, HANS OHRT lightweight bicycles, Inc. sized to fit on a rim or frame.
Last edited by repechage; 02-12-20 at 09:07 PM.
Likes For repechage:
#23
Member
Thread Starter
Yes. sometimes two in the same day. All the Southern California shops were owned by the same owners.
Before stickers the graphic was a varnish fix transfer, then waterslide decal. There was also a Serviced by decal
The style of sold by sticker reported is curious.
the location evolution on the sold by sticker :
Beverly hills (with bike rider art)
Beverly hills Los Angeles with same art.
Beverly hills, Westwood, Los Angeles with revised art, rider illustration dropped in favor of Lightweight Bicycles, Inc.
Then Beverly Hills, Westwood - typography only - Lightweight Bicycles, Inc.
Finally Westwood. all typography - Lightweight Bicycles, Inc.
There was for a short time a pro sticker, clear background, all typography, HANS OHRT lightweight bicycles, Inc. sized to fit on a rim or frame.
Before stickers the graphic was a varnish fix transfer, then waterslide decal. There was also a Serviced by decal
The style of sold by sticker reported is curious.
the location evolution on the sold by sticker :
Beverly hills (with bike rider art)
Beverly hills Los Angeles with same art.
Beverly hills, Westwood, Los Angeles with revised art, rider illustration dropped in favor of Lightweight Bicycles, Inc.
Then Beverly Hills, Westwood - typography only - Lightweight Bicycles, Inc.
Finally Westwood. all typography - Lightweight Bicycles, Inc.
There was for a short time a pro sticker, clear background, all typography, HANS OHRT lightweight bicycles, Inc. sized to fit on a rim or frame.
For the BF record, a better photo of the shop sticker.
If I understand you correctly this is a Beverly Hills sticker. Hopefully we can get some others to post up the other variants. Tomorrow I will see the owner of this bike and get a photo of the original receipt.
#24
Senior Member
Join Date: Jun 2006
Posts: 20,305
Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 3464 Post(s)
Liked 2,829 Times
in
1,995 Posts
BH or Robertson Blvd.
most likely BH
the Robertson store was more Raleigh Record, Grand Prix type area.
while Westwood was in Los Angeles- it was noted on the sticker as Westwood.
’72 -‘73 would be the timeframe most likely.
I think there were only two batches imported.
The Dura was not a “house brand”
but ordering bikes while in Europe could turn a vacation into a business trip.
Likes For repechage:
#25
Senior Member
Join Date: Jun 2006
Posts: 20,305
Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 3464 Post(s)
Liked 2,829 Times
in
1,995 Posts
If I was running the show, I would have picked up Motobecane and or Italvega at the Robertson store.
then “sold” them there but delivered them at the other locations.
They did that with Masi to good effect early on.
then “sold” them there but delivered them at the other locations.
They did that with Masi to good effect early on.
