What are these brake things?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

What are these brake things?

Old 04-18-20, 06:23 AM
  #1
ts99
Member
Thread Starter

Join Date: Jan 2020
Location: Central Pennsylvania
Posts: 47

Bikes: 1977 Trek

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Likes: 0
Liked 20 Times in 7 Posts

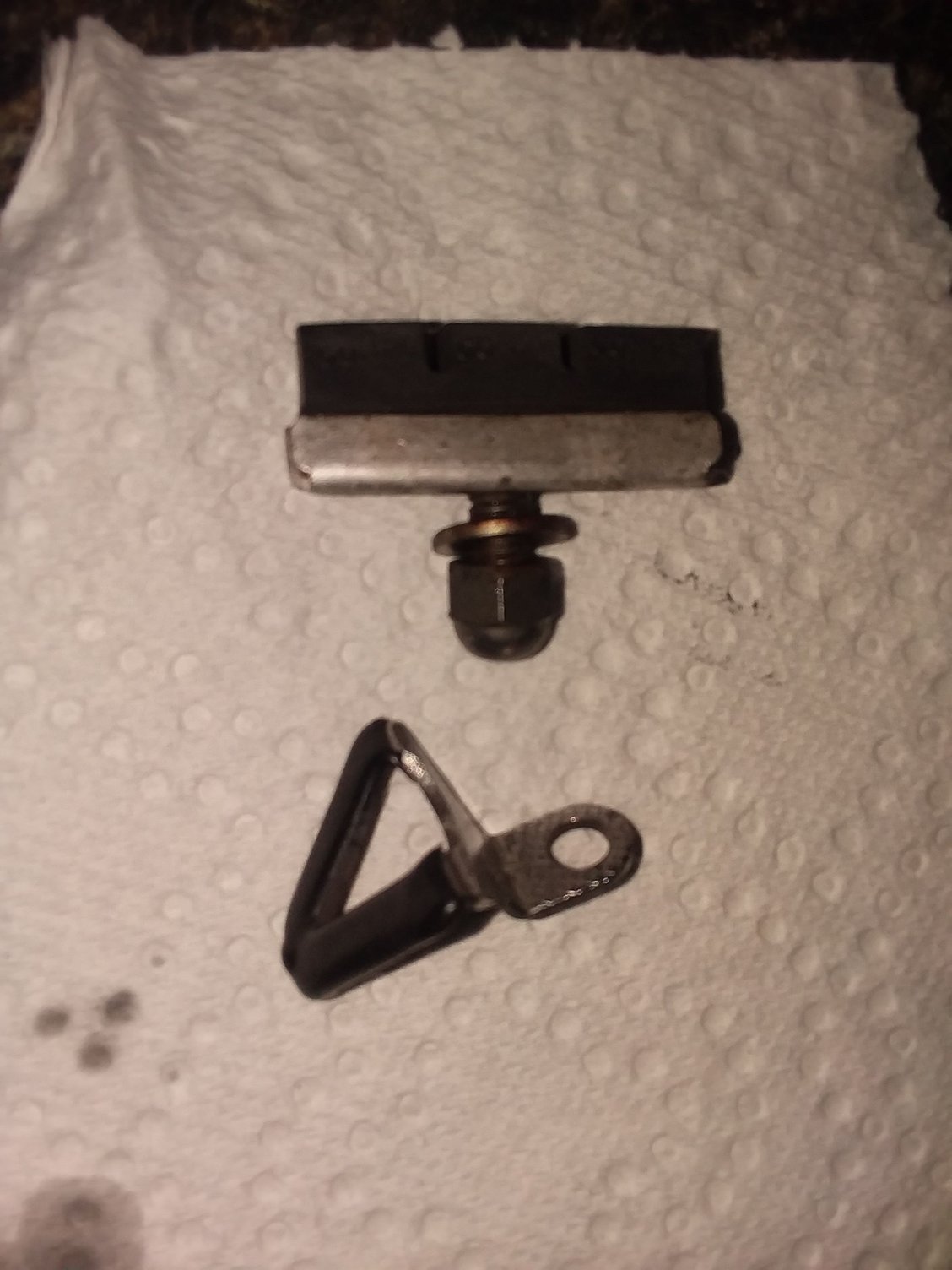

What are these brake things?

The triangular things attached to the outside of the shoes. Googling around it seems they might be exclusive to Dia Compe. What are they called and what is their purpose?
ts99 is offline
Old 04-18-20, 06:26 AM
  #2
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 27,328

Bikes: Too many to list here check my signature.

Mentioned: 142 Post(s)
Tagged: 2 Thread(s)
Quoted: 1940 Post(s)
Liked 721 Times in 455 Posts
They are wheel guides They are to aid in getting the wheel in faster when changing a flat wheel out in a race

Most upper end brakes have them but a lot Dia Compe models didn't have them attached to the holder, like CampI and Shipmano

__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Likes For Bianchigirll:
Old 04-18-20, 06:27 AM
  #3
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,710

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 971 Post(s)
Liked 608 Times in 386 Posts
ts99 Guides the tire/wheel between the pads while inserting the wheel into the drop outs. That way you don't have to pay too much attention to the tire hitting the pad or other spot outside of the slot between the pads
P1010557, on Flickr
__________________
Bikes don't stand alone. They are two tired.
SJX426 is online now
Old 04-18-20, 06:29 AM
  #4
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 27,328

Bikes: Too many to list here check my signature.

Mentioned: 142 Post(s)
Tagged: 2 Thread(s)
Quoted: 1940 Post(s)
Liked 721 Times in 455 Posts
^ My favorite brake.
__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Old 04-18-20, 07:00 AM
  #5
ts99
Member
Thread Starter

Join Date: Jan 2020
Location: Central Pennsylvania
Posts: 47

Bikes: 1977 Trek

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Likes: 0
Liked 20 Times in 7 Posts
Thanks. Now I know.

I might take them off.
ts99 is offline
Old 04-18-20, 06:17 PM
  #6
jmlandry77
Senior Member

Join Date: Mar 2016
Location: NW Suburbs of Minneapolis
Posts: 83

Bikes: 2018 Specialized Crave, 2018 Fuji Tahoe, 1989? Nishiki International, SOLD Miyata 712, SOLD Stumpjumpers- several, SOLD Specialized Sirrus, SOLD Raleigh Technium, SOLD Lemond Zurich...

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked 20 Times in 13 Posts
Originally Posted by SJX426 View Post
ts99 Guides the tire/wheel between the pads while inserting the wheel into the drop outs. That way you don't have to pay too much attention to the tire hitting the pad or other spot outside of the slot between the pads
P1010557, on Flickr
What kind of brake caliper is that? Window on the side to allow for a wider arm, nice....
jmlandry77 is offline
Old 04-18-20, 06:27 PM
  #7
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 9,387

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 2787 Post(s)
Likes: 0
Liked 1,282 Times in 875 Posts
In a race, doing a fast wheel change, they might make a second or two difference. That second or two might be the difference between getting back into the peloton after a flat and not making. So nuisance items for most of us but could be Tour de France deciding.
79pmooney is offline
Old 04-18-20, 06:46 PM
  #8
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,363
Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1186 Post(s)
Likes: 0
Liked 219 Times in 165 Posts
Originally Posted by Chuckk View Post
First thing we pulled off, "Back in the Day".
Uhmmm........I don't think caliper wheel guides are in the same category as reflectors, turkey levers and "dork discs"......
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Likes For Chombi1:
Old 04-18-20, 06:52 PM
  #9
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 7,172

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 101 Post(s)
Tagged: 0 Thread(s)
Quoted: 1658 Post(s)
Liked 771 Times in 510 Posts
Originally Posted by jmlandry77 View Post
What kind of brake caliper is that? Window on the side to allow for a wider arm, nice....
Chorus monoplaner methinks.
clubman is offline
Old 04-18-20, 07:07 PM
  #10
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,710

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 971 Post(s)
Liked 608 Times in 386 Posts
Yes, Chorus Monoplaner. Other side
P1010558, on Flickr
__________________
Bikes don't stand alone. They are two tired.
SJX426 is online now
Old 04-18-20, 08:48 PM
  #11
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,892
Mentioned: 562 Post(s)
Tagged: 1 Thread(s)
Quoted: 3766 Post(s)
Likes: 0
Liked 1,180 Times in 877 Posts
Nobody in my region removed them. They were considered a status symbol, as they were an indicator of a higher grade bicycle or at least a higher grade brakeset. Eventually, their status diminished as the feature trickled down to lower grade brakesets.
T-Mar is offline
Likes For T-Mar:
Old 04-18-20, 09:08 PM
  #12
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 9,501
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 660 Post(s)
Liked 293 Times in 191 Posts
Originally Posted by ts99 View Post
Thanks. Now I know.

I might take them off.
I think you'll find that the inner side of the Dia-Compe caliper is slotted for the wheel guide. If you leave them out the brake shoe won't tighten properly- it doesn't have enough surface area to hold it in place.
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Likes For Jeff Wills:
Old 04-19-20, 12:25 AM
  #13
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,381

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 504 Post(s)
Liked 115 Times in 76 Posts
They also come in very handy when making brake adjustments.
Bad Lag is offline
Likes For Bad Lag:
Old 04-19-20, 02:02 AM
  #14
daviddavieboy
Senior Member

daviddavieboy's Avatar

Join Date: Oct 2013
Location: Great White North
Posts: 806

Bikes: Yeah, I have some.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 282 Post(s)
Liked 87 Times in 47 Posts
Originally Posted by Chuckk View Post
First thing we pulled off, "Back in the Day".
Man, that must have been a PITA. All the ones I have are attached to the brake pad holder and would have to be cut/ground off.
daviddavieboy is offline
Old 04-19-20, 04:20 AM
  #15
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,412

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 167 Post(s)
Tagged: 0 Thread(s)
Quoted: 748 Post(s)
Liked 416 Times in 278 Posts
Wheel Guides

Originally Posted by T-Mar View Post
Nobody in my region removed them. They were considered a status symbol, as they were an indicator of a higher grade bicycle or at least a higher grade brakeset.
Exactly! Just like integral RD hangers.

Better bikes didn't have suicide levers and rarely dork disks or reflectors either.

The cool thing was to remove the dust caps on the cranks.

Campy Monplaner brakes are beautifully sculpted and stop very well! Really beefy too. I have them on several bikes plus a couple of sets in a drawer.

The original brake blocks had rounded ends. Someone used standard Campy NR carriers and pads on this set.



Rounded ends, sometimes gray pads.




.... and yes they do help getting a wheel in quickly.

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 04-21-20 at 04:25 AM.
verktyg is offline
Likes For verktyg:
Old 04-19-20, 07:03 AM
  #16
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 2,403

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 767 Post(s)
Liked 537 Times in 321 Posts
Originally Posted by Bad Lag View Post
They also come in very handy when making brake adjustments.
Yep, until they break off during brake adjustments.
Moe Zhoost is offline
Old 04-20-20, 10:12 AM
  #17
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,381

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 504 Post(s)
Liked 115 Times in 76 Posts
Originally Posted by Moe Zhoost View Post
Yep, until they break off during brake adjustments.
What's the story behind this?

I've never had that happen. There's never been a hint of weakness or even bending in mine. What are you doing that you put enough force into the wheel guide that you can break it?
Bad Lag is offline
Old 04-20-20, 11:21 AM
  #18
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,710

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 971 Post(s)
Liked 608 Times in 386 Posts
Originally Posted by Bad Lag View Post
What's the story behind this?

I've never had that happen. There's never been a hint of weakness or even bending in mine. What are you doing that you put enough force into the wheel guide that you can break it?
Yeah and why not use the pad/mount itself instead of a leveraged appendix?
__________________
Bikes don't stand alone. They are two tired.
SJX426 is online now
Old 04-20-20, 06:37 PM
  #19
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 2,403

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 767 Post(s)
Liked 537 Times in 321 Posts
Originally Posted by Bad Lag View Post
What's the story behind this? I've never had that happen. There's never been a hint of weakness or even bending in mine. What are you doing that you put enough force into the wheel guide that you can break it?
Using them as landings for a third hand tool instead of positioning the tool on the pad nuts. If you have used one of these tools, you know that you first anchor the far end and then pull toward you to spread the spring to anchor it on the inside pad. The pulling force is a bit too much for the thin guides, it seems. I made a mental note to not use the guides this way again.
Moe Zhoost is offline
Old 04-20-20, 06:54 PM
  #20
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 12,373

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 3992 Post(s)
Liked 1,790 Times in 1,144 Posts
Those non-aero doodads cost me a time trial podium spot.

Well, that and my puny 200 Watt output.
canklecat is offline
Old 04-20-20, 07:40 PM
  #21
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,331
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 604 Post(s)
Liked 618 Times in 362 Posts
Originally Posted by verktyg View Post
The original brake blocks had rounded ends. Someone used standard Campy NR carriers and pads on this set.
My understanding is the 1st gen Monoplaners with the not quite so beefy arms came with square blocks which had a white (and black?) plastic wrapping on the wheel guides:



Where the ones in your pics came with rounded blocks which did away with the plastic wrap. However, I'm sure there were overlaps and leftovers and swaps and and and...

...great brakes though.
P!N20 is offline
Old 04-20-20, 08:20 PM
  #22
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,381

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 504 Post(s)
Liked 115 Times in 76 Posts
Originally Posted by Moe Zhoost View Post
Using them as landings for a third hand tool instead of positioning the tool on the pad nuts. If you have used one of these tools, you know that you first anchor the far end and then pull toward you to spread the spring to anchor it on the inside pad. The pulling force is a bit too much for the thin guides, it seems. I made a mental note to not use the guides this way again.
Okay, got it. I don't do that and now I know NOT to do that.
Bad Lag is offline
Old 04-20-20, 08:22 PM
  #23
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,381

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 504 Post(s)
Liked 115 Times in 76 Posts
Originally Posted by SJX426 View Post
Yeah and why not use the pad/mount itself instead of a leveraged appendix?
The guides hang down below the rim and they have well, as you said,... LEVERAGE. :-)
Bad Lag is offline
Old 04-21-20, 06:13 AM
  #24
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,412

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 167 Post(s)
Tagged: 0 Thread(s)
Quoted: 748 Post(s)
Liked 416 Times in 278 Posts
Campy Mono-Planar Brakes

Originally Posted by P!N20 View Post
My understanding is the 1st gen Monoplaners with the not quite so beefy arms came with square blocks which had a white (and black?) plastic wrapping on the wheel guides:



Where the ones in your pics came with rounded blocks which did away with the plastic wrap. However, I'm sure there were overlaps and leftovers and swaps and and and...

...great brakes though.
The first Mono-Planar brakes came out in July, 1987 as part of the then new Chorus gruppo. They used the same black brake blocks and holders as NR brakes except with light gray plastic coverings on the wheel guides. I've seen some with gray blocks too but they may not have been original???



The 1991 Chorus Mono-Planar brakes had rounded blocks and no covering on the wheel guides.



I've never heard about any complaints or differences in the mono-planar calipers. All the ones that I have are the same.

Could be someone have confused the 1990 Athena single pivot brakes with mono-planars??? They look similar.



I've seen some mono-planars on eBay that had a flat non-anodized finish from lower level gruppos. They looked cheap.

BTW, I've never seen the steel Campy brake pad holder bend while being used to adjust the brakes. They're pretty strong. The aluminum carriers that were used on SR brakes, now they bend and break easily.

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 04-21-20 at 06:16 AM.
verktyg is offline
Old 04-21-20, 06:32 AM
  #25
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,331
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 604 Post(s)
Liked 618 Times in 362 Posts
Originally Posted by verktyg View Post
I've never heard about any complaints or differences in the mono-planar calipers. All the ones that I have are the same.
I couldnít get my 1st gen Monoplaners to stop squealing, so I ended up replicating toe-in by cutting the pad at an angle. Didnít have that problem with the fatter arm version, but there are a few variables I didnít do a thorough experiment with.
P!N20 is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
