Retro BB identification

Search
Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Retro BB identification

Thread Tools

Search this Thread

Old 05-04-20 | 08:55 AM
  #1
Thread Starter
Junior Member

Joined: Mar 2020
Posts: 10
Likes: 0
Retro BB identification

I can't post pictures as I don't have 10 posts yet. I'm trying to identify a BB on a retro (1980's ?) Rotary bike. The drive side has what looks like a big washer, about 35mm across, with two flats.

The non-drive side has a 24mm nut, and a lockring with 4 equally space notches.

If I can identify it I can get the removal tool, or work out what I need to remove it...
dvenman is offline
Reply
Old 05-04-20 | 09:32 AM
  #2
branko_76's Avatar
Senior Member
Titanium Club Membership
5 Anniversary

Joined: Jun 2018
Posts: 1,843
Likes: 722
From: The Urban Shores Of Michigami

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .........Miyata 912........... ........................................

what's a "Rotary" bike ?
branko_76 is offline
Reply
Old 05-04-20 | 10:33 AM
  #3
unworthy1's Avatar
Stop reading my posts!
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 14,004
Likes: 2,204

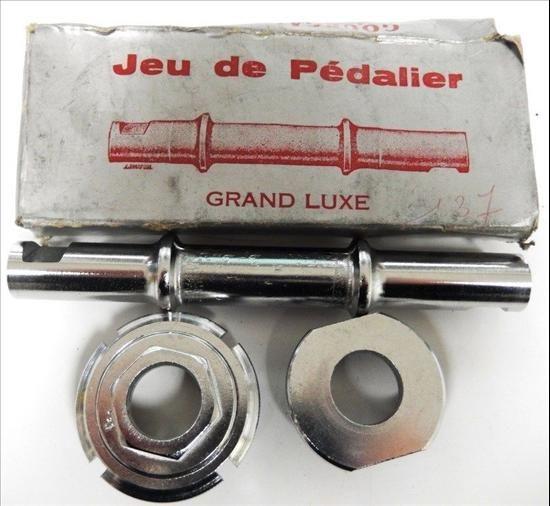

post some more so you can upload a pic but from the mental image I get based on words written, I think maybe French, possible
"Lightrace" or Nervar. Here's something from Velobase, look familiar to you?
unworthy1 is offline
Reply
Old 05-04-20 | 10:59 AM
  #4
Thread Starter
Junior Member

Joined: Mar 2020
Posts: 10
Likes: 0
That looks like it. I’ll post pictures as soon as I can.

The crank axle itself is a square taper, but those other bits look similar.
dvenman is offline
Reply
Old 05-04-20 | 11:22 AM
  #5
unworthy1's Avatar
Stop reading my posts!
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 14,004
Likes: 2,204
Originally Posted by dvenman
That looks like it. I’ll post pictures as soon as I can.

The crank axle itself is a square taper, but those other bits look similar.

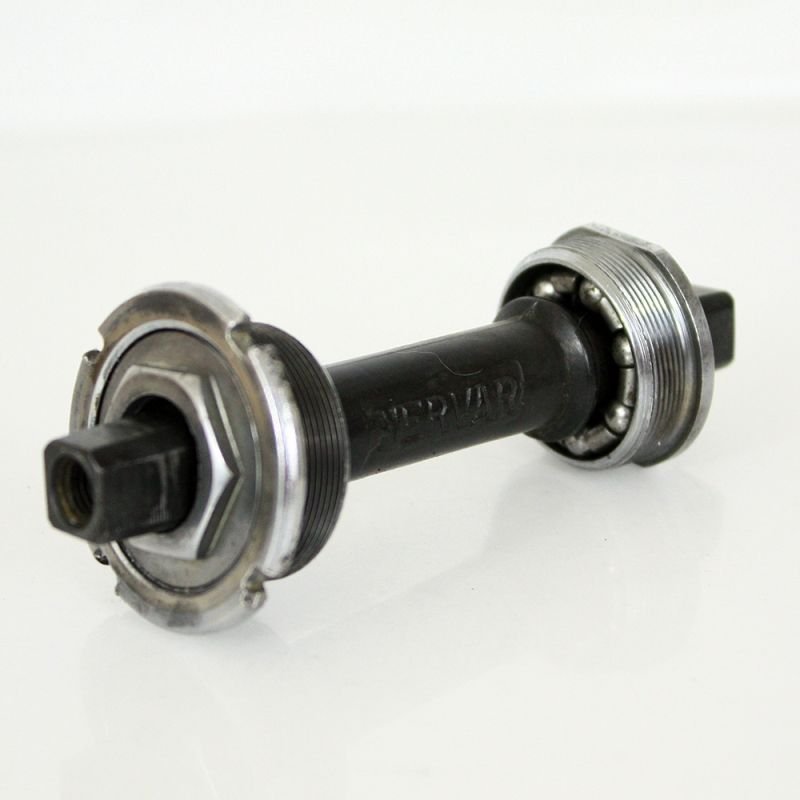

Her's a pic of a Nervar, this might be for a "Star" crankset but they made other models that used similar BB units. And by "Rotary" did you mean

maybe "Rotrax" ( a vernerable British make)?
unworthy1 is offline
Reply
Old 05-04-20 | 12:43 PM
  #6
Thread Starter
Junior Member

Joined: Mar 2020
Posts: 10
Likes: 0
Looks promising. So a lock ring spanner, and a Park Tool HCW-4 or similar seems like it'll do the trick
dvenman is offline
Reply
Old 05-04-20 | 01:22 PM
  #7
branko_76's Avatar
Senior Member
Titanium Club Membership
5 Anniversary

Joined: Jun 2018
Posts: 1,843
Likes: 722
From: The Urban Shores Of Michigami

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .........Miyata 912........... ........................................

Originally Posted by dvenman
Looks promising. So a lock ring spanner, and a Park Tool HCW-4 or similar seems like it'll do the trick
Your first post you state the fixed cup is 35mm, the Park Tool HCW-4 is 36mm so will not work. Also, the pins are useless for your bottom bracket.

I use a 12" adjustable wrench for my BB's that have 35mm fixed cups. My Diamond Tool wrench opens to exactly 35mm

Last edited by branko_76; 05-04-20 at 01:26 PM.
branko_76 is offline
Reply
Old 05-04-20 | 01:32 PM
  #8
branko_76's Avatar
Senior Member
Titanium Club Membership
5 Anniversary

Joined: Jun 2018
Posts: 1,843
Likes: 722
From: The Urban Shores Of Michigami

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .........Miyata 912........... ........................................

For the lockring, this is a little more expensive than a Park Spanner but is much more versatile and easier to use.

https://www.mcmaster.com/5471a12
