Identifying unknown frame

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Identifying unknown frame

Old 06-19-20, 05:16 AM
  #1
async
Junior Member
Thread Starter

Join Date: Jun 2020
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 0 Times in 0 Posts
Identifying unknown frame

Hello everyone,

Recently came in possesion of a frame which i cant identify and the owner has no idea either, would be grateful is maybe somebody recognises at least what the manufacturer is

Here is what pieces of information i do have
-Likely italian frame
-Italian thread BB
-Gipiemme dropouts
-Unknown lugs
-26.2 or 26.6 seat tube
-2.189kg frame, allegedly its columbus aelle
-inside of headtube is red, so im thinking it could have been painted red previously

For some reason forum wont let me upload so i put the full image set on imgur
imgur . com/a/ovOI7gU

Thank you, regards

Last edited by async; 06-19-20 at 07:48 AM.
async is offline
Old 06-19-20, 06:12 AM
  #2
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,264

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 496 Post(s)
Liked 371 Times in 247 Posts
async , you'll need 10 posts before you can post photos.

Do you intend to build it up and ride it, or sell it?
branko_76 is offline
Old 06-19-20, 07:47 AM
  #3
async
Junior Member
Thread Starter

Join Date: Jun 2020
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by branko_76 View Post
async , you'll need 10 posts before you can post photos.

Do you intend to build it up and ride it, or sell it?
Oh! that explains it. When i went to upload, it would just pop up a window saying "Alert", and thats that, just an empty window titled "Alert"
Im building it up with the 600 tricolor groupset, just put a coat of primer today, will finish up the paint soon, wanted to also post that here but guess my plan is foiled now!
If i were to sell it, i dont even know how to appraise it (i didnt ask for appraisal on purpose, because then it'd be in the wrong forum section).
Time to post more on the forums i guess.

I just wanted to know what frame it is (or hell, even the lugs), just to know about the history of what im sitting on and what i have. Im tired already of people asking me "cool, what frame is it?" and me replying "dont know, guy selling also didnt know".
There's some knowledgable folks here so i wouldnt be surprised if someone figures it our by some detail by some off-chance.
async is offline
Old 06-19-20, 08:26 AM
  #4
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: San Francisco Bay Area
Posts: 3,005

Bikes: fewer (n-1)

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 816 Post(s)
Likes: 0
Liked 505 Times in 248 Posts
async Photo assist:














Brent
obrentharris is offline
Likes For obrentharris:
Old 06-19-20, 08:34 AM
  #5
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,118
Mentioned: 529 Post(s)
Tagged: 1 Thread(s)
Quoted: 3413 Post(s)
Likes: 0
Liked 807 Times in 629 Posts
It looks pretty generic and early 1980s. A 26.6mm post would be one size too small even got Aelle, though it would be appropriate for Zeta. 26.2mm was common for a lot of Italian light weight hi-tensile steels. However, I typically wouldn't expect frames with these tubesets to have investment cast fittings and reinforcing tangs.
T-Mar is offline
Old 06-19-20, 09:16 AM
  #6
async
Junior Member
Thread Starter

Join Date: Jun 2020
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by obrentharris View Post
async Photo assist:

Brent
Thank you Brent!


Originally Posted by [color=#222222
T-Mar]It looks pretty generic and early 1980s. A 26.6mm post would be one size too small even got Aelle, though it would be appropriate for Zeta. 26.2mm was common for a lot of Italian light weight hi-tensile steels. However, I typically wouldn't expect frames with these tubesets to have investment cast fittings and reinforcing tangs.
Interesting, that's already telling information! My vernier says its 26.2, but when i put a 26.2 seat its not like its loose, but it takes a bit too much travel to clamp down for my taste, so im thinking it might be even 26.4 or 26.6 (but 26.4 isnt that common, is it?)
async is offline
Old 06-19-20, 09:26 AM
  #7
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 7,911

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 427 Post(s)
Liked 144 Times in 105 Posts
Originally Posted by async View Post
Thank you Brent!




Interesting, that's already telling information! My vernier says its 26.2, but when i put a 26.2 seat its not like its loose, but it takes a bit too much travel to clamp down for my taste, so im thinking it might be even 26.4 or 26.6 (but 26.4 isnt that common, is it?)
26.4 wasn't common on Italian road bikes, but was a some what common size post on Japanese built Road and MTB's so these posts are pretty easy to find.
zukahn1 is offline
Old 06-19-20, 09:35 AM
  #8
Wileyone
Senior Member

Wileyone's Avatar

Join Date: Oct 2014
Location: GWN
Posts: 2,385
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1431 Post(s)
Liked 278 Times in 191 Posts
Originally Posted by zukahn1 View Post
26.4 wasn't common on Italian road bikes, but was a some what common size post on Japanese built Road and MTB's so these posts are pretty easy to find.

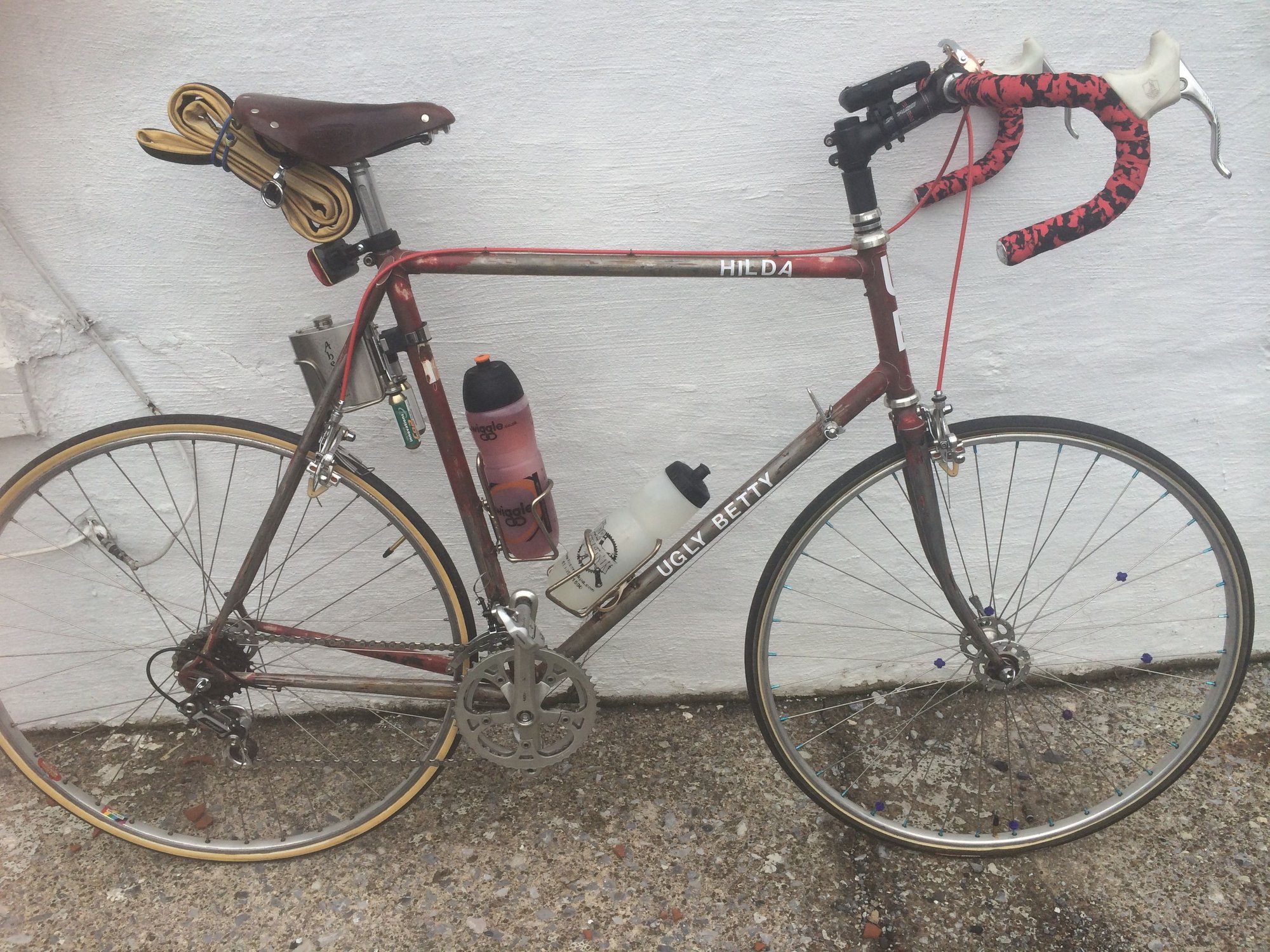

My La jeune by B.Carre is 26.4 and has the same lugs.

Last edited by Wileyone; 06-19-20 at 09:40 AM.
Wileyone is offline
Old 06-20-20, 06:57 AM
  #9
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,722
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
Liked 101 Times in 70 Posts
You're gonna need a fork pretty soon; don't get ahead of yourself.
Charles Wahl is offline
Old 06-20-20, 08:14 AM
  #10
async
Junior Member
Thread Starter

Join Date: Jun 2020
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by Charles Wahl View Post
You're gonna need a fork pretty soon; don't get ahead of yourself.
It came with a carbon 1" threadless fork already, i just didnt include it for the pics because im pretty sure its not original to the bike.

imgur.com/UWCPXVs.jpg

I have a 6401 crankset and some other bits and pieces in the box behind as well
async is offline
Old 06-20-20, 08:26 AM
  #11
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 8,261

Bikes: A few

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 1582 Post(s)
Liked 367 Times in 272 Posts
Did someone try and shave down the shifter braze ons?
3speedslow is offline
Old 06-20-20, 09:09 AM
  #12
async
Junior Member
Thread Starter

Join Date: Jun 2020
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by 3speedslow View Post
Did someone try and shave down the shifter braze ons?
I was wondering that as well, where the posts are.
The holes are threaded though so i can still do it with some longer bolts, i reckon.
async is offline
Old 06-20-20, 10:03 AM
  #13
steve sumner
Senior Member

Join Date: Apr 2020
Posts: 266

Bikes: '68 Masi Special road, Grail bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 50 Times in 42 Posts
the builder was trying to be clever with the upper headlug cut like DeRosa
and the lower one cut like Masi. the under BB cable routing tells us it is 78 or later (usually)
steve sumner is offline
Old 06-20-20, 11:13 AM
  #14
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,828
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Liked 190 Times in 155 Posts
All those GPM bits (DOs, stay bridges) and the slotted BB shell plus the BB threading certainly says "Italian" but if your seatpost size can be confirmed with a better tool than calipers (which unfortunately are not the best for such an internal tube that can become distorted) POSSIBLE this is an oddball that used METRIC tubing. Very rare for an Italian builder but not unknown and would explain if this is actually 26.4 or 26.6.The stay caps ring a faint bell and may be a distinctive clue, can you add some close-ups to your "album"?

Last edited by unworthy1; 06-20-20 at 11:39 AM.
unworthy1 is offline
Old 06-21-20, 05:55 AM
  #15
async
Junior Member
Thread Starter

Join Date: Jun 2020
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by unworthy1 View Post
All those GPM bits (DOs, stay bridges) and the slotted BB shell plus the BB threading certainly says "Italian" but if your seatpost size can be confirmed with a better tool than calipers (which unfortunately are not the best for such an internal tube that can become distorted) POSSIBLE this is an oddball that used METRIC tubing. Very rare for an Italian builder but not unknown and would explain if this is actually 26.4 or 26.6.The stay caps ring a faint bell and may be a distinctive clue, can you add some close-ups to your "album"?
Certainly! I couldn't put them in the same album but i put them in a new one imgur.com/a/JFcLl6O . I put a coat of paint already, sorry if it decreases the details on the image.
I experimented a bit with seatpost and beer can shims. I think its probably not 26.6, I could fit 26.4 there but it was a bit tight, 26.2 also worked, and 26.0 was a bit loose. I think im going with 26.2 just because its the more common of the two between, i think (26.4 and 26.2).
I'm not sure what to infer from that but im kind of pissed everyone decided to make seatposts in steps of 0.2mm, just enough to make things fit poorly, not enough to make any functional difference
async is offline
Old 06-21-20, 09:05 AM
  #16
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 26,961

Bikes: Too many to list here check my signature.

Mentioned: 136 Post(s)
Tagged: 2 Thread(s)
Quoted: 1783 Post(s)
Liked 588 Times in 360 Posts
Welcome to the "Looks nice but I have no idea club"

__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Likes For Bianchigirll:
Old 06-21-20, 01:35 PM
  #17
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,828
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Liked 190 Times in 155 Posts

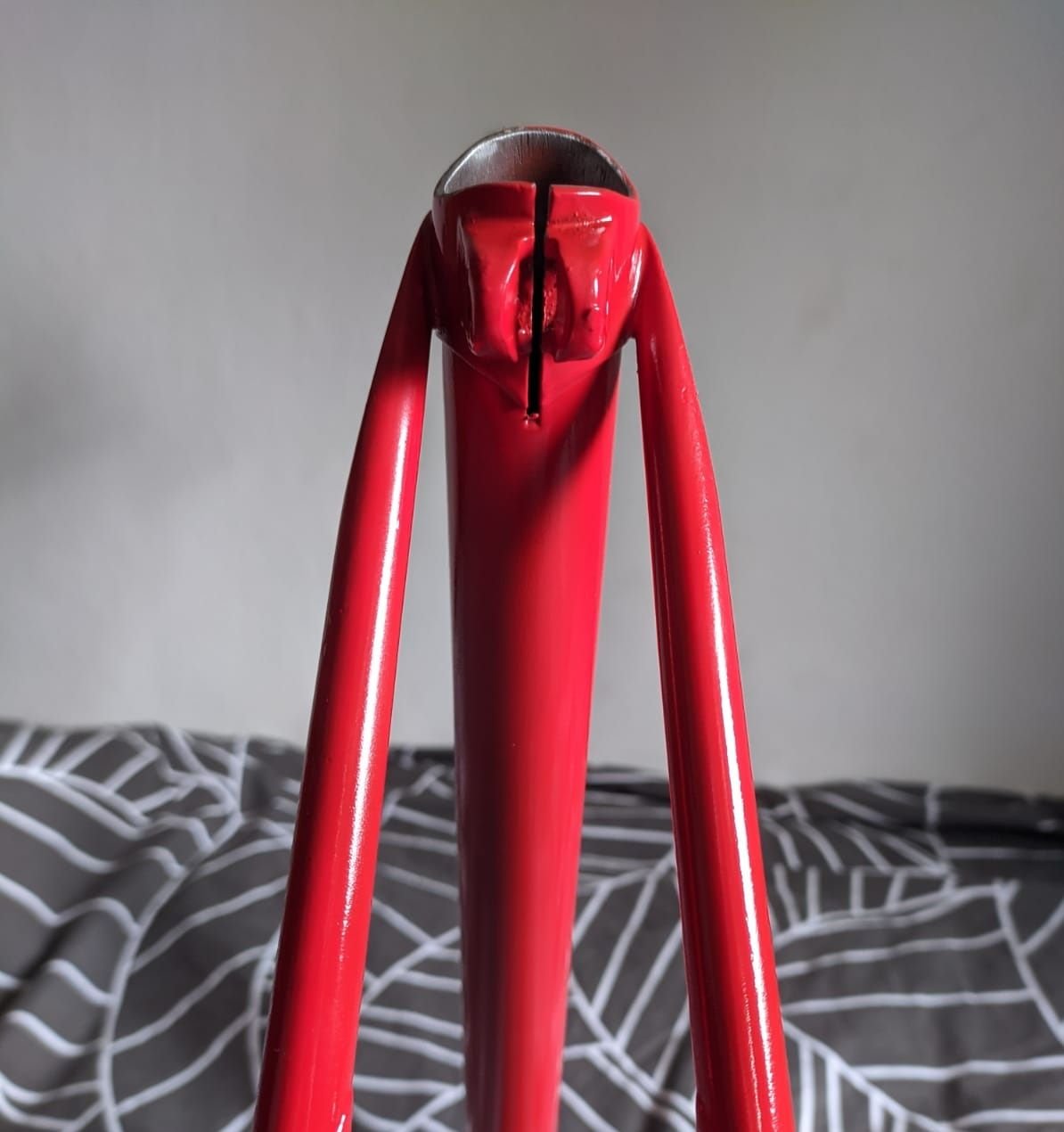

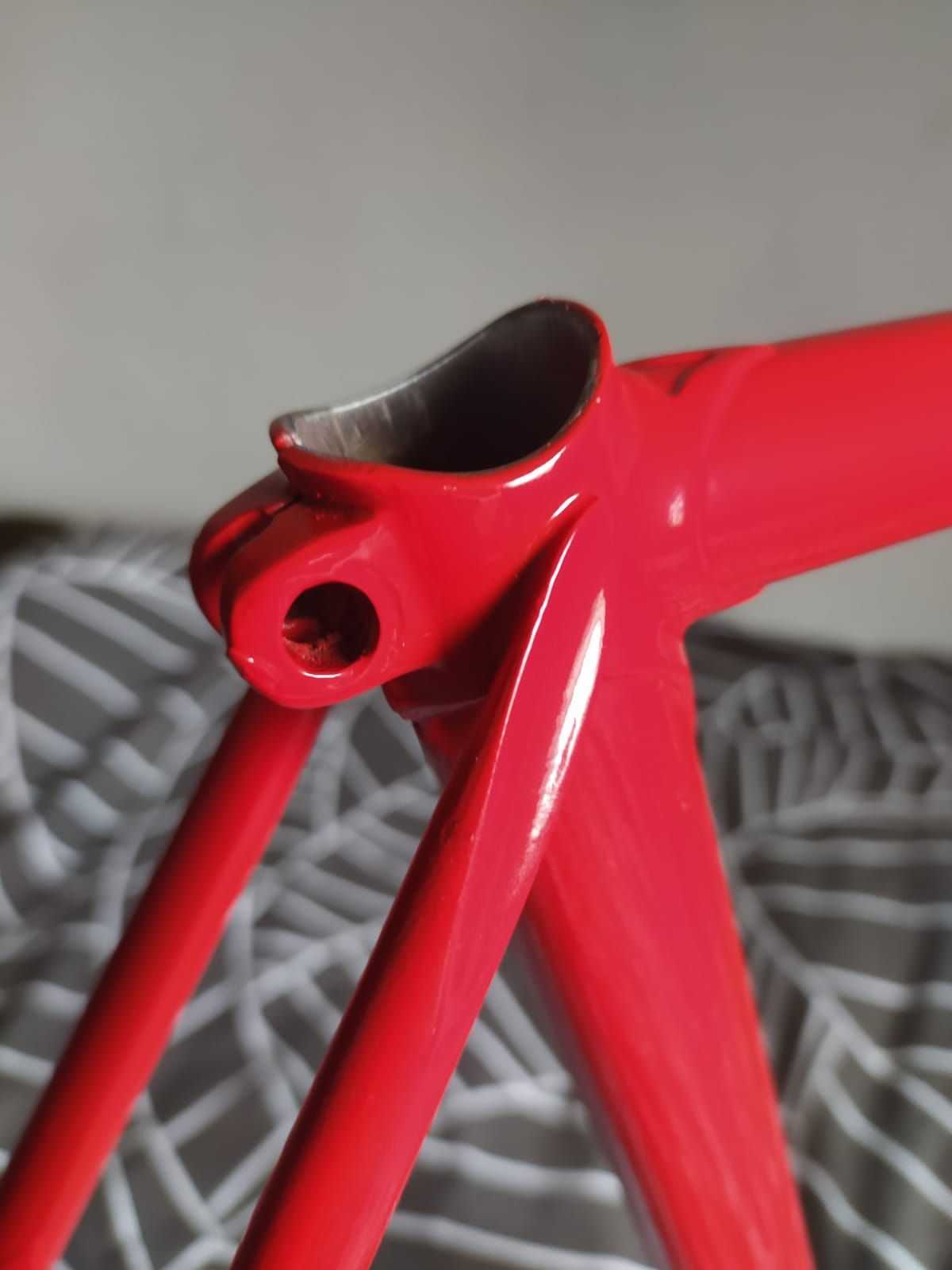

And still no idea but doesn't look like the slot in the seat lug is TOO distorted so maybe the apparently too-small seat posts are not that far off, but I have no better idea from seeing these except would have a trusted shop with a sizing tool check the seat tube out (IF that was possible in the current lockdown in my town) and notice that the stays appear to be small diameter at th top("pencil stays" or are they "double tapered"?) which are a bit unusual for the apparent era, plus the "ears" have been filled which is a good touch and again something more seen on higher-end frames then ones built from lower grade/price tubing. One more thing (that would have been best to check when the tubes were not painted) but what are the Outer Diameters of all 3 main tubes, best to use a digital caliper or a dial caliper that shows metric fractions?
here's the shots for others to judge




Last edited by unworthy1; 06-21-20 at 01:39 PM.
unworthy1 is offline
Likes For unworthy1:
Old 06-21-20, 02:35 PM
  #18
armaan
Junior Member

Join Date: Jun 2020
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Such a cool bike
armaan is offline
Likes For armaan:
Old 06-25-20, 08:37 AM
  #19
async
Junior Member
Thread Starter

Join Date: Jun 2020
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by unworthy1 View Post
And still no idea but doesn't look like the slot in the seat lug is TOO distorted so maybe the apparently too-small seat posts are not that far off, but I have no better idea from seeing these except would have a trusted shop with a sizing tool check the seat tube out (IF that was possible in the current lockdown in my town) and notice that the stays appear to be small diameter at th top("pencil stays" or are they "double tapered"?) which are a bit unusual for the apparent era, plus the "ears" have been filled which is a good touch and again something more seen on higher-end frames then ones built from lower grade/price tubing. One more thing (that would have been best to check when the tubes were not painted) but what are the Outer Diameters of all 3 main tubes, best to use a digital caliper or a dial caliper that shows metric fractions?
Hello, sorry for the delay!
I measured out the tubes and they seem to be of the following outer dimensions

Headtube 31.5mm
Downtube 29mm
Seattube 29mm
Top tube: 25.4mm
seatstay double tapered 10.4>>14>>10.8
