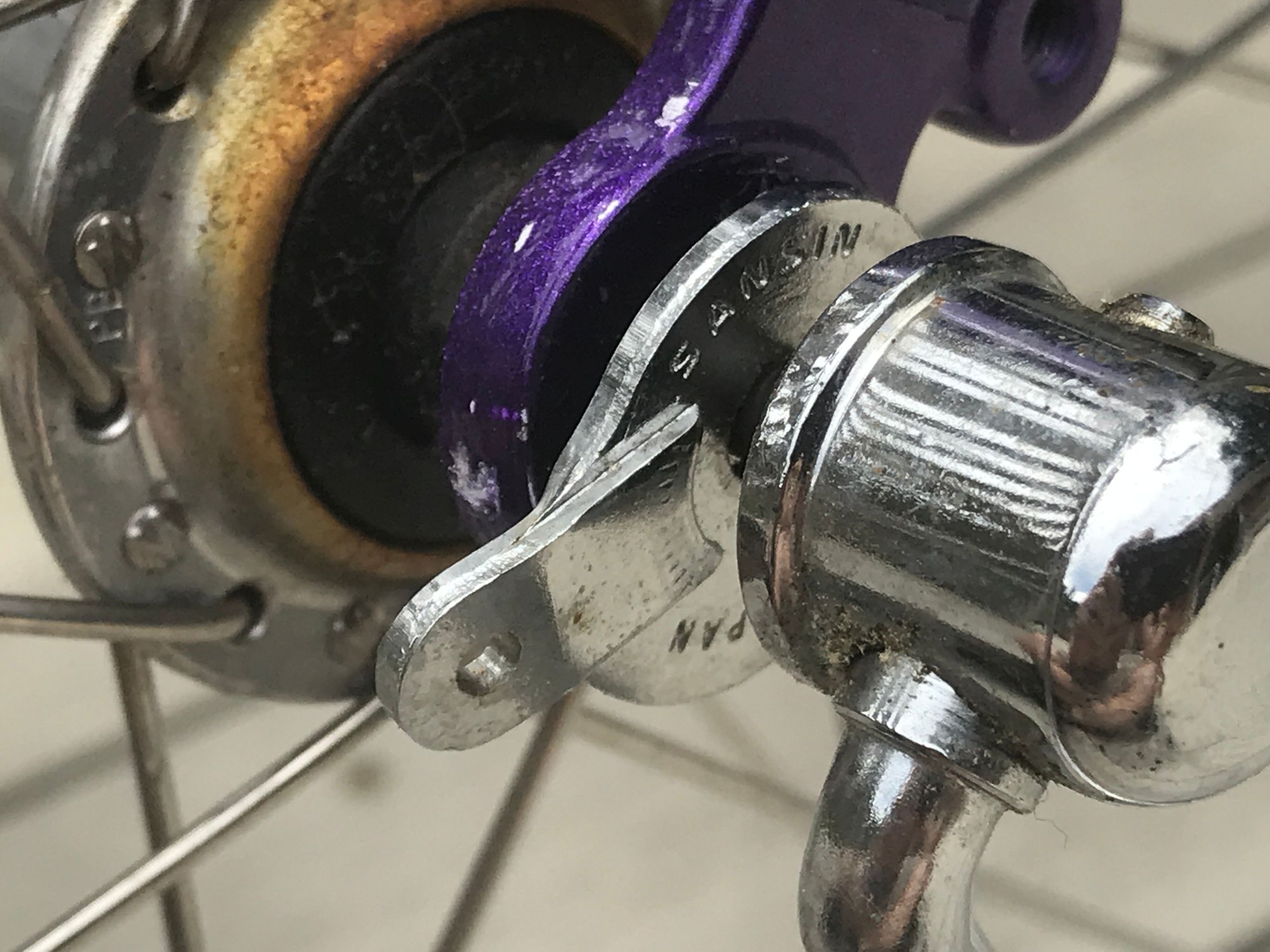

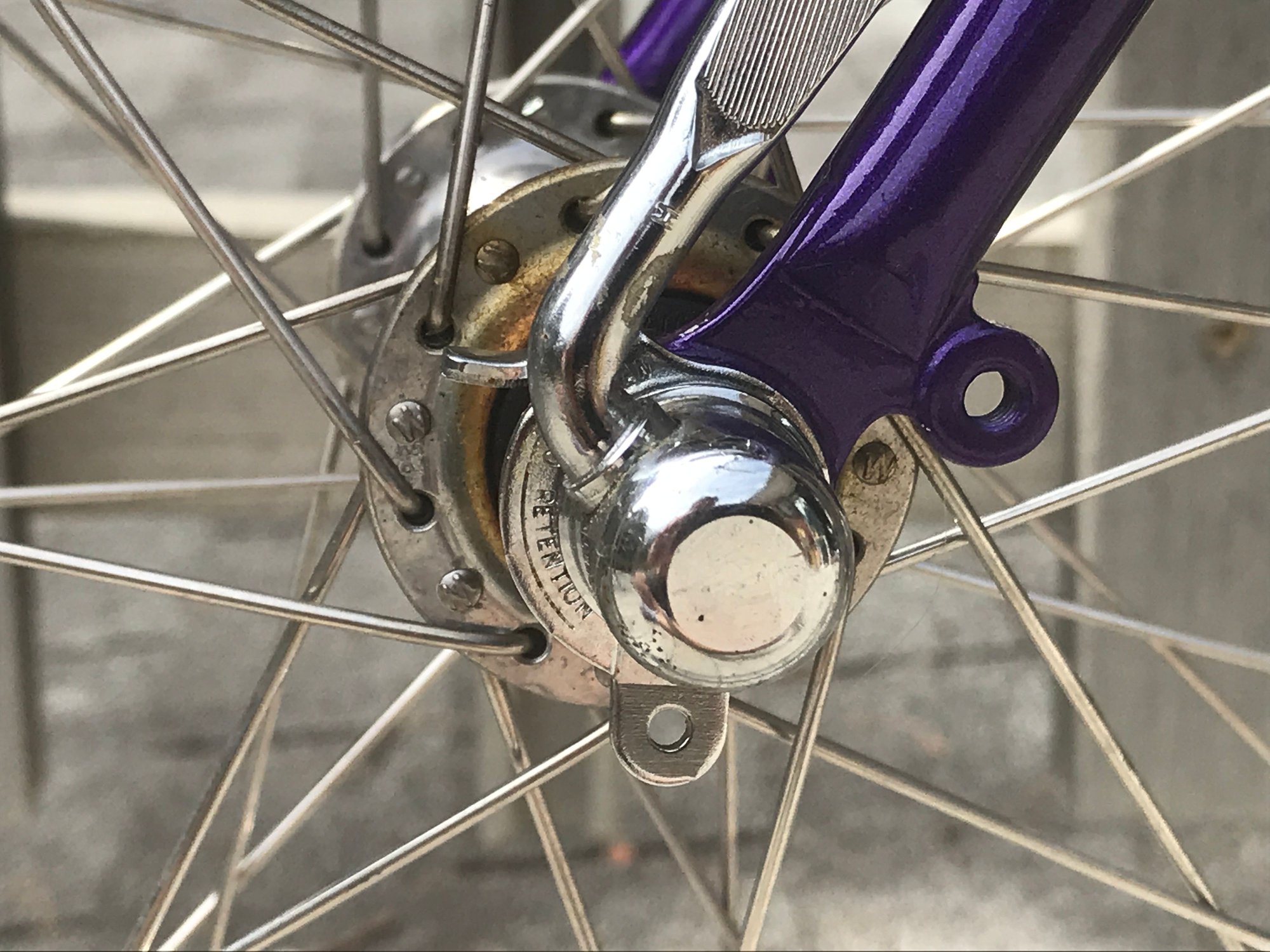

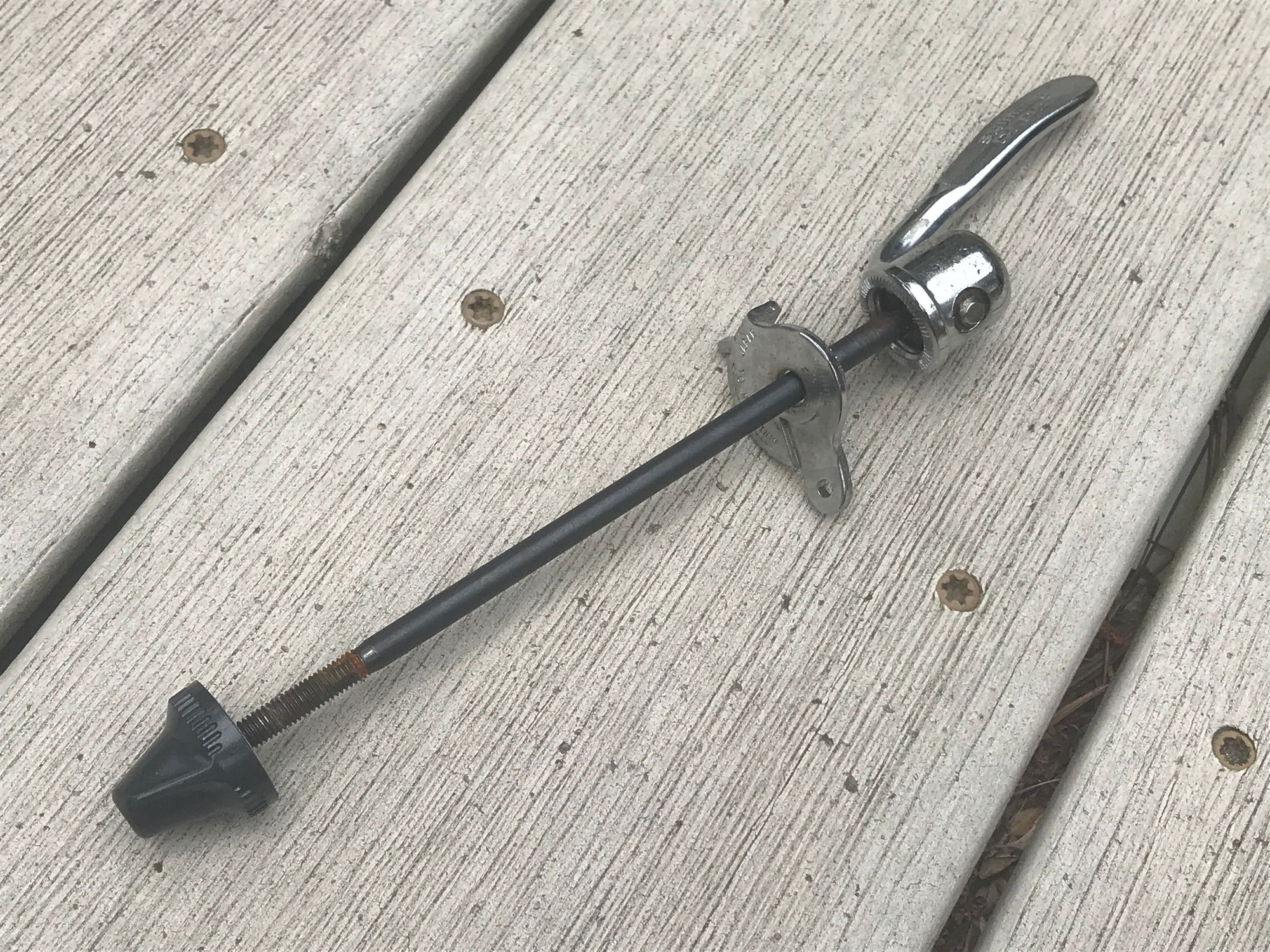

What is this piece on front skewer?
06-30-20 | 01:37 PM
#2
Senior Member
Joined: Nov 2010
Posts: 15,315
Likes: 903
From: Tixkokob, Yucatán, México
Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5
Is it a Sansin Hub?

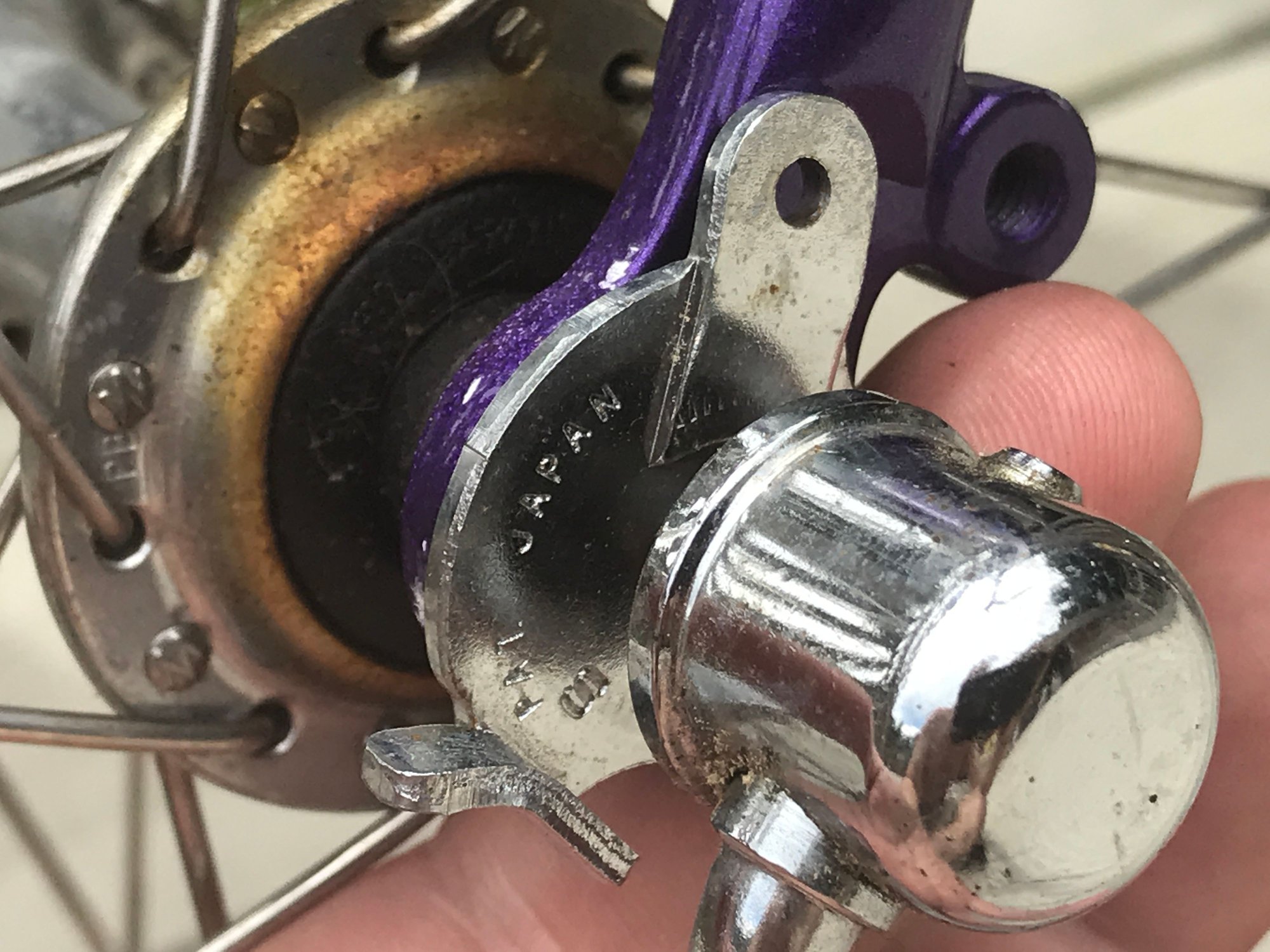

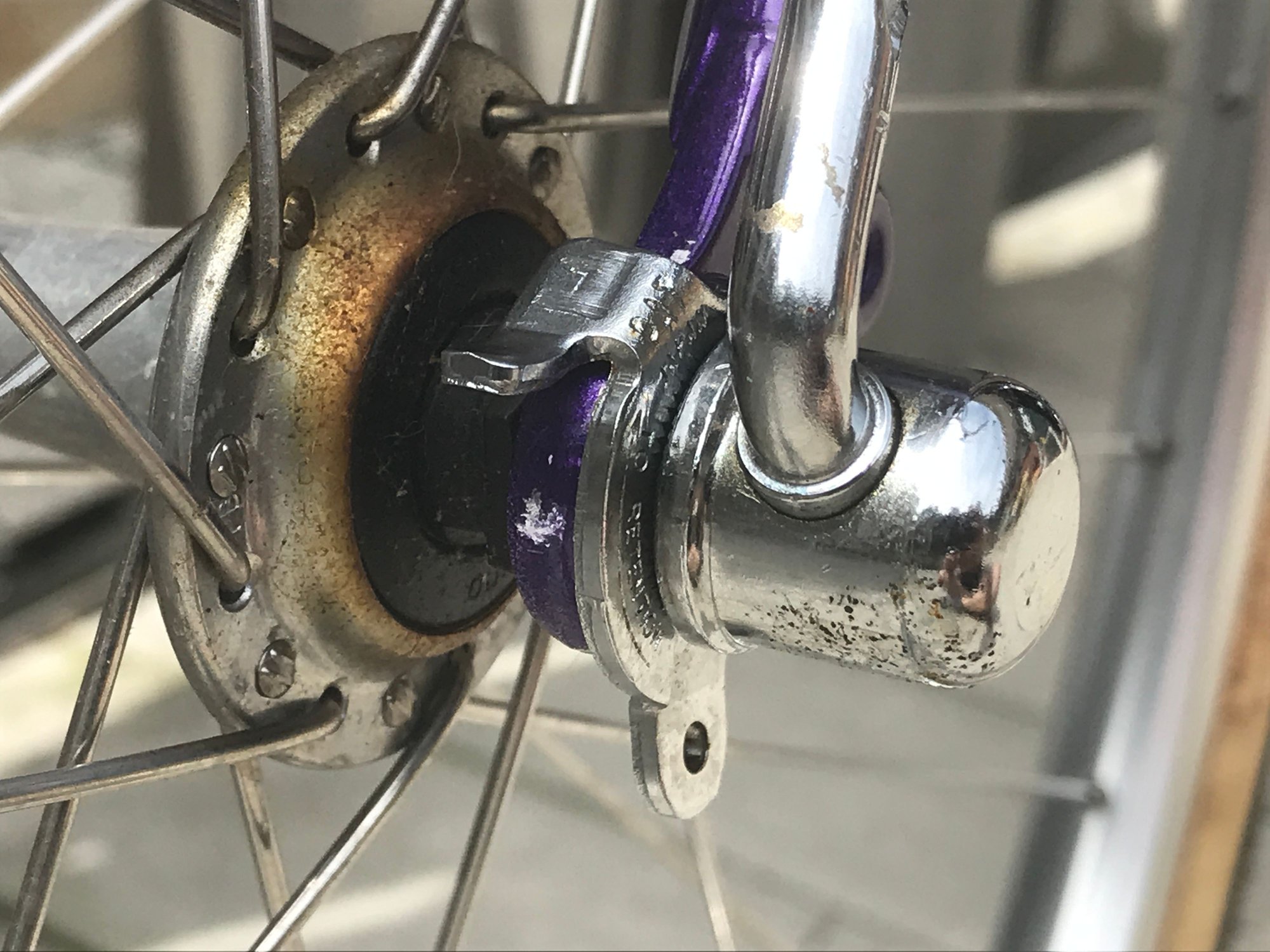

Edit: it looks like that tab would lock into the bottom of the dropout. For what reason I can't imagine. Other than to keep it from spinning so that other hole can do its job. Whatever that may be.
Edit2: That other hole could function as a second eyelet. Is it threaded?
Edit: it looks like that tab would lock into the bottom of the dropout. For what reason I can't imagine. Other than to keep it from spinning so that other hole can do its job. Whatever that may be.
Edit2: That other hole could function as a second eyelet. Is it threaded?
Last edited by seedsbelize; 06-30-20 at 01:57 PM.
06-30-20 | 02:09 PM
#4
Senior Member
Joined: Sep 2005
Posts: 3,491
Likes: 1,555
From: Oakland, CA
Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited
Sansin thingy on a Shimano hub and Shimano skewer? Yeah, I would just get rid of it. I have two sets of RX100 hubs, and both have the typical conical springs on their skewers.
As for function -- maybe to hold something for a bike computer or mechanical speedo? None of the Sunshine/Sansin hubs on Velobase have anything like that piece.
As for function -- maybe to hold something for a bike computer or mechanical speedo? None of the Sunshine/Sansin hubs on Velobase have anything like that piece.
06-30-20 | 02:12 PM
#5
Senior Member
Joined: Sep 2005
Posts: 3,491
Likes: 1,555
From: Oakland, CA
Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited
I think it's for a speedo. This pic from an Amazon analog speedo listing has a similar piece that goes to the hub.
06-30-20 | 02:14 PM
#6
SE Wis
Joined: Apr 2005
Posts: 11,556
Likes: 4,334
From: Milwaukee, WI
Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970
I'd surmise it's some sort of lawyer lip type device for wheel retention when loose
06-30-20 | 02:18 PM
#7
Senior Member
Joined: Nov 2015
Posts: 4,900
Likes: 1,125

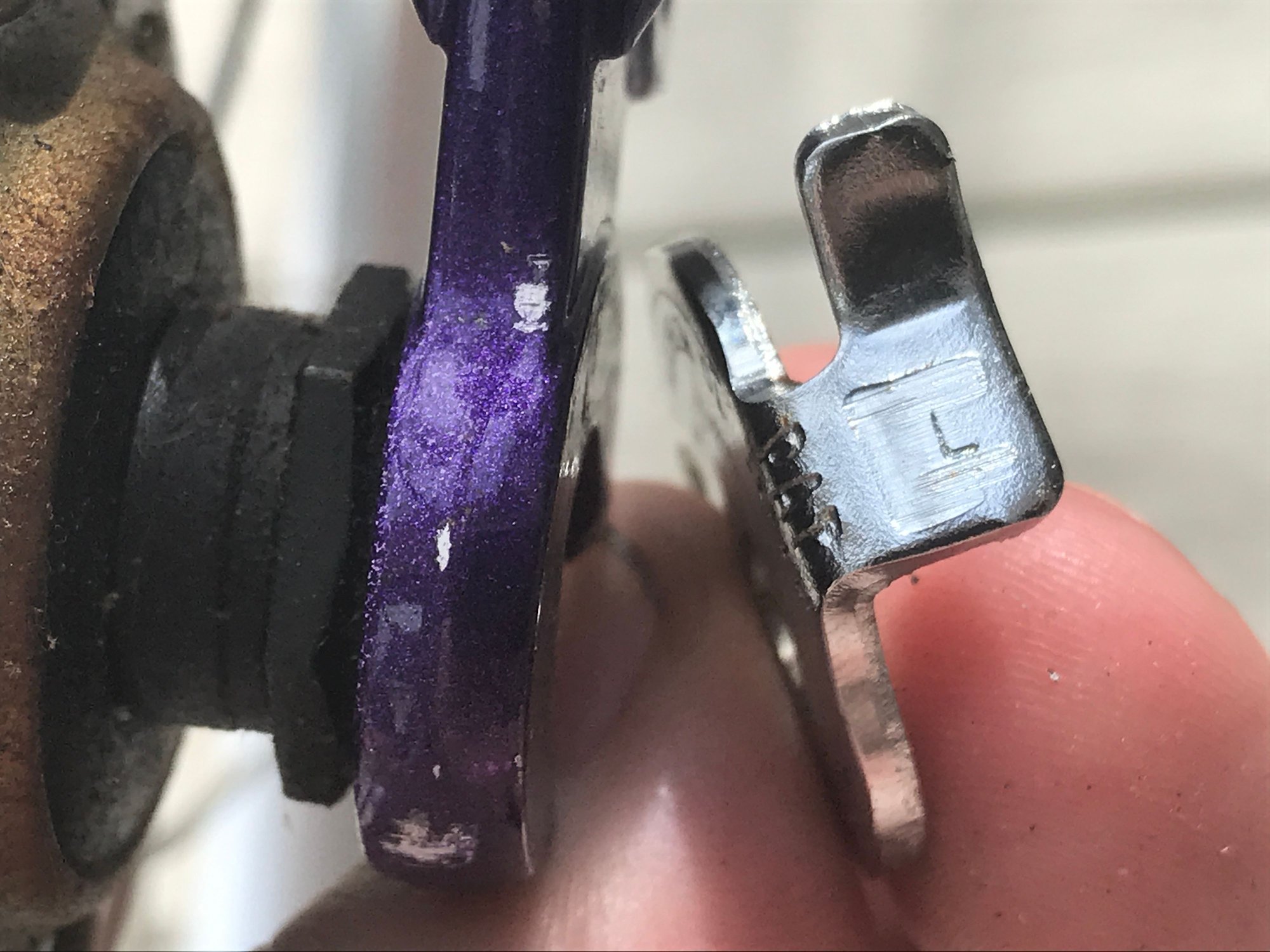

If it's marked left, then there could have been a right side version..... which makes me think that it could work like a fender stay mounting eye, if your dropouts do not have them. It might work the same for the back wheel too.
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
06-30-20 | 02:20 PM
#8
Cyclotouriste
Joined: Aug 2009
Posts: 11,795
Likes: 7,023
From: South Holland, NL
Bikes: Yes, please.
I've no idea what it is, but I already like it.
06-30-20 | 04:29 PM
#11
Senior Member
Joined: Mar 2009
Posts: 1,574
Likes: 174
From: Kingwood, TX
Bikes: Road, Touring, BMX, Cruisers...
lawyer lip for idiots that didn’t understand how a skewer worked. Alot of that stupidity in the 80’s...
__________________
1984 Cannondale ST
1985 Cannondale SR300
1980 Gary Littlejohn Cruiser
1984 Trek 760
1981 Trek 710
Pics
1984 Cannondale ST
1985 Cannondale SR300
1980 Gary Littlejohn Cruiser
1984 Trek 760
1981 Trek 710
Pics
06-30-20 | 07:20 PM
#12
Senior Member
Joined: Nov 2015
Posts: 4,900
Likes: 1,125
If it's a lawyer lip thingamajig, what does it attach to on the fork to retain the wheel??
Schwinn had bosses on their fork ends to interface with layer lip clips but if the wheel came originally with the bike pictured, we do not see any means of retention on it.
Schwinn had bosses on their fork ends to interface with layer lip clips but if the wheel came originally with the bike pictured, we do not see any means of retention on it.
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
07-01-20 | 06:11 AM
#13
Senior Member
Joined: Feb 2020
Posts: 4,048
Likes: 2,360
Slots don't align.
07-01-20 | 09:03 AM
#15
Cyclotouriste
Joined: Aug 2009
Posts: 11,795
Likes: 7,023
From: South Holland, NL
Bikes: Yes, please.
I'm thinking the seller knew the buyer, found this among his lawnmower tools and thought "let's see how long this will keep 'em busy".
07-01-20 | 09:18 AM
#16
Don't know whether this patent applies; there's no drawing of the item.
07-01-20 | 09:27 AM
#18
Banned.
Joined: Jul 2013
Posts: 1,941
Likes: 272
Don't know whether this patent applies; there's no drawing of the item.
07-01-20 | 09:29 AM
#19
Member
Joined: Jun 2020
Posts: 43
Likes: 17
07-01-20 | 10:00 AM
#20
Ride, Wrench, Swap, Race
Joined: Jan 2010
Posts: 9,835
Likes: 1,816
From: Northern California
Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.
Only needed on one side, since the wheel would need to tilt further than the fork legs would allow in order for the other end of the axle to move out of it's dropout.
Amazingly simple, but can't the thing be inadvertently defeated by being in the wrong rotational position as the QR lever is flipped?
I suppose if the adjusting nut were Loctited to the shaft that the operator wouldn't be able to flip the lever if the device were in the wrong orientation.
But if the nut is backed off then the QR could be flipped with the device in it's "release" position AND with the lever tension perhaps set too loose.
The problem with this device is that it would require the operator to know how to use it, which makes it somewhat redundant to the QR lever.
It would work as intended though if the only setup problem were incorrect tensioning of the QR nut (or if the operator used the QR handle as a wing-nut). That's the only benefit that it offers, sparing the operator from having to determine quantitatively just how tight that the QR lever tension should be set, and not having to turn the "wing nut" (qr lever) tighter than is comfortable on the hand (if used improperly).
The idea of adding complexity to the setup of something that the operator is already doing wrong is almost humorous. But hey, it might work, right?
Amazingly simple, but can't the thing be inadvertently defeated by being in the wrong rotational position as the QR lever is flipped?
I suppose if the adjusting nut were Loctited to the shaft that the operator wouldn't be able to flip the lever if the device were in the wrong orientation.
But if the nut is backed off then the QR could be flipped with the device in it's "release" position AND with the lever tension perhaps set too loose.
The problem with this device is that it would require the operator to know how to use it, which makes it somewhat redundant to the QR lever.
It would work as intended though if the only setup problem were incorrect tensioning of the QR nut (or if the operator used the QR handle as a wing-nut). That's the only benefit that it offers, sparing the operator from having to determine quantitatively just how tight that the QR lever tension should be set, and not having to turn the "wing nut" (qr lever) tighter than is comfortable on the hand (if used improperly).
The idea of adding complexity to the setup of something that the operator is already doing wrong is almost humorous. But hey, it might work, right?
07-01-20 | 10:10 AM
#21
Senior Member
Joined: Aug 2010
Posts: 2,419
Likes: 5,538
From: Central Florida, USA
Bikes: Litespeed (9); Slingshot (7); Specialized (3); Kestrel (2); Trek (2); Cervelo (1); FELT (1); Quintana Roo (1)
They leave their calling card like Zorro left his.
__________________
WTB: Slingshot bicycle promotional documents (catalog, pamphlets, etc).
WTB: American Cycling May, Jul, Aug, Oct, 1966.
WTB: Bicycle Guide issues 1984 (any); Dec 1985; Apr 1994; May, Jun 1996; May 1997.
WTB: bicyclist May, Dec 1997: Jun-Dec 1998.
WTB: Bike World issue Jun 1974.
WTB: Litespeed head badge (circa 2000)
WTB: Slingshot bicycle promotional documents (catalog, pamphlets, etc).
WTB: American Cycling May, Jul, Aug, Oct, 1966.
WTB: Bicycle Guide issues 1984 (any); Dec 1985; Apr 1994; May, Jun 1996; May 1997.
WTB: bicyclist May, Dec 1997: Jun-Dec 1998.
WTB: Bike World issue Jun 1974.
WTB: Litespeed head badge (circa 2000)
07-01-20 | 10:49 AM
#22
SE Wis
Joined: Apr 2005
Posts: 11,556
Likes: 4,334
From: Milwaukee, WI
Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970
I kind of look around a little for SANSIN patents related to this but didn't find anything exactly like it.
07-01-20 | 08:02 PM
#23
Senior Member
Joined: Jan 2004
Posts: 6,169
Likes: 1,799
From: Madison, WI USA
What does it have to do with Sansin. Isn't the hub brand coincidental? "Lawyer" hub retension (it should actually be retention, but I digress....) is specific to the brand of bicycle. That question still hasn't been answered. It's clear there are no hub retention "lips" on the fork, and that's the reason for this device. Has nothing to do with the brand of hub.
07-01-20 | 10:27 PM
#24
Senior Member
Joined: Jan 2004
Posts: 6,169
Likes: 1,799
From: Madison, WI USA

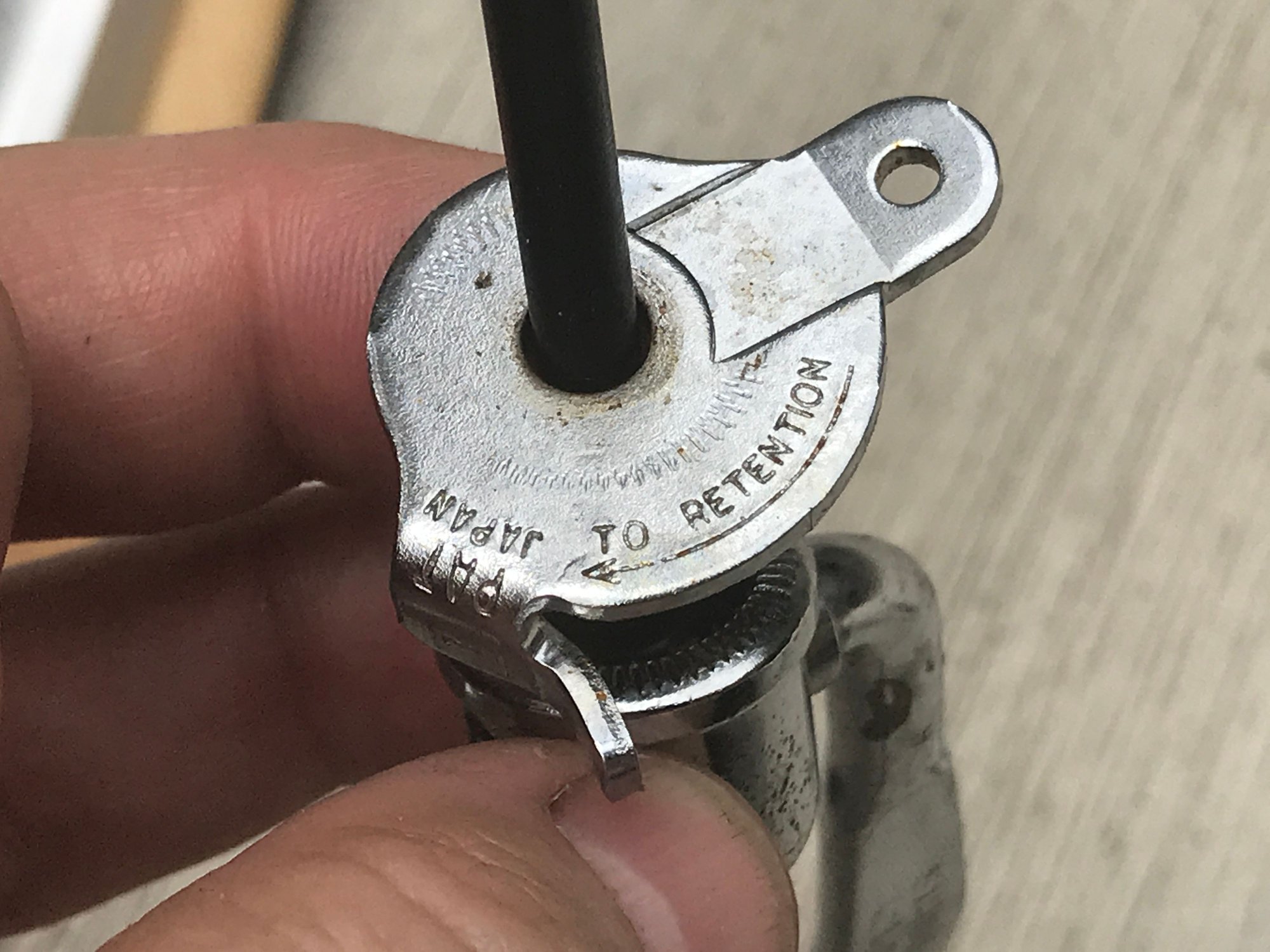

Two counts of oops, did not see the branding in photo 1. And I swear "retention" was misspelled the first time I saw it.
That is odd, that it's specific to the hub. The only other retentions I've seen similar to this are the familiar Schwinn "clips", and a spring-loaded release clip that bolts onto the fender eyelet on a couple Univegas. The common thread is the lack of "lips" on the dropouts.
That is odd, that it's specific to the hub. The only other retentions I've seen similar to this are the familiar Schwinn "clips", and a spring-loaded release clip that bolts onto the fender eyelet on a couple Univegas. The common thread is the lack of "lips" on the dropouts.
