Binder bolt...quick release?

Search
Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Binder bolt...quick release?

Thread Tools

Search this Thread

Old 10-23-20 | 05:45 PM
  #1
67tony's Avatar
Thread Starter
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Feb 2012
Posts: 1,390
Likes: 207
From: Williamsburg, VA Sebastian, FL

Bikes: 1987 Centurion Ironman Master, 1992 Koga Miyata Exerciser, 1992 Schwinn Crosscut

Binder bolt...quick release?

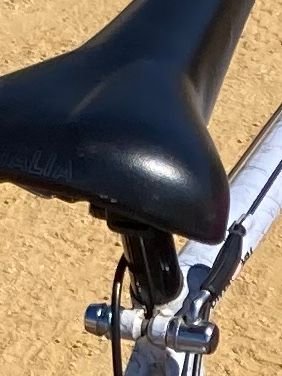

I lost my '92 Schwinn Crosscut binder bolt years ago, when I took the saddle out for transport and the binder bolt subsequently vibrated off during the trip. The replacements I've tried have all been mediocre, at best. The last one (pictured) required a ton of snugging to keep my seat post secured in the seat tube.

Any suggestions for an efficient quick release binder bolt are appreciated.
Or...am I relegated to using a hex head non-quick release style?

Thanks!


67tony is offline
Reply
Old 10-23-20 | 06:09 PM
  #2
noobinsf's Avatar
Senior Member
20 Anniversary

Joined: Sep 2005
Posts: 3,487
Likes: 1,552
From: Oakland, CA

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

I have a bike with a Suntour quick release seat post binder, and it's very nice, but it's apparently not cheap on its own. I see a handful on ebay for between $30-50.



Last edited by noobinsf; 10-23-20 at 06:14 PM.
noobinsf is offline
Reply
Old 10-23-20 | 09:39 PM
  #3
Velo Mule's Avatar
Senior Member
5 Anniversary

Joined: Dec 2016
Posts: 2,939
Likes: 1,800
From: Long Island, NY

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn Continental, Cannondale M400 and Lambert, Schwinn Super Sport

This worked out good. The Bontreger quick release seat post binder is an external cam. The aluminum cam rubs against the plastic as you can see when you move the lever to the closed position. The SunTour is an interal cam. like Tulio Campangno first dreamed up. This has all steel parts and there is less friction when closing the lever. Or at least that is my opinion of these two designs.
Velo Mule is offline
Reply
Old 10-23-20 | 10:19 PM
  #4
scarlson's Avatar
Senior Member
Titanium Club Membership
15 Anniversary

Joined: Jun 2010
Posts: 2,132
Likes: 1,522
From: Medford MA

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Originally Posted by Velo Mule
This worked out good. The Bontreger quick release seat post binder is an external cam. The aluminum cam rubs against the plastic as you can see when you move the lever to the closed position. The SunTour is an interal cam. like Tulio Campangno first dreamed up. This has all steel parts and there is less friction when closing the lever. Or at least that is my opinion of these two designs.
Your opinion is correct, based on my experience.

Lots of affordable internal cam options out there for cheap. Like this one:
https://www.ebay.com/itm/QUICK-RELEA...7/391247138183
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is offline
Reply
Old 10-24-20 | 02:24 PM
  #5
thook's Avatar
(rhymes with spook)

Joined: Aug 2009
Posts: 2,786
Likes: 749
From: Winslow, AR

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

ebay has some kalloy internal cam quick release options. look for the vintage ones. one is up for $13

https://www.ebay.com/sch/i.html?_fro...clamp&_sacat=0

https://www.ebay.com/itm/VTG-Kalloy-...oAAOSwNalfHogF

i have one on my '93 mongoose crossway. works great!
thook is offline
Reply
Old 10-24-20 | 05:49 PM
  #6
67tony's Avatar
Thread Starter
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Feb 2012
Posts: 1,390
Likes: 207
From: Williamsburg, VA Sebastian, FL

Bikes: 1987 Centurion Ironman Master, 1992 Koga Miyata Exerciser, 1992 Schwinn Crosscut

Great replies...thanks a ton!
67tony is offline
Reply
Old 10-25-20 | 04:47 AM
  #7
Senior Member
Titanium Club Membership
5 Anniversary
Community Builder

Joined: Feb 2020
Posts: 4,008
Likes: 2,322
Originally Posted by 67tony
I lost my '92 Schwinn Crosscut binder bolt years ago, when I took the saddle out for transport and the binder bolt subsequently vibrated off during the trip. The replacements I've tried have all been mediocre, at best. The last one (pictured) required a ton of snugging to keep my seat post secured in the seat tube.

Any suggestions for an efficient quick release binder bolt are appreciated.
Or...am I relegated to using a hex head non-quick release style?

Thanks!

A hex key and a normal bolt probably weigh less, and the key probably fits other bits and is easy to carry (in the patch kit).

And you won't come out of the shop to find your seat gone.
oneclick is offline
Reply
Old 10-25-20 | 08:05 AM
  #8
Senior Member
5 Anniversary

Joined: Jul 2017
Posts: 568
Likes: 155
From: Western WI (USA)

Bikes: TNTL (Too numerous to list)

Unless you're frequently changing or adjusting the saddle height (I suppose that there is need for that with certain cycling activities), a quick release seat post binder is just an invitation to some low life to abscond with your saddle and seat post! I'm going with oneclick's suggestion of a binder bolt secured using a hex wrench. Much lighter (if that's important), more elegant (personal opinion​​​​​​) and way more time consuming to release the seat post (thieves are lazy)! Determined thieves will have the necessary tools and rely on times when being observed is minimized. Filling the hex head bolt and/or nut with bee's wax will add extra time the theif's job! Again, that just slows determined individuals. So yes, there may be a need to remove the saddle completely to prevent theft. Bring your own hex key/wrench.
sovende is offline
Reply
Old 10-25-20 | 11:32 AM
  #9
67tony's Avatar
Thread Starter
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Feb 2012
Posts: 1,390
Likes: 207
From: Williamsburg, VA Sebastian, FL

Bikes: 1987 Centurion Ironman Master, 1992 Koga Miyata Exerciser, 1992 Schwinn Crosscut

Originally Posted by oneclick
A hex key and a normal bolt probably weigh less, and the key probably fits other bits and is easy to carry (in the patch kit).
I will likely use this method moving forward. I've liked a quick-release in the past because I take the leather saddle and post out during transport. But, ever since losing the original one, the replacements have left much to be desired.

Normal hex head binder bolt, here I come.
67tony is offline
Reply
