XL Mountain bike frames-plan for the future
#26
Freewheel Medic



Joined: Oct 2005
Posts: 13,569
Likes: 3,314
From: An Island on the Coast of GA!
Bikes: Snazzy* Schwinns, Classy Cannondales & a Super Pro Aero Lotus (* Ed.)
Are sure that his is a 100th anniversary model? While it does have the early APA lugs, all the cables are running along the top tube and it employs a top pull front derailleur. To me, that suggests a 1991 model. Regardless, I don't recall this being catalogued in Canada or the USA.


_(edited)_F2294F4A_EB2E_4A04_BB83_CC3C1F7F2FAA_zpskretpmoi.jpg)
I'm only going on the decals which are pictured above. However, notice the Dutch (?) under the "100." Does the serial number provide any clues? UB00141
__________________
Bob
Enjoying the GA coast all year long!
Thanks for visiting my website: www.freewheelspa.com
Bob
Enjoying the GA coast all year long!
Thanks for visiting my website: www.freewheelspa.com
#27
Senior Member

Joined: Nov 2004
Posts: 23,212
Likes: 3,123
I saw the serial number on the upper head leg in the original set of pictures but could not read it. It indicates that the frame was manufactured during the 2nd fortnight of 1992. So it would appear that the decal signifies the company is over a century old and not that it's a centennial model.
#28
Overdoing projects

Joined: Oct 2011
Posts: 2,464
Likes: 1,370
From: Rotterdam, former republic of the Netherlands
Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist, Gazelle Lausanne, Gazelle Tandem, Koga-Miyata SilverAce, Koga-Miyata WorldTraveller

A quick google translate suggests it is Swedish... and leads me to a couple of our Swedish members.
Miyata 100 års inbyggt cykelkunnande!
Miyata, 100 years of built-in bicycle know-how!
They had different colours and sometimes placement of the cantilever brakes from the American models.
#29
Junior Member
Joined: Apr 2019
Posts: 18
Likes: 11
From: Malmö
Bikes: Magmaa titanium mtb, Miyata 1000, Miyata 912, Nishiki International, Miyata Terra Runner.
#30
Banned.
Joined: Aug 2016
Posts: 1,559
Likes: 324
From: Winnipeg - traffic ticket central
Bikes: Looking for "the One"
Build, or have a frame built?
Another solid option is to have someone build you a frame and buy a fork for it. Down in KY, (or Stateside) there has got to be some amateur talent who could knock something together for you. I'd like to build a frame; sort of a short tail cargo bike type thing.
I ride the Raleigh Elkhorn, which is a 23"/23" IIRC. The other bike, the SM600, is their extra large with a chimpanzee-ish 24" top tube (aluminum though). I haven't even ridden it yet after almost 3 years owning. There has to be literally hundreds of different old steel frame mountain bikes which have been made in the past. Lots to choose from.
I ride the Raleigh Elkhorn, which is a 23"/23" IIRC. The other bike, the SM600, is their extra large with a chimpanzee-ish 24" top tube (aluminum though). I haven't even ridden it yet after almost 3 years owning. There has to be literally hundreds of different old steel frame mountain bikes which have been made in the past. Lots to choose from.
#31
Eccentric Old Man


Joined: Jan 2014
Posts: 727
Likes: 177
From: BelleVegas, IL
Bikes: 1986 Trek 520 Cirrus, 1979 Schwinn Traveler III, Trek T100, 1995 Trek 970, Fuji America
Most brands topped out their ATB frames at 22", as that was considered the equivalent of a 25" road frame. The market for bigger frames falls off quickly above these sizes, so they are harder to find. When you can find them, they're generally around the crossover between upper entry level and lower mid-range , which constituted the most popular market segment.
I bought this last Saturday because it's tall and I'm an addict. Advertised as a 20'' size.
Seat tube is 615mm ctc, 640mm ctt, 35'' stand over. 36.7 pounds as pictured. 9.37 pounds frame, fork, and headset. Stem is 1.4 pounds.
Wanting a winter beater so you know how it goes.

#32
The largest vintage mountain bike i have owned is a 24" Univega Alpina Country. I no longer own it because I went to all 700c bikes.
__________________
84 Bridgestone 400. 90's Basso Highway, 07 Rivendell AHH, 16 Clockwork All-Rounder , 22 Rivendell Roadini
84 Bridgestone 400. 90's Basso Highway, 07 Rivendell AHH, 16 Clockwork All-Rounder , 22 Rivendell Roadini
#33
Freewheel Medic



Joined: Oct 2005
Posts: 13,569
Likes: 3,314
From: An Island on the Coast of GA!
Bikes: Snazzy* Schwinns, Classy Cannondales & a Super Pro Aero Lotus (* Ed.)
I wonder how a Swedish Market Miyata found its way to a thrift store in the pan handle of north west Florida?
__________________
Bob
Enjoying the GA coast all year long!
Thanks for visiting my website: www.freewheelspa.com
Bob
Enjoying the GA coast all year long!
Thanks for visiting my website: www.freewheelspa.com
#34
bOsscO
Joined: May 2006
Posts: 746
Likes: 361
From: Vancouver
Bikes: 2024 Spec Crux, 2015 Norco Search S1, 93 Mongoose IBOC COMP
So with that seat tube length, the frame is a 24" size?
#35
Thread Starter
Senior Member


Joined: Jan 2017
Posts: 1,488
Likes: 686
From: Berea, KY
#36
Junior Member
Joined: Apr 2019
Posts: 18
Likes: 11
From: Malmö
Bikes: Magmaa titanium mtb, Miyata 1000, Miyata 912, Nishiki International, Miyata Terra Runner.
#37
Senior Member

Joined: Nov 2004
Posts: 23,212
Likes: 3,123
+1. While I can't read it from the picture, it's not Dutch. If it was from the Netherlands, it would be branded Koga Miyata. The Swedes, and possibly the rest of Scandanavia, were a different market with their own importer, who tailored the bicycle to local preferences. Consequently, like the Koga Miyata, they often don't match the USA models.
#38
Senior Member

Joined: Oct 2005
Posts: 1,914
Likes: 449
From: Upper Left, USA
quick note about sizing on these too. The seat tubes and head tubes will be a lot shorter than you would expect from a road bike. Vintage mountain bikes in the 80s ran a lot of seatpost stem and used riser bars. It's something I didn't figure out for a while. For a while I was chasing larger and larger mountain bike frames but it was because I was thought running a lot of post and needing a lot of rise via a tall or more upright stem meant it fit badly. This sizing was by design. And the top tubes on these can be very long. Some of them ended up being very long because they cross country racers became more stretched out and agressive over time. Good if you have a long torso, a little tricky if you have long legs like me and are running drop bars.

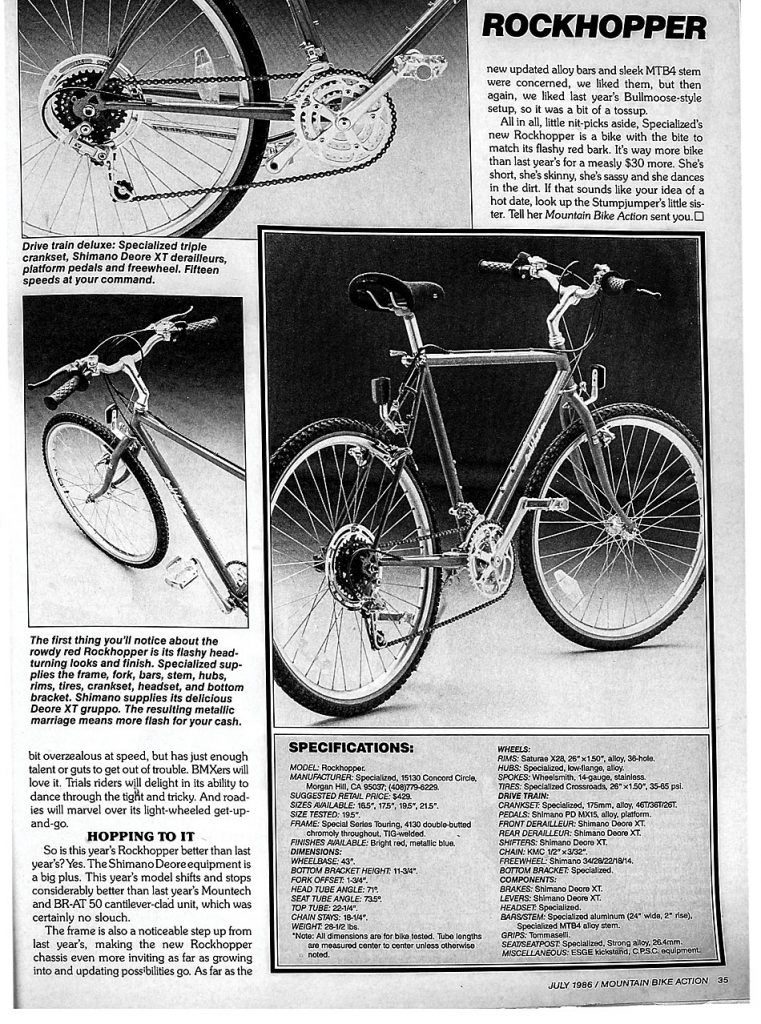

Example of mid 80s geometry. Source: https://mbaction.com/whats-the-most-...-of-the-1980s/ Btw, Rockhoppers are also great frames and don't have the price tag of Stumpys. Drop bar example: Show Your Vintage MTB Drop Bar Conversions

Example of mid 80s geometry. Source: https://mbaction.com/whats-the-most-...-of-the-1980s/ Btw, Rockhoppers are also great frames and don't have the price tag of Stumpys. Drop bar example: Show Your Vintage MTB Drop Bar Conversions

#39
Senior Member

Joined: Nov 2004
Posts: 23,212
Likes: 3,123
I bought this last Saturday because it's tall and I'm an addict. Advertised as a 20'' size.
Seat tube is 615mm ctc, 640mm ctt, 35'' stand over. 36.7 pounds as pictured. 9.37 pounds frame, fork, and headset. Stem is 1.4 pounds.
Wanting a winter beater so you know how it goes.
Seat tube is 615mm ctc, 640mm ctt, 35'' stand over. 36.7 pounds as pictured. 9.37 pounds frame, fork, and headset. Stem is 1.4 pounds.
Wanting a winter beater so you know how it goes.
#40
Thread Starter
Senior Member


Joined: Jan 2017
Posts: 1,488
Likes: 686
From: Berea, KY
If one wanted to find a new frame that fit the bill here, Handsome Cycles is offering a Bridgestone XO reproduction frame for $699 in a kickstarter campaign. You get your choice of three colors, four sizes and a headset for that price and it will be delivered in July. I kinda like it but in keeping with the original design, they are limiting the tires to a max of 26X1.9. If it were bigger, I would give it more serious consideration.
The kickstarter campaign has reached the minimum and it lasts until January 1 if you are interested.
The kickstarter campaign has reached the minimum and it lasts until January 1 if you are interested.
