Old 01-27-21 | 01:10 PM
  #26
clubman's Avatar
Phyllo-buster
Titanium Club Membership
15 Anniversary

Joined: Jan 2010
Posts: 9,261
Likes: 2,685
From: Nova Scotia

Bikes: roadsters, club bikes, fixed and classic

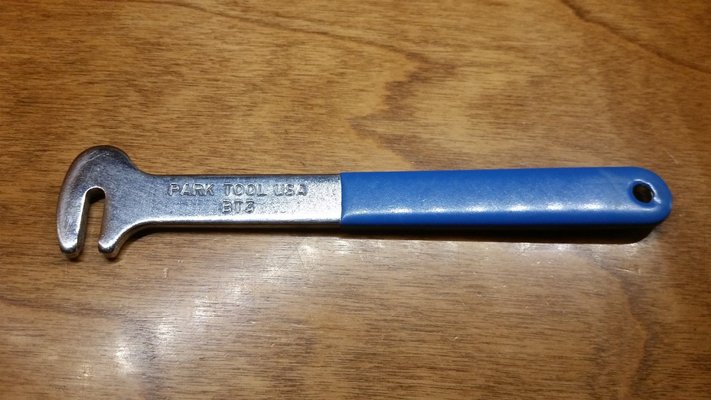

Yeah, I do that too but the Mafacs are so flimsy you'd lose 30% of your pad. Also, once I've got the tool, there's no stopping me.

clubman is offline
Reply
Old 01-27-21 | 03:19 PM
  #27
randyjawa's Avatar
Thread Starter
Senior Member
Titanium Club Membership
15 Anniversary

Joined: Apr 2007
Posts: 12,564
Likes: 2,739
From: Thunder Bay, Ontario, Canada - burrrrr!

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Originally Posted by clubman
Yep, the Universal levers cracked just looking at them. Mafacs had no toe-in, you just bent them.
Fine looking Torpado Randy.

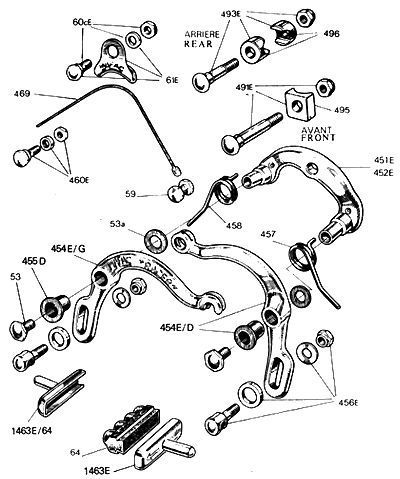

Now that is strange. I always thought that the washers, sort of roundish, were adjusted to achieve toe-in. Will have a look next time that I am at the cottage. Anyway, a picture - the washers, marked 456e have a slight bevel allowing the pads to be tilted this way and that, making toe-in relatively easy...
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Reply
Old 01-27-21 | 05:38 PM
  #28
Charles Wahl's Avatar
Disraeli Gears
15 Anniversary

Joined: Jul 2007
Posts: 4,349
Likes: 614
From: NYC
I'm pretty sure I've seen MAFACs both ways, with washers that provide some toe-in, and with washers that don't -- and they weren't the after-market ones from Compass/RenéHerse either. I'll have to take a look at my brake stash. My feeling about this is that I was looking at earlier (no toe-in) vs later production, but maybe that's just my imagination or creative history.

It seems to me that MAFAC might have used a simple beveled washer (thinner on one side than the other), so that one could rotate the washer during setup to get more or less toe-in, or none, so long as there was reasonable friction between the arm and the washer to prevent its rotation in use -- but they were pretty smart people, so maybe they tried that and it didn't work.
Charles Wahl is offline
Reply
Old 01-28-21 | 01:44 AM
  #29
randyjawa's Avatar
Thread Starter
Senior Member
Titanium Club Membership
15 Anniversary

Joined: Apr 2007
Posts: 12,564
Likes: 2,739
From: Thunder Bay, Ontario, Canada - burrrrr!

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Originally Posted by Charles Wahl
I'm pretty sure I've seen MAFACs both ways, with washers that provide some toe-in, and with washers that don't -- and they weren't the after-market ones from Compass/RenéHerse either. I'll have to take a look at my brake stash. My feeling about this is that I was looking at earlier (no toe-in) vs later production, but maybe that's just my imagination or creative history.

It seems to me that MAFAC might have used a simple beveled washer (thinner on one side than the other), so that one could rotate the washer during setup to get more or less toe-in, or none, so long as there was reasonable friction between the arm and the washer to prevent its rotation in use -- but they were pretty smart people, so maybe they tried that and it didn't work.
Now I feel better. I know darn well that I can toe-in the Mafac brakes that I have owned using those beveled washers. This, for what it is worth, is one of the reasons that I am a fan of Mafac stoppers. Simply put, though a bit difficult to install and set up, they just plain work well, when compared to other offerings of the day.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Reply
Old 01-28-21 | 09:58 AM
  #30
Senior Member
5 Anniversary

Joined: Jun 2020
Posts: 536
Likes: 568
From: Marin County, Alta California

Bikes: Our all steel stable: Rodriguez, Ritchey & Bruce Gordon road tandems; Burley pub crawler tandem; two XO-1s, two Fishers, a Comp & Mt Tam; two Gitane TeamPros; 60s Carre; 69-70 Gitane TdF and

Originally Posted by randyjawa
Now I feel better. I know darn well that I can toe-in the Mafac brakes that I have owned using those beveled washers. This, for what it is worth, is one of the reasons that I am a fan of Mafac stoppers. Simply put, though a bit difficult to install and set up, they just plain work well, when compared to other offerings of the day.
When the topic went from bars to brakes and folks started talking about bending the calipers for toe-in I thought WTF???...just spin the washer! Seems likes folks are employing the famous "don't force it, use a big hammer" technique when really only a little finessing is actually required.

I too love early Mafacs, in particular the Dural Forge-marked Racers (pre-plastic bushing models without the "RACER" embossing) as well as Mafac's large cantilevers for tandems. We used those big cantilevers on early Mtn Bikes and I still use a set on my Ritchey Palo Alto Tandem.
Markeologist is offline
Reply
