Weak rear brake on new build

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Weak rear brake on new build

Old 03-21-21, 08:02 PM
  #1
lajt
Member
Thread Starter

Join Date: Mar 2021
Location: Los Angeles, CA
Posts: 48
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 14 Times in 12 Posts
Weak rear brake on new build

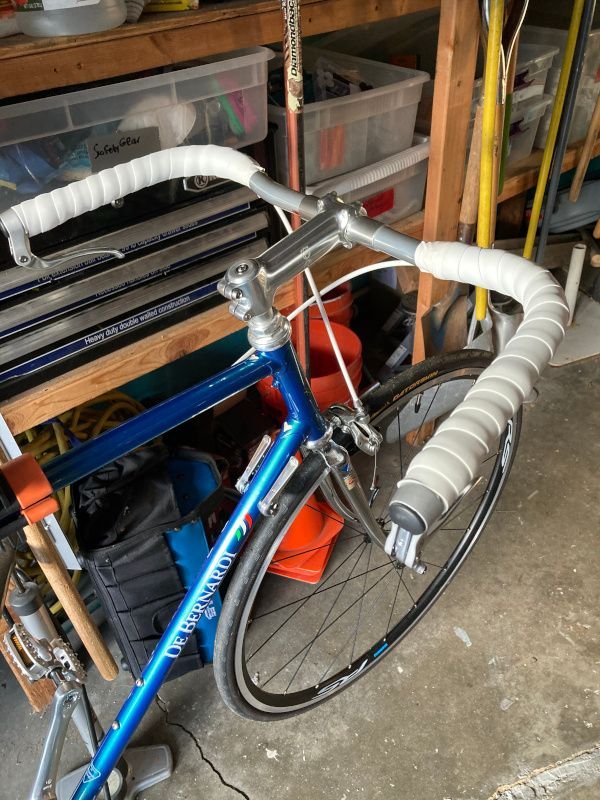

I hope people aren't sick of hearing about this build! I deeply appreciate everyone's time and wisdom, though; it's amazing how much I'm learning (also shocking how much there is to learn).
I started with an NOS pair of dual pivot caliper brakes, which were a good deal because they're a mismatched pair of Campagnolo Veloce front and Potenza rear.
The brake levers are inverse bar-end Tektros, which I tripled-checked are meant for calipers and not linear/v-brake.
Cables and housing are new of course.
Upon install, the front brake feels solid when you pull the lever. The rear, though, felt "stretchy"/spongy/weak, however you word it; the pads would contact but you could keep pulling the lever until it bottomed out.
I tried the pads closer to the rim, verified that all the housings are seated but same thing.
My first theory was, "could it be the brake caliper arm flexing"? It seemed unlikely, but these are literally the first Campagnolo parts I've ever touched, and the rear brake arm is hollowed in the middle, plus the rear is a different model than the front, so I figured, maybe this is a known issue with this one model of the Potenza only?
So I bought an old Dura Ace rear brake on Ebay just to test, and it felt exactly the same.
My next theory was perhaps the levers, being pretty cheap, have bad tolerances and have play in them, but this theory seems undercut by the fact that the left brake feels solid when I pull it.
It seems to me now like it must be something with the cable housing--maybe it flexes somewhere when I pull it and it loses some tautness. It's a pretty long run, and I have it wrapped under the handlebar tape, which is something I've never done before, plus the frame has internal cable tubing, so I suspect I did something wrong either at the points where the housing terminates in the frame, or in that long run under the bar tape.
I watched the Park Tool videos by Calvin Jones about taping and installing housing, which are excellent and informative, but I still suspect there's another piece of info I'm missing. Pics follow:










lajt is offline
Old 03-21-21, 08:46 PM
  #2
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,649
Mentioned: 401 Post(s)
Tagged: 0 Thread(s)
Quoted: 2939 Post(s)
Liked 3,649 Times in 1,634 Posts
That's a sharp setup! It's possible that your right brake housing is creeping into the lever body. I've seen this happen where the housing just kind of peels back while the inner coil moves into the space where you don't want it. Did you use ferrules at the levers to terminate the end of the cables?
nlerner is offline
Old 03-21-21, 08:54 PM
  #3
Charliekeet
Senior Member

Join Date: Sep 2015
Location: Massachusetts
Posts: 756

Bikes: S-Works Stumpjumper HT Disc, Fuji Absolute, Kona Jake the Snake, '85 Cannondale SR900

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 217 Post(s)
Liked 215 Times in 141 Posts
Yeah, Iíd guess you donít have some rigidity (like a cable end cap) somewhere like right at the lever body or as it enters/exits the frame. I donít have any internal-routing frames, so Iím not familiar with the ins & outs (pun intended) of that.
Charliekeet is offline
Old 03-21-21, 08:55 PM
  #4
Bigbus
Very Senior Member

Join Date: Mar 2018
Location: Always on the Run
Posts: 1,211

Bikes: Giant Quasar & Fuji Roubaix

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Liked 341 Times in 242 Posts
I had the same problem on my Giant when I first got it (given to me as junk). I initially put on new Bell cables that I picked up at the hardware store for cheap just so I could get on the road with it. Real quick I discovered there is a real difference in low quality cable housing and better stuff. I replaced the cable housing with good quality, made sure there wasn't any extra length to flex, made sure all housing ends had ferrules, and what a difference. It wasn't the levers or the calipers, it was all cable and housing. I ruled out pads because you already put some good ones on. HTH and Good Luck
Bigbus is offline
Old 03-21-21, 09:11 PM
  #5
lajt
Member
Thread Starter

Join Date: Mar 2021
Location: Los Angeles, CA
Posts: 48
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 14 Times in 12 Posts
Bigbus , that's an interesting thought about higher quality housing. Is there a brand that's known as the good stuff? I just ordered a no-name pack with the levers, but it seems like an easy fix to try.
lajt is offline
Old 03-21-21, 09:17 PM
  #6
lajt
Member
Thread Starter

Join Date: Mar 2021
Location: Los Angeles, CA
Posts: 48
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 14 Times in 12 Posts
nlerner , I used ferrules where they would fit, but in a couple of spots, like where it enters the frame, the hole isn't wide enough for one. I can't remember if I have one inside the brake lever--that might've been another spot where it didn't fit. It's a good point, though--I wonder if there are narrow-format ones that I'm supposed to be using in spots like that.
Getting the length right is quite an art; there doesn't seem to be an absolute gauge. Even Calvin Jones gets a bit nebulous on this point; he just says, "if it starts to pull tight, it's too short, but if it loops too far out, it's too long."
lajt is offline
Old 03-22-21, 05:51 AM
  #7
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,649
Mentioned: 401 Post(s)
Tagged: 0 Thread(s)
Quoted: 2939 Post(s)
Liked 3,649 Times in 1,634 Posts

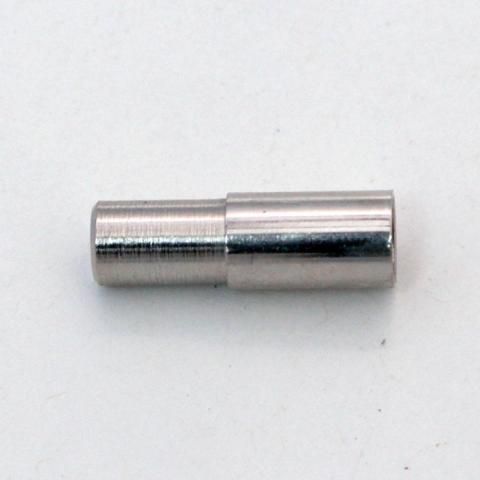

A step-down ferrule might be what you need.

nlerner is offline
Old 03-22-21, 07:36 AM
  #8
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 1,001

Bikes: Peugeot teamline

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 247 Post(s)
Liked 102 Times in 86 Posts
It's pretty common to have this with a back brake.
First is there anything wrong with the brakes?
Do they brake?
Do they snap back and the wheel spins freely.
How many fingers do you need to pull the brake? Front and rear?
Will they lock up?
Setup the brakes so the pads are against the wheel. How far can you pull the lever now.
You have to judge how much power you are going to need. Set the brakes and lever so that, that power is available without difficulty
If the lever comes to the bar before that point you have a problem.
Sometimes you have to live with it.
blamester is offline
Old 03-22-21, 08:26 AM
  #9
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 10,405

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 111 Post(s)
Tagged: 0 Thread(s)
Quoted: 3396 Post(s)
Liked 2,151 Times in 1,398 Posts
Since you are going to go out and buy new housing anyway you might try running the housing along the top of the top tube secured by three pieces of electrical tape like old school (1980s and earlier) bikes. See how that feels. Then rerun it inside. Now you know how much the turns at the entrance and exit are costing you.
79pmooney is offline
Old 03-22-21, 08:35 AM
  #10
lajt
Member
Thread Starter

Join Date: Mar 2021
Location: Los Angeles, CA
Posts: 48
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 14 Times in 12 Posts
nlerner , thank you about the step-down ferrule! I didn't even know those existed. Velo Orange carries those; I'll order a couple and try them.
79pmooney , that's a good idea about running the housing on the outside and see if it helps.
blamester , all good points. I'm going to take it all apart and re-run it front to back and see how it works.
Have any of you tried compressionless brake housing? I was reading about it and it sounded kind of intriguing. More expensive than gold, though!
lajt is offline
Old 03-22-21, 08:48 AM
  #11
Bigbus
Very Senior Member

Join Date: Mar 2018
Location: Always on the Run
Posts: 1,211

Bikes: Giant Quasar & Fuji Roubaix

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Liked 341 Times in 242 Posts
I haven't tried compressionless housing. but the housing I got at the LBS was much stiffer than the cheap stuff I got from the hardware store. But then I paid more for the couple meters of housing than I did for the complete Bell cable package that included shifting and braking cables, housings, and ferrules LOL.
Bigbus is offline
Old 03-22-21, 09:53 AM
  #12
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,525

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1220 Post(s)
Liked 1,188 Times in 657 Posts
@lajt - Quality housing is provided by Jagwire, Shimano, and my favorite, Campagnolo.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Likes For SJX426:
Old 03-22-21, 10:06 AM
  #13
lajt
Member
Thread Starter

Join Date: Mar 2021
Location: Los Angeles, CA
Posts: 48
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 14 Times in 12 Posts
Originally Posted by SJX426 View Post
@lajt - Quality housing is provided by Jagwire, Shimano, and my favorite, Campagnolo.
Thanks for the tip--actually just ordered some Jagwire.
lajt is offline
Old 03-22-21, 11:48 AM
  #14
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 1,001

Bikes: Peugeot teamline

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 247 Post(s)
Liked 102 Times in 86 Posts
So new brake cable may make a difference but it's unlikely to be huge.
I maybe should have been clearer. Set up the brake with the pads against the rims before you pull the lever. Use the Barrell adjuster to tighten it up snug. Now pull the lever. How much can you pull. A new cable might get you couple of mill. Is that enough?
So it could be you that is out of spec for the lever. That may be designed for a different hand rider combo. And you fall out side the optimum user.
Building a bike is trial and error. You don't get it right first time. And everything is compromise. Asthetics and function.

Last edited by blamester; 03-22-21 at 12:06 PM.
blamester is offline
Old 03-22-21, 11:59 AM
  #15
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,777

Bikes: Schwinn Varsity

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1881 Post(s)
Liked 649 Times in 380 Posts
That doesn't look like brake housing to me.
trailangel is offline
Old 03-22-21, 12:06 PM
  #16
shoota
Senior Member

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,797
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1711 Post(s)
Liked 499 Times in 345 Posts
Compressionless housing ftw.
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is offline
Likes For shoota:
Old 03-22-21, 12:10 PM
  #17
lajt
Member
Thread Starter

Join Date: Mar 2021
Location: Los Angeles, CA
Posts: 48
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 14 Times in 12 Posts
Originally Posted by blamester View Post
Building a bike is trial and error. You don't get it right first time. And everything is compromise. Asthetics and function.
Thanks for this--it's reassuring that this is normal for a build! It always feels like there's some magical answer I'm missing, but I guess it's just part of the process.
lajt is offline
Old 03-22-21, 04:37 PM
  #18
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 1,001

Bikes: Peugeot teamline

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 247 Post(s)
Liked 102 Times in 86 Posts
Originally Posted by lajt View Post
Thanks for this--it's reassuring that this is normal for a build! It always feels like there's some magical answer I'm missing, but I guess it's just part of the process.
It's easy to buy a 105 group set or whatever and stick on and it will work. But it is designed for everybody. Building your own is better but more difficult. I am getting close on my bike and it's taken years.
blamester is offline
Old 03-23-21, 04:58 AM
  #19
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,891
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 710 Post(s)
Likes: 0
Liked 740 Times in 444 Posts
The op's pics show a cable run with multiple S-shaped bends.

A moment's thought should make it apparent to any cyclist that the cable inner when taut will "cut the corners" of an S-bend and that's what causes the "stretchy" feeling. This will happen even with compressionless housing, as what happens is the inner just increasingly takes up the clearance between it and the outer. On single curves it takes it all up at once, then no stretchy feeling after.

Unfortunately the op's choice of bars/stem/levers/wrap and the internal-routing make it difficult to avoid such bends.

Internal routing, like seatpost flutes, is almost always a bad idea.
oneclick is offline
Old 03-23-21, 09:40 AM
  #20
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,399
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2390 Post(s)
Liked 1,306 Times in 986 Posts
As a side comment, bought a bike last year- brakes did not feel right- the seller had taken it to a shop for new brake cables and housing and they used Shift Index cable housing.

aaack!
repechage is offline
Old 03-23-21, 12:25 PM
  #21
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,882

Bikes: Ď87 Marinoni SLX Sports Tourer, Ď79 Miyata 912 by Gugificazione

Mentioned: 157 Post(s)
Tagged: 0 Thread(s)
Quoted: 458 Post(s)
Liked 336 Times in 200 Posts
Originally Posted by lajt View Post
Have any of you tried compressionless brake housing? I was reading about it and it sounded kind of intriguing. More expensive than gold, though!
I’m using compressionless housing from Jagwire on the ‘79 Miyata with Shimano dual pivot caliper, Campy Ergo levers, ferrules everywhere, slightly toed-in Kool Stop salmon pads. Extremely pleased with the solid feel, especially considering the rear brake has full length housing. Same feel for both brakes. However, my housing is fully exposed, so fewer bends.
Dfrost is offline
Old 03-23-21, 04:41 PM
  #22
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,840
Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 590 Post(s)
Liked 364 Times in 256 Posts
Originally Posted by trailangel View Post
That doesn't look like brake housing to me.
Yes, @lajt are you definitely using brake housing?

Brake left, shifter right

tricky is offline
Old 03-23-21, 05:03 PM
  #23
lajt
Member
Thread Starter

Join Date: Mar 2021
Location: Los Angeles, CA
Posts: 48
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 14 Times in 12 Posts
hi @tricky, yes, it's definitely brake housing, but that's a really good point--that would definitely cause it.
I bet I've unwittingly made this mistake many times in the past because I didn't know the two were different for most of my life.
On this particular project, I had watched the Park Tool video where he shows the difference between the two--how the shifter housing uses strands, whereas the brake housing uses a single coil, so I was aware of it going into it. I thought it was interesting how he uses cable cutters for the shifter housing, but side cutters for the cable housing. That's a distinction I will probably need to look up the next time I do this in a year.
I'm going to try the compressionless housing just to see what it's like. It's all educational for me so I don't mind spending the extra even if I don't end up using it.
lajt is offline
Likes For lajt:
Old 03-23-21, 07:21 PM
  #24
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,976

Bikes: Bob Jackson, Wizard, Pegoretti Duende, Merckx ProSLX, Pelizzoli, Cannondale ST, Schwinn Tempo, Davidson Sport Custom, Canyon Endurace, Richard Sachs, Davidson Discovery

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 1746 Post(s)
Liked 1,678 Times in 691 Posts
I suspect that the spongy feeling is a combination of inexpensive cable, inexpensive housing, and the levers themselves.
Putting together ‘the whole package’ can be an iterative process, and it is different for everyone/every build.
For example, on my 78 Davidson with first gen DA, I was unable to get the kind of braking performance I needed.
Wound up with dual pivot brake calipers and later Shimano SLR non aero levers to make it all function the way I needed it to.
Someone else might have been perfectly happy with the original levers and calipers and pads,but they didn’t stop well enough for my needs.
So...there’s that.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
