Suitable for 650b - Fuji, Trek, Raleigh?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Suitable for 650b - Fuji, Trek, Raleigh?

Old 04-20-21, 12:05 AM
  #1
polymorphself
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 1,618
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 664 Post(s)
Liked 747 Times in 367 Posts
Suitable for 650b - Fuji, Trek, Raleigh?

I've been looking for Fuji S12-S frames as I've seen that they take to 650b with no fuss and easily take 42mm tires with fenders. Aside from those I see that the International/Super Course/Competition is a popular choice as well as some Trek models, although it seems like treks are more prone to needing frame work done and wonít be as low trail as the others.

Paramaters are:

23" frame
42mm with fenders minimum
No frame mods needed
Lower trail as I like a front load

I'd love a 1979 S12-S LTD and have begun the search for one, but am interested in what others think about the various Raleigh models with the above parameters?

Thanks in advance. Hoping to make a nice,
long project out of this.

Last edited by polymorphself; 04-20-21 at 12:58 AM.
polymorphself is offline
Old 04-20-21, 05:07 AM
  #2
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,586

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 539 Post(s)
Liked 291 Times in 204 Posts
Well I kind kind of stopped looking after I found a Fuji S12-S, but if an LTD pops up with in a 100 miles...
The Raleigh Competition and Internationals are also hens teeth, and among those tiny teeth are vintages that are better or NSG for conversion.

The early 70's Super Courses have a low trail fork but all ready use long drop brakes with 27" wheels, so your into BMX and Beach Cruiser caliper brakes. Also the Super Courses I've seen from this generation do not have a lot of extra chainstay clearance, so I'm not sure you'd get 42 mm tires in the back.

I'm sure someone has a list they will post of bikes that fit your criteria, but it might be kind short.

The Plan B I can suggest, is to find a 27" frame that has the tire clearance in the chainstays. The Bridgestone 200-500 come to mind, but there are a lot of "fatties fit fine" threads here, mostly focused on 700c conversion gravel grinders. If you can find one of these 27" frames with rear spacing and swap in a 700c fork with 55mm of rake, you can at least have solid braking in the front, even if you need BMX calipers in the rear. The shorter fork will also increase the head tube angle a bit, and help reduce the trail. Bottom bracket height will get double whammies, so 165m cranks might be necessary.

Last edited by bark_eater; 04-20-21 at 08:56 AM.
bark_eater is offline
Old 04-20-21, 05:15 AM
  #3
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,667
Mentioned: 402 Post(s)
Tagged: 0 Thread(s)
Quoted: 2955 Post(s)
Liked 3,677 Times in 1,646 Posts
42mm with fenders could be tough unless you’re willing to do some chainstay dimpling. I have that on my Gugified ‘71 Intl but couldn’t fit that on my ‘74 Intl without some dimpling. Early 70s Raleighs originally designed around 700c wheels are all possibilities. Another is a Motobecane Grand Record from that era. Tons of room.
nlerner is offline
Likes For nlerner:
Old 04-20-21, 06:32 AM
  #4
jamesdak
Senior Member

Join Date: Aug 2010
Location: Utah
Posts: 7,582

Bikes: Paletti,Pinarello Monviso,Duell Vienna,Giordana XL Super(2)Lemond Maillot Juane (2) & custom,PDG Paramount,Serotta CSI,Fuji Opus III,Davidson Impulse,Pashley Guv'nor,Evans,Fishlips,Prologue TT,Y-Foil,Softride, Tetra Pro, CAAD8 Optimo,Klein Quantum II

Mentioned: 135 Post(s)
Tagged: 0 Thread(s)
Quoted: 1923 Post(s)
Liked 2,108 Times in 970 Posts

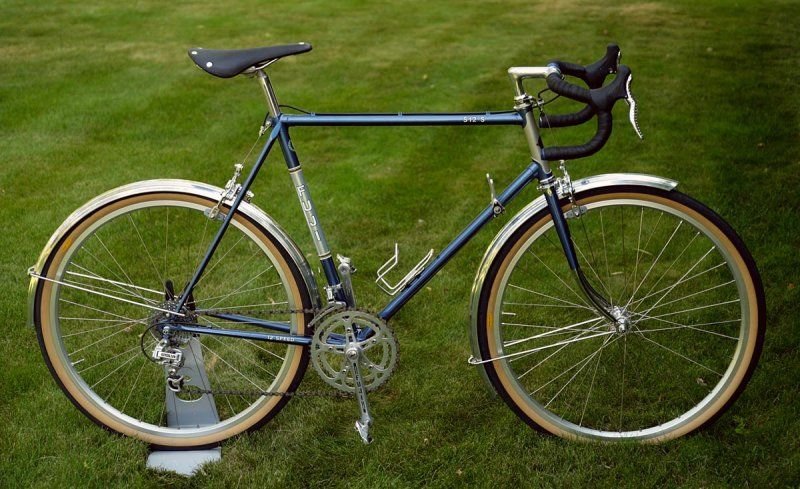

Well for sure the S12-s will work as that's the one I converted to 650b with no real issues. It rode very plush after the conversion and yet could still really fly when I got on it.

Here's a gallery of pics I took of it.

https://pbase.com/jhuddle/fuji_s12-s

I sold it a couple of years ago to a local guy who is still loving it and sends me texts about how much he's enjoying it.



The only real "mod" I remember having to make was triming away a bit of the rear fender to fit it between the chainstays for attachment. There also wasn't enough room by the rear break bridge to get the fender line visually correct. Plenty of clearance from the tire though. Everything else bolted on just fine. I had originally planned on upgrading the components but the pantographed Fuji stuff worked great and looked right on this to me. After these pictures were taken I did degrease and clean the components better and then polished them up. The wheels were handbuilt by Velocity.
__________________
Steel is real...and comfy.

Last edited by jamesdak; 04-20-21 at 06:40 AM.
jamesdak is offline
Likes For jamesdak:
Old 04-20-21, 06:50 AM
  #5
bear_a_bug
Senior Member

bear_a_bug's Avatar

Join Date: May 2013
Location: Portland, Oregon
Posts: 327

Bikes: 650B'd '74 Raleigh Super Tourer and '83 Trek 620, '73 Zeus Competition, 2018 Rawland xSogn

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 123 Post(s)
Liked 108 Times in 50 Posts
Had a '79 Fuji S12-S LTD which was my introduction to 650B. Wonderful bike for conversion - everything fits just so. I'd also keep my eye open for a Fuji America from that time, pretty sure they fit similarly.
bear_a_bug is offline
Likes For bear_a_bug:
Old 04-20-21, 06:55 AM
  #6
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,357

Bikes: A bunch of old bikes and a few new ones

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 5438 Post(s)
Liked 2,278 Times in 1,476 Posts
I second nlerner 's suggestion of a 70s Motobecane GR. They have a remarkable amount of clearance and would be easy to mod. They came with 27 inch wheels but if you run 700c wheels on them, they can take a 700 x38c tire which gets you into gravel bike territory.

If you don't mind a more "modern" vintage bike, look for Bridgestone XO series. The 1 is expensive but the 2 and the 3 often came with road bike geometry built around 26 inch wheels. BITD if you wanted a gravel bike, 26 inch was the way to go. My 1993 XO 2 is a terrific gravel bike. I'm running 26 x 1.75 tires and there is plenty of room for fenders.
bikemig is online now
Likes For bikemig:
Old 04-20-21, 11:21 AM
  #7
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,016

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 982 Post(s)
Liked 956 Times in 577 Posts

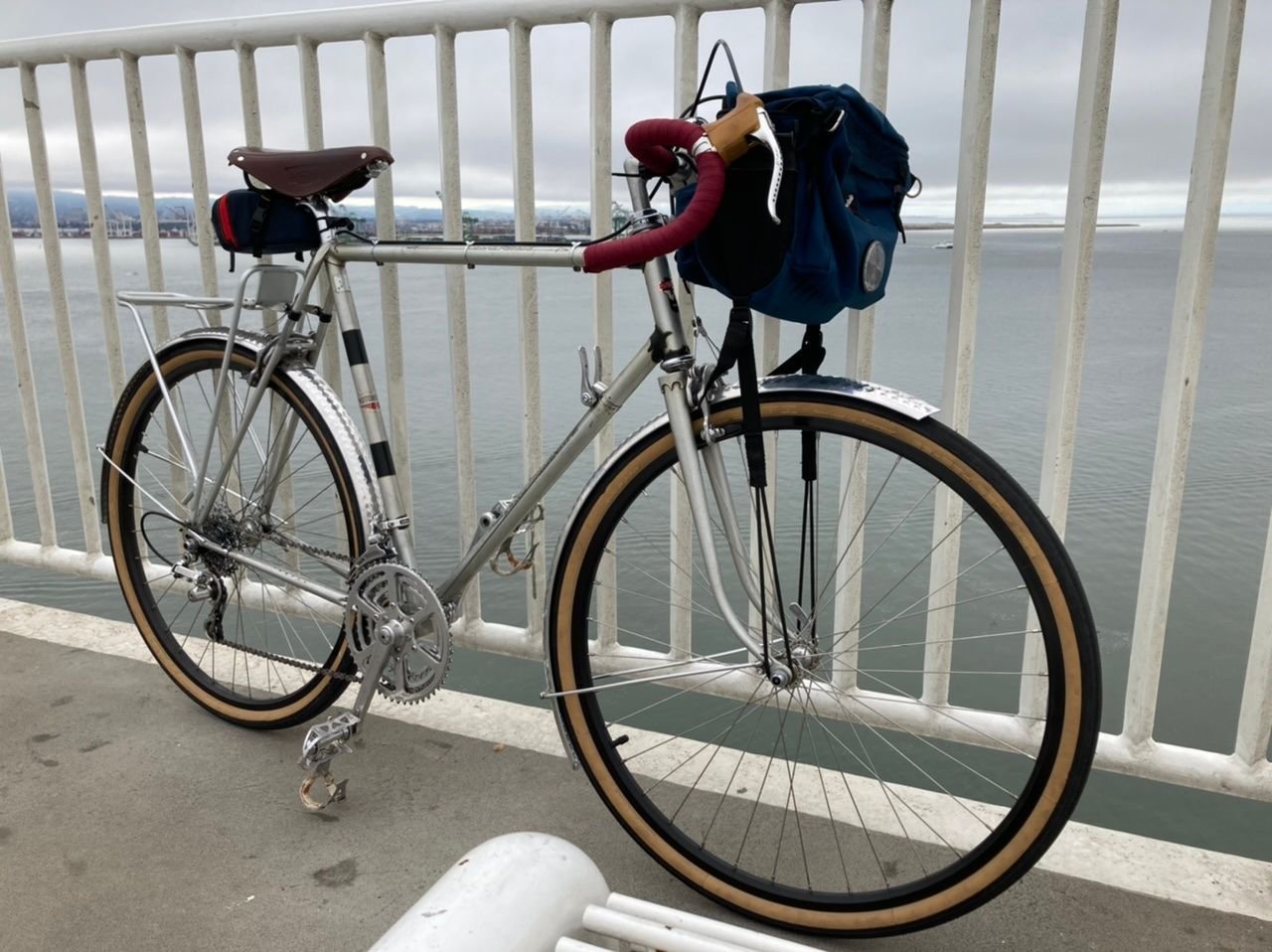

The only thing to be mindful of with the Moto GR is that the rear brake reach is long if you're using center-mounted centerpulls. I use every mm of the MAFAC Raid back there, and I even had to tilt the shoes downward. It brakes just fine, but even the DC750 I tried would have needed some filing on the brake shoe mounting slot. That being said, I love it as a 650b.



Last edited by noobinsf; 04-20-21 at 11:24 AM.
noobinsf is offline
Likes For noobinsf:
Old 04-20-21, 11:25 AM
  #8
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,357

Bikes: A bunch of old bikes and a few new ones

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 5438 Post(s)
Liked 2,278 Times in 1,476 Posts
Originally Posted by noobinsf View Post
The only thing to be mindful of with the Moto GR is that the rear brake reach is long if you're using center-mounted centerpulls. I use every mm of the MAFAC Raid back there, and I even had to tilt the shoes downward. It brakes just fine, but even the DC750 I tried would have needed some filing on the brake shoe mounting slot. That being said, I love it as a 650b.


Cool bike. What size tire? Did you have to mod the chainstays?

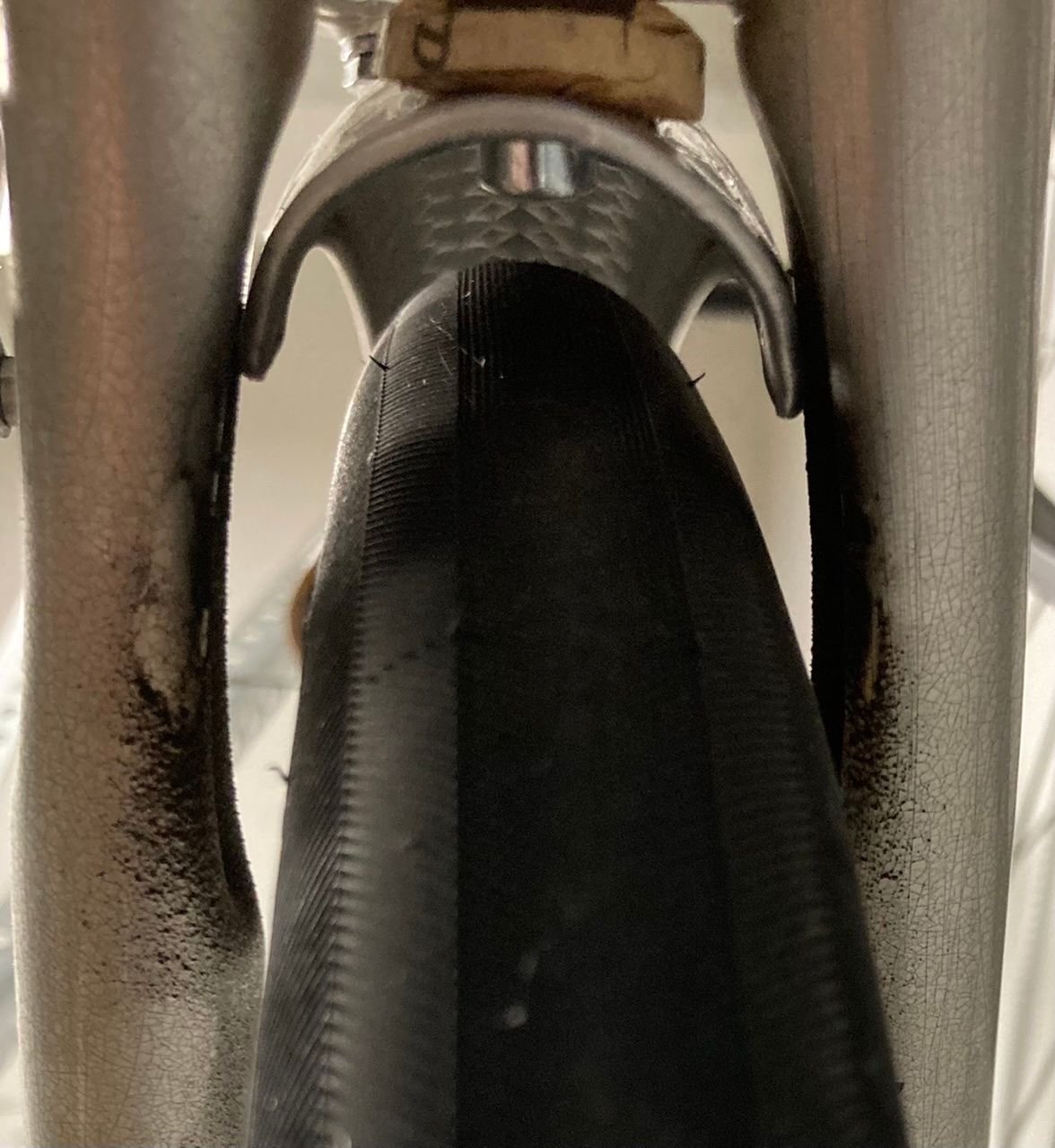

I may talk myself into doing this for my Moto GR. The paint is crackled which means its perfect for rough stuff. Good to know about the brake reach. The Raid has a max reach of 80; Weinmann 750 75. The Tektro 810 goes to 81 and with a modern brake lever would likely work well.

For a vintage bike, the Moto GR has an impressive amount of room for a fat tire.

Last edited by bikemig; 04-20-21 at 11:35 AM.
bikemig is online now
Old 04-20-21, 11:27 AM
  #9
fettsvenska
Senior Member

fettsvenska's Avatar

Join Date: Dec 2012
Location: Eastern Washington
Posts: 438

Bikes: 1978 Raleigh Competition-1974 Raleigh Folder-1983 Austro Daimler-198? Fuji Monterey-Surly LHT-Surly Karate Monkey-Surly Cross Check

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked 94 Times in 53 Posts
One alternative to these options that I had good luck with is the Trek Singletrack 930/950/970 series bikes from the early 90s that had the lugged steel frames. Obviously, these are very different frames from the road oriented frames that have been listed previously in this thread but the conversion was easy and there was plenty of clearance for the typical 650b tires and fenders. I added a dirt drop stem with Nitto drop bars and bar-end shifters and Tektro CR720 cantilevers for the brakes and that is about all I had to do to accommodate the conversion.
fettsvenska is offline
Old 04-20-21, 11:39 AM
  #10
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,016

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 982 Post(s)
Liked 956 Times in 577 Posts
Originally Posted by bikemig View Post
Cool bike. What size tire? Did you have to mod the chainstays?
I may talk myself into doing this for my Moto GR. The paint is crackled which means its perfect for rough stuff. Good to know about the brake reach. The Raid has a max reach of 80; Weinmann 750 75. The Tektro 810 goes to 81 and with a modern brake lever would likely work well.

For a vintage bike, the Moto GR has an impressive amount of room for a fat tire.
Iím running 38mm Pari-Motos with 50mm fenders. No mods to the chainstays, but I did spread them to 128mm from the original 120mm. I doubt that had an effect on tire clearance, but mentioning it nevertheless. The chainstay gap at the widest point of the tire is 45mm, so 42s ought to just work. Here is a view of that gap.


noobinsf is offline
Old 04-20-21, 11:49 AM
  #11
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,435

Bikes: It's complicated.

Mentioned: 1149 Post(s)
Tagged: 0 Thread(s)
Quoted: 3942 Post(s)
Liked 3,284 Times in 1,474 Posts
Originally Posted by polymorphself View Post
No frame mods needed
Ah, I see you've been warned.



The Fuji S12-S is the ideal. Early 70's Raleigh Competitions and Super Tourers aren't often what I'd call low trail, but they're certainly "lower trail". They both always (almost) have 57cm top tubes. Motobecane Grand Sports have shorter top tubes and chain stays, and fit 42's easily because of the factory dimpling. Some model Treks work as well.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 04-20-21, 03:35 PM
  #12
polymorphself
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 1,618
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 664 Post(s)
Liked 747 Times in 367 Posts
Looking like it's S12S or early 70s Raleigh. The Moto GR and XO series suggestions are good ones too, will look into this. May have to throw up some WTB posts in the sales forum soon! 79 S12S LTD still seems like what I want, the color is a huge plus for me, geometry is closest to what I'd like and it's plug and play.

Last edited by polymorphself; 04-20-21 at 03:39 PM.
polymorphself is offline
Old 04-20-21, 04:50 PM
  #13
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,357

Bikes: A bunch of old bikes and a few new ones

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 5438 Post(s)
Liked 2,278 Times in 1,476 Posts
Originally Posted by gugie View Post
Ah, I see you've been warned.



The Fuji S12-S is the ideal. Early 70's Raleigh Competitions and Super Tourers aren't often what I'd call low trail, but they're certainly "lower trail". They both always (almost) have 57cm top tubes. Motobecane Grand Sports have shorter top tubes and chain stays, and fit 42's easily because of the factory dimpling. Some model Treks work as well.
What about 70s Fuji Finest? Aren't they pretty good for this conversion as well? Or do the stays need to be modded?
bikemig is online now
Old 04-20-21, 05:34 PM
  #14
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,435

Bikes: It's complicated.

Mentioned: 1149 Post(s)
Tagged: 0 Thread(s)
Quoted: 3942 Post(s)
Liked 3,284 Times in 1,474 Posts
Originally Posted by bikemig View Post
What about 70s Fuji Finest? Aren't they pretty good for this conversion as well? Or do the stays need to be modded?
If the OP can find an early 70's Fuji Finest, even better! Nicer frame, natural low trail.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 04-20-21, 07:09 PM
  #15
nazcalines
Senior Member

Join Date: Jul 2013
Posts: 102
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
If you want to make this a *real* long term project, consider taking some brazing and/or machining classes. If you're lucky enough to have access to a good maker space or community college it can be hugely rewarding.

On the Treks, my 83 600 series has room for 42mm tires and fender in the rear without any crimping, but the front fender would probably need to be crimped to fit around the blades. I have no idea about the brake reach tho, it's pretty far, maybe too far for any standard bolt on brake.
nazcalines is offline
Likes For nazcalines:
Old 04-20-21, 07:59 PM
  #16
polymorphself
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 1,618
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 664 Post(s)
Liked 747 Times in 367 Posts
Originally Posted by gugie View Post
If the OP can find an early 70's Fuji Finest, even better! Nicer frame, natural low trail.
Those were nicer frames?
polymorphself is offline
Old 04-20-21, 08:02 PM
  #17
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,357

Bikes: A bunch of old bikes and a few new ones

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 5438 Post(s)
Liked 2,278 Times in 1,476 Posts
Originally Posted by polymorphself View Post
Those were nicer frames?
The S10s has a chrome moly main triangle. The 70 s Finest were full chrome moly and chromed underneath the paint.

Last edited by bikemig; 04-20-21 at 08:05 PM.
bikemig is online now
Old 04-20-21, 08:52 PM
  #18
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,435

Bikes: It's complicated.

Mentioned: 1149 Post(s)
Tagged: 0 Thread(s)
Quoted: 3942 Post(s)
Liked 3,284 Times in 1,474 Posts
Originally Posted by bikemig View Post
The S10s has a chrome moly main triangle. The 70 s Finest were full chrome moly and chromed underneath the paint.
The dude abides.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 04-20-21, 08:55 PM
  #19
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,435

Bikes: It's complicated.

Mentioned: 1149 Post(s)
Tagged: 0 Thread(s)
Quoted: 3942 Post(s)
Liked 3,284 Times in 1,474 Posts
Originally Posted by nazcalines View Post
If you want to make this a *real* long term project, consider taking some brazing and/or machining classes. If you're lucky enough to have access to a good maker space or community college it can be hugely rewarding.

On the Treks, my 83 600 series has room for 42mm tires and fender in the rear without any crimping, but the front fender would probably need to be crimped to fit around the blades. I have no idea about the brake reach tho, it's pretty far, maybe too far for any standard bolt on brake.
Oh, MAFAC RAIDs and modern equivalents reach plenty far.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 04-21-21, 09:13 AM
  #20
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,435

Bikes: It's complicated.

Mentioned: 1149 Post(s)
Tagged: 0 Thread(s)
Quoted: 3942 Post(s)
Liked 3,284 Times in 1,474 Posts
Originally Posted by bikemig View Post
Or do the stays need to be modded?
Chainstays are already dented, and if you wanted to use modern gearing on it, spread them to 130mm, which is well within the reach of an ambitious DIYer.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 04-22-21, 03:59 PM
  #21
OutnBack
Senior Member

OutnBack's Avatar

Join Date: Jul 2013
Posts: 326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 81 Times in 49 Posts
Has anyone done a Moto Grand Jubile? I have my eye on a minty 1979 built w/ Vitus tubing & center pull brakes.
OutnBack is offline
Likes For OutnBack:
Old 04-22-21, 06:22 PM
  #22
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,507

Bikes: yes

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 464 Post(s)
Likes: 0
Liked 231 Times in 101 Posts
Food for thought.

Show Us Your 650B Conversions
Vintage_Cyclist is offline
Likes For Vintage_Cyclist:
Old 04-22-21, 07:09 PM
  #23
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,435

Bikes: It's complicated.

Mentioned: 1149 Post(s)
Tagged: 0 Thread(s)
Quoted: 3942 Post(s)
Liked 3,284 Times in 1,474 Posts
Originally Posted by OutnBack View Post
Has anyone done a Moto Grand Jubile? I have my eye on a minty 1979 built w/ Vitus tubing & center pull brakes.
Calling @Andy_K
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 04-22-21, 11:31 PM
  #24
polymorphself
Senior Member
Thread Starter

Join Date: Oct 2017
Posts: 1,618
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 664 Post(s)
Liked 747 Times in 367 Posts
Originally Posted by Vintage_Cyclist View Post
Yep, Iíve perused the entirety of that thread at least three times. Now here I am
polymorphself is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
