Rebranded Alan Carbonio, failed at BB

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Rebranded Alan Carbonio, failed at BB

Old 05-20-21, 12:19 PM
  #1
Jantaras
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Finland
Posts: 93
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Liked 8 Times in 7 Posts
Rebranded Alan Carbonio, failed at BB lug

Hello,

A little background information. So I was picking a Campagnolo disc wheel when seller started swinging a Vicini TT bike with almost complete C-Record group asking if I was interested. Sure I was so I bought that one, too. Bottom bracket, crankset and seatpost was missing.
I also got Carnac shoes that are barely, if at all, used. These are with some kind of Time cleats that are new to me. Seller had Time pedals on a bonded carbon frame somewhere in a corner. As he has no use for any of these, in a few days I asked if he is willing to sell these pedals. He offered the whole bike that had some nice bits (Shimano tricolor and Dura ace), also I noticed C-record crankset and bottom bracket that are originally from Vicini TT, so I went to buy this bike too. Price was reasonable.

Seller said he bought this bike in Belgium in early 90's and raced some races, including cobblestone ones, also training rides. He said the frame was very flexy, but not crashed.
At first I planned to put the C-record parts back to Vicini and maybe build this bonded frame for occasional relaxed rides, but after inspecting it looks like it is suitable for a wall art only. Vicini story is here:
Vicini TT bike: strange bulge on DT?

So, this is an Advanced Composite Technology Winning bike, a rebranded Alan Carbonio, no Alan markings. Theres a "K" and "DAMS" sticker on seat tube, maybe some kind of Belgium bike store?

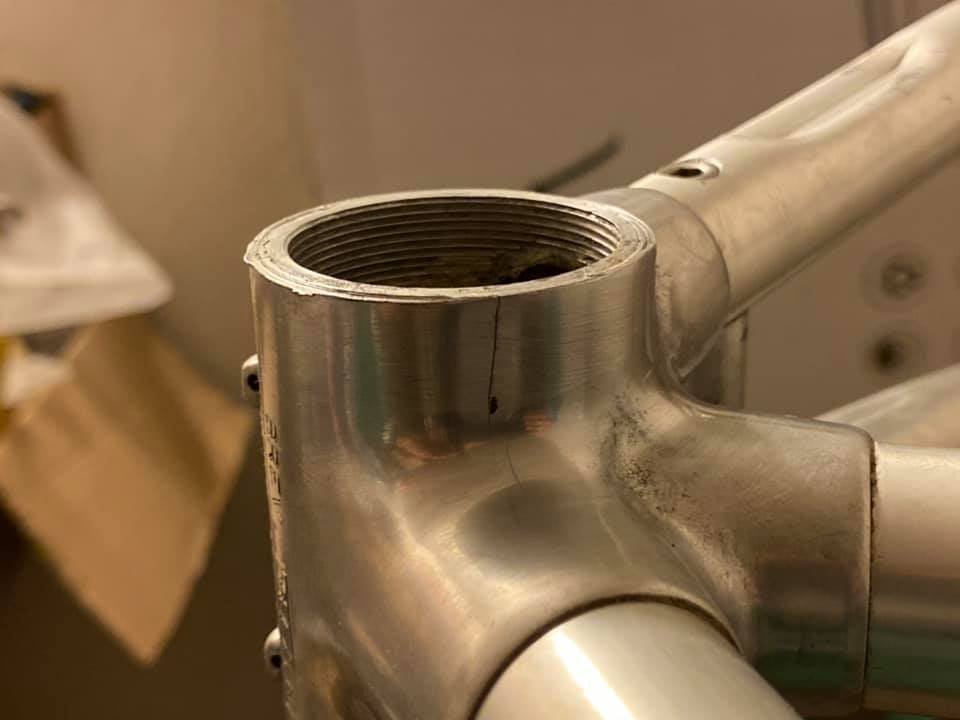

Anyway, I noticed that bb shell is cracked at the drive side, the crack is full thickness, can be seen from the inside of bb. Went for a 5 mile spin and bike rides very nicely, but flexes laterally quite easily.
I have seen (here and alsewhere on internet) some of these frames fail at bonding sites and maybe at seat tube-bb connection, but can't remember seeing this type of failure. Is it some kind of manufacturing defect or a fatique crack?
Attached Images
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg

Last edited by Jantaras; 05-21-21 at 03:44 PM. Reason: BB lug, not bb
Jantaras is offline
Likes For Jantaras:
Old 05-20-21, 12:43 PM
  #2
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,265
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2343 Post(s)
Liked 1,264 Times in 952 Posts
Nice wall art now I think.

how it happened is speculation, it does not really matter, the way the tubes converge, to take it apart will most likely damage one or more tubes, then you need an exact replacement shell.
Welding up? I don't think so.

Last edited by repechage; 05-20-21 at 12:47 PM.
repechage is offline
Old 05-20-21, 12:59 PM
  #3
fabiofarelli
Senior Member

fabiofarelli's Avatar

Join Date: Jan 2019
Location: Netherlands
Posts: 450

Bikes: Especialy Alan, but also Empella, Cascarsi, Gazelle, Bianchi, CJV, Sirocco, Berkers etcetera

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 124 Post(s)
Liked 602 Times in 226 Posts
Probably Kurt Dams in Veerle, near Tessenderlo.
I've seen twice a crack in the bb-lug before. Lateral flex is normal for Alan, certainly with strong riders and bigger frames. It depends how much flex ...
I know a lot of people ridin' with a crack in a lug, most of the time the head-lug. My lady rides that way for years, on a lady-frame, no uppertube! I myself got one with a crack in the seat-lug. It has never been a problem.
Aberto Falconi, the AL from Alan, seems to have said there are no riscs ridin' with a crack. The glue is more important, so never weld a crack!
fabiofarelli is offline
Old 05-21-21, 01:30 PM
  #4
fabiofarelli
Senior Member

fabiofarelli's Avatar

Join Date: Jan 2019
Location: Netherlands
Posts: 450

Bikes: Especialy Alan, but also Empella, Cascarsi, Gazelle, Bianchi, CJV, Sirocco, Berkers etcetera

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 124 Post(s)
Liked 602 Times in 226 Posts
In the Alan-group on FB this passed by, one of the responses, maybe it helps.

I had a carbon Alan fixed, had a crack in the same place.
An old team mechanic who used to fix them back in the day, stuffed the area with wet asbestos to absorb the heat, so the glue wouldn't weaken the joints, and welded it for me. I smoothed down the weld with a dremel and chased the tthread. You couldn't tell there had been a repair done. Perfect.
fabiofarelli is offline
Old 05-21-21, 03:44 PM
  #5
Jantaras
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Finland
Posts: 93
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Liked 8 Times in 7 Posts
Thanks for information and thoughts!
I'm not intending to repair it, maybe it could be done, as Fabiofarelli found in FB. Nearby there are no experienced CV bike welders that I am aware of, and, in any case, I am (overly)cautious about these things.
I'm more curious about the causes even it will not be repaired, I like to find out about these things. Could lateral flex induce these, like a fatique crack from lateral motion?

I'm quite surprised it could be not that dangerous. When I took it for a spin I was thinking it could disintegrate any moment I will think a little bit more and maybe it will be my easy cruising bike someday.
Jantaras is offline
Likes For Jantaras:
Old 05-21-21, 11:41 PM
  #6
fabiofarelli
Senior Member

fabiofarelli's Avatar

Join Date: Jan 2019
Location: Netherlands
Posts: 450

Bikes: Especialy Alan, but also Empella, Cascarsi, Gazelle, Bianchi, CJV, Sirocco, Berkers etcetera

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 124 Post(s)
Liked 602 Times in 226 Posts
I cannot help you with the reason. As always, probably it's a combination of factors. In my idea small frames usually have no cracks ...
And the other thing, maybe you should be able to compare with a ride on one with no cracks. Too much flex seems risky to me. But what's too much when you never rode another?
I'm small and I only ride quiet, no racing and I have no problem with the flex. But also I have no crack in the bb.


Picture just for fun, not mine.
fabiofarelli is offline
Old 05-22-21, 12:40 AM
  #7
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,915

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 193 Post(s)
Tagged: 0 Thread(s)
Quoted: 987 Post(s)
Liked 1,013 Times in 565 Posts
Cause Of BB Crack???

That's a strange place for a stress caused crack...

What I suspect is the aluminum casting that the BB shell was machined from had a manufacturing defect that was visually undetectable at the time. There are a number of causes for these kinds of "seams" but that's more than I want to get into.

My suggestion would to be get a strip of carbon fiber fabric long enough to wrap around the outside of the BB shell and overlap at least once.

Thoroughly clean the area to remove any grease or dirt then rough up the aluminum surface with some coarse sandpaper.

Next apply some high quality structural epoxy to the area. Wrap the carbon fiber over the epoxy making sure that it's being absorbed by the fibers. As the epoxy starts to harden apply a second coating over the fabric.

You could also apply some epoxy inside the BB but chasing the threads to remove the excess would probably damage the aluminum threads. A threadless BB like the old Mavic cartridges would eliminate chasing the threads.

Some of the early Klein frames had boron carbide fibers epoxied to the BB area.

Sorry for your misfortune....



verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 05-22-21 at 12:44 AM.
verktyg is offline
Old 05-22-21, 02:34 AM
  #8
fabiofarelli
Senior Member

fabiofarelli's Avatar

Join Date: Jan 2019
Location: Netherlands
Posts: 450

Bikes: Especialy Alan, but also Empella, Cascarsi, Gazelle, Bianchi, CJV, Sirocco, Berkers etcetera

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 124 Post(s)
Liked 602 Times in 226 Posts
[QUOTE][/That's a strange place for a stress caused crack...QUOTE]

And one of the most common places. I think the under head-lug is most common and this one is pretty close. But seldom a problem, surely if you keep your hands off the headset.
fabiofarelli is offline
Old 05-22-21, 05:00 AM
  #9
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 775

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 278 Times in 151 Posts
Carbon composite as a repair

Originally Posted by verktyg View Post
That's a strange place for a stress caused crack...

What I suspect is the aluminum casting that the BB shell was machined from had a manufacturing defect that was visually undetectable at the time. There are a number of causes for these kinds of "seams" but that's more than I want to get into.

My suggestion would to be get a strip of carbon fiber fabric long enough to wrap around the outside of the BB shell and overlap at least once.

Thoroughly clean the area to remove any grease or dirt then rough up the aluminum surface with some coarse sandpaper.

Next apply some high quality structural epoxy to the area. Wrap the carbon fiber over the epoxy making sure that it's being absorbed by the fibers. As the epoxy starts to harden apply a second coating over the fabric.

You could also apply some epoxy inside the BB but chasing the threads to remove the excess would probably damage the aluminum threads. A threadless BB like the old Mavic cartridges would eliminate chasing the threads.

Some of the early Klein frames had boron carbide fibers epoxied to the BB area.

Sorry for your misfortune....



verktyg
site
Without the use of an oven autoclave and or a vacuum in a heated moulded press the trapped air will render a backyard resin/carbon matrix exactly as strong as fiberglass ie not very strong. The reason CF is so much more expensive than other material is the very expensive ancillary equipment necessary to make it monocoque. The materials themselves are just cheap plastics.
Johno59 is offline
Old 05-22-21, 06:31 AM
  #10
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,428

Bikes: Several, mostly not name brands.

Mentioned: 135 Post(s)
Tagged: 0 Thread(s)
Quoted: 2921 Post(s)
Liked 1,873 Times in 1,135 Posts
Originally Posted by verktyg View Post
My suggestion would to be get a strip of carbon fiber fabric long enough to wrap around the outside of the BB shell and overlap at least once.
Maybe you could "Fred Flintstone" a repair, using a hose clamp around the shell?
JohnDThompson is offline
Likes For JohnDThompson:
Old 05-22-21, 09:27 AM
  #11
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 775

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 278 Times in 151 Posts
Aluminum bonding adhesives

The aerospace industry uses adhesives that bond aluminium together. The bond is far superior to welding or riveting but once again requires very toxic preparation and is oven cured. They even have a n Al adhesive emergency patching kit for aircraft stuck on the apron but a kit would cost as much as the bike brand new.
Johno59 is offline
Old 05-22-21, 09:43 AM
  #12
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,776

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 816 Post(s)
Liked 1,067 Times in 575 Posts
There are two four ways I might go about this. All could be used in parallel.
1) Drill a small hole at the end of the crack so that it doesn't propagate farther.
2) Screw in a good quality BB cup with some strong epoxy like J-B Weld or Loctite Epoxy Weld or Araldite 2011 all over the threads, and just never take it out again. This would shore up the area rather well, I think. If the bike ever fully broke, you could heat it up and liberate the cup without damaging it.
3) Fabricate a "corset" to hold the BB shell together. I'd make a split ring out of steel or aluminum and have it bolt together like a seat post clamp.
4) Just ride it, but monitor it regularly. The trouble getting worse should first manifest by the cup unscrewing (if Italian, right-hand threaded) or shifting/clunking (feeling like a loose BB bearing), I'd think. I bet it will be pretty obvious before anything catastrophic is at risk to occur.
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.

Last edited by scarlson; 05-22-21 at 09:48 AM.
scarlson is offline
Old 05-22-21, 09:53 AM
  #13
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,265
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2343 Post(s)
Liked 1,264 Times in 952 Posts
The weld repair was done to an aluminum tubed bike.
no mention of the actual process.
only hint was that the threads required chasing, that indicates to me that the weld had full penetration, I suspect a V groove cut to get a clean weld face, and maybe a stop crack drill.
be good to see how extended the crack was before the repair.

I still vote wall art
repechage is offline
Likes For repechage:
Old 05-22-21, 01:25 PM
  #14
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 775

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 278 Times in 151 Posts
BB swing

"I still vote wall art"
I have to agree. I have always assumed the biggest stress on a bike was borne by the BB. Whether standing on the pegs and crunching over a pothole or giving the full gas going up a hill. The BB shell is normally 4 or 5 times thicker in steel and is a very tight radius for superior rigidity. A crack there spells doom for my two cents worth.
Johno59 is offline
Old 06-25-21, 06:30 AM
  #15
Jantaras
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Finland
Posts: 93
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Liked 8 Times in 7 Posts
Sorry for a late response. As always, thank you all for responses!
I don't really need a n+1 bike as I have more or less intact steel ones, so this frame will be wall art, at least for now.
Jantaras is offline
