Dia Compe "Silver" bar end shifters issue

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Dia Compe "Silver" bar end shifters issue

Old 05-31-21, 11:10 AM
  #1
Schlafen
Senior Member
Thread Starter

Join Date: Apr 2020
Posts: 179
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 55 Times in 36 Posts
Dia Compe "Silver" bar end shifters issue

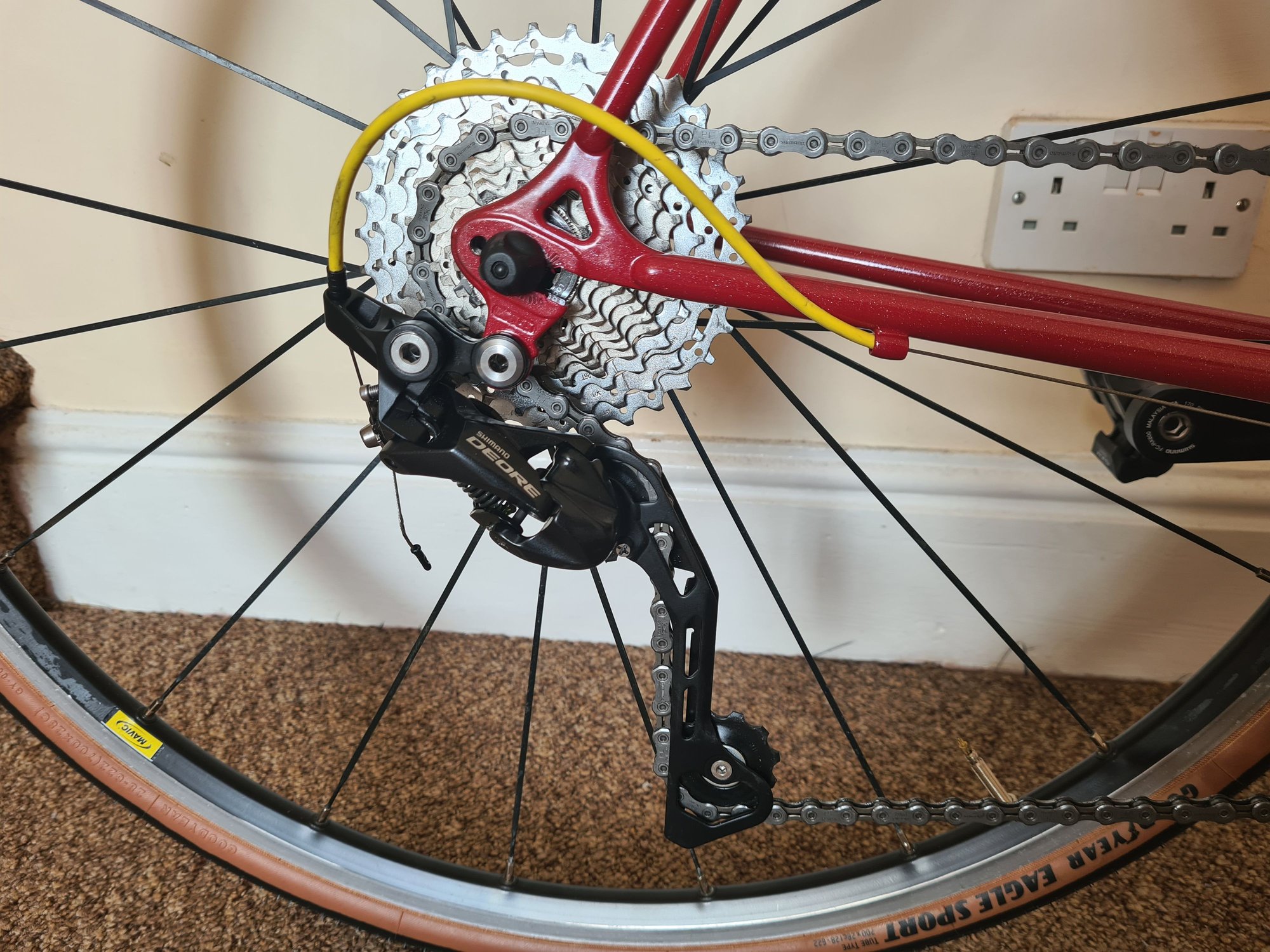

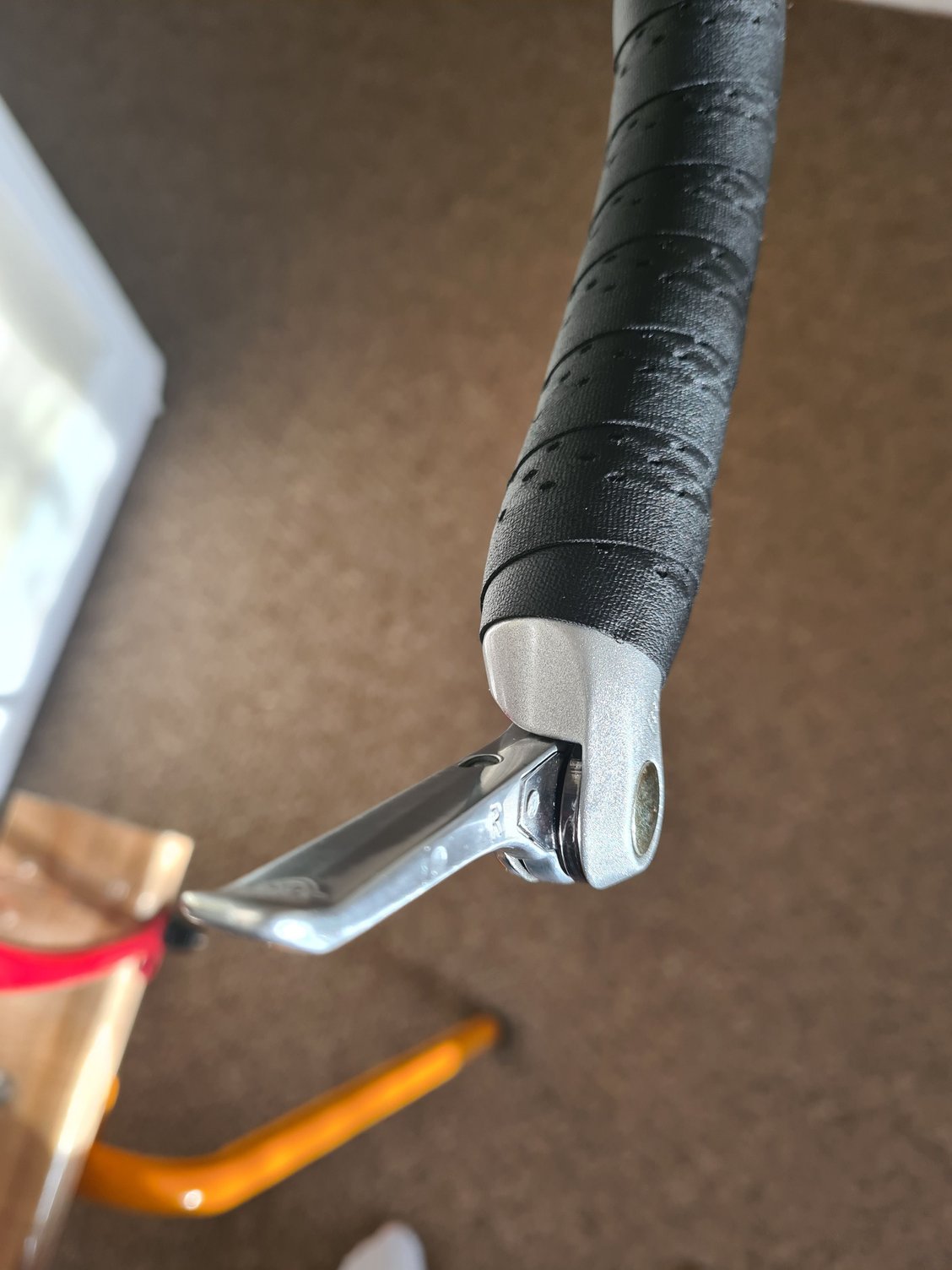

I have recently built myself a parts bin commuter bike and in order for the mixing and matching to work, I picked up a set of Dia Compe Power Ratchet "Silver" ( Rivendell?) 10 speed bar end shifters, as I had no brifters that would work with this combo and this would be the most inexpensive option.
T6000 RD + GRX 10 speed FD and cranks.
The combo works perfect if I only shift 9 cogs at the rear but when needing the 10th, lowest gear, no go.
The shifter doesn't have enough cable pull. There's only a minuscule amount of cable pull required for it to shift on the largest cog as when the lever is maxed out the chain touches the largest cog but not jumping over. I can't seem to work it out which just pisses me off considering that it's such a basic setup.
I messed with limits, B screw cable tension etc.
Hanger is straight as checked and adjusted by LBS.
Cable housing is standard issue indexed gear cable housing, not that it matters a lot.
Are these bar ends road only? The T6000 'trekking' derailleur has MTB pull according to Shimano, but Dia Compe doesn't list any info on the shifters, only that they should be 10 speed compatible. I like this derailleur a lot as it's smooth and doesn't require a lot of tension because it dorsn't have a clutch and feels a lot like a Ultegra 8000 GS, which I know very well.






Before I permanently modify the shifter any input is greately appreciated.
Schlafen is offline
Old 05-31-21, 12:22 PM
  #2
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,624

Bikes: Lots. Just...lots.

Mentioned: 187 Post(s)
Tagged: 0 Thread(s)
Quoted: 1586 Post(s)
Liked 1,054 Times in 500 Posts
Can you grab the cable when it’s in the second to largest cog and manually pull it onto the largest cog? If so, that will confirm that aside from the cable/shifter interface, the RD is working properly and will shift across the cassette.

Suggest you make sure that the shifter/cable orientation for the smallest gear is optimized: cable should be taught and not slack in the smallest cog.

If it still won’t shift into the largest cog, might try putting the cable on the other side of the pinch bolt to see if that changes the geometry enough to make it work well together.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Likes For rccardr:
Old 05-31-21, 12:35 PM
  #3
dweenk
Senior Member

dweenk's Avatar

Join Date: Mar 2013
Location: Maryland
Posts: 3,769

Bikes: 1972 Fuji S-10-S,1970 Raleigh Sports, and more

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 813 Post(s)
Liked 207 Times in 149 Posts
^^^^^ I like that response.
__________________
"The man who does not read has no advantage over the man who cannot read." ĖMark Twain
dweenk is offline
Old 05-31-21, 12:54 PM
  #4
Ferrouscious
Some Weirdo

Ferrouscious's Avatar

Join Date: Dec 2017
Location: Rexburg, ID
Posts: 502

Bikes: '86 Maruishi Excellence, '86 Schwinn Prelude, '88 Cannondale SR2000, '74 C. Itoh "Racer"

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 141 Times in 92 Posts
Shadow rear derailleurs require more cable pull than their more traditional counterparts. It's unlikely that your combination will work if you haven't gotten it yet.
Also, double check that the cable in in the groove under the clamp. Might be that.
__________________
Somewhere, a village is missing its idiot.
Ferrouscious is offline
Likes For Ferrouscious:
Old 05-31-21, 12:55 PM
  #5
JaccoW
Overdoing projects

JaccoW's Avatar

Join Date: Oct 2011
Location: Rotterdam, former republic of the Netherlands
Posts: 2,227

Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist, Gazelle Lausanne, Gazelle Tandem, Koga-Miyata SilverAce, Koga-Miyata WorldTraveller

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 714 Post(s)
Liked 915 Times in 532 Posts
Looks to me like you just need a tiny bit more cable pull. How about undoing the bolt at the derailleur and tightening it just a bit more? Chances are the smallest cog in the rear has enough stretch that it will just pop into place.

There is nothing you can do to modify the shifter that would change this, bar just ordering 10-speed Microshift MTB bar-ends.
JaccoW is offline
Old 05-31-21, 12:56 PM
  #6
Schlafen
Senior Member
Thread Starter

Join Date: Apr 2020
Posts: 179
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 55 Times in 36 Posts
Originally Posted by rccardr View Post
Can you grab the cable when itís in the second to largest cog and manually pull it onto the largest cog? If so, that will confirm that aside from the cable/shifter interface, the RD is working properly and will shift across the cassette.

Suggest you make sure that the shifter/cable orientation for the smallest gear is optimized: cable should be taught and not slack in the smallest cog.

If it still wonít shift into the largest cog, might try putting the cable on the other side of the pinch bolt to see if that changes the geometry enough to make it work well together.
Thanks for the reply and suggestions.

Limits adjusted manually without the cable pretensioning the derailleur, it does move across the whole cassette, tried the cable pull by hand and it shifts no problem, the derailleur seems to move across the cassette with no issues when done manually because I can pull the necessary amount of cable by hand.

Also the cable is snug, not extremely tensed but there is no slack whatsoever, I can adjust cable tension from the downtube cable stops, as well, if needed and both, snug and very tight cable, shift to the same point and then stop.

I have tried, as suggested, moving the cable to the other side of the pinch bolt but it shifts to the same point and then stop.
I am pretty sure that 10 speed road and mtb, with some exceptions, are compatible so I am still left scratching my head.

My next move would be to take apart the shifter and check if everything is correctly assembled just in case, but as I shift it into the 2nd to last cog, the lever seems to bottom out on the pod.

Schlafen is offline
Old 05-31-21, 01:22 PM
  #7
JaccoW
Overdoing projects

JaccoW's Avatar

Join Date: Oct 2011
Location: Rotterdam, former republic of the Netherlands
Posts: 2,227

Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist, Gazelle Lausanne, Gazelle Tandem, Koga-Miyata SilverAce, Koga-Miyata WorldTraveller

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 714 Post(s)
Liked 915 Times in 532 Posts
Put more tension on the cable so it clears the largest cog without worrying about the smallest one. Then see if it still shifts into the smallest cog.

I temporarily drove an 11-speed Deore derailleur with 6-speed downtube shifters. It required something like 200 degrees of movement so you might just be out of luck.
Replaced them with 11-speed bar-ends and as you can tell, those have a much larger diameter so they pull more cable.

Offtopic: 11-speed friction works great as the cogs are so close together that it becomes almost impossible to mis-shift.





Last edited by JaccoW; 05-31-21 at 01:28 PM.
JaccoW is offline
Old 05-31-21, 01:48 PM
  #8
73StellaSX76
Senior Member

Join Date: Mar 2015
Location: Redwood City, CA
Posts: 245

Bikes: 2016 SOMA DCD, 2014 Niner RLT9, 2008 Ibis Silk SL, 1998 Ibis Spanky, 1973 Stella SX76

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Liked 70 Times in 42 Posts
Shimano road and mountain 10 speed indexed are not compatible. If your trekking rd is akin to mountain indexing then it should not be compatible with your road shifters. Sounds from your experience that it’s close but not 100%. There are third party adapters which will convert pull amounts, I don’t remember specific brands or if one is offered for this specific application. Might be worth a look though.
73StellaSX76 is offline
Old 05-31-21, 01:53 PM
  #9
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 4,655
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1230 Post(s)
Liked 695 Times in 447 Posts
A 9 speed mountain bike derailleur would work with those shifters. They cannot pull enough cable for the one you are using
alcjphil is offline
Old 05-31-21, 02:05 PM
  #10
Germany_chris
Senior Member

Germany_chris's Avatar

Join Date: Jan 2010
Location: Southern Germany
Posts: 1,506
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 311 Post(s)
Liked 460 Times in 247 Posts
You have to use a road derailleur
Germany_chris is offline
Old 05-31-21, 02:55 PM
  #11
Schlafen
Senior Member
Thread Starter

Join Date: Apr 2020
Posts: 179
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 55 Times in 36 Posts
I remembered where I've seen these shifters work with a Deore 10 speed indexed RD, at 6:20 :


Later in the video at 23:35 shifting a 10 speed cassette seems to work just fine.
I suspect my minimal loss is in housing flex.
Schlafen is offline
Likes For Schlafen:
Old 05-31-21, 03:07 PM
  #12
C9H13N
Senior Member

Join Date: Dec 2012
Location: North Seattle
Posts: 225

Bikes: Davidson í81

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 80 Times in 39 Posts
Originally Posted by Schlafen View Post
I remembered where I've seen these shifters work with a Deore 10 speed indexed RD, at 6:20 :
That is a non-Shadow RD, not going to work exactly like yours.
C9H13N is online now
Old 06-01-21, 12:20 AM
  #13
Schlafen
Senior Member
Thread Starter

Join Date: Apr 2020
Posts: 179
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 55 Times in 36 Posts
Originally Posted by C9H13N View Post
That is a non-Shadow RD, not going to work exactly like yours.
As far as I can tell ( and google 😁 ) shadow and non-shadow are both Dyna-Sys MTB therefore they should have the same cable pull. Isn't being a shadow type RD just refering to a more inward placement of the RD body, not cable pull?
Dang it MTB components is not my strong suit.
Schlafen is offline
Old 06-01-21, 07:43 AM
  #14
fliplap
Senior Member

Join Date: Nov 2013
Posts: 159
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 72 Post(s)
Liked 181 Times in 66 Posts
Originally Posted by Schlafen View Post
My next move would be to take apart the shifter and check if everything is correctly assembled just in case, but as I shift it into the 2nd to last cog, the lever seems to bottom out on the pod.

Take a file to the top of the pod. Itís been done to make bar ends that will sweep a 12s SRAM Eagle cassette. Since you only need 11s, you could probably do a much more graceful job than this.

https://theradavist.com/2017/01/bene...baja-buggie/#1

fliplap is offline
Likes For fliplap:
Old 06-01-21, 07:56 AM
  #15
Schlafen
Senior Member
Thread Starter

Join Date: Apr 2020
Posts: 179
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 55 Times in 36 Posts
Originally Posted by fliplap View Post
Take a file to the top of the pod. Itís been done to make bar ends that will sweep a 12s SRAM Eagle cassette. Since you only need 11s, you could probably do a much more graceful job than this.

https://theradavist.com/2017/01/bene...baja-buggie/#1

that was my last resort, I want to try one more thing before grinding the pod.
Schlafen is offline
Old 06-01-21, 08:19 AM
  #16
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,736

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 675 Post(s)
Liked 283 Times in 167 Posts
I have gotten a hair more cable pull on DT shifters by adding some thin heat-shrink tubing on the cable right where it bends around the shifter barrel/slot. I don't think that would work on bar-end pods, but it might be worth a try.
__________________
The man who dies with the most toysÖis dead. - Rootboy
jeirvine is offline
Likes For jeirvine:
Old 07-11-21, 06:02 AM
  #17
Schlafen
Senior Member
Thread Starter

Join Date: Apr 2020
Posts: 179
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 55 Times in 36 Posts
How do I change the thread title? I don't want to start a new one.

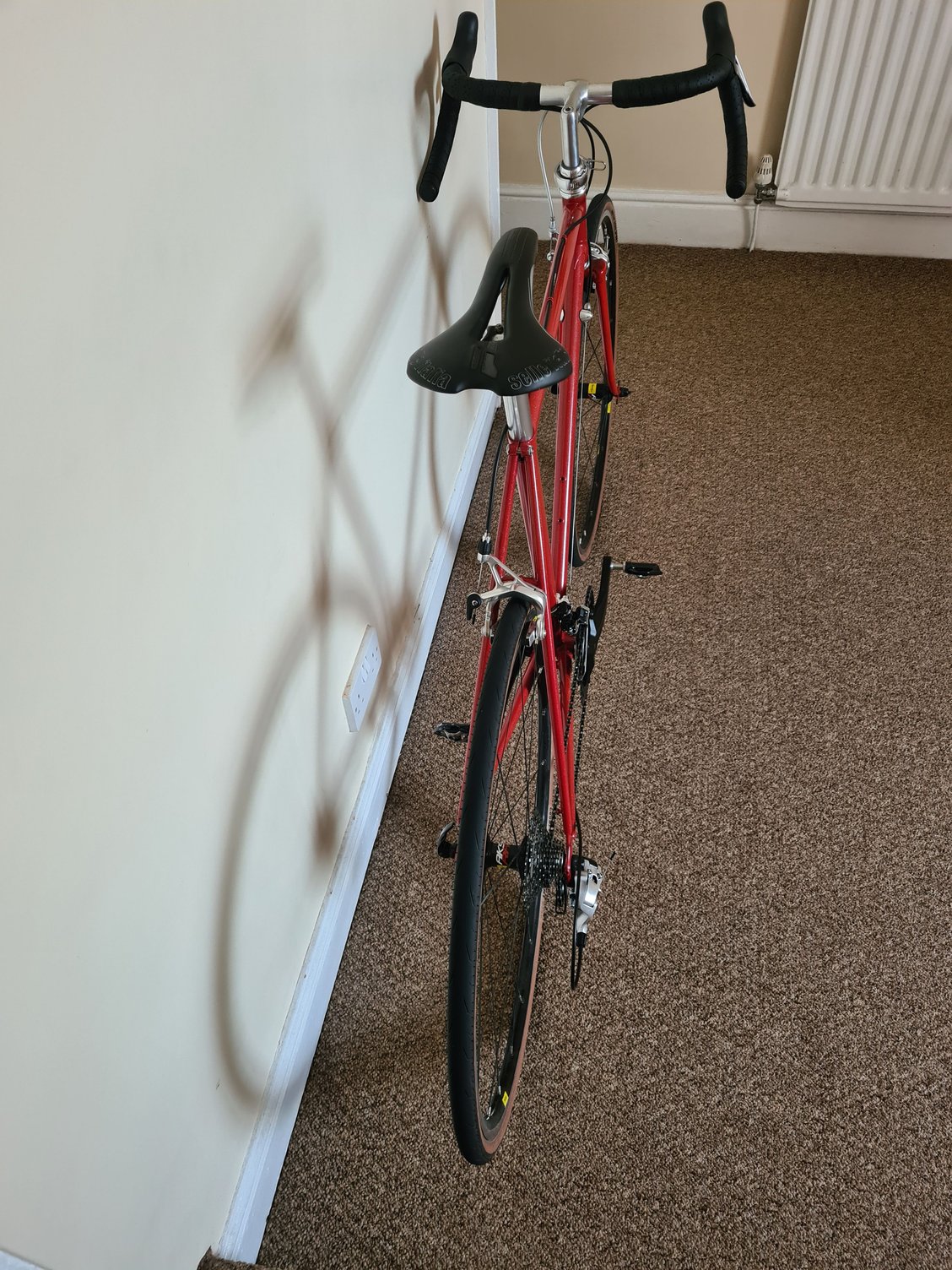

Not really liking the fork I have decided to mess with it, of course.

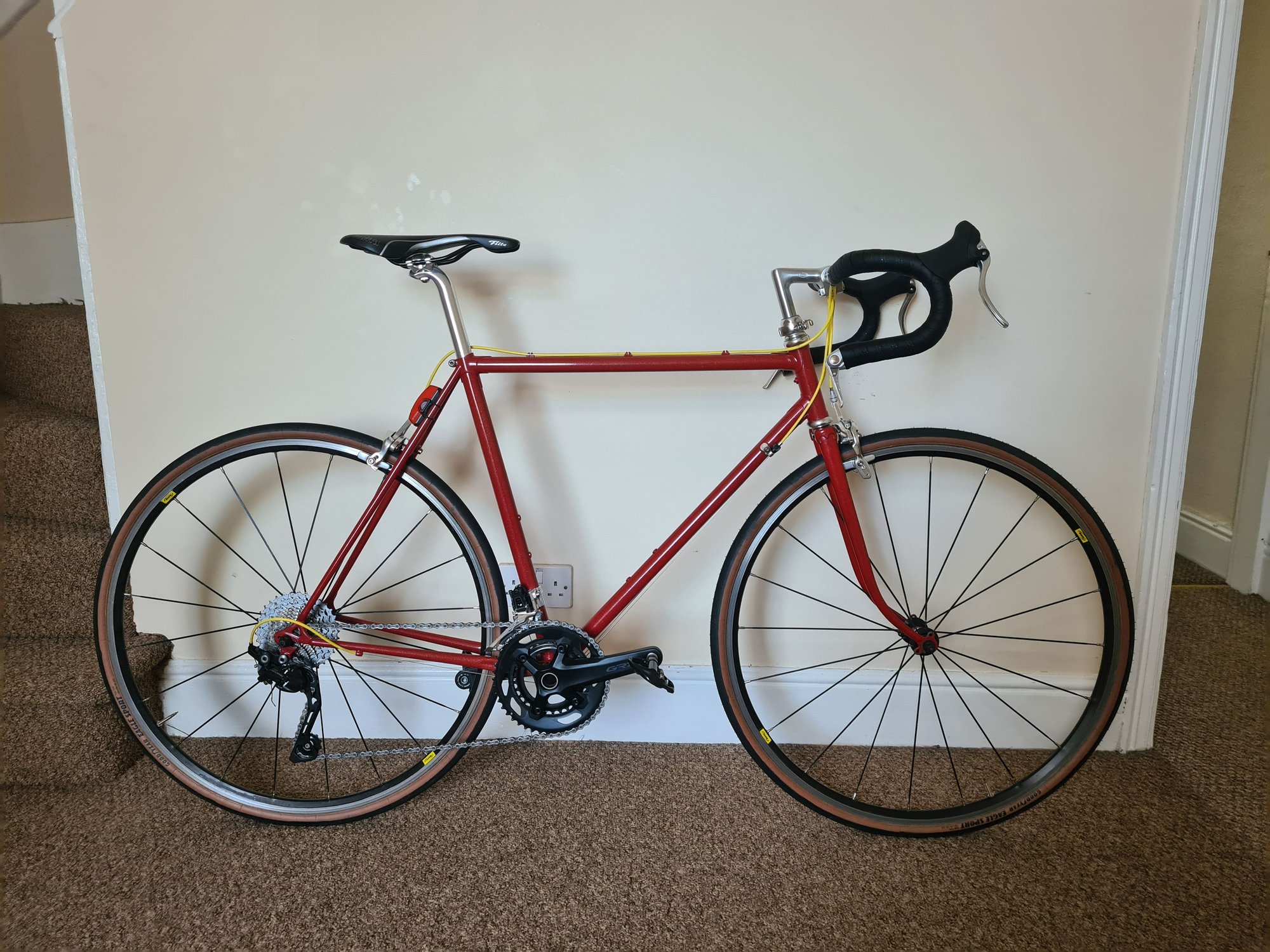

From this

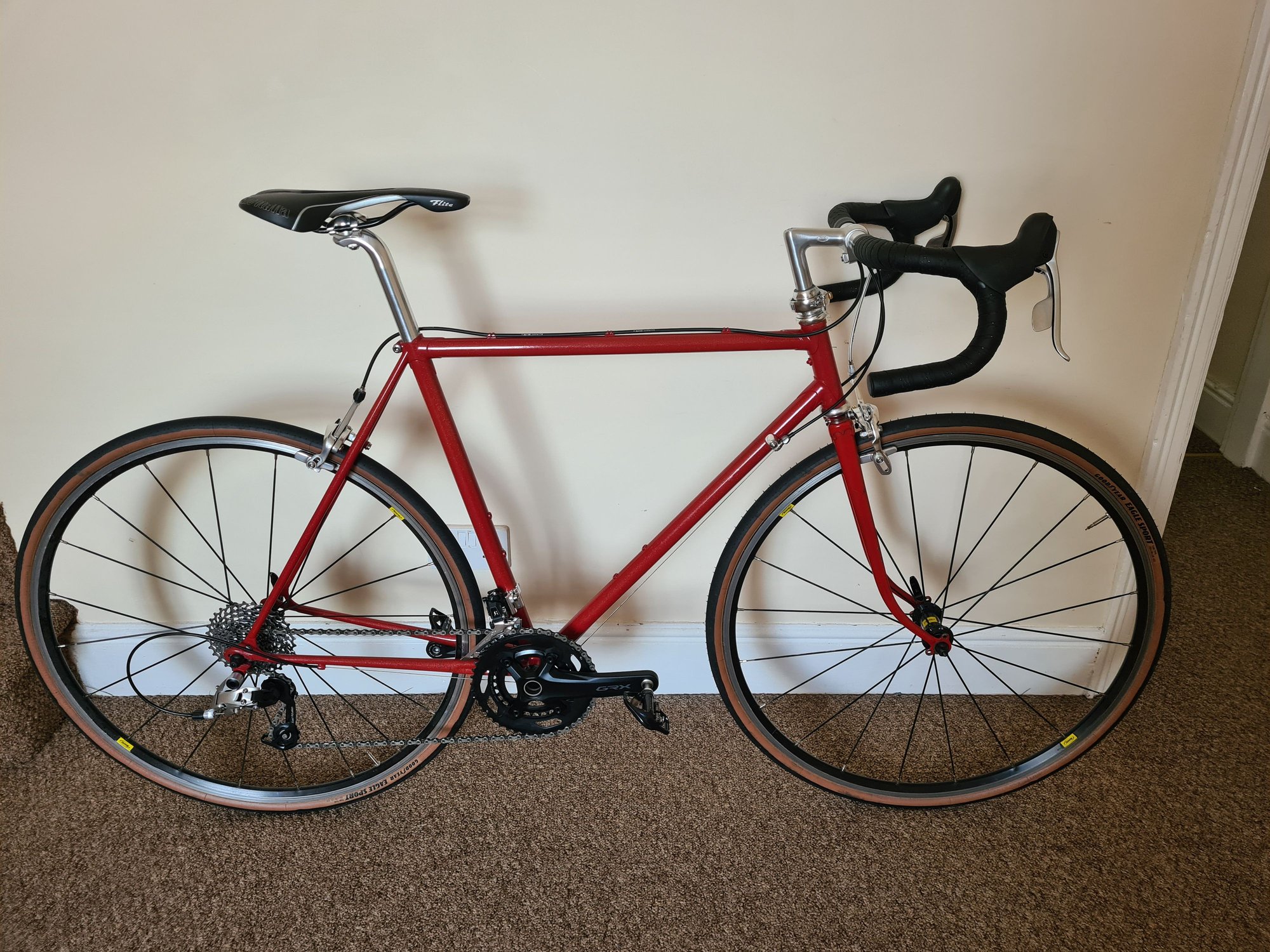

To this:


Also switched from 1" threadless to 1" quill as the new fork was threaded. Fork is french threaded, however a 24TPI headset screwed right on?!?! Yep.
Guess not thst big difference between 24tpi and 25tpi.
Hopefully this will get rid of the little toe overlap it had with the forks it came with, which were generic Peugeot forks. 531 original pantographed forks seem to be impossible to find, so I gave up on restoring this frame to it's former glory.

Left the threadless headset alone. Only replaced the top upper race with top locking nuts from a threaded headset I had. Yep, top race fits very well, the same as original threadless one even though the headsets are different. The 2 headsets use the same sealed bearings.

I had to get creative tightening the locking nuts as I was not willing to cut the steerer just in case. These forks are not available galore unfortunately. But the locking nuts would come loose and preload was bad.
Screwed on the bottom nut, added spacers, top nut and preload. I had to split the spacers and clampe them to the steerer and the preload is spot on.
I will drop the handlebars just dialing in the fit for now.



With the new fork (27" wheel fork) a 63mm drop caliper was needed, so got this Dia Compe caliper, which hurts my eyes. The reason I picked this one over Tektro 559/539 is the cable pull which is on the left side, for a front brake/right lever is perfect.
It is hummongous and looks a bit **** tbh, but seems quite strong. Needs to be tested at speed.





I'm not quite happy with the bar ends, even though they work well and I ended up filing the right hand pod to shift all the way up. It shifts properly but feels vague. Not my cup of tea I suppose.



Borrowed the wheels off my Mendiz for a bit as I had to wait a few months for the hubs I wanted to be available. I will build a set of wheels for it very soon. Silver Miche Primato Syntesi + Silver Sapim Race + Black Ambrosio P20 28H, laced 3x. Don't have any tyres yet but looking at some 35mm tubeless tyres. Depending on how much they baloon, I should be able to get away with 35mm on this frame, rear brake bridge seems to be the limiting factor here.




I will test the new setup over the coming weeks and If I like it (supposed to ride like a magic carpet now) it will probably get some brifters and def new paint at some point, 'sparkly brick' doesn't match my eyes.

Oh yeah, I'm using a custom bb, still testing but it is miles better than current crop of affordable english threaded bb's (that I've used, obviously) for 24mm hollowtech 2 cranks.
Schlafen is offline
Old 07-11-21, 03:22 PM
  #18
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,212

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 1144 Post(s)
Liked 607 Times in 429 Posts
Shimano only mentions "Shadow" and "HG-X" as prominent features for the RD-T6000, so that indicates to me that this isn't a DynaSys model.

Description (from bike-components.de) reads:

"Compatibility: Shimano MTB / City & Touring 10-speed"

Very confusing, as Shimano's 10s MTB rear derailers have DynaSys geometry and are labeled as such on the derailer, and this derailer isn't DynaSys.

This derailer thus must have the same cable pull as ALL of their 9s derailers.

The non-shadow 9s derailers all give the option of decreasing the required cable pull by means of installing the cable to the "wrong" side of the pinch bolt. But this doesn't work for the Shadow model derailers, since both sides of the bolt are apparently the same distance from the arm pivot.


Editing here: Freewheel.co.uk claims that RD-T6000 and SL-T6000 derailers and shifters are DynaSys! ((I doubt this)).

...But the parts are not labeled as such, and Shimano makes no mention of this.

Who you gonna believe?
Do you have any 9s derailers that you could test? Most will shift onto a 36t actually, just won't handle the slack well if it's a short-cage road derailer.

Last edited by dddd; 07-11-21 at 04:03 PM.
dddd is offline
Old 07-11-21, 05:52 PM
  #19
Schlafen
Senior Member
Thread Starter

Join Date: Apr 2020
Posts: 179
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 55 Times in 36 Posts
Originally Posted by dddd View Post
Shimano only mentions "Shadow" and "HG-X" as prominent features for the RD-T6000, so that indicates to me that this isn't a DynaSys model.

Description (from bike-components.de) reads:

"Compatibility: Shimano MTB / City & Touring 10-speed"

Very confusing, as Shimano's 10s MTB rear derailers have DynaSys geometry and are labeled as such on the derailer, and this derailer isn't DynaSys.

This derailer thus must have the same cable pull as ALL of their 9s derailers.

The non-shadow 9s derailers all give the option of decreasing the required cable pull by means of installing the cable to the "wrong" side of the pinch bolt. But this doesn't work for the Shadow model derailers, since both sides of the bolt are apparently the same distance from the arm pivot.


Editing here: Freewheel.co.uk claims that RD-T6000 and SL-T6000 derailers and shifters are DynaSys! ((I doubt this)).

...But the parts are not labeled as such, and Shimano makes no mention of this.

Who you gonna believe?
Do you have any 9s derailers that you could test? Most will shift onto a 36t actually, just won't handle the slack well if it's a short-cage road derailer.
Initially I thought it was a road RD but after some digging, it is mtb shifter compatible, according to Shimano:




https://productinfo.shimano.com/#/co...-435&cid=C-432
Schlafen is offline
Old 07-14-21, 12:15 AM
  #20
Schlafen
Senior Member
Thread Starter

Join Date: Apr 2020
Posts: 179
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 55 Times in 36 Posts
Originally Posted by dddd View Post
Shimano only mentions "Shadow" and "HG-X" as prominent features for the RD-T6000, so that indicates to me that this isn't a DynaSys model.

Description (from bike-components.de) reads:

"Compatibility: Shimano MTB / City & Touring 10-speed"

Very confusing, as Shimano's 10s MTB rear derailers have DynaSys geometry and are labeled as such on the derailer, and this derailer isn't DynaSys.

This derailer thus must have the same cable pull as ALL of their 9s derailers.

The non-shadow 9s derailers all give the option of decreasing the required cable pull by means of installing the cable to the "wrong" side of the pinch bolt. But this doesn't work for the Shadow model derailers, since both sides of the bolt are apparently the same distance from the arm pivot.


Editing here: Freewheel.co.uk claims that RD-T6000 and SL-T6000 derailers and shifters are DynaSys! ((I doubt this)).

...But the parts are not labeled as such, and Shimano makes no mention of this.

Who you gonna believe?
Do you have any 9s derailers that you could test? Most will shift onto a 36t actually, just won't handle the slack well if it's a short-cage road derailer.
I've enquired with SJS Cycles here in UK a while ago about the type of derailleur (not 100% sure where I bought mine but it might have been them) and they contacted Shimano directly:

"Shimano have just emailed me back, yes this rear derailleur is Dyna-Sys 10 speed compatible only."

Updated their description accordingly as well:

https://www.sjscycles.co.uk/deraille...ng-cage-black/


So not sure where I'm loosing cable pull, but as I initially thought it may be them simply being bar ends, as they seem to work fine with a 10 speed mtb derailleur for the chap in the video above, setup on the downtube.

When the cables need replacing, I'll fit the levers to the downtube bosses and see if there's any change. That, of course if it doesn't get brifters first, who knows maybe some Di2 goodies.

I really like this derailleur because it's very smooth, there's no clutch in it and the cable pull is very light. It gives me that Dura Ace 7700 shift feel. Now I'm wondering if I could mke it work with a 7700 brifter, that would be ace for a 7700 brifter to pull an SGS cage. Was it up to 9 speed or 10 speed that road and mtb are compatible?
Schlafen is offline
Old 07-14-21, 05:18 AM
  #21
AJI125
Senior Member

AJI125's Avatar

Join Date: Apr 2019
Location: Denver Metro, CO
Posts: 339

Bikes: 1982 Trek 613 | 1990 Bianchi Giro | 1999 LeMond Buenos Aires | 2002 LeMond Zurich Women's (SO's)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked 151 Times in 88 Posts
Another kludge option in a case like this where the RD can physically move far enough but the shifter canít pull enough cable, is to use a JTEK Shiftmate - you can get them in ratios like 1.05, 1.10, 1.15 etc and would work for friction cable pull changes as well (i.e. RD moves more or less with the amount of shifter movement).
AJI125 is offline
Old 07-18-21, 04:06 PM
  #22
Schlafen
Senior Member
Thread Starter

Join Date: Apr 2020
Posts: 179
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 55 Times in 36 Posts
I have decided to go back to brifters.
Riding in stop and go traffic is anoying with bar ends as I have come to find out.

After modifying the pod it went through all cogs no problems, however, I've had a few instances where I was out of the saddle in the 46/11 leaving a traffic light and being unable to clip in or shift, that's not fun I can tell you that. These Dia Compe shifters will make a comeback soon.




That front caliper allthough it has the necessary reach, it is a monster and kind of unsightly.

Made another discovery today, I do my best to use branded cables and housing and IIRC these were supposed to be Jagwire, no branding on them though.

When I fitted them they were neatly cut and the ends filed, like I do on all my builds.

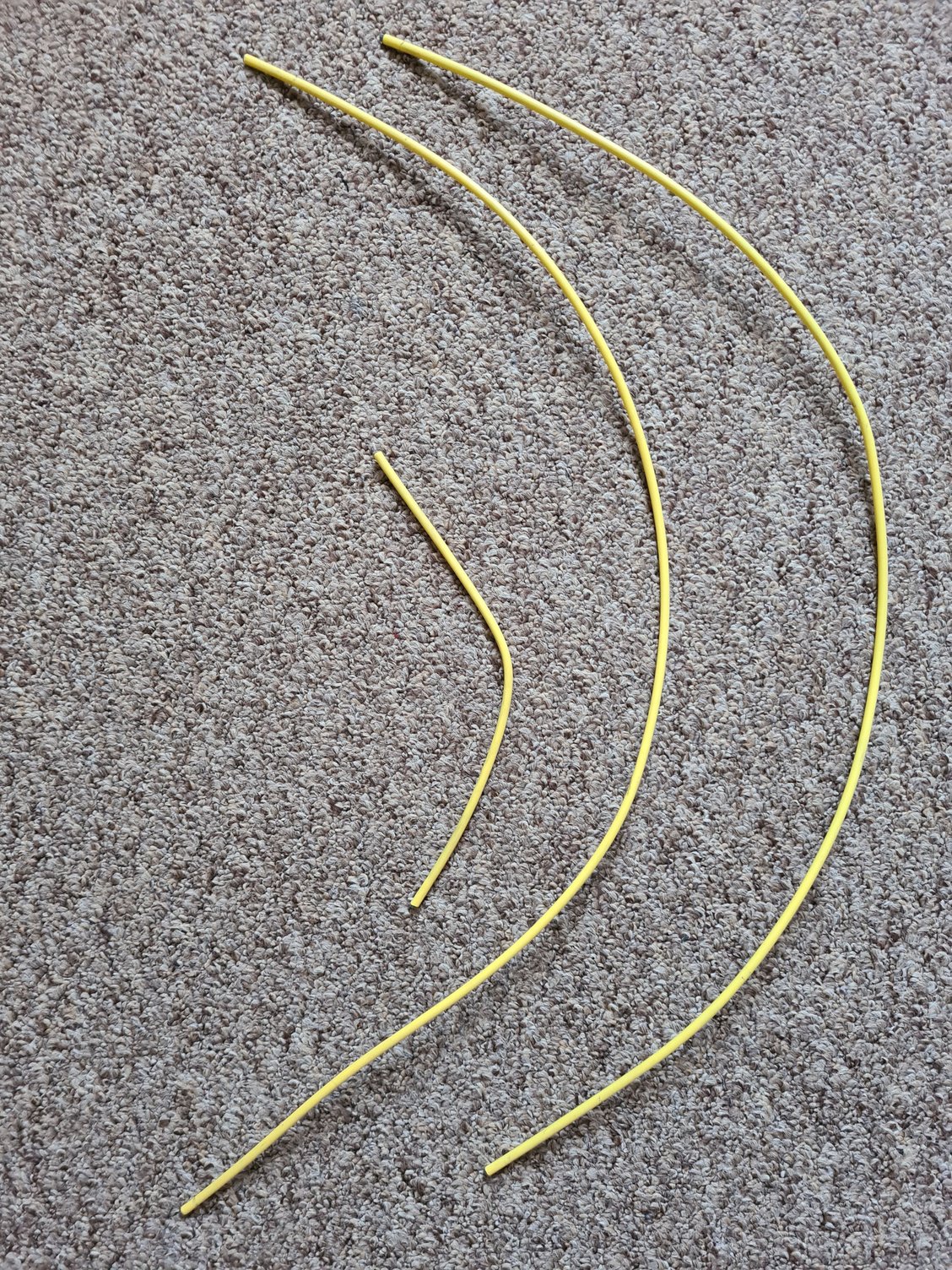

I was very surprised to see the ends when I removed them, this may actually be the reason I could not shift the last cog.



If you care about reliable and crisp shifting, please make sure you use branded cables and housing. I replaced these with SP41 gear housing, SLR brake housing and some Jagwire on the front brake as I ran out of SLR housing on a Sunday afternoon, of course.
Schlafen is offline
Old 07-18-21, 04:16 PM
  #23
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 20,628

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 1039 Post(s)
Liked 506 Times in 360 Posts
Originally Posted by fliplap View Post
Take a file to the top of the pod. Itís been done to make bar ends that will sweep a 12s SRAM Eagle cassette. Since you only need 11s, you could probably do a much more graceful job than this.

https://theradavist.com/2017/01/bene...baja-buggie/#1
That is very similar to my solution when I adapted my Schwinn TwinStik stem levers to work with a SunTour VGT. I was building the Peugeot from scratch for my wife, and the Schwinn lever didn't have quite enough pull for the SunTour rear derailleur, even though it would work fine with a Huret Alvit. With today's modern low-compression cable housings, I might not have had a problem.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 09-12-21, 05:21 AM
  #24
Schlafen
Senior Member
Thread Starter

Join Date: Apr 2020
Posts: 179
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 55 Times in 36 Posts
Crash and refurb?

I crashed...

...a few weeks ago during a group ride when someone suddenly braked in front of me going around a sloped blind junction... choice was between me going down or wiping out a few riders... down I went. Not sure if it was me that made the choice at the time, we'll leave it at that.
Was not riding that fast, 14mph maybe.

Right shoulder, rear derailleur and pedal took most of the impact.

It looked and felt like it was a very, rear heavy, short slide and the right pedal digged into the ground which probably shortened the slide. My helmet never touched the ground, thanking my broad shoulders and right hip for that, the right shoulder particularly, which took most of the impact and would hurt really bad for the next week.
The next day it felt like a full body whiplash, minor road rash on right elbow, hip and ribs as I was riding with long bibs and jacket ( in August I know but it was a 8-9įC morning that day and didn't look promising, turned out to be the correct choice ) some bruising obviously, the worst being behind the knees and hip. It was also raining heavily in case I didn't mention it.

Bike damage: broken right lever body, bent rear derailleur body, cage and hanger, gauged pedal, slightly scratched right handlebar drop.







Small scuff on the saddle as well

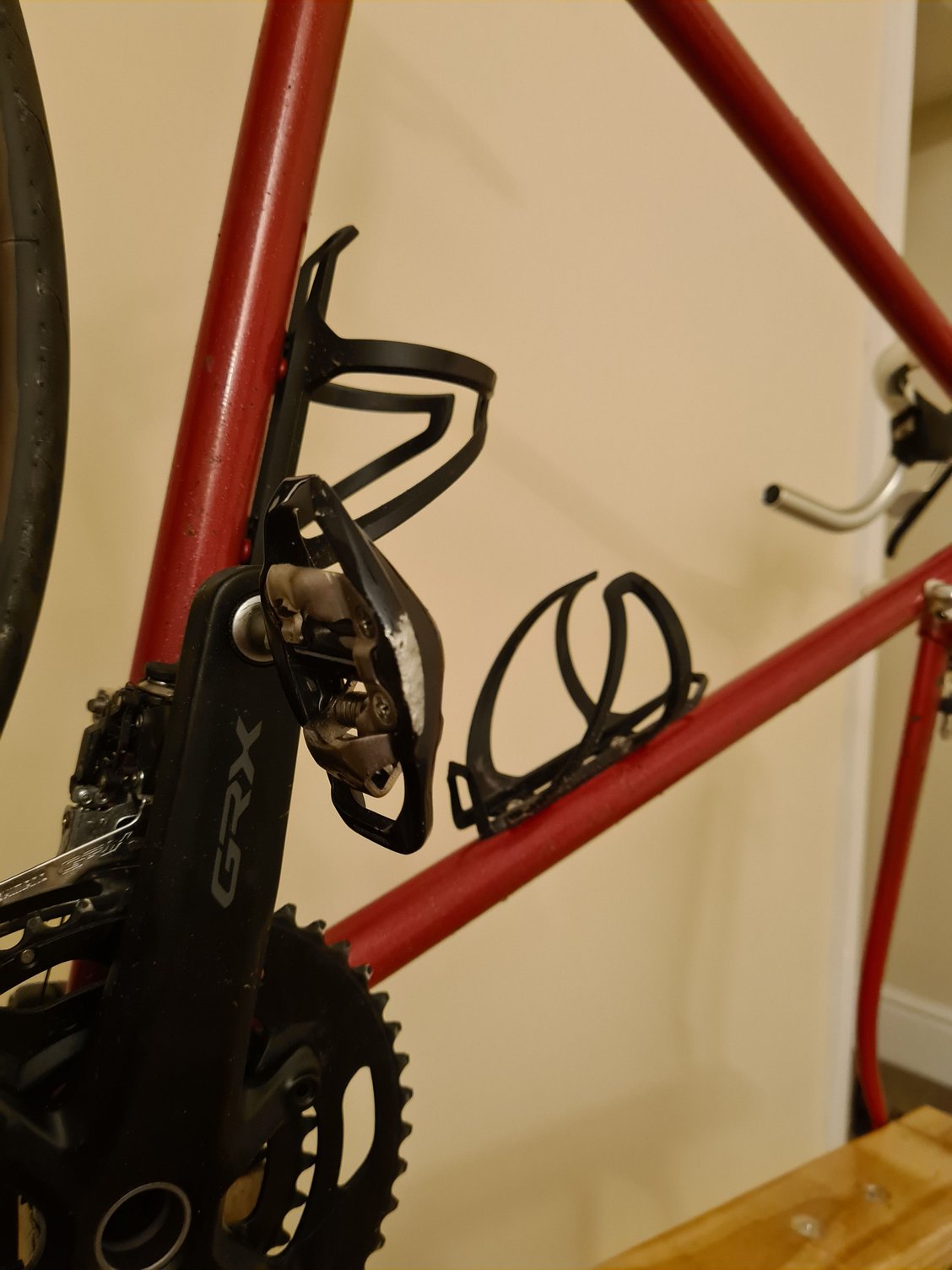

Even though the drive side crank and pedal took a lot of impact they seem to be straight and work fine. I would've been more bummed about the pedals failing than the cranks as A600 are no longer available, anywhere.
GRX cranks are also solid and heavy, which is possibly what saved them. I only run them because I had them and because I like 46-30.

Surprisingly, no serious damage to shoes, bibs or jacket. I can use the jacket for commuting no problem. It was a jacket, not a jersey.






I didn't take any pictures at the time because I was too busy convincing the group to continue without me so I could jump on the train. There was nothing they could do anyway and I was very much able to get to a train station on my own. We were about 40 miles away from Birmingham at that point. I could have turned it into a single speed but the shifter body was broken by the impact and I had no front brake so couldn't ride back all the way. I coasted downhill with only the rear brake, towards the train station only to realise at the bottom of the hill that I went the wrong way so had to turn around. F@@@@k.
Was riding in 11-46 after which I cross chained to the small ring but still 11-30 was not low enough for the hill.
Managed to hack the rear derailleur onto a larger cog so I can go uphill by looping the shift cable through the anchor bolt. It was grinding like hell all the way to the train station. Turned a short 2 mile downhill coast into a 2 mile uphill climb ( 8-9%?) and about a 4 mile ride on the micro shoulder of an A road.
Schlafen is offline
Old 09-12-21, 05:24 AM
  #25
Schlafen
Senior Member
Thread Starter

Join Date: Apr 2020
Posts: 179
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 55 Times in 36 Posts
Enough with the rambling I had to fix the bike now.
My biggest problem was sourcing a Rival 22 or Force 22 rear derailleur. Jan 2022 was what all retailers advised.
After couple weeks wait and a few cancelled orders with retailers that didn't actually have stock but were still listing as available, I found a Force 22 Wifli rear derailleur in Germany from Bike24, but they do not ship to Uk. Phoned my sister and I routed the derailleur through France.

Brexit was possibly the most stupid decision ever in UK history and this is only the beginning.

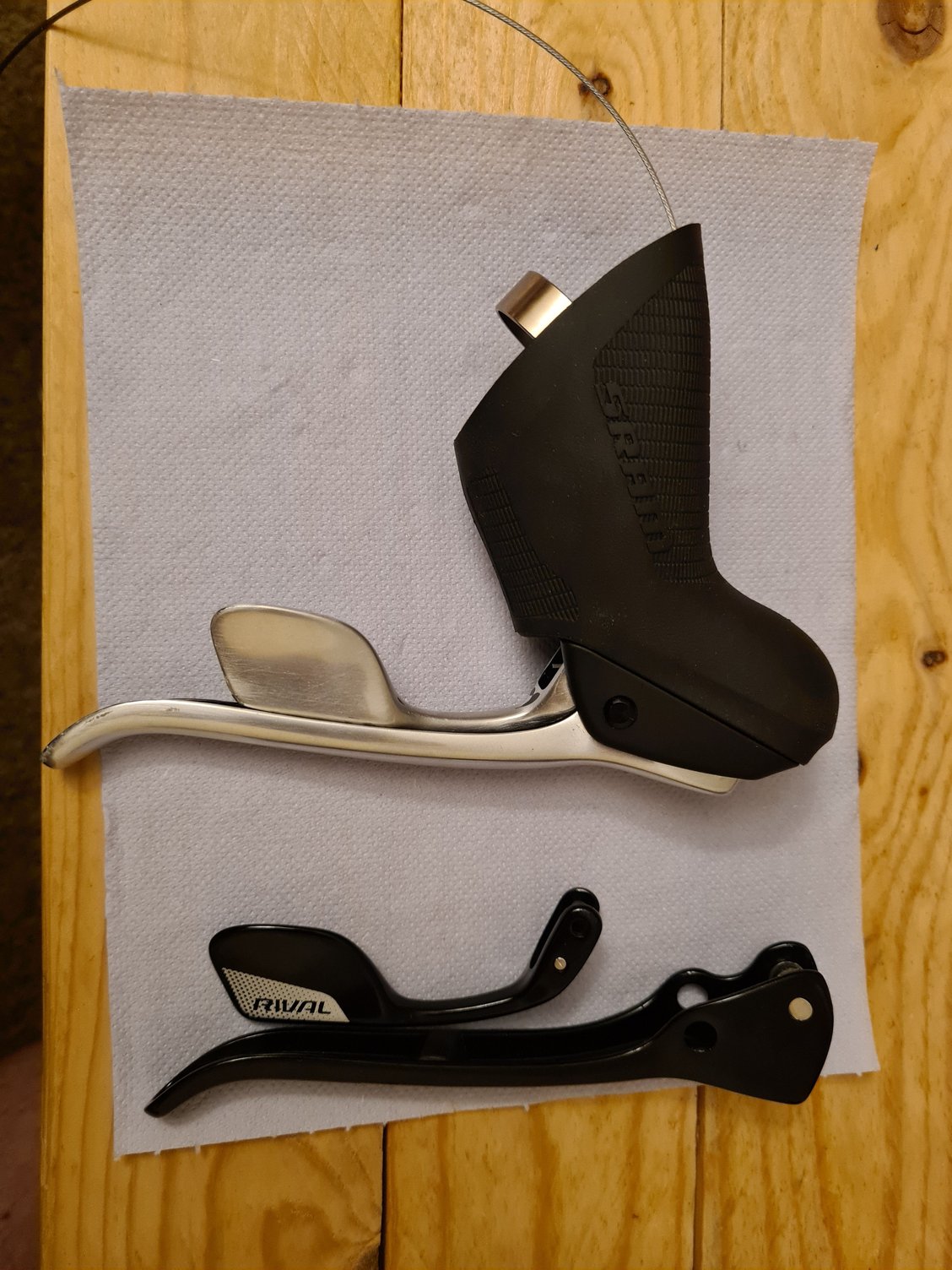

Anyways, needed a new lever as well, no used ones available, lucky I know, so got a new lever which now needed a blade swap.

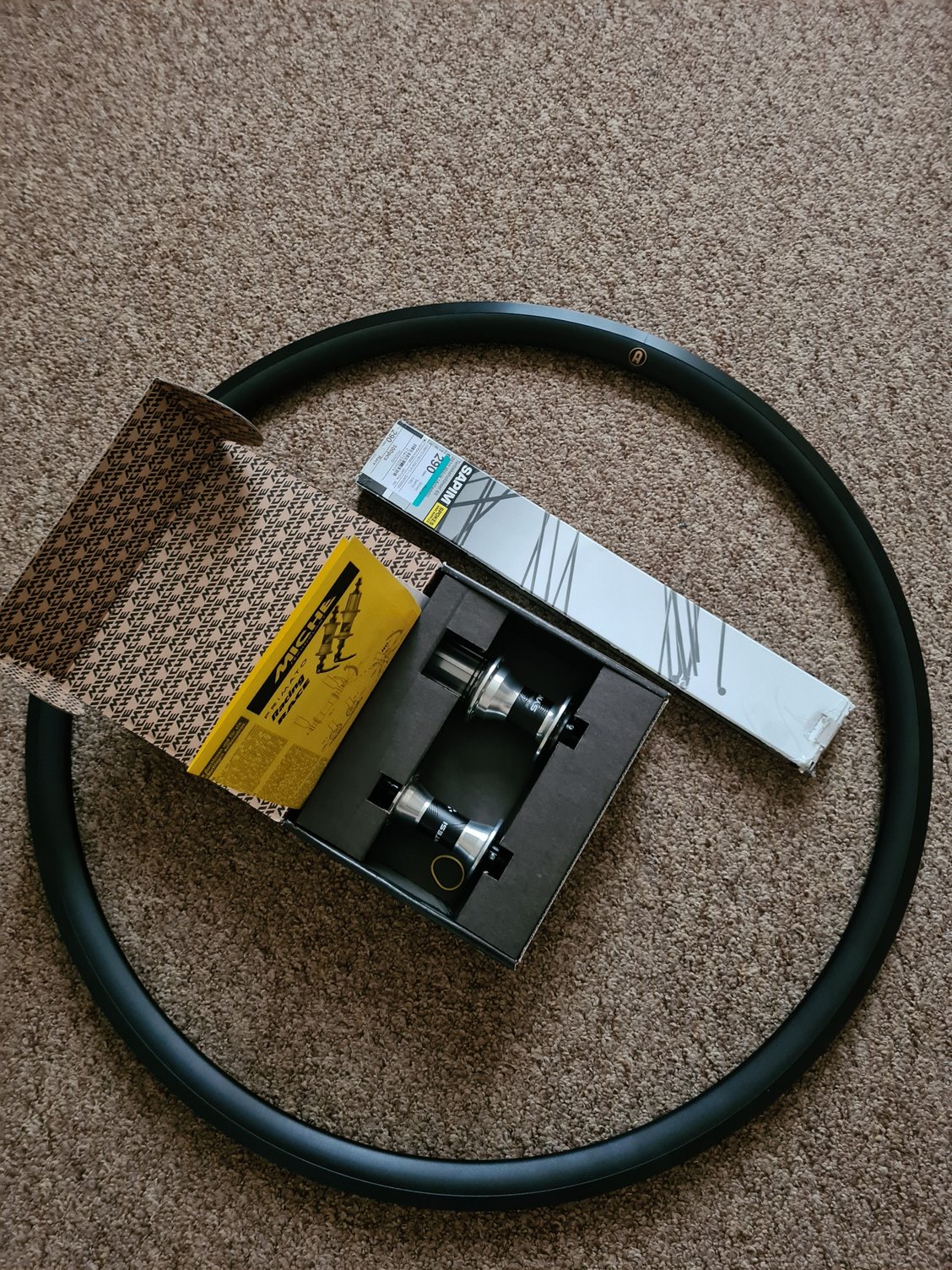

While waiting for the rear derailleur to arrive I had plenty of time to build the wheels which were on backlog.


Took the bike completely apart and frame and fork were sent to be powder coated.

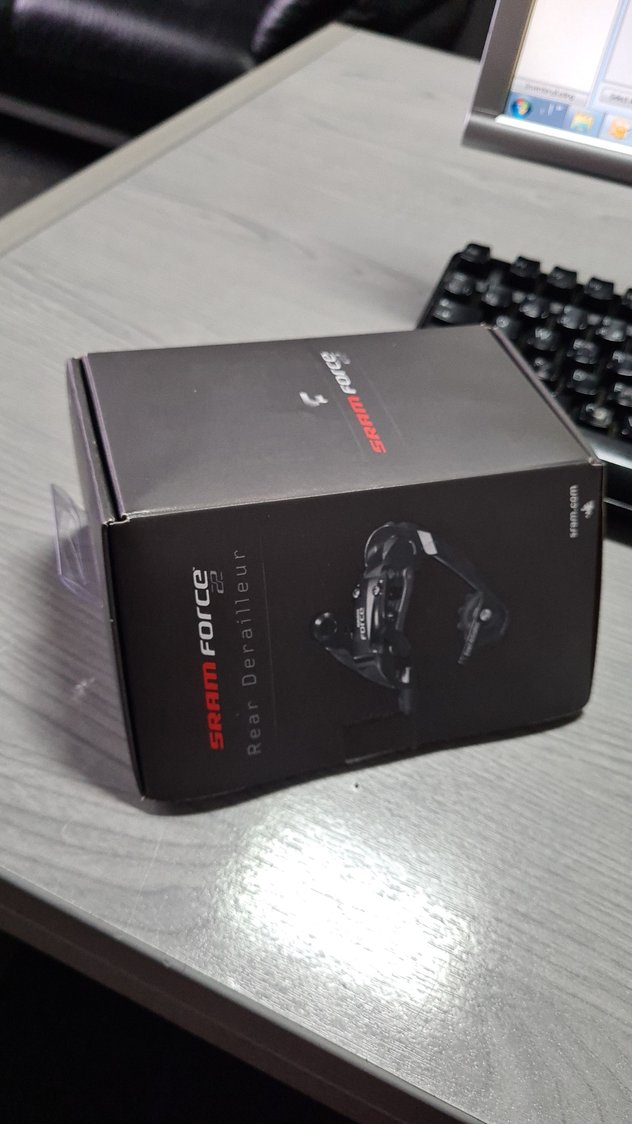

Rear derailleur arrived.

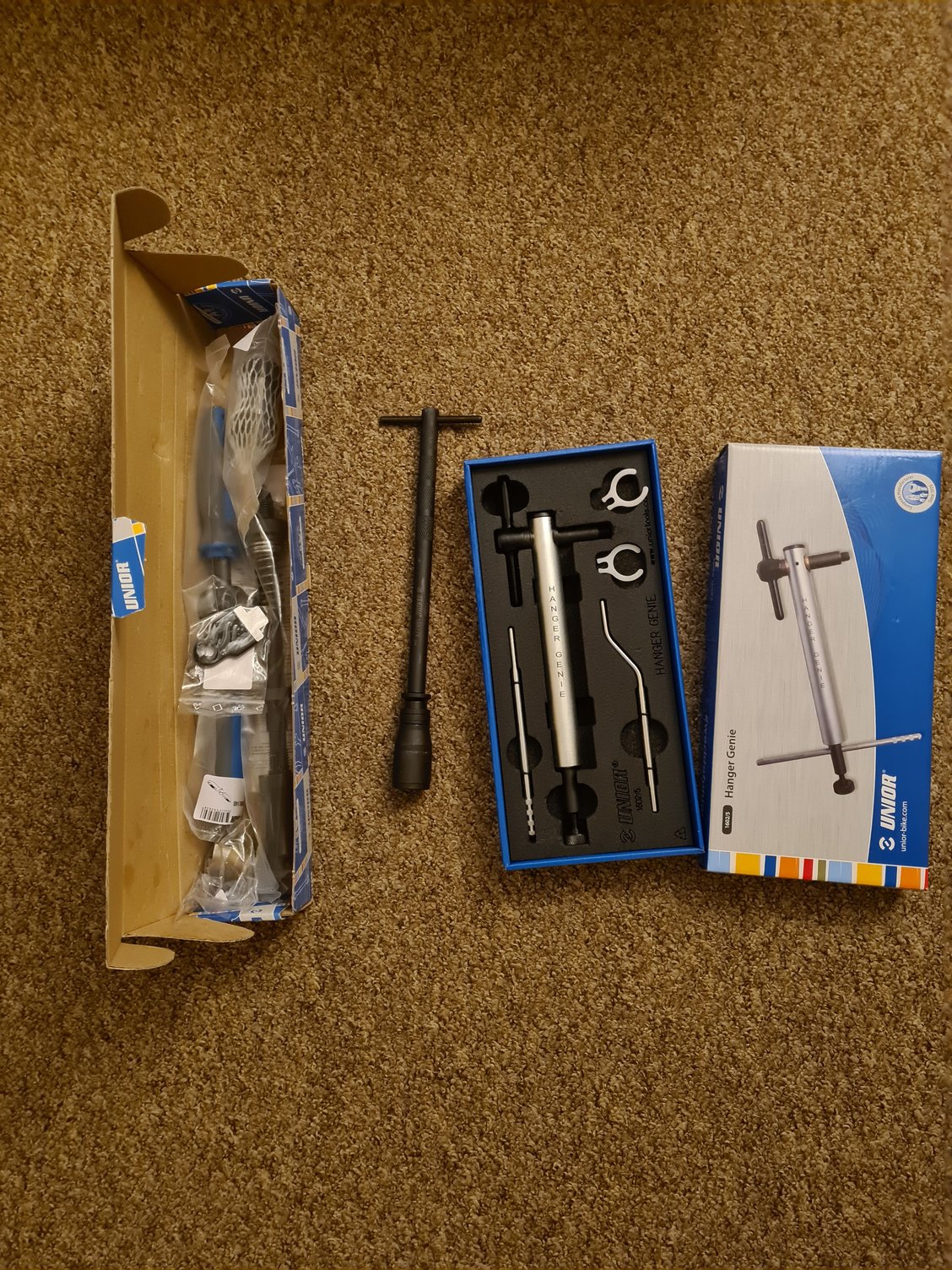

My new derailleur hanger alignment tool from Unior arrived in the meantime together with the bb facing tool and drop out alignment gauges.



Unfortunately they only sent me 1 drop out tool because I am dealing with geniuses.

I have a set of stainless steel mudguards I'm going to fit as well.
Schlafen is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
