Legnano frame?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Legnano frame?

Old 07-13-21, 02:29 PM
  #1
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 245
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 120 Times in 50 Posts
Legnano frame?

I'm looking at a frame that is claimed to be a Legnano but I am not sure if it is realy one or not, so I was hoping you guys could help.

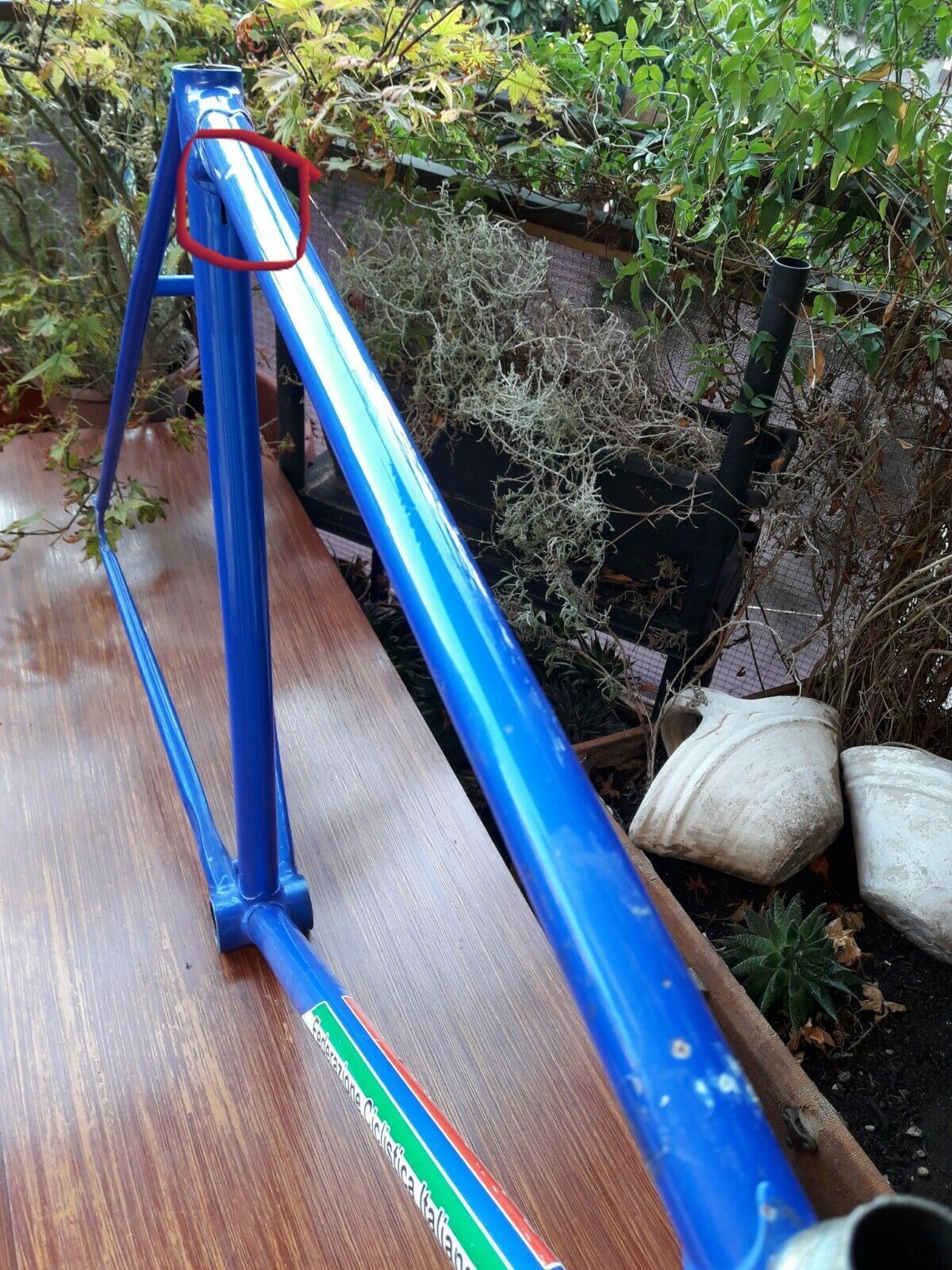

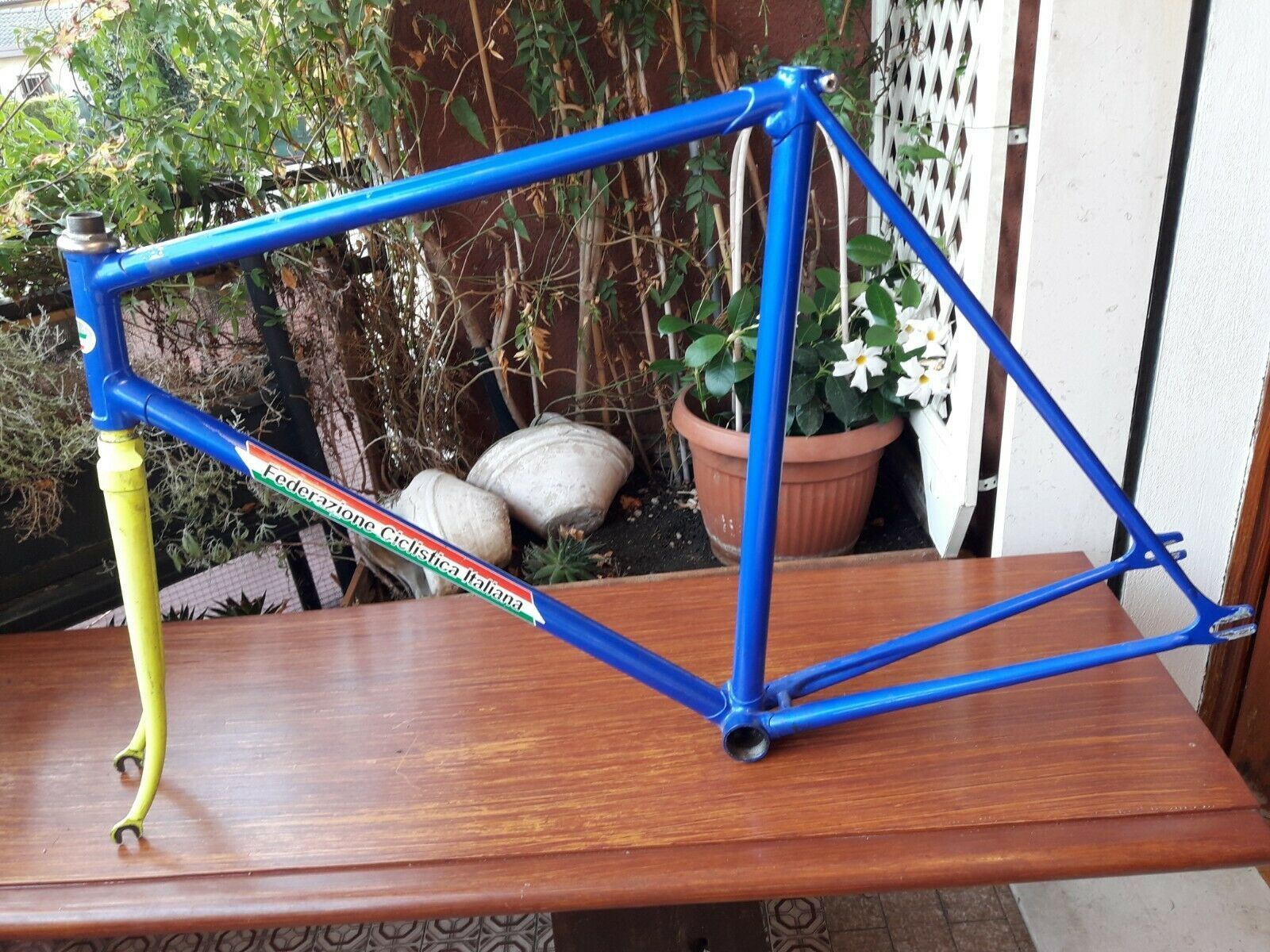

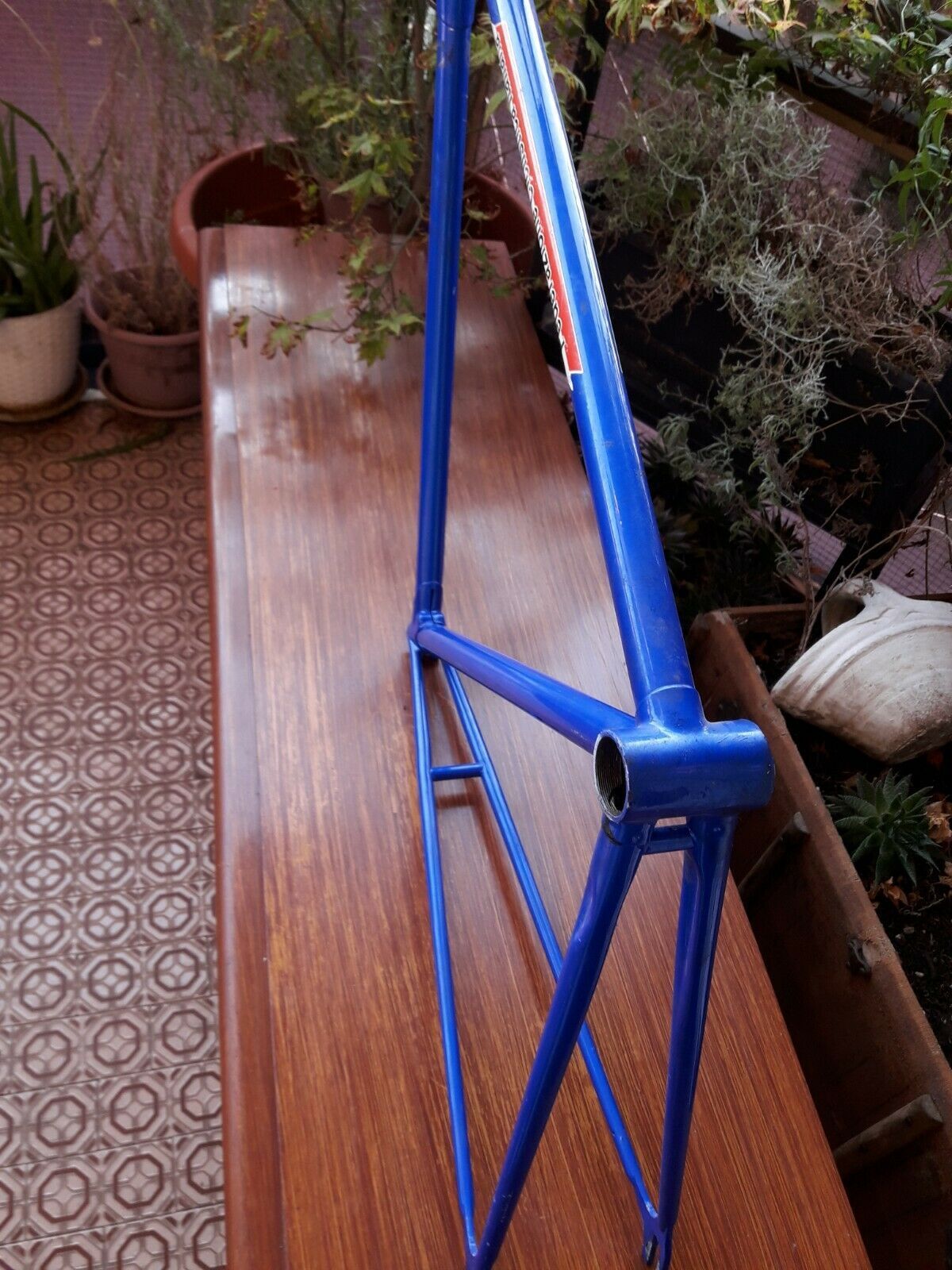

The seller states it has a 27.2 seat tube and has been modified and repainted. I looked online and it seems pretty close to me. Below are some pictures of it. The fork crown and dropouts seem right as do the lugs. I don't understand the seat post clamp, Legnano's are under and infront of the toptube. This one is behind it but there is obviously one also where it is supposed to be but looks to have been closed for some reason. Also possibly loss of chrome on stays.

What do you guys think, is it the real thing or fake?






cdaniels is offline
Old 07-13-21, 02:50 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,251
Mentioned: 349 Post(s)
Tagged: 1 Thread(s)
Quoted: 3009 Post(s)
Liked 1,699 Times in 1,223 Posts
-----

certainly has been "worked on"...

head is Agrati "SPORT" pattern

crown is Agrati "SPORT" item nr. 026.8058 and is completely undressed; note how thick are the blade sockets
whoever built it did not even bother to dress the parting line flash
this could be due to it being used with a cap...

note joinery of taper tubes to frame ends
blades meet fork ends in a square/straight "chisel" manner

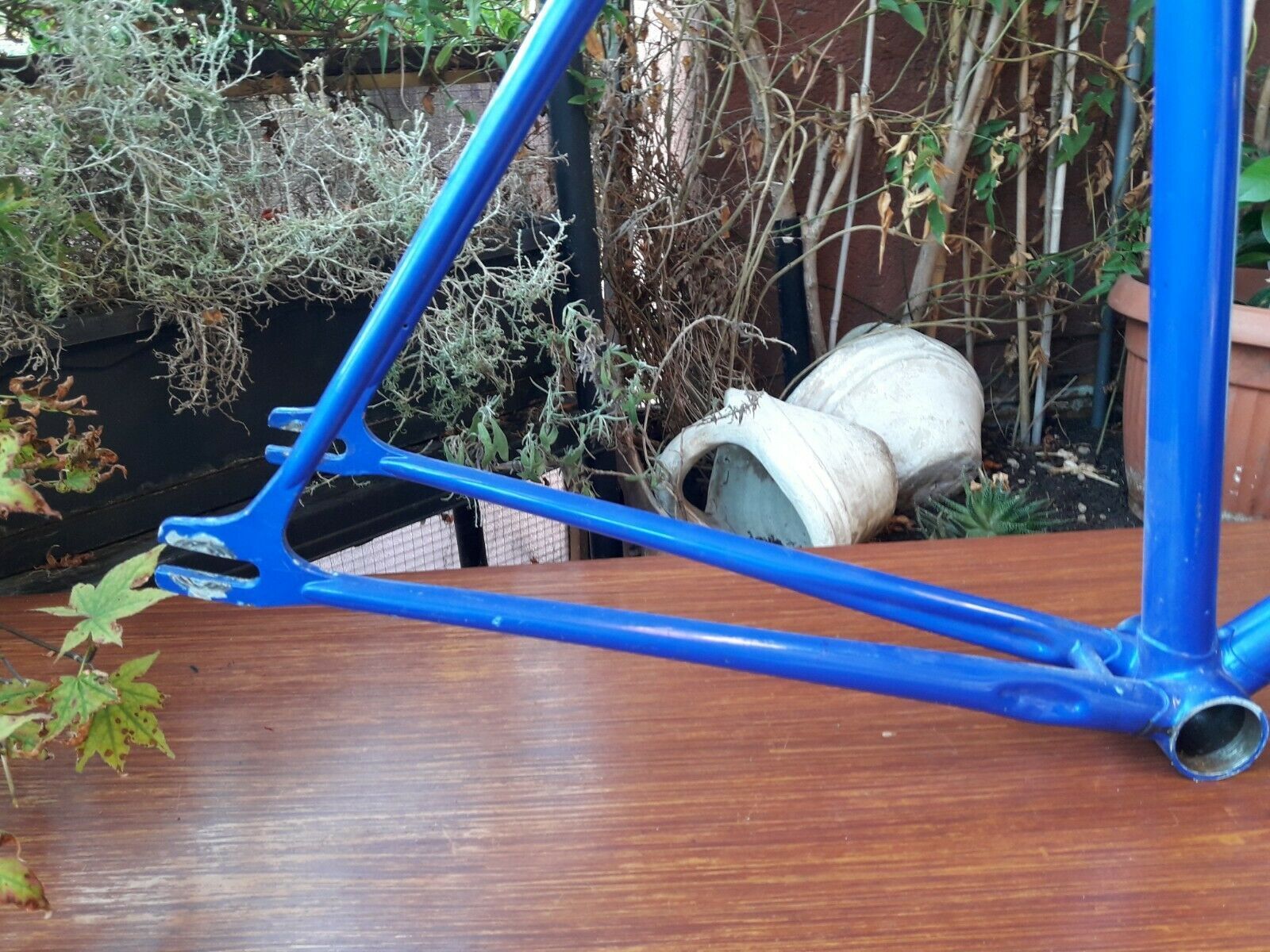

while stays meet dropouts in a pointed dome shape

fork would seem clearly not original to frame and exhibits a lower order of work

check to read any markings on fork ends and dropouts - unlikely they shall match

adjustable head race being used to hold fork is an OFMEGA item

if i were shopping for a pista frameset would leave this item be

perhaps our framebuilder members such as bulgie and/or Doug Fattic
would care to comment...

-----

Last edited by juvela; 07-13-21 at 03:31 PM. Reason: addition
juvela is online now
Old 07-13-21, 03:50 PM
  #3
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 245
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 120 Times in 50 Posts
This is what I'm using to reference it with, It's a 1960 Legnano Pist

cdaniels is offline
Old 07-13-21, 06:21 PM
  #4
cb400bill
Forum Moderator

cb400bill's Avatar

Join Date: Jul 2007
Location: Kalamazoo MI
Posts: 20,617

Bikes: Fuji SL2.1 Carbon Di2 Cannondale Synapse Alloy 4 Trek Checkpoint ALR gravel Viscount Aerospace Pro Colnago Classic Rabobank

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 2807 Post(s)
Liked 4,889 Times in 2,894 Posts
My slightly rougher 1961.


__________________
Originally Posted by Retro Grouch View Post
Fenders protect you from tire splatter. Mudguards protect you from tyre splatter.







cb400bill is offline
Likes For cb400bill:
Old 07-13-21, 06:35 PM
  #5
oneclick
Senior Member

Join Date: Feb 2020
Posts: 2,113
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 785 Post(s)
Likes: 0
Liked 838 Times in 514 Posts
I think it was the real thing - once.
oneclick is offline
Old 07-13-21, 06:53 PM
  #6
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 245
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 120 Times in 50 Posts
If it truly is a Legnano it just might be worth resurecting since it is a track/pista frame.
cdaniels is offline
Old 07-13-21, 07:15 PM
  #7
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,251
Mentioned: 349 Post(s)
Tagged: 1 Thread(s)
Quoted: 3009 Post(s)
Liked 1,699 Times in 1,223 Posts
Originally Posted by cdaniels View Post
If it truly is a Legnano it just might be worth resurecting since it is a track/pista frame.
-----

i do not doubt its realness

if you wish to consider proceeding would think first thing would be to consult a framebuilder regarding undoing the kludged seat binder repair...

still no response regarding question of markings on frame ends


-----
juvela is online now
Old 07-14-21, 02:07 AM
  #8
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 245
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 120 Times in 50 Posts
Originally Posted by juvela View Post
-----

i do not doubt its realness



still no response regarding question of markings on frame ends


-----
I can not respond because i do not physicaly have it, just photos from seller.
cdaniels is offline
Old 07-14-21, 05:24 AM
  #9
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,251
Mentioned: 349 Post(s)
Tagged: 1 Thread(s)
Quoted: 3009 Post(s)
Liked 1,699 Times in 1,223 Posts
-----

dimwit comment on me part; thank you for the patience

if unaltered, would expect rear spacing to be 110mm


-----

Last edited by juvela; 07-14-21 at 05:50 AM. Reason: addition
juvela is online now
Old 07-14-21, 06:41 AM
  #10
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 23,228
Mentioned: 629 Post(s)
Tagged: 1 Thread(s)
Quoted: 4701 Post(s)
Likes: 0
Liked 2,962 Times in 1,839 Posts
Agreed the frame appears to legitimate, with the unfortunate addition of seat tube binder ears. However, I would question the authenticity of the fork. While it is a is a track fork, it would not appear to be OEM given the different style of finishing of the blade ends relative to the frame's stay ends. An apparent replacement fork, in conjunction with a repaint, raises the probability of a crash and frame damage such as bent top and down tubes and/or misalignment. The top tube definitely looks rough in the area behind the head lug, though there is no visible bend.
T-Mar is offline
Old 07-14-21, 06:56 PM
  #11
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 245
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 120 Times in 50 Posts
I appreciate the help guys. It was sold to someone else.
