Trek 510
#1
Thread Starter
Newbie
Joined: Sep 2021
Posts: 3
Likes: 2
Bikes: '84 Trek 510, '06 Scattante R650, '13 Jamis Exile Comp
Trek 510
Hey everyone... first post alert!
I am overhauling an '84 Trek 510 that my uncle gave me.. I have put many miles on it since, and it's overdue for some love.
My front derailleur needs to be replaced, but I am thinking of dropping it to one chain ring on the front, and upgrading the rear cog set instead. Any thoughts on this? I'll mostly be using it for bombing around, and winter commuting... Keep in mind, I live in Seattle... lots of hills - but not too many on my route to work
Thanks!
I am overhauling an '84 Trek 510 that my uncle gave me.. I have put many miles on it since, and it's overdue for some love.
My front derailleur needs to be replaced, but I am thinking of dropping it to one chain ring on the front, and upgrading the rear cog set instead. Any thoughts on this? I'll mostly be using it for bombing around, and winter commuting... Keep in mind, I live in Seattle... lots of hills - but not too many on my route to work
Thanks!
#3
With the stock SR crankset, you can try taking off the outer chain ring and run the inner ring as a single,but you are pretty much stuck with a 42t as the smallest you can go. Look for a 110 bcd crank and you can then run as low as 34t on the inner. Lets see some pictures of the bike ..driveside please..and the good folks here can help you more with your goal you have in mind..John
#4
Senior Member


Joined: May 2008
Posts: 10,106
Likes: 2,757
From: Fredericksburg, Va
Bikes: ? Proteous, '65 Frejus TDF, '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, 'Litespeed Catalyst'94 Burley Duet, 97 Specialized RockHopper, 2010 Langster
Talk about what you are thinking wrt "upgrading the rear 'cog' set." What is the current spacing, 126? I would think you would want a full range of gears in Seattle, unless you are sticking to the flats. Flats in Seattle?! Queen Anne would be a challenge without two or three rings up front. guess
__________________
Bikes don't stand alone. They are two tired.
Bikes don't stand alone. They are two tired.
#5
For me in Seattle, I would fix the front derailleur and try different cranks that can do a lower tooth count small chainring, and a larger count freewheel.
In honesty, you can get around just fine with 52/42 up front and 12-28 freewheel. Queen Anne Ave. would be a little stiff going up the last stretch. lol
Have you had a chance to visit Bikeworks? they are a local nonprofit I like to shop at. I also favor Recycled Cycles.
In honesty, you can get around just fine with 52/42 up front and 12-28 freewheel. Queen Anne Ave. would be a little stiff going up the last stretch. lol
Have you had a chance to visit Bikeworks? they are a local nonprofit I like to shop at. I also favor Recycled Cycles.
#6
2k miles from the midwest
Joined: Feb 2005
Posts: 1,963
Likes: 944
From: Washington
Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...
You'll have to get a new rear wheel if you need a bigger cluster in the back, since it's a freewheel hub.
#7
Thread Starter
Newbie
Joined: Sep 2021
Posts: 3
Likes: 2
Bikes: '84 Trek 510, '06 Scattante R650, '13 Jamis Exile Comp
Thanks for the responses!

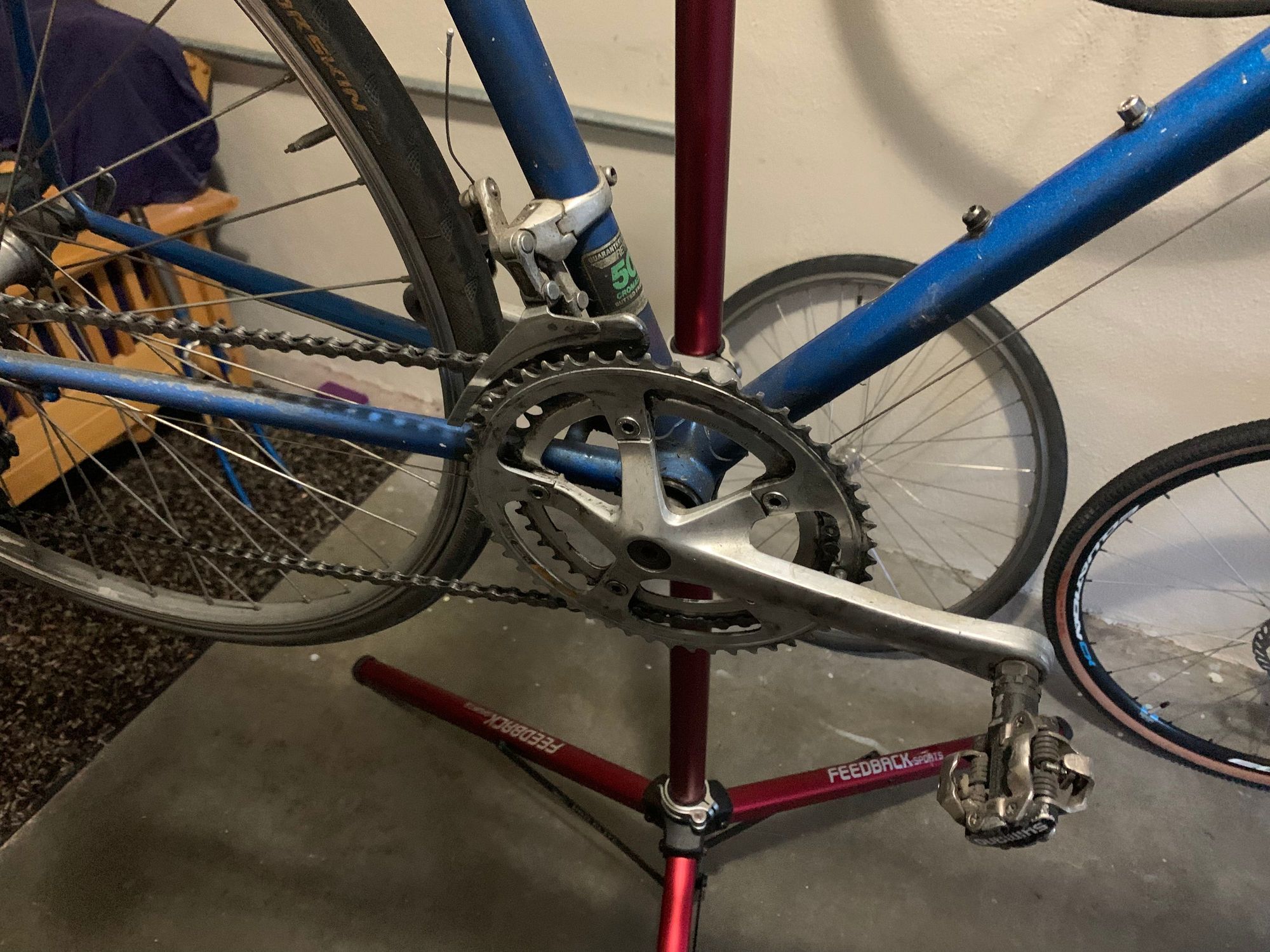

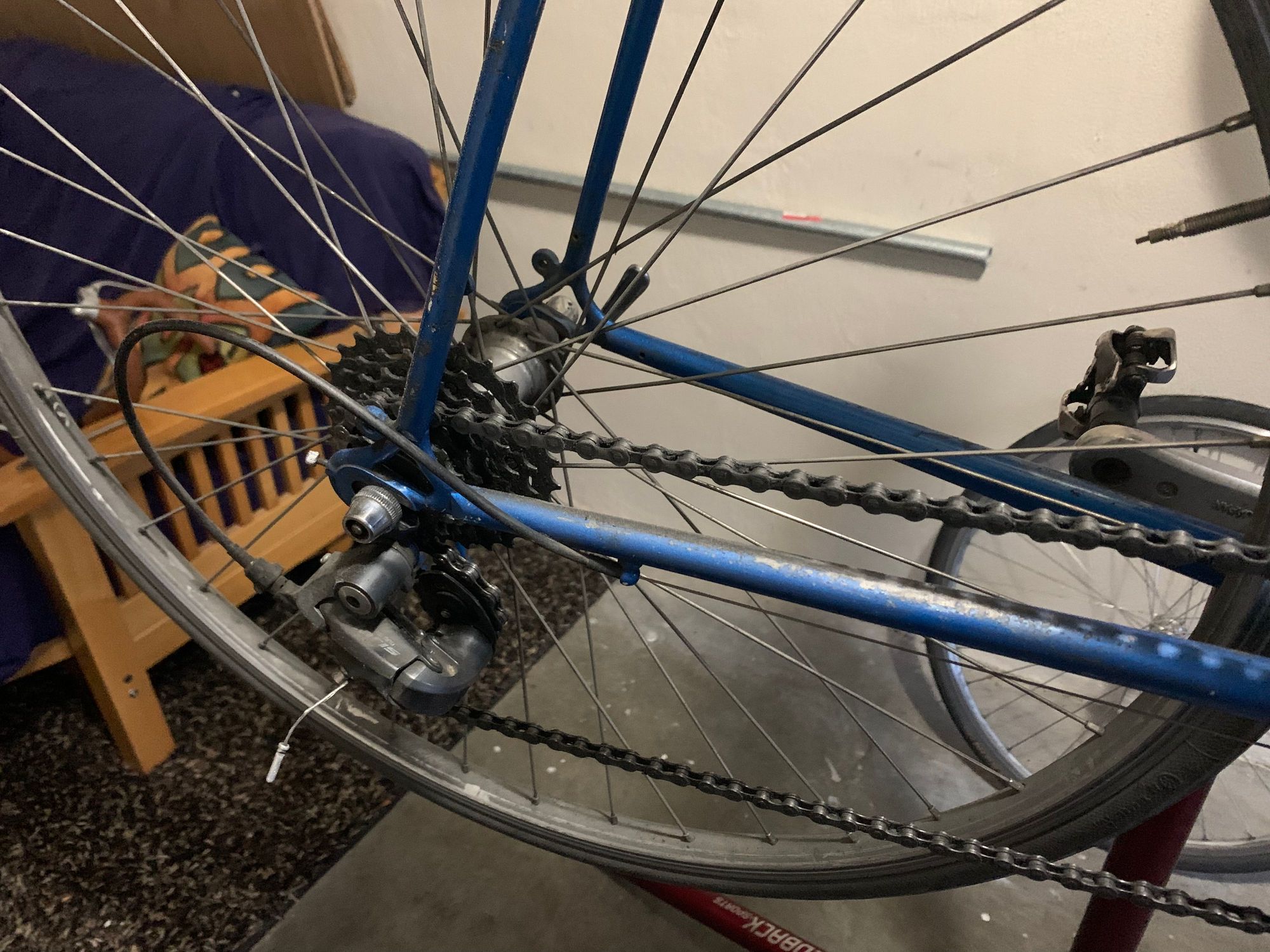

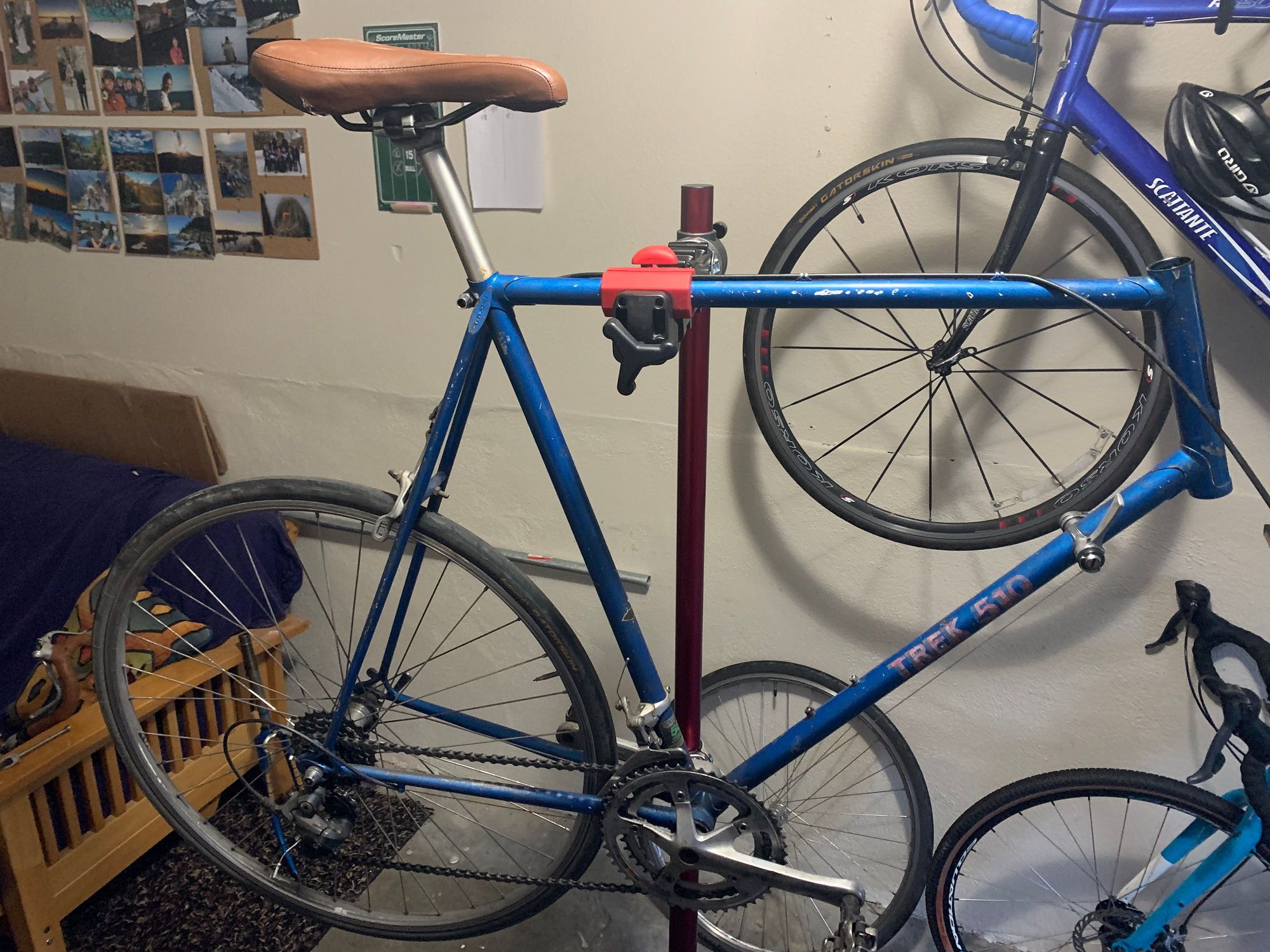

it won’t let me post the photos yet since I haven’t hit 10 posts, but I put them in my photo album - I’m not sure if you can see those?
1x is tempting for ease of maintenance, and what I’ll mostly be using it for(I don’t head up to Queen Anne too often) plus I like the style. But if I have to replace the wheel, I don’t think it will be worth it right now.
I’m in the process of replacing the headset, and I have a extra pair of integrated shifters I’m planning to put on (is it sacrilegious to bail on the down tube shifters?). Thinking of getting a brooks saddle too.
it won’t let me post the photos yet since I haven’t hit 10 posts, but I put them in my photo album - I’m not sure if you can see those?
1x is tempting for ease of maintenance, and what I’ll mostly be using it for(I don’t head up to Queen Anne too often) plus I like the style. But if I have to replace the wheel, I don’t think it will be worth it right now.
I’m in the process of replacing the headset, and I have a extra pair of integrated shifters I’m planning to put on (is it sacrilegious to bail on the down tube shifters?). Thinking of getting a brooks saddle too.
#10
Senior Member

Joined: Apr 2005
Posts: 17,196
Likes: 761
From: Ann Arbor, MI
Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8
Talk about what you are thinking wrt "upgrading the rear 'cog' set." What is the current spacing, 126? I would think you would want a full range of gears in Seattle, unless you are sticking to the flats. Flats in Seattle?! Queen Anne would be a challenge without two or three rings up front. guess
I think SJX426 is right on the money, suggesting the OP really look at the gearing you'll need. Most of my riding has been Chicago, Ann Arbor MI, and Denver CO in order of hilliness. My Chicago gearing would never have worked for me for either of my other two cities, any case not once I was older than 25 or so!
A big single could cover a range maybe 44/11, maybe 4:1. A more standard one 32/11, just less than 3:1. A front triple can gt you 53/30, a ratio of (32/11)*(53/30) =5.14:1, you''d have over 25% more range, though the gears might not be the same. Anyway, keep an open mind!
Overall, I'd suggest don't try to make this bike your ideal concept bike. Just work within what it is and make it work right, then ride it a bunch! Some simple-seeming changes need changes to the frame, and this step can get complicated.
